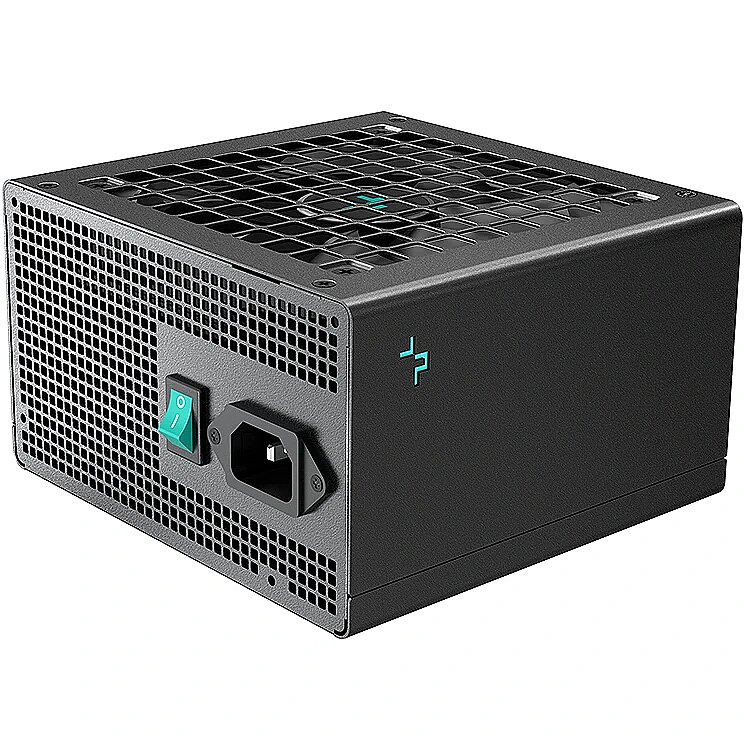

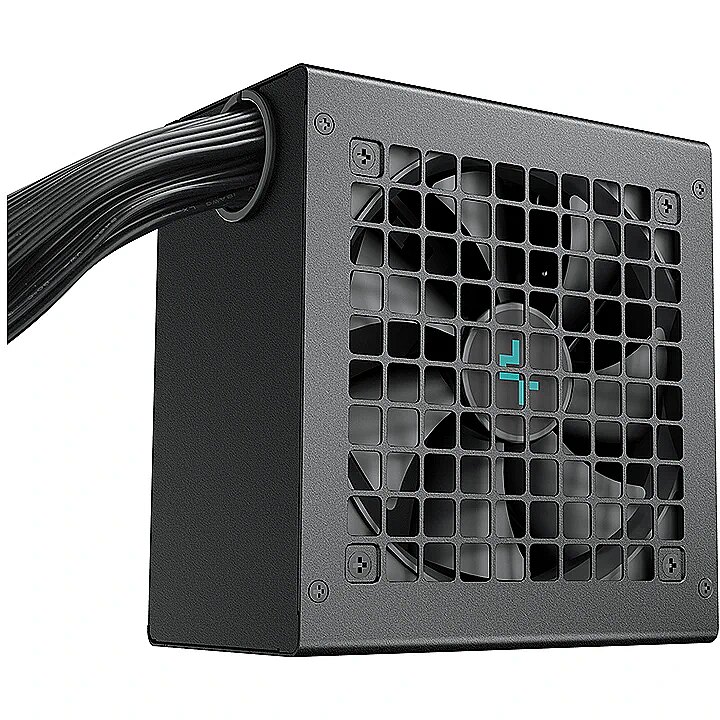

Deepcool PN850D, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Brand - Gamer Storm
BrandPartCode - R-PN850D-FC0B-JGEU-V2
Category - Power Supply Units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates - Compliance certificates - CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE, cTUVus
Code - R-PN850D-FC0B-JGEU-V2
description_en - Basic InformationCybenetics Efficiency Certification: Cybenetics GoldCybenetics Noise Level Certification: NonePower Supply Type: ATXPower Output: 850 W80 PLUS Certification: 80 PLUS GoldTotal Amperage (+12V): 70.5 AFan Size: 120 mm
FunctionalityCable Color: BlackLighting: NoneColor: BlackModular Cables: No
Ports and EquipmentPCI-E 5.0/5.1: 1 x 600W 12V-2x6 (5.1)Processor Plug-in: 2 x 8-pin (4+4) EPSMotherboard Power: 20+4pinPCI-E: 3 x 6+2pinSATA Connectors: 84-pin Molex: 2
description_lv - PamatinformācijaCybenetics Efektivitātes sertifikāts: Cybenetics GoldCybenetics Trokšņa līmeņa sertifikāts: NavBarošanas bloka tips: ATXJauda: 850 W80 PLUS sertifikācija: 80 PLUS GoldKopējā strāva (+12V): 70.5 AVentilatora izmērs: 120 mm
FunkcionalitāteKabeļa krāsa: MelnaApgaismojums: NavKrāsa: MelnaModulārie kabeļi: Nav
Porti un aprīkojumsPCI-E 5.0/5.1: 1 x 600W 12V-2x6 (5.1)Procesora spraudnis: 2 x 8-pin (4+4) EPSMātesplates barošana: 20+4pinPCI-E: 3 x 6+2pinSATA savienotāji: 84-pin Molex: 2
description_ru - Основная информацияСертификация эффективности Cybenetics: Cybenetics GoldСертификация уровня шума Cybenetics: НетТип блока питания: ATXМощность: 850 WСертификация 80 PLUS: 80 PLUS GoldОбщий ток (+12V): 70.5 AРазмер вентилятора: 120 mm
ФункциональностьЦвет кабеля: ЧерныйПодсветка: НетЦвет: ЧерныйМодульные кабели: Нет
Порты и оборудованиеPCI-E 5.0/5.1: 1 x 600W 12V-2x6 (5.1)Разъем процессора: 2 x 8-pin (4+4) EPSПитание материнской платы: 20+4pinPCI-E: 3 x 6+2pinРазъемы SATA: 84-pin Molex: 2
Design - Cooling type - Active

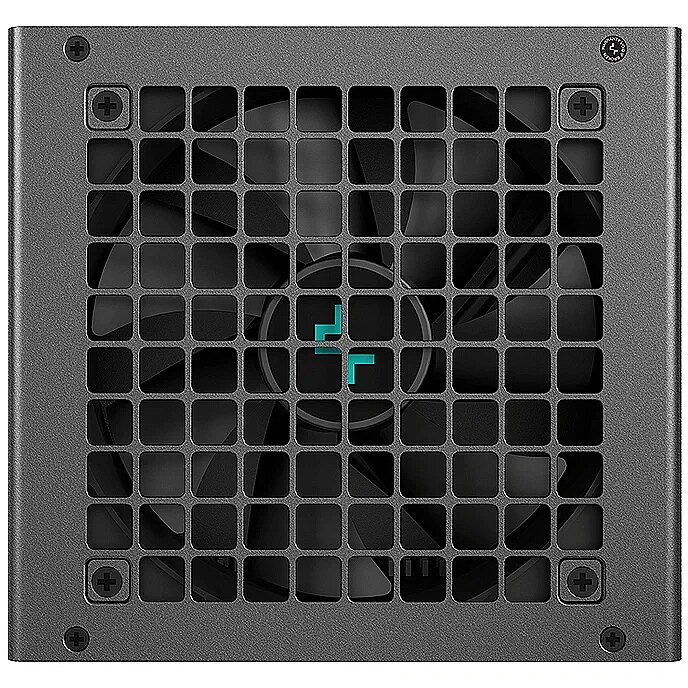

Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1509
EAN - 6933412742050
gross_weight - 2.7 kg
GTIN - 6933412742050
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PN850D-V2-ATX3.1-Direct-Power-Supply/2024/18394.shtml

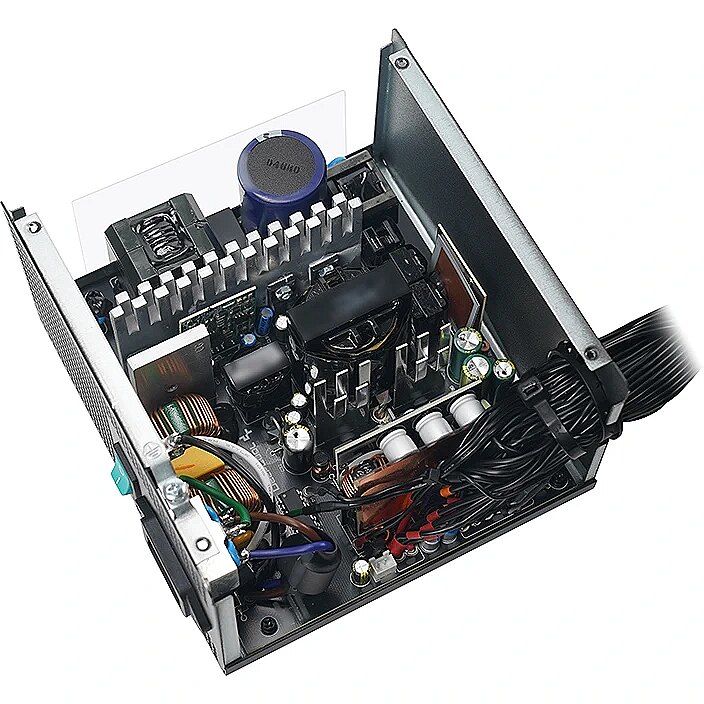

LongDesc - PN850DThe DeepCool PN850D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.PN850DNATIVE DIRECT ATX3.1FUTURE PROOFWith the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.GRACEFUL GOLD80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.POWER YOU CAN TRUSTThrough the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.PCI-E 5.1 POWEREquipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.SLEEVED CABLESThe PN850D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.DYNAMIC HYDRO BEARING FANThe PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.HIGH QUALITY BUILDDue to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.PEACE OF MINDThe PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.EXCELLENT COVERAGEThe PN850D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
LongProductName - 850 W, ATX12V V3.1, HYB, APFC, 120 mm, 20+4 Pin, 2x 4+4 Pin, 3x PCI-E (6+2) Pin, 12V-2x6 (16Pin), 8x SATA, 150 x 140 x 86 mm, Black
LongSummaryDescription - Gamer Storm PN850D. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Model -
Name - Deepcool PSU | PN850D | 850 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 419 pc(s)
Package features > Paper/Pasteboard - 250 g
Package features > Plastic (No PET) - 50 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No

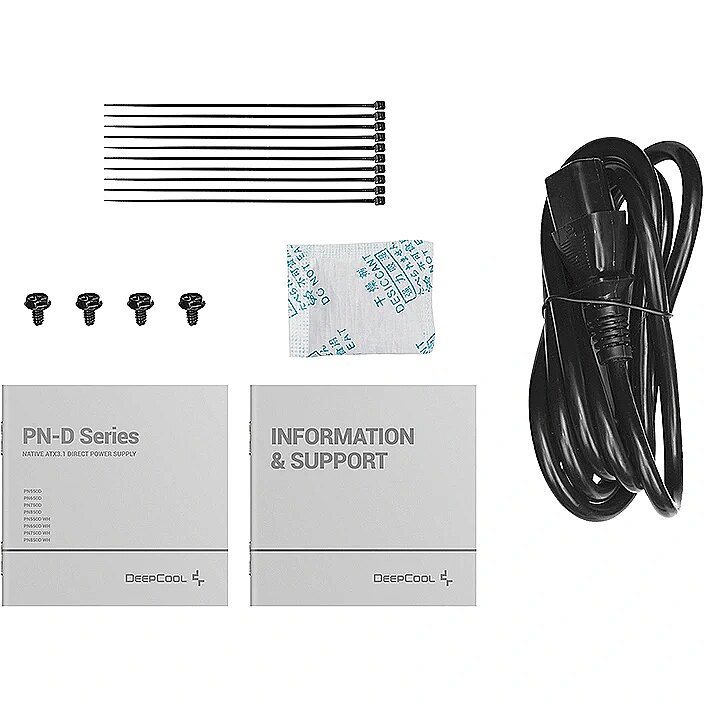

Packaging content - Cables included - AC
Packaging content - Cables included - Power
Packaging content - Cable tie(s) included - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 930 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450,570,690,810 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 846 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush, Under voltage
Power - Total power - 850 W
Power > Nominal power - 850 W
Producer - DeepCool
producerCode - R-PN850D-FC0B-JGEU-V2
productName - Deepcool PN850D 850w Gold Direct Power Supply
ProductName - PN850D
productSize - Normal
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
ShortSummaryDescription - Gamer Storm PN850D, 850 W, 100 - 240 V, 50/60 Hz, 10 - 5 A, Active, 110 W
sizeX - 123
sizeY - 310
sizeZ - 198
Technical details - Sustainability certificates - ErP
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Technical details > Producer product family - PSU
Technical details > Producer product name - PN850D
Title - Gamer Storm PN850D power supply unit 850 W 20+4 pin ATX ATX Black
title_en - Deepcool PN850D Power Supply 850W
title_lv - Deepcool PN850D Barošanas Bloks 850W
title_ru - Deepcool PN850D Блок Питания 850W
URL - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PN850D-V2-ATX3.1-Direct-Power-Supply/2024/18394.shtml
Warranty - 120
Warranty - 120 month(s)
WarrantyInfo - 10 Years
warrantyLength - 24
warrantyType - G
weight - 2.4 kg
weight - 2596
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
