ID: 1209361
Tuotekoodi: R-PN750D-FC0B-JGEU-V2
Varastossa 35 yksiköt
Takuu: 2 vuotta

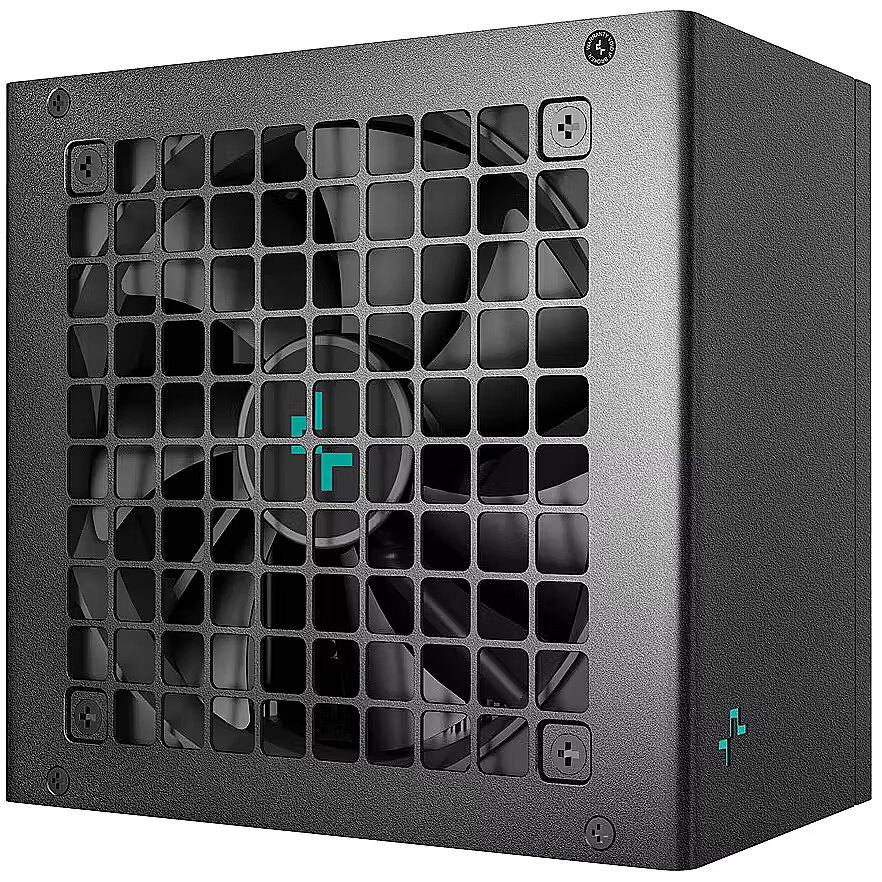

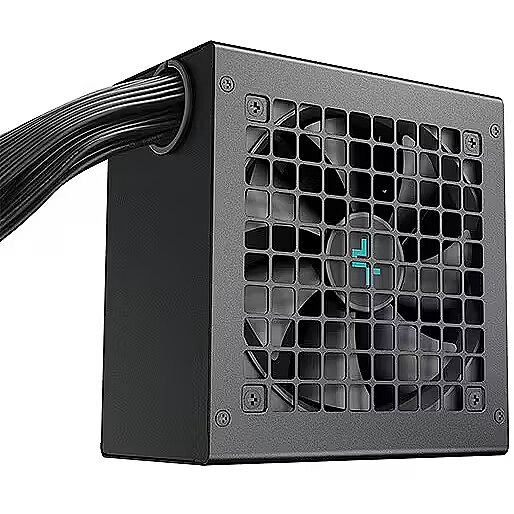

Deepcool PN750D, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Deepcool
- Teho: 750W
- 80 PLUS -sertifiointi: 80 PLUS Gold
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Cybenetics Gold
Virtalähteen tyyppi
: ATX
Teho
750W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Gold
Kokonaisvirta (+12V)
: 62.5A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0/5.1
: 1 x 450W 12V-2X6 (5.1)
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 3 x 6+2pin
SATA-liittimet
: 8
4pin Molex
: 2
Tietokonekotelo
Yksityiskohtaisempi erittely
Certificates - Certification - CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - WEEE
Code - R-PN750D-FC0B-JGEU-V2

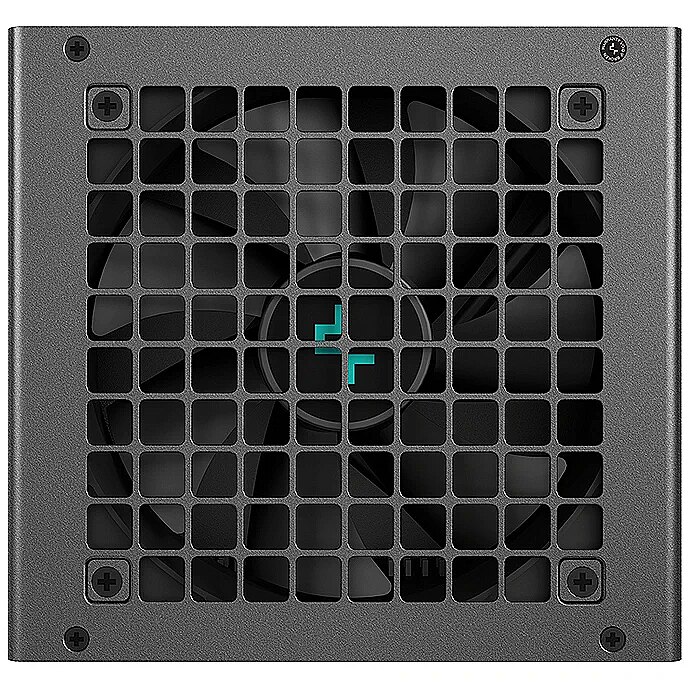

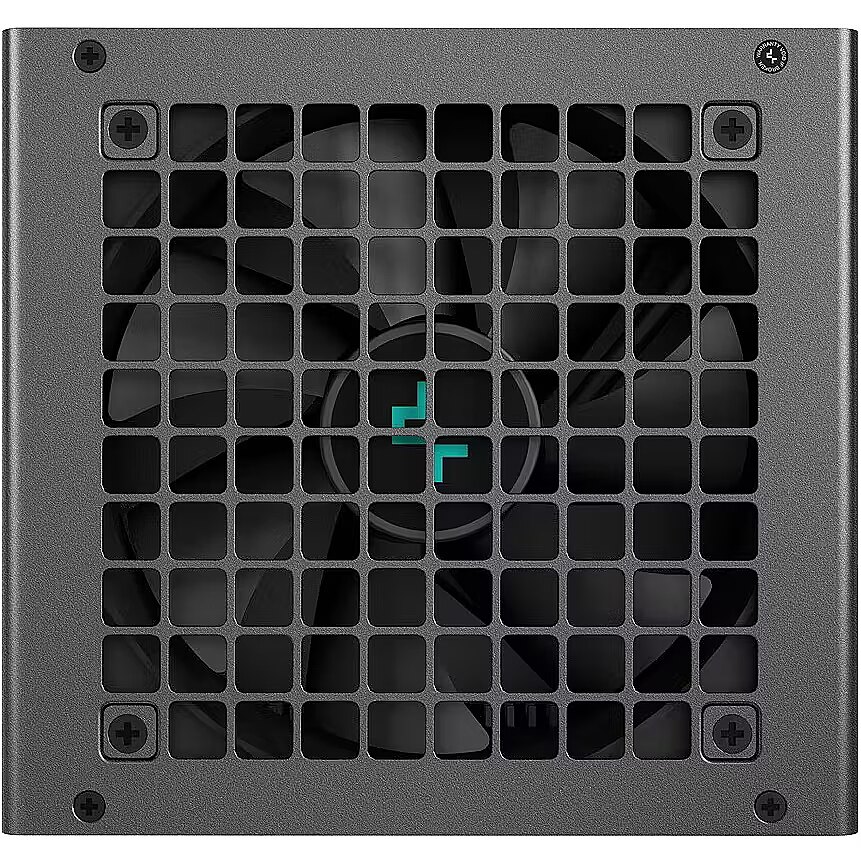

Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)

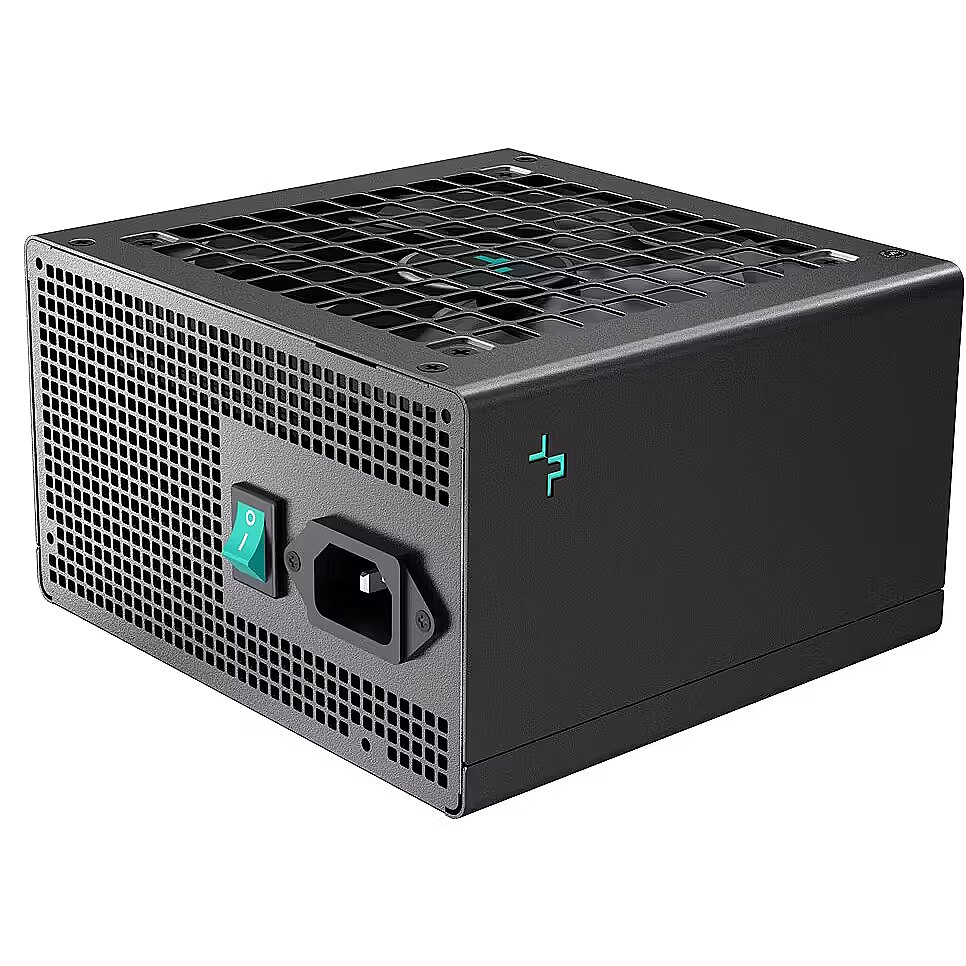

Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1423
EAN - 6933412722021
Name - Deepcool PN750D Gold PSU
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power cable length - 54 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 80%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 750 W
producerCode - R-PN750D-FC0B-JGEU-V2
productName - Deepcool PN750D 750w Gold Direct PSU
productSize - Normal
sizeX - 115
sizeY - 311
sizeZ - 199
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 24
warrantyType - G
weight - 2556
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
