Brand - ASUS
BrandPartCode - 90YE00V1-B0NA00
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
code - 90YE00V1-B0NA00
Design - Built-in display - Yes
Design - Cooling type - Active
Design - Display type - OLED
Design - Illumination - Yes

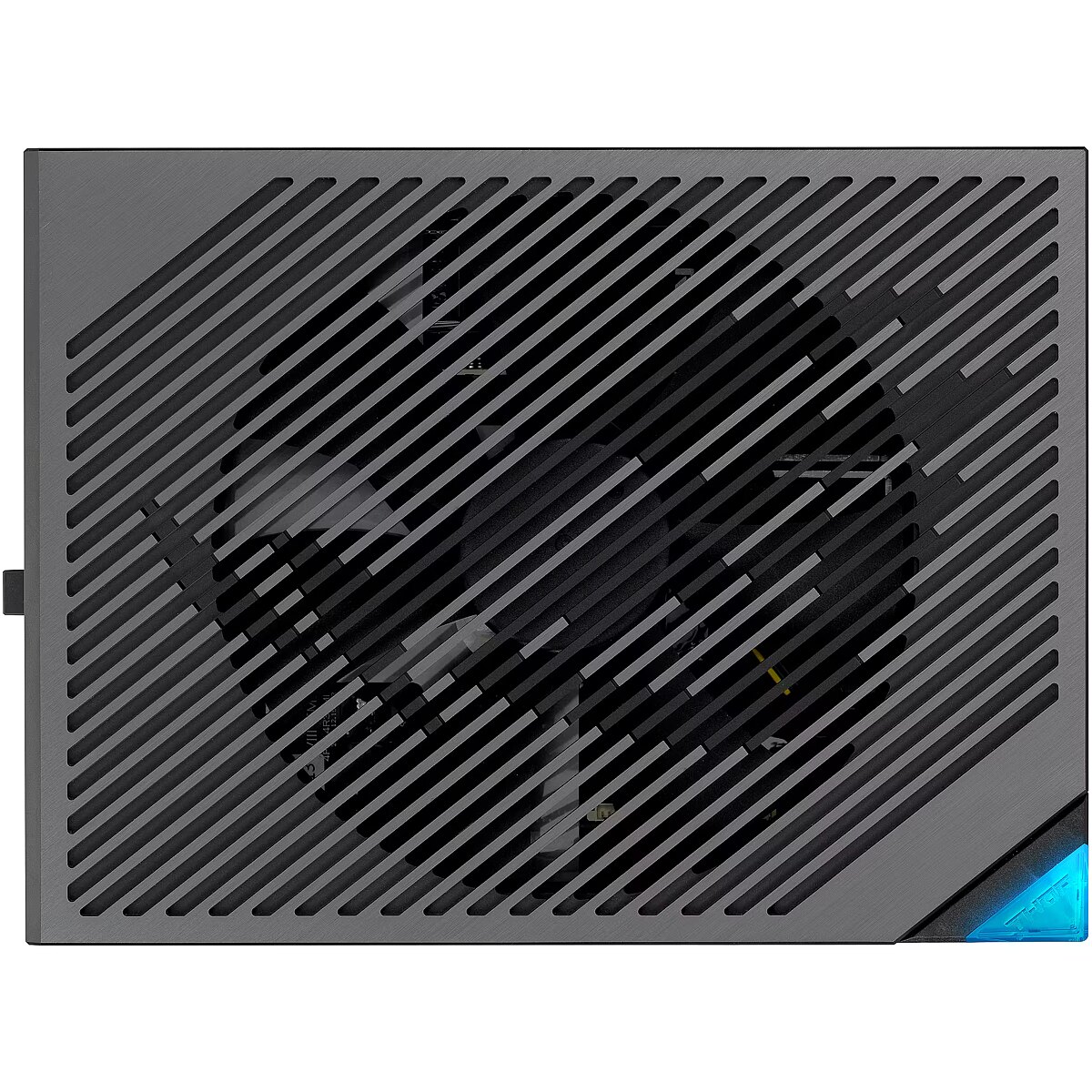

Design - Number of fans - 1 fan(s)

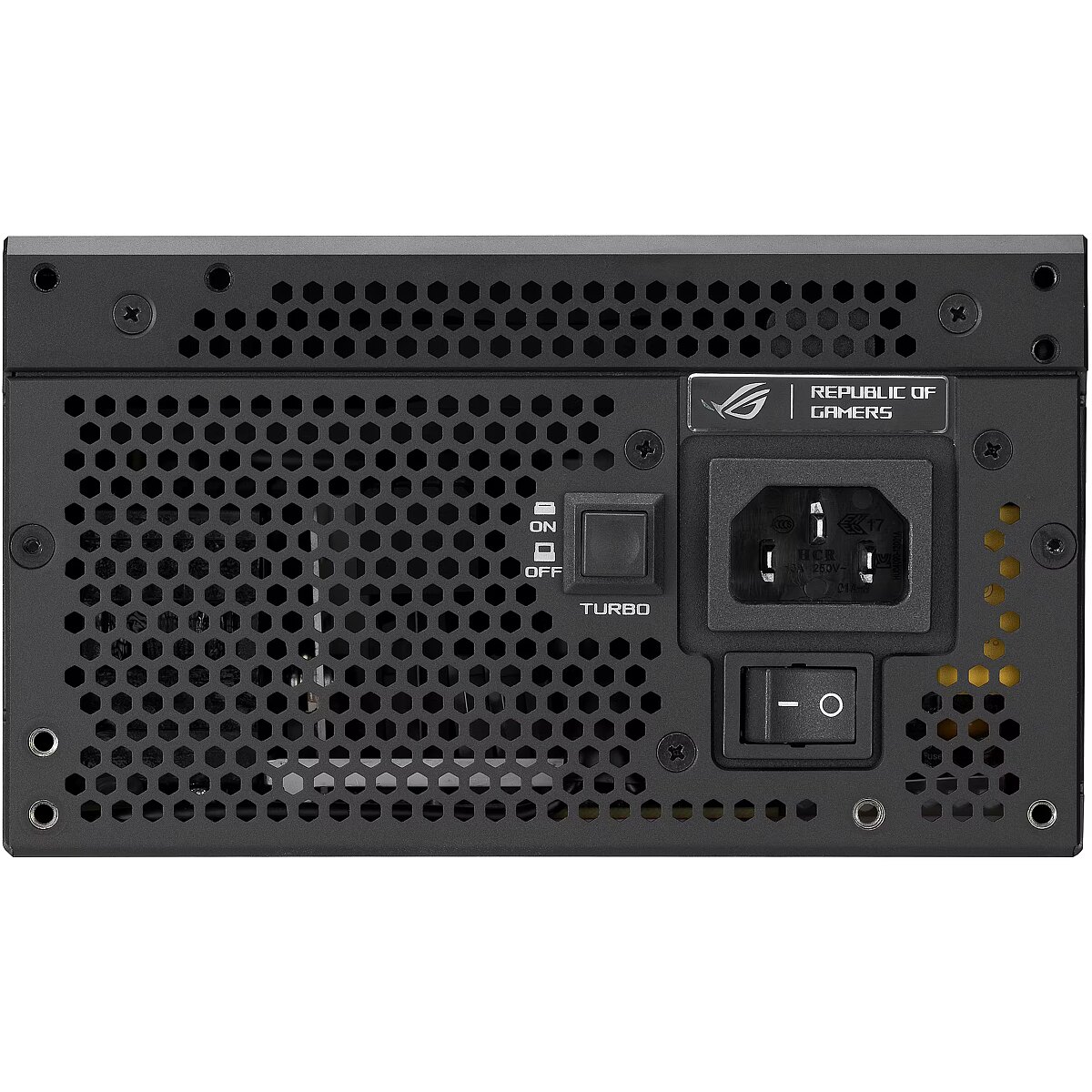

Design - On/off switch - Yes
Design - Product colour - Grey
dimensionalWeight - 3366
ean - 4711387610299
GTIN - 4711387610299

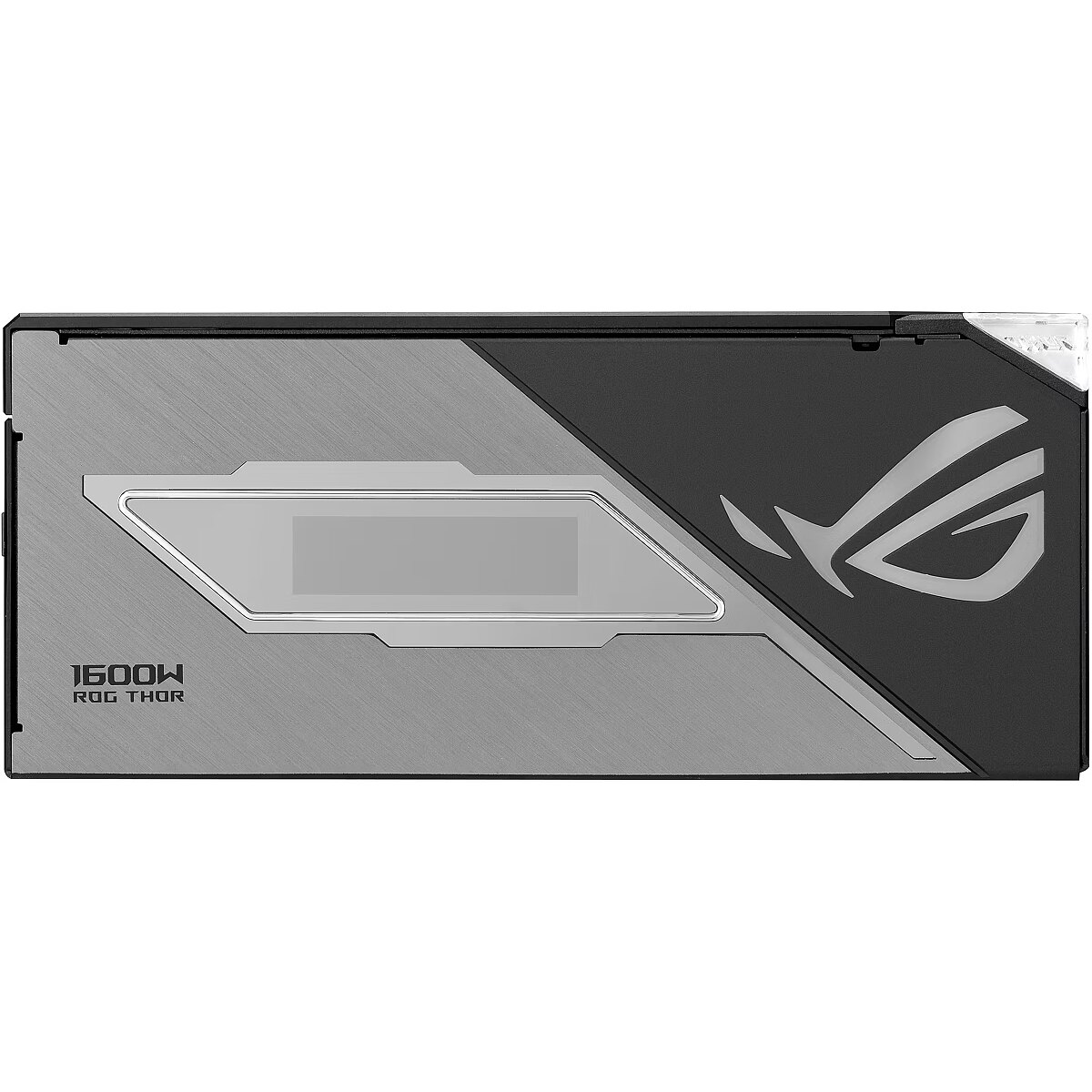

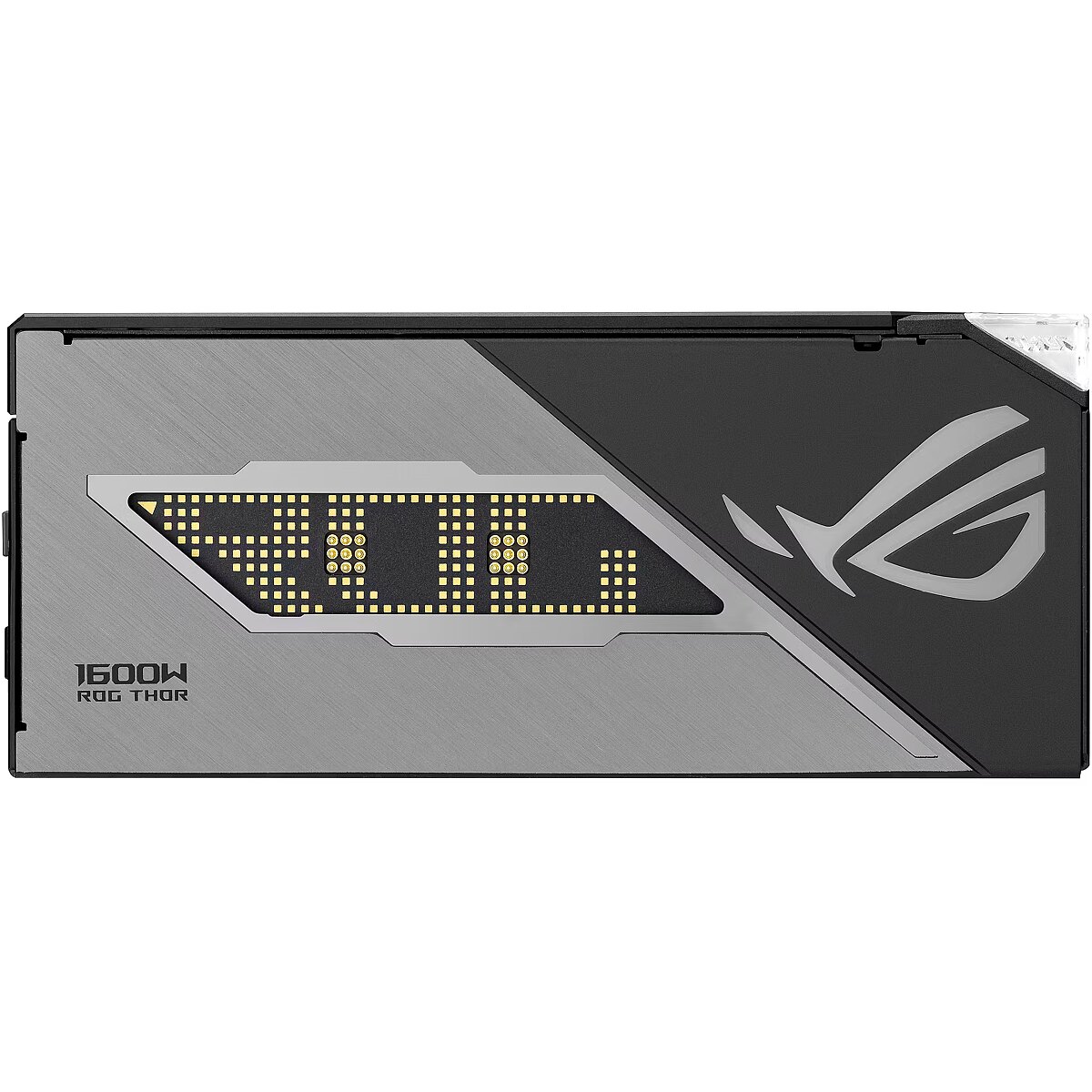

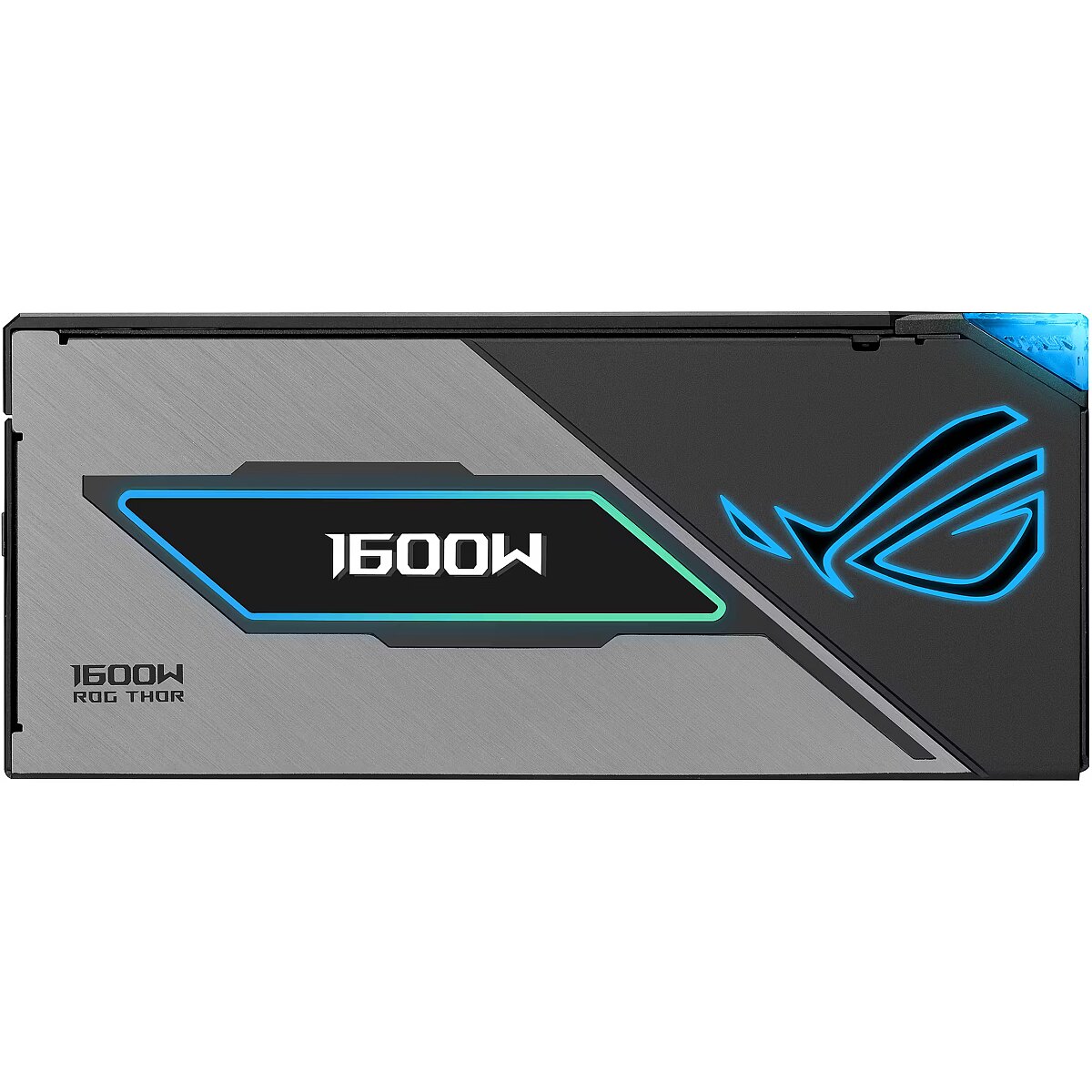

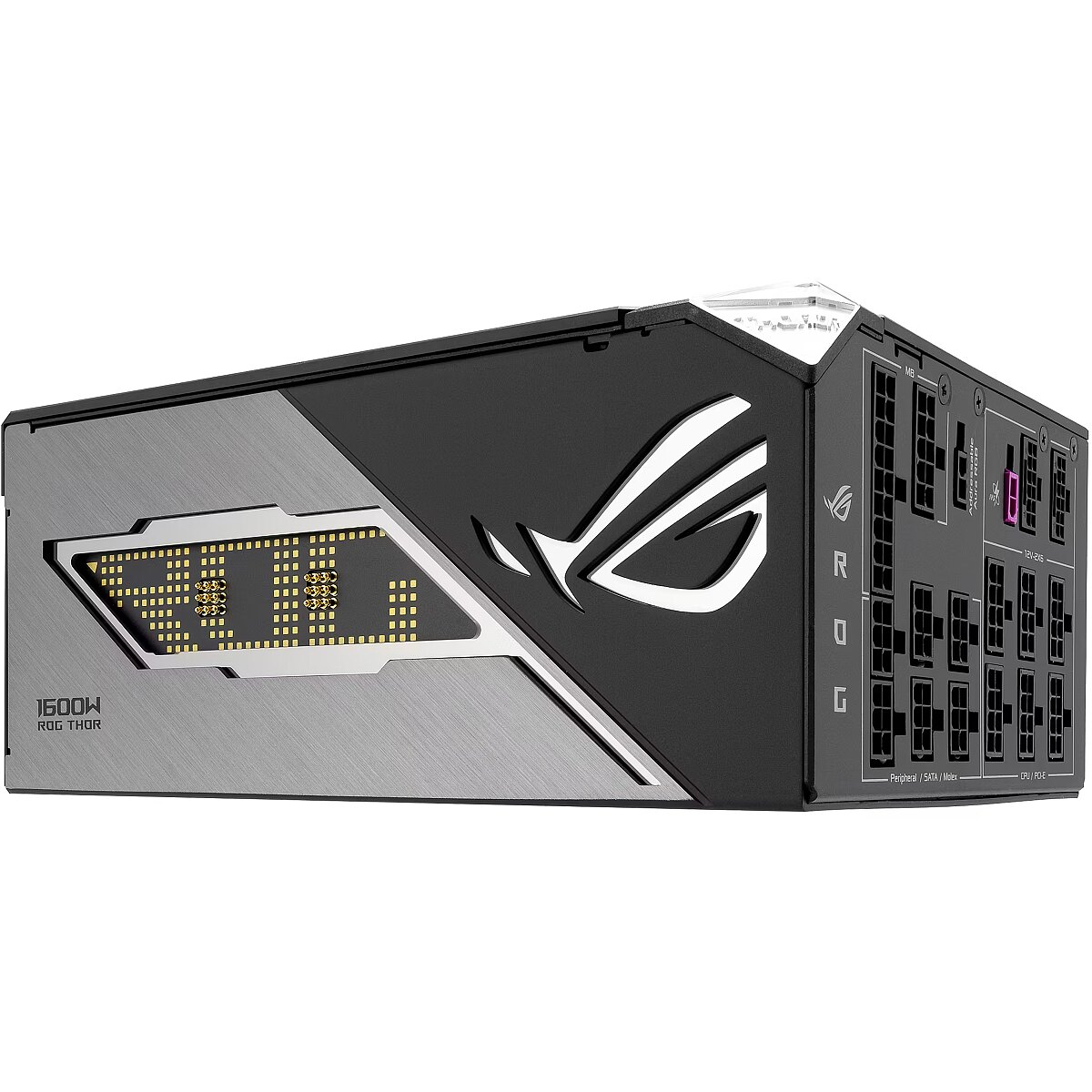

LongDesc - ULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
LongProductName - ROG THOR 1600W Titanium III, GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display
LongSummaryDescription - ASUS ROG -THOR-1600T3-GAMING. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Grey, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
name - ASUS ROG Thor Titanium III, 80 PLUS Titanium Netzteil, modular PCIe 5.1 - 1600 Watt
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 251 mm
Packaging data - Package height - 159 mm
Packaging data - Package type - Box
Packaging data - Package weight - 6.3 kg
Packaging data - Package width - 390 mm
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes

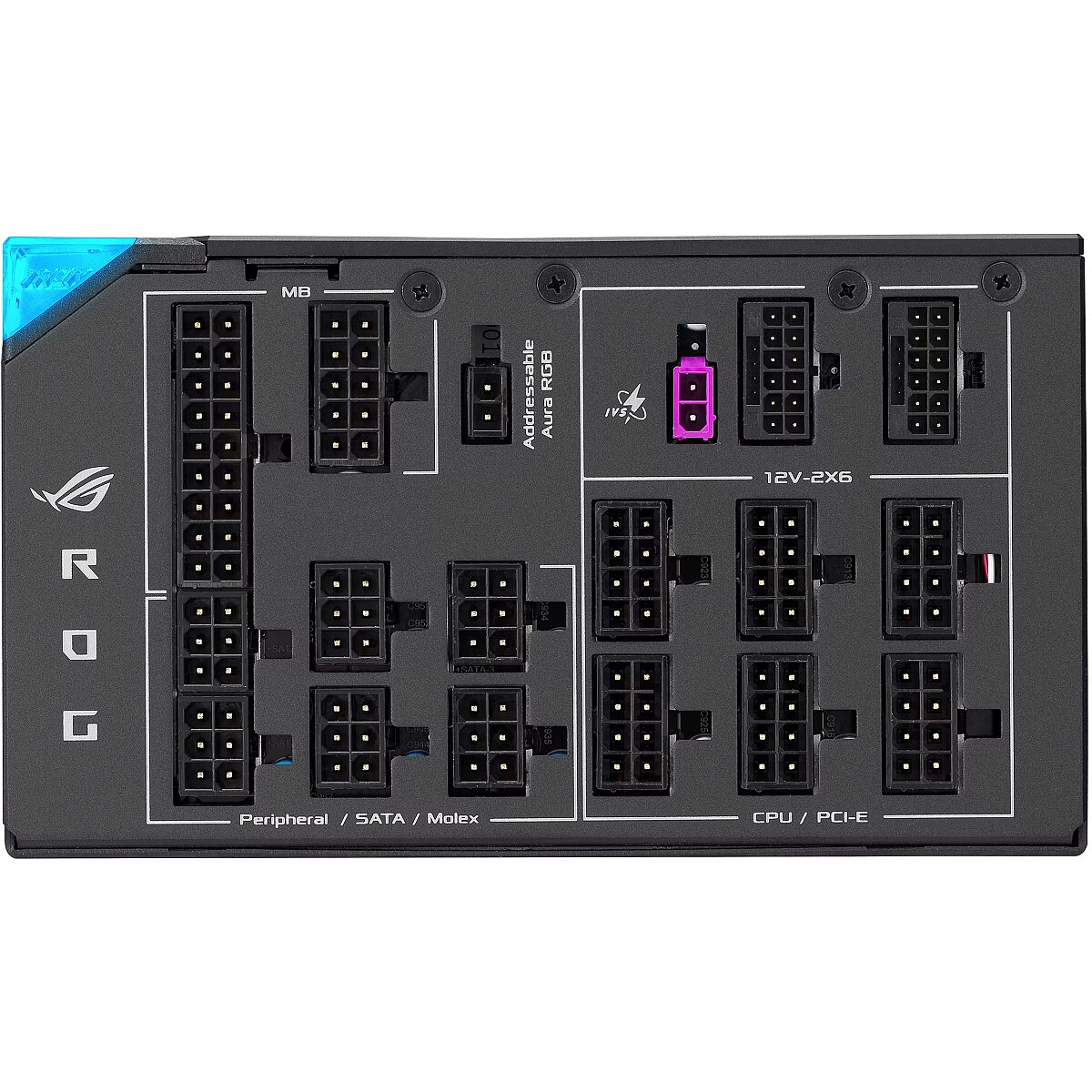

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 10
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 9
Ports & interfaces - SATA power cable length - 120,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1600 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 133.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1600 W
producerCode - 90YE00V1-B0NA00
productName - ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
ProductName - ROG-THOR-1600T3-GAMING
productSize - Normal
ShortSummaryDescription - ASUS ROG -THOR-1600T3-GAMING, 1600 W, 100 - 240 V, Active, 125 W, 1600 W, 125 W
sizeX - 400
sizeY - 255
sizeZ - 165
Title - ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1600t3-gaming/
WarrantyInfo - 10-year warranty included
warrantyLength - 120
warrantyType - G
weight - 6125
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.8 kg
Weight & dimensions - Width - 200 mm
