ID: 1151672
Tuotekoodi: GP-P550SS ICE GEU1
Varastossa >50 yksiköt
Takuu: 3 vuotta

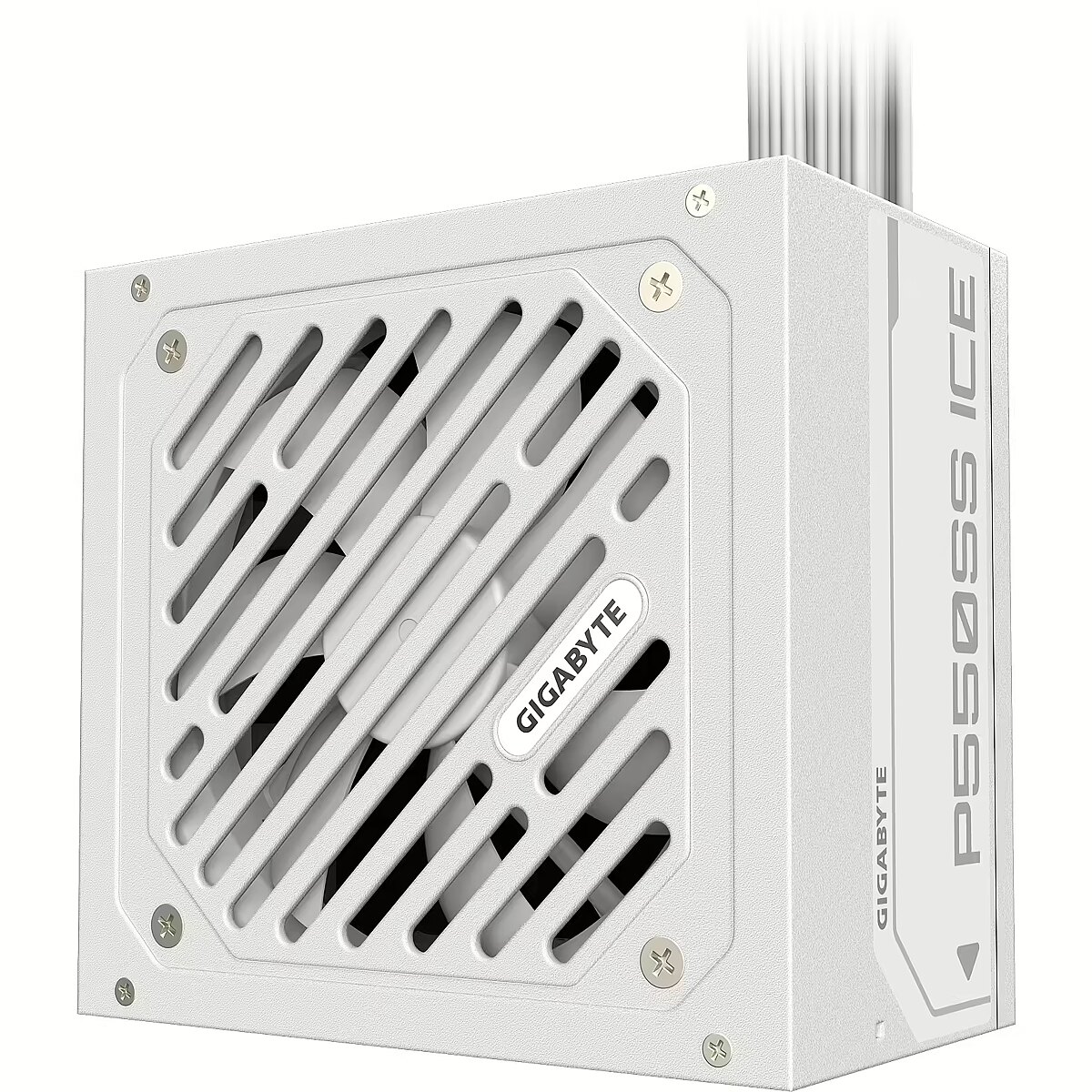

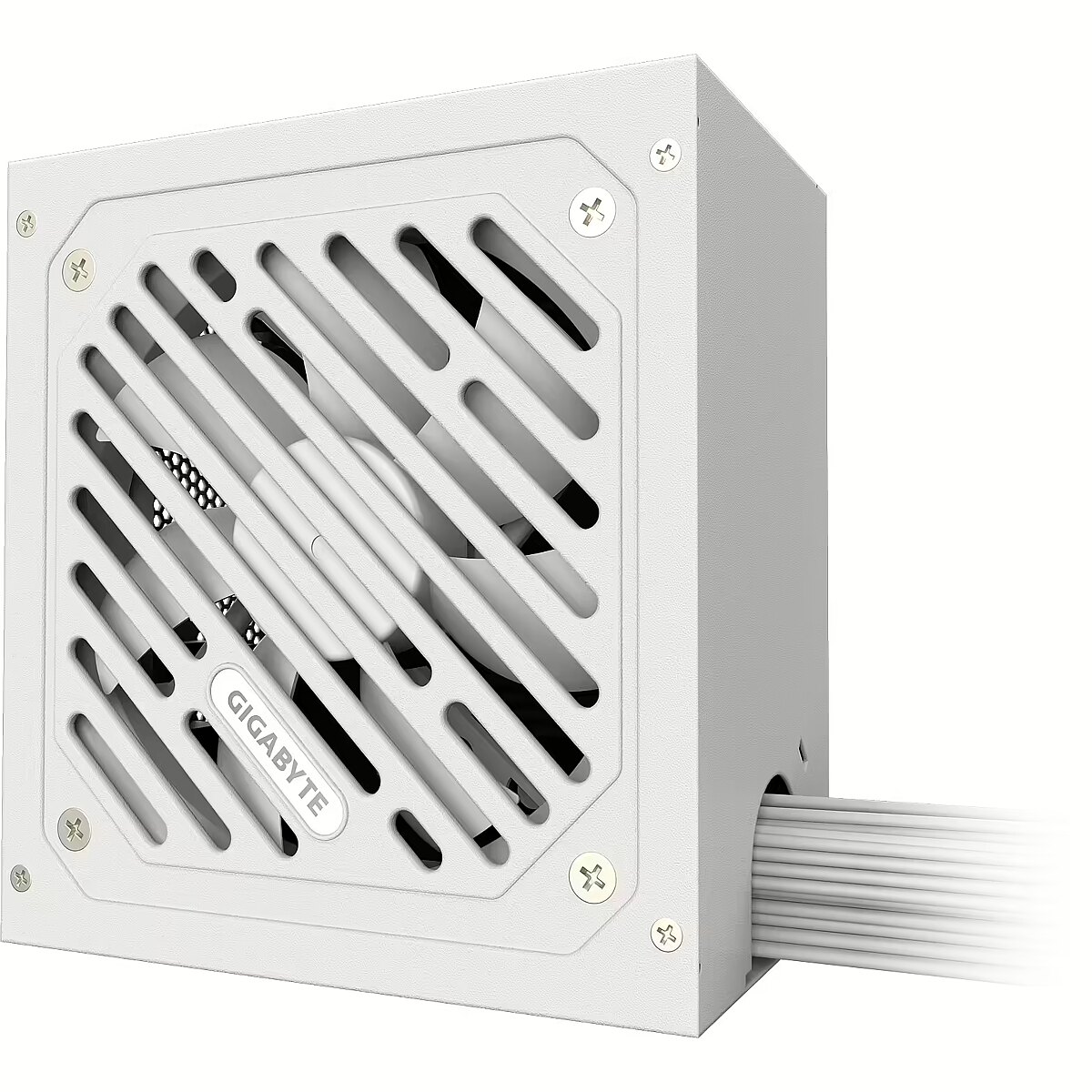

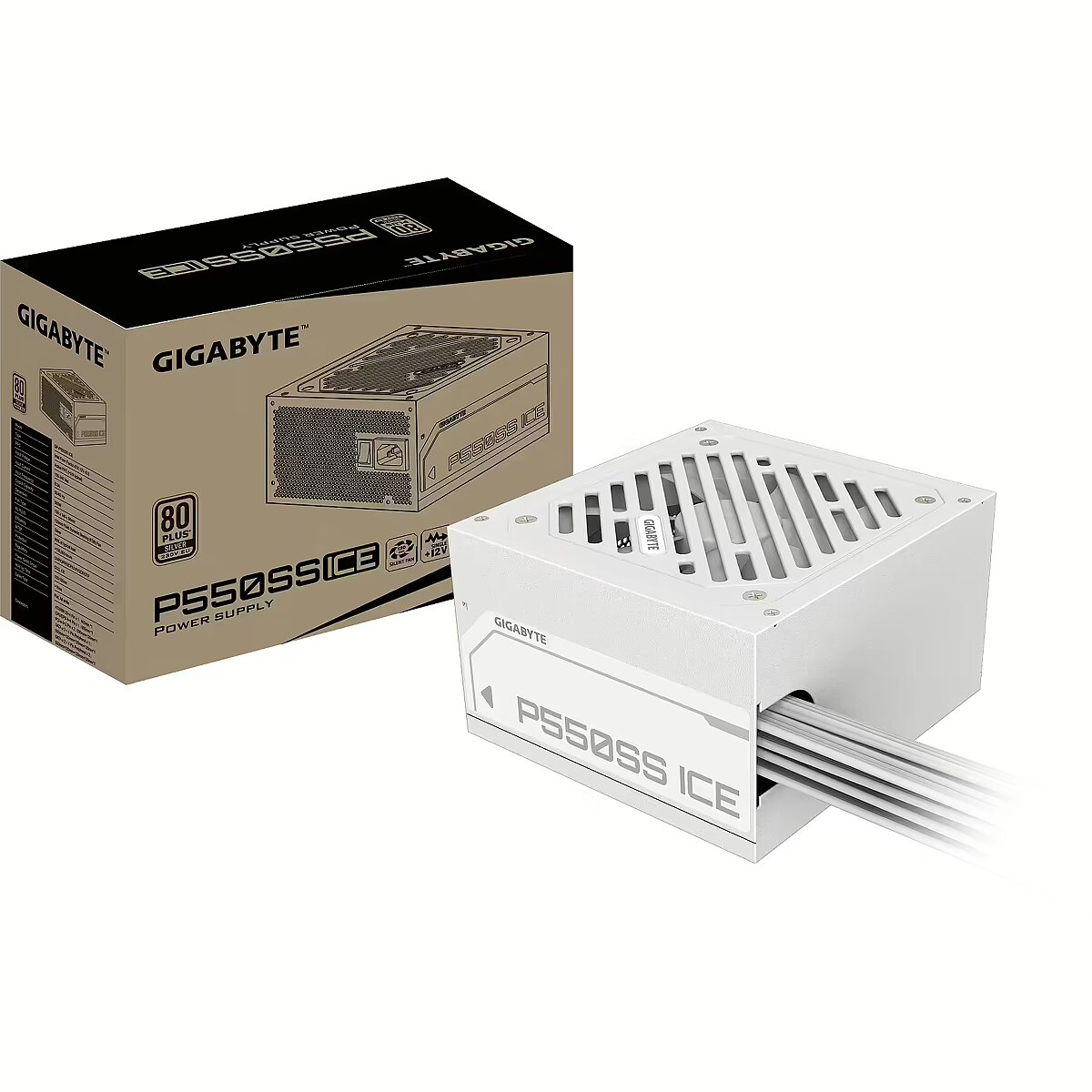

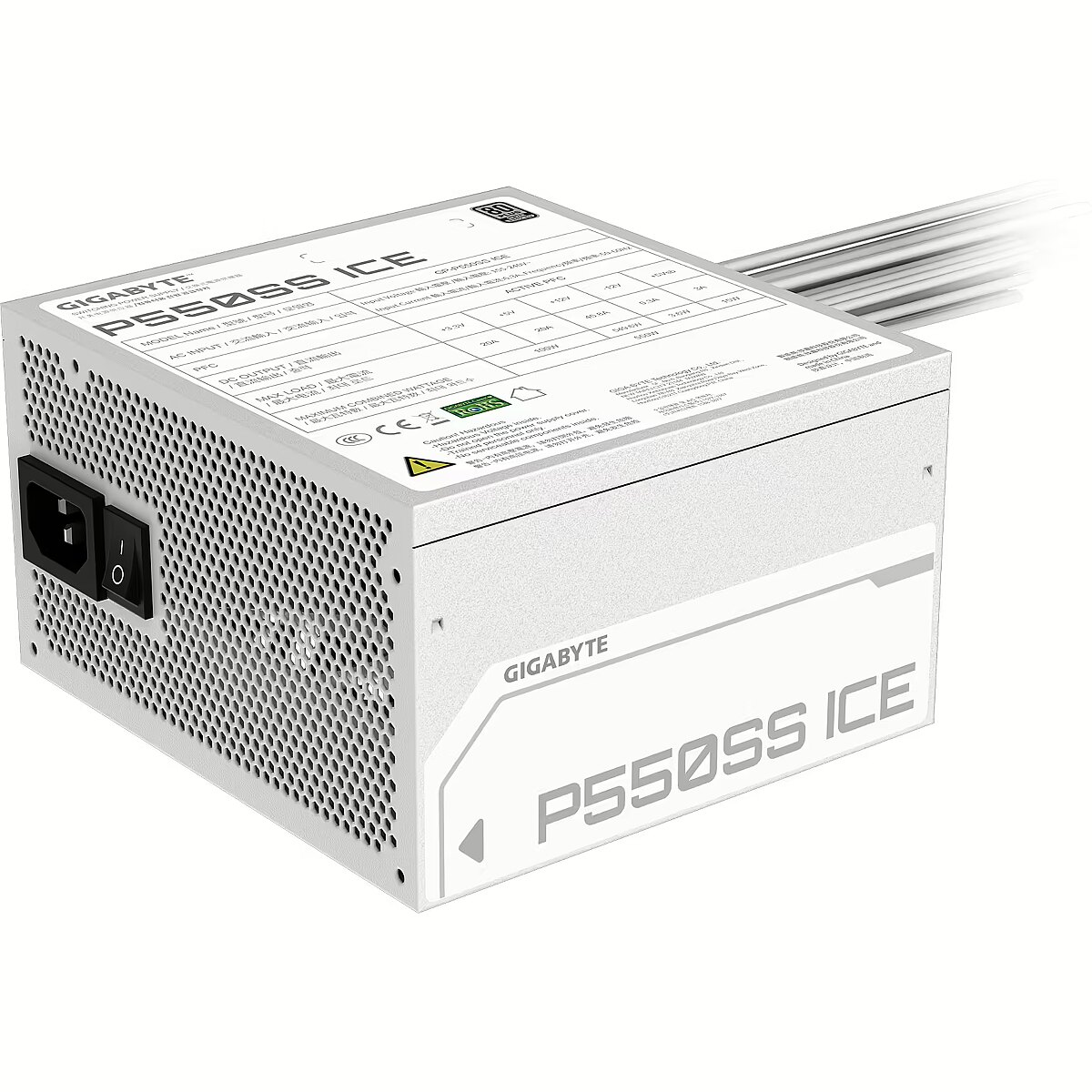

Gigabyte GP-P550SS ICE, 550W, 80PLUS Silver
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Gigabyte
- Teho: 550W
- 80 PLUS -sertifiointi: 80 PLUS Silver
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kuvaus
Ostettavissa on Gigabyte-valmistajan virtalähde, jonka 550W teho. Tuotteelle on myönnetty 80 PLUS Silver -energiatehokkuussertifikaatti.
550W teho riittää peruskäyttöön, kuten tietokonepelaamiseen, verkkoselaamiseen ja Office-sovellusten käyttöön. Yksikkö on suunniteltu tietokoneelle, jossa on budjettiprosessori, integroitu näytönohjain, pieni SSD tai kovalevy. Jos päätät päivittää tietokonettasi tulevaisuudessa, sinun tulisi ehdottomasti harkita tehokkaamman virtalähteen hankkimista.

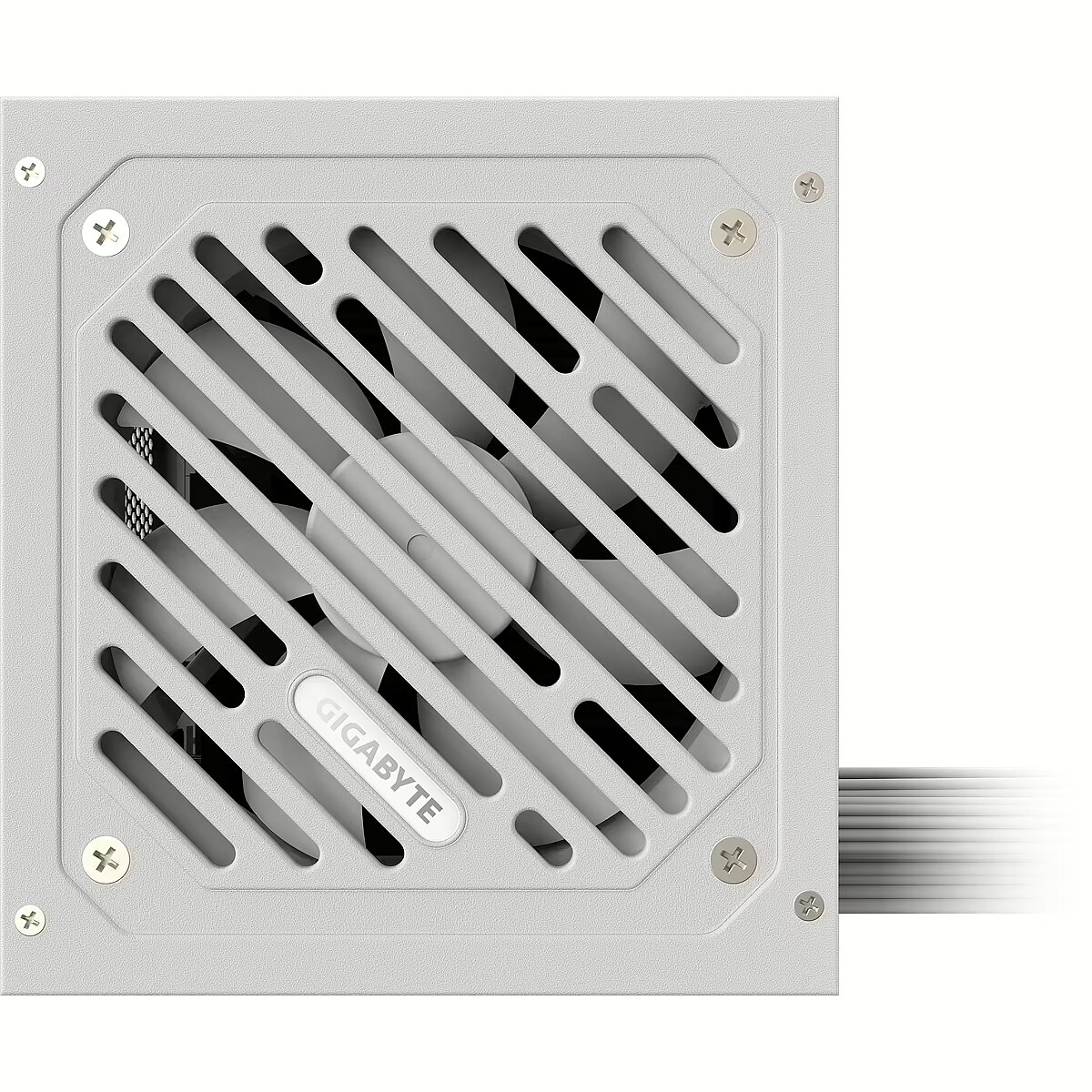

120 mm tuulettimet, joilla tämä virtalähde on varustettu, takaavat teollisuusstandardin mukaisen hiljaisen toiminnan. Erityisen hiljaista virtalähteen toimintaa varten suosittelemme hankkimaan 135 mm tai 145 mm halkaisijan tuulettimen.
80 PLUS Silver -energiankäytön tehokkuustodistus, jonka tämä virtalähde on saanut, takaa vähintään 88% tehokkuuden 50% kuormituksella. Toisin sanoen, jokaisesta 100 W energiasta, jonka virtalähde saa sähköverkosta, vähintään 88 W saavuttaa tietokoneesi komponentit, kun taas loput 12 W menetetään lämpönä.
Tämän virtalähteen väri on Balta. Kaapelin väri on Balta ja ne ovat litteitä.
Tämä on virtalähde, joka täyttää ATX 2.0 -vaatimukset. Virtalähteessä on vain
Virtalähdeyksikkö
Virtalähteen valmistaja on Gigabyte. Kaikki Gigabyte valmistamat virtalähteet voidaan nähdä täältä.
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
550W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Silver
Kokonaisvirta (+12V)
: 45.8A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Valkoinen
Valaistus
: Ei ole
Väri
: Valkoinen
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0/5.1
: Nav
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA-liittimet
: 5
4pin Molex
: 3
Tietokonekotelo
Yksityiskohtaisempi erittely
80 PLUS certification Performance - 80 PLUS Silver
AC input frequency Power - 50/60 Hz
AC input voltage Power - 155-240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.1
Bearing technology Performance - Ball bearing
Brand - GIGABYTE
BrandPartCode - GP-P550SS ICE EU
Cabling type Ports & interfaces - Non-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category Code - PSU
Code - GP-P550SS ICE
Code - GP-P550SS ICE GEU1
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 549.6 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 150 mm
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus Silver, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 5, MOLEX PATA pieslēgumi: 1, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Ice white aesthetics80 PLUS Silver certified (230V EU)Support Intel ATX 3.0 standard (compatible with ATX 3.1)120mm Fluid Dynamic Bearing (FDB) FanFlat cable designPowerful single +12V railOVP/OPP/SCP/UVP/OCP/OTP protection
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
EAN - 4719331554910
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Fan location Design - Top
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 2
GTIN - 4719331554910
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 6.3 A
LargeDescHTML -
Link - https://www.gigabyte.com/Power-Supply/GP-P550SS-ICE#kf
Logistics data - Warranty period - 3 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm

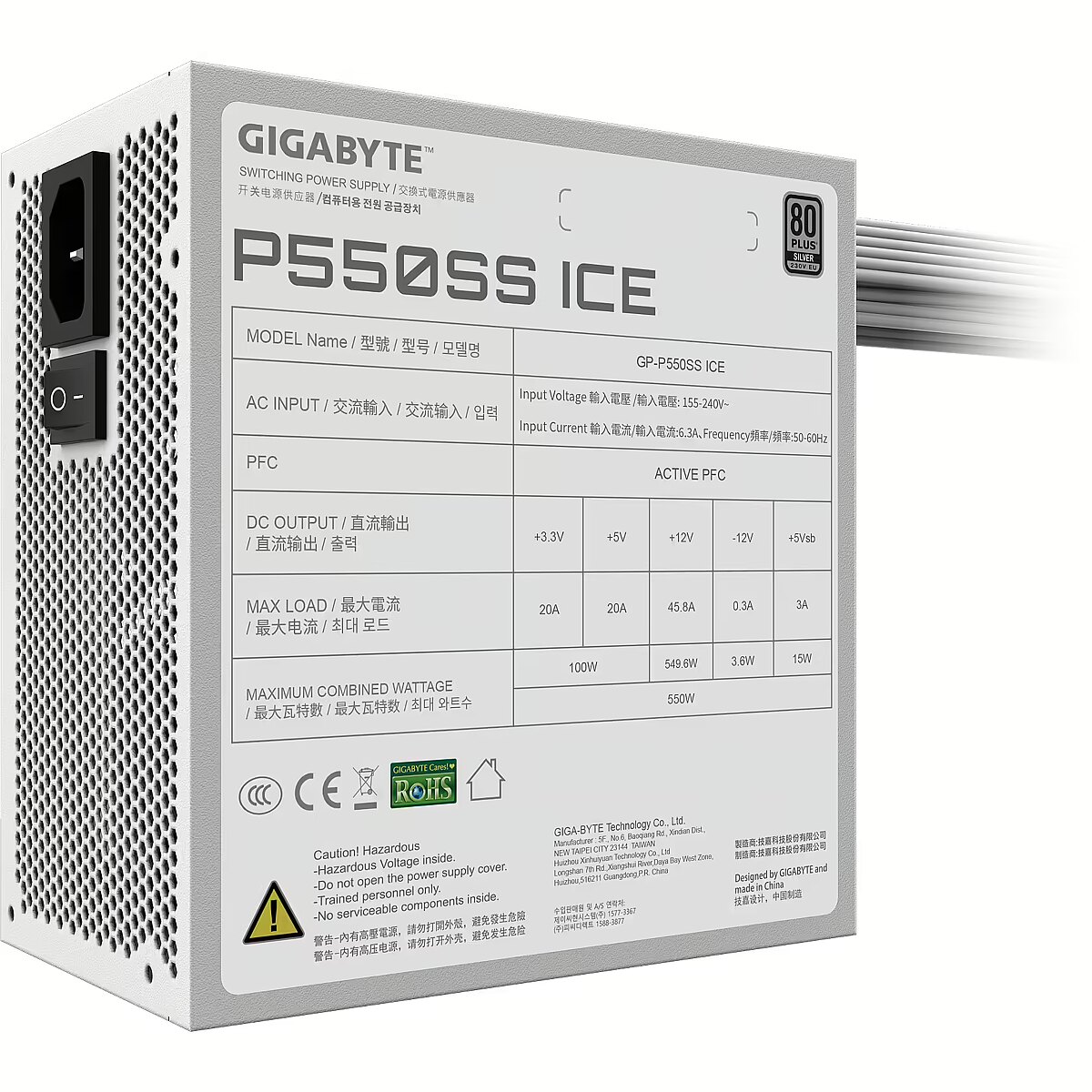

Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 45.8 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - GP-P550SS ICE
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte Gigabyte P550SS 550W 80+ Silver Ice
Name - Gigabyte PSU | GP-P550SS ICE GEU1 | 550 W
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
Package depth Packaging data - 206 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 457 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.19 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 117 mm
Package type Packaging data - Box
Package weight Packaging data - 2110 g
Package width Packaging data - 254 mm
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.11 kg
Packaging data - Package width - 254 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Silver
Performance - ATX version - 3.1
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 155-240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 549.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 45.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
Power Factor Correction (PFC) type Power - Active
Power Good signal delay range Power - 100 - 150 ms
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - White
ProductName - P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Purpose Performance - PC
ShortSummaryDescription - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug, 550 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W
Summary - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Technical details > Gross weight - 2.19 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - PSU
Technical details > Producer product name - GP-P550SS ICE GEU1
Title - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Total power Power - 550 W
Unit Box Height - 0.118
Unit Box Length - 0.255
Unit Box Width - 0.226
Unit Calculated Volume - 0.007502 cubm
Unit Calculated Weight - 2.19 kg
Units per Shipping Box - 5
URL - https://www.gigabyte.com/
Vendor Homepage - https://www.gigabyte.com/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Logistics data - 3 year(s)
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.95 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1950 g
Width Weight & dimensions - 140 mm
AC input frequency Power - 50/60 Hz
AC input voltage Power - 155-240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.1
Bearing technology Performance - Ball bearing
Brand - GIGABYTE
BrandPartCode - GP-P550SS ICE EU
Cabling type Ports & interfaces - Non-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category Code - PSU
Code - GP-P550SS ICE
Code - GP-P550SS ICE GEU1
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 549.6 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 150 mm
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus Silver, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 5, MOLEX PATA pieslēgumi: 1, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Ice white aesthetics80 PLUS Silver certified (230V EU)Support Intel ATX 3.0 standard (compatible with ATX 3.1)120mm Fluid Dynamic Bearing (FDB) FanFlat cable designPowerful single +12V railOVP/OPP/SCP/UVP/OCP/OTP protection
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
EAN - 4719331554910
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Fan location Design - Top
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 2
GTIN - 4719331554910
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 6.3 A
LargeDescHTML -
Link - https://www.gigabyte.com/Power-Supply/GP-P550SS-ICE#kf
Logistics data - Warranty period - 3 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 45.8 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - GP-P550SS ICE
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte Gigabyte P550SS 550W 80+ Silver Ice
Name - Gigabyte PSU | GP-P550SS ICE GEU1 | 550 W
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
Package depth Packaging data - 206 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 457 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.19 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 117 mm
Package type Packaging data - Box
Package weight Packaging data - 2110 g
Package width Packaging data - 254 mm
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.11 kg
Packaging data - Package width - 254 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Silver
Performance - ATX version - 3.1
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 155-240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 549.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 45.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
Power Factor Correction (PFC) type Power - Active
Power Good signal delay range Power - 100 - 150 ms
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - White
ProductName - P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Purpose Performance - PC
ShortSummaryDescription - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug, 550 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W
Summary - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Technical details > Gross weight - 2.19 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - PSU
Technical details > Producer product name - GP-P550SS ICE GEU1
Title - GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Total power Power - 550 W
Unit Box Height - 0.118
Unit Box Length - 0.255
Unit Box Width - 0.226
Unit Calculated Volume - 0.007502 cubm
Unit Calculated Weight - 2.19 kg
Units per Shipping Box - 5
URL - https://www.gigabyte.com/
Vendor Homepage - https://www.gigabyte.com/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Logistics data - 3 year(s)
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.95 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1950 g
Width Weight & dimensions - 140 mm
