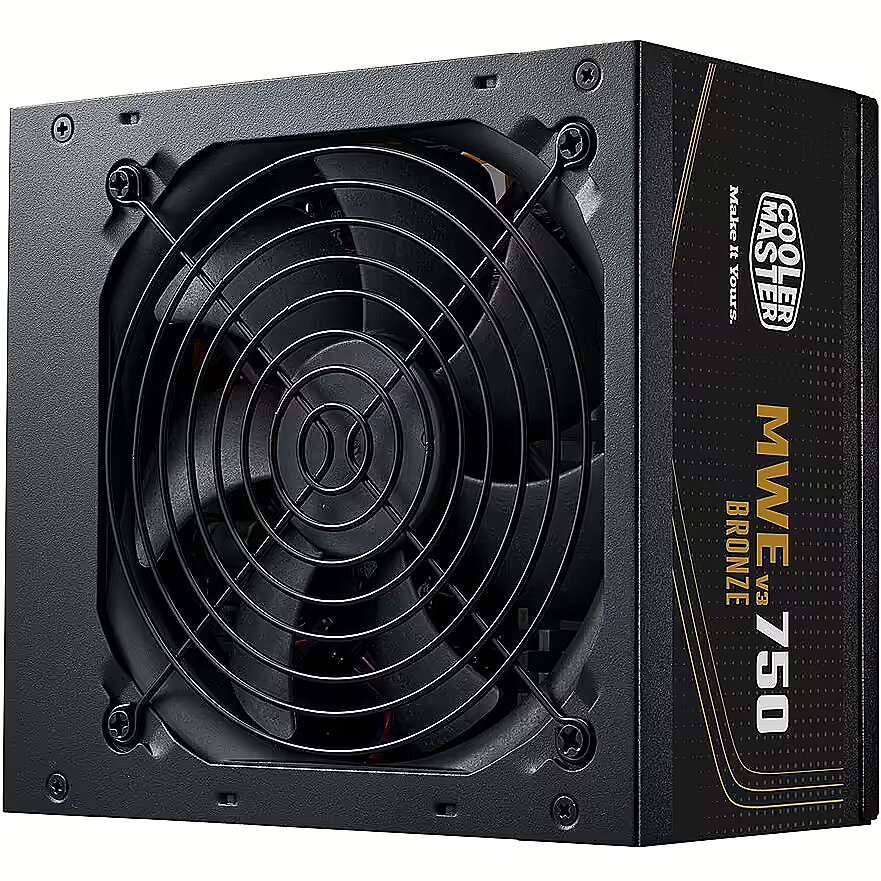

Cooler Master MWE Bronze V3, 750W, ATX 3.1, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze
Code - MPE-7501-ACABW-3BEU
Cooling > Fan diameter - 12 cm
Description - Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC to DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5 year warranty, the MWE Bronze V3 will evolve your machine.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1070
dimension depth - 110 mm
dimension height - 195 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1760 g
dimension width - 250 mm
EAN - 4719512145340
ean - 4719512145340
Eans - 4719512145340
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Link - https://www.coolermaster.com/en-global/products/mwe-bronze-750-v3-230v/?tab=overview
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 0
Name - Cooler Master MWE 650W V3 80+ Bronze
Name - Cooler Master MWE Bronze V3 | MPE-7501-ACABW-3BEU | 750 W
name - Zasilacz MWE Bronze 750W V3 ATX 3.1
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 3
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions > Operating temperature (T-T) - 0-40 °C
Other features -
Other features > Number of SATA connectors - 6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 560 pc(s)
Package features > Paper/Pasteboard - 340.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging data - Package depth - 190 mm
Packaging data - Package height - 110 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.15 kg
Packaging data - Package width - 245 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > ATX version - ATX 12V Ver. 3.1
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400 mm
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces > ATX Power connector (24-pin) - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 500 ms
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Input current - 6 A
Power > Nominal power - 750 W
Power supply - 750 W
producer - Cooler Master
Producer - CoolerMaster
producerCode - MPE-7501-ACABW-3BEU
ProducerCode - MPE-7501-ACABW-3BEU
productName - Cooler Master MWE Bronze 750 V3 230V power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 120mm | 24 pin | 140mm x 150mm x 86mm | 80 Plus Bronze | ATX 3.1 A/EU Cable |
sizeX - 245
sizeY - 190
sizeZ - 115
Technical details - Compliance certificates - BIS
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - China Compulsory Certification (CCC)
Technical details - Compliance certificates - EAC
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - KC
Technical details - Compliance certificates - RCM
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - TÜV mark
Technical details - Compliance certificates - UKCA
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
Technical details > Producer product family - MWE Bronze V3
Technical details > Producer product name - MPE-7501-ACABW-3BEU
vendpn - MPE-7501-ACABW-3BEU
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 1945
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.75 kg
Weight & dimensions - Width - 150 mm
