Brand - XPG
BrandPartCode - 75260140
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Certification - CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC
Certificates - Compliance certificates - RoHS
Colour - Black
Cooling System - 12cm fan
Description - XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages. XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation. XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load. The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1185
Dimensions - 140 x 150 x 86mm
Eans - 4710273776965
Efficiency - 80 PLUS BRONZE
Full Description Line - XPG PYLON|For gaming|ATX 2.4|750 Watts|Cooling System 12cm fan|80 PLUS BRONZE|MTBF 100000 hours|Colour Black
GTIN - 0842243020786
GTIN - 842243020786
GTIN - 4710273776965
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.DC-to-DC Circuit in BRONZE GradeXPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs. 80 Plus Bronze CertificationXPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.Cybenetics ETA and LAMBDA CertifiedXPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. 120mm Fluid Dynamic Bearing (FDB) FanThe fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.The operating environment is kept quiet and efficient, and prolongs its life expectancy.Main Japanese Capacitor at 105°CHigh quality 105°C Main Japanese Capacity in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.8 Industrial-Level ProtectionsXPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.
LongProductName - 750 W, 120 mm FDB, Bronze, 2000 RPM, 0.99 PFC
LongSummaryDescription - XPG PYLON 750W Power Supply. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Model - PYLON750B-BKCEU
Model name - XPG PYLON
MTBF - 100000 hours

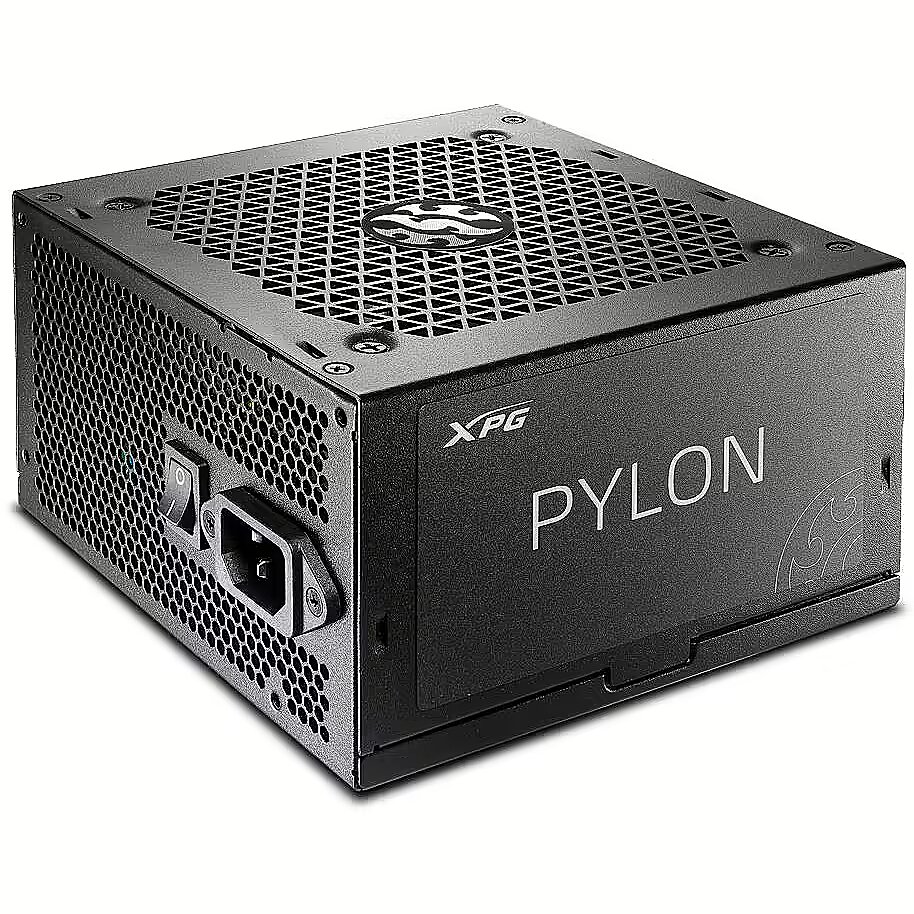

Name - XPG PYLON 750W

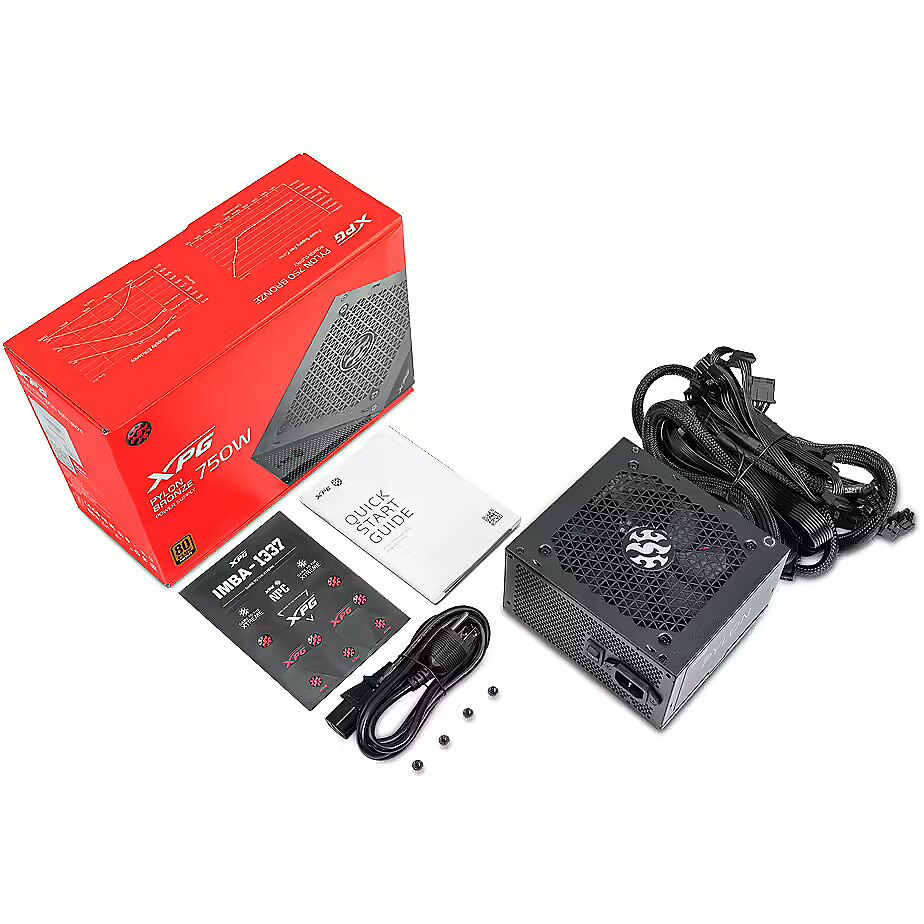

Packaging content - Cables included - AC
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - FDB
Performance - Certification - CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10/5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Producer - XPG
producerCode - 75260140
ProducerCode - PYLON750B-BKCEU
productName - XPG PYLON 750W Power Supply
ProductName - XPG PYLON 750W Power Supply
productSize - Normal
PSU - ATX 2.4
PSU features - For gaming
PSU Output Power - 750 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 21.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 16.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin |86 x 150 x 140 mm| 80 Plus Bronze |
ShortSummaryDescription - XPG PYLON 750W Power Supply, 750 W, 100 - 240 V, 50 - 60 Hz, 10/5 A, Active, 120 W
sizeX - 260
sizeY - 190
sizeZ - 120
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ErP
Technical details - Sustainability compliance - Yes
Title - XPG PYLON 750W Power Supply
Unit Box Height - 0.12
Unit Box Length - 0.28
Unit Box Width - 0.195
Unit Brutto Volume - 0.007898 cubm
Unit Gross Weight - 2.75 kg
Unit Net Weight - 2.12 kg
URL - https://www.xpg.com/en/feature/670/
Vendor Homepage - www.xpg.com/us/xpg/670
Warranty - 36 months
WarrantyInfo - 5 Years
warrantyLength - 60
warrantyType - G
weight - 2588
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 140 mm
