Brand - Aerocool
BrandPartCode - AEROPGSKCAS+RGB850-G
Category - Power Supply Units
Certificates - Certification - ROHS
Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 920
GTIN - 4710562759228

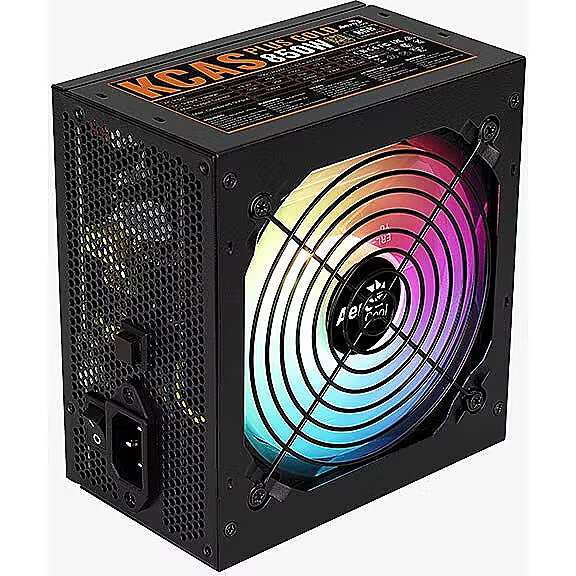

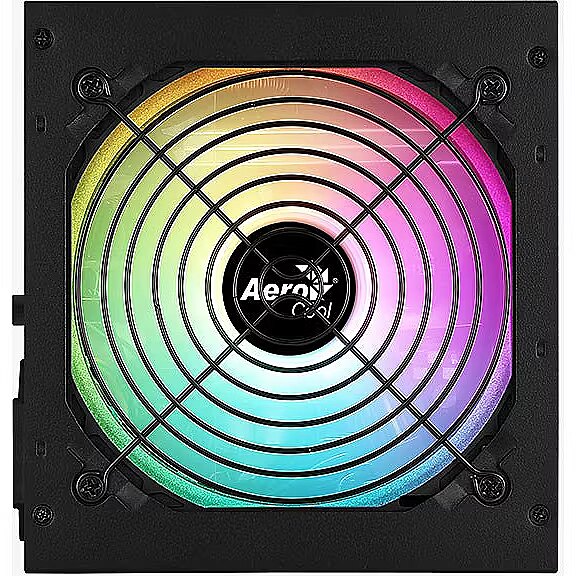

LongDesc - Featuring a stylish design with a built-in 12cm ARGB fan, the KCAS PLUS GOLD enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using ARGB connector.The KCAS PLUS GOLD is 80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.UP TO 92%+ EFFICIENCY80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.ADDRESSABLE RGB COMPATIBLEStylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.To switch between motherboard and button control:- Make sure PSU is connected to motherboard’s ARGB header- Hold button on PSU for 3 seconds- Control will switch from PSU to motherboard.DC-TO-DC CONVERSION CIRCUITBuilt-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.ACTIVE POWER FACTOR CORRECTIONBuilt-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.BUILT-IN 105°C JAPANESE CAPACITORSBuilt-in premium 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.HIGH-END SOLID STATE CAPACITORSHigh-end solid state capacitors provide great DC output quality for improved noise filtering and low rippleOPTIMIZED THERMAL FAN SPEED CONTROLOptimized fan speed allows for near inaudible fan noise and silent PSU operation.Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.DUAL CPU POWER CONNECTORSDual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs.
LongProductName - 850W, 80Plus Gold Certified, Ø 12cm ARGB fan, 20+4 Pin Motherboard connector
LongSummaryDescription - Aerocool KCAS PLUS GOLD 850W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: ROHS
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.52
Performance - Certification - ROHS
Performance - Purpose - PC

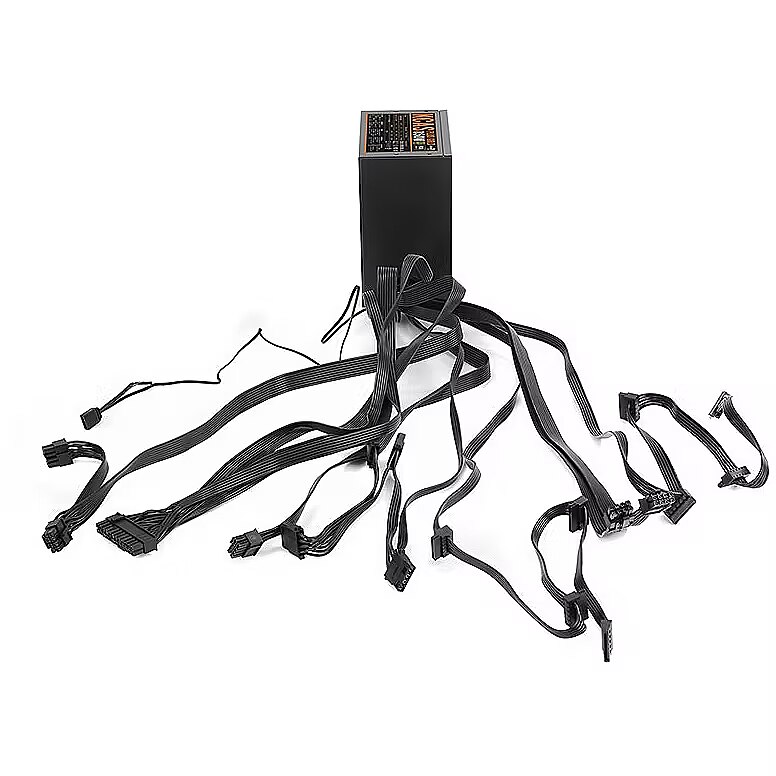

Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 4
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 840 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Input current - 11 - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Total power - 850 W
producerCode - AEROPGSKCAS+RGB850-G
productName - Aerocool KCAS PLUS GOLD 850W power supply unit 20+4 pin ATX Black
ProductName - KCAS PLUS GOLD 850W
productSize - Normal
ShortSummaryDescription - Aerocool KCAS PLUS GOLD 850W, 850 W, 100 - 240 V, 47 - 63 Hz, 11 - 5.5 A, 130 W, 840 W
sizeX - 230
sizeY - 200
sizeZ - 100
Title - Aerocool KCAS PLUS GOLD 850W power supply unit 20+4 pin ATX Black
URL - https://aerocool.io/product/kcas-plus-gold-850w/
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 2186
