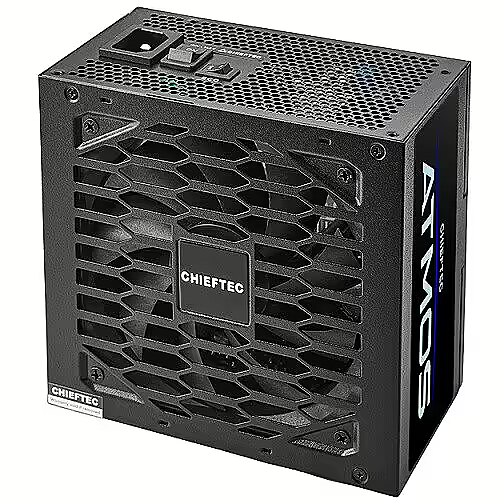

Chieftec ATMOS Series, 850W, 80PLUS Gold, PCI-E 5.0

8-pin 12V power connectors - 0
Accessories included -
Brand - Chieftec
BrandPartCode - CPX-850FC
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - Chieftec CPX

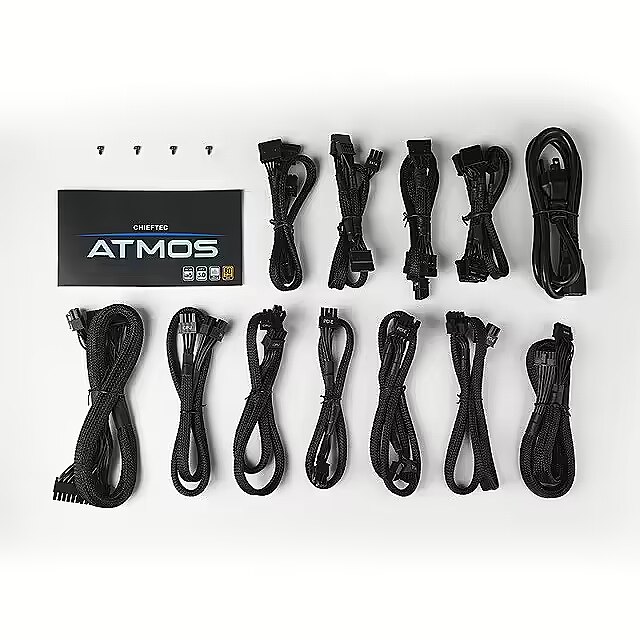

Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Chieftec
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 1.52 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 9 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - AFC
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP

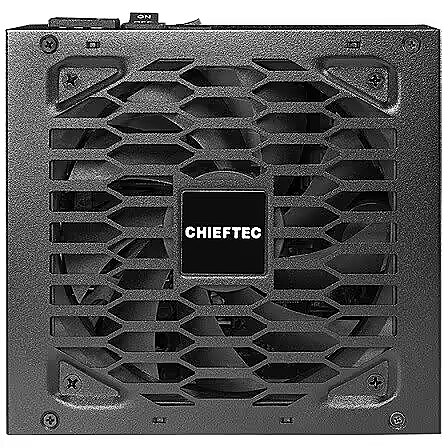

Dane techniczne: Średnica wentylatorów - 120 mm

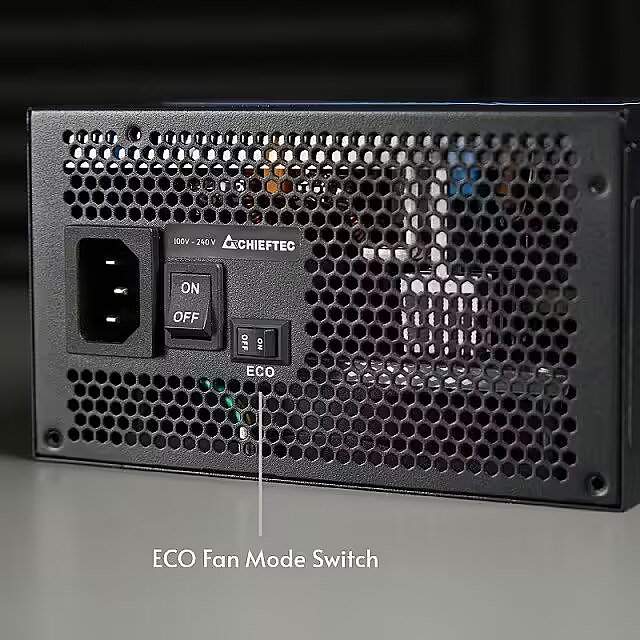

Description - CPX-850FC 850W ATMOS 80PLUS Gold power supply The CHIEFTEC ATMOS series is built according to the Intel ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS GOLD certified performance, providing outstanding performance up to 850 W. The ATMOS series features state-of-the-art technical design, including a full-bridge SRC converter with DC-DC technology and Japanese capacitors ensuring durability and stability. The quiet 135mm FDB fan from ATMOS optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operation at low load. CHIEFTEC's multiple protection technologies are designed to keep your system safe at all times.
Design - Fan diameter - 12 cm

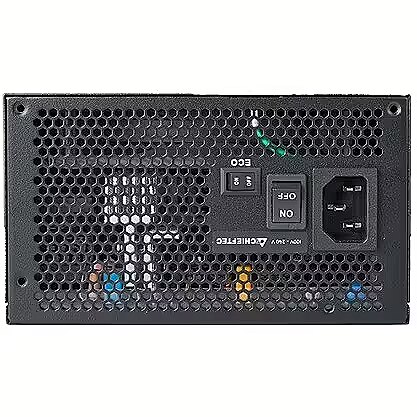

Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 290 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 3061 g
dimension width - 230 mm
ean - 753263078407
EAN - 0753263078407
Eans - 753263078407
EAN_code - 0753263078407
Fan - 13.5 cm
Floppy power connectors - 0
GTIN - 753263078407
GTIN - 0753263078407
guarantee - 60
guarantee_type - normal
LongDesc - The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supportsPCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptionalperformance up to 850W. The ATMOS series features a state-of-the-art technicaldesign including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability.The ATMOS 120mm FDB silent fan optimizes the balance between coolingand noise with excellent durability, while the ECO fan mode enables fanlessoperations at low loads. CHIEFTEC’s multiple security protection technology isdesigned to keep your system safe.
LongProductName - Chieftec Atmos Series CPX-850FC, ATX 3.0, 80PLUS Gold
LongSummaryDescription - Chieftec Atmos . Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,750,650 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - Chieftec
Manufacturer_code - CPX-850FC
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - CPX-850FC
Name - 850W Chieftec ATMOS Series
Name - Chieftec CPX-850FC
Name - Chieftec CPX-850FC, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 850 watts)
name - Power supply CPX-850FC 850W ATMOS 80PLUS Gold
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - AFC (automatic fan speed control) OPP (overload protection) OTP (Overheat Protection) OVP (overvoltage protection) SCP (Short Circuit Protection) SIP (surge and surge protection) UVP (undervoltage protection) OCP (Over Current Protection)
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 2
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes

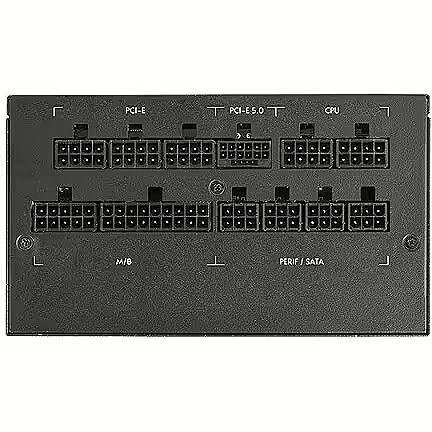

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 550,850,750,650 mm
Ports & interfaces - SATA power cable length - 550,750,650 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+5Vsb) - 15 W
Power - Input current - 10-5 A
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 850 W
Power supply - 850 W
Producent: Nazwa producenta / importera - ChieftecArena Electronic GmbHKoppersstr. 1840549 DuesseldorfNiemcyEmail: info@chieftec.eu
producer - Chieftec
Producer - Chieftec
ProducerCode - CPX-850FC
ProductName - ATMOS
SATA power connectors - 9
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm| 80 PLUS GOLD |
ShortSummaryDescription - Chieftec Atmos , 850 W, 100 - 240 V, 50/60 Hz, 10-5 A, 10 A, 5 A
Title - Chieftec Atmos power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/562/ATMOS_Series/564/CPX-850FC
vendpn - CPX-850FC
WarrantyInfo - 5 Years
Weight - 3,40
Weight - 3.04
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.52 kg
Weight & dimensions - Width - 150 mm
