80 PLUS certification Performance - 80 PLUS Platinum
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.0
Bearing technology Performance - FDB
Cables included Packaging content - CPU, PCIe, Peripheral (Molex), SATA

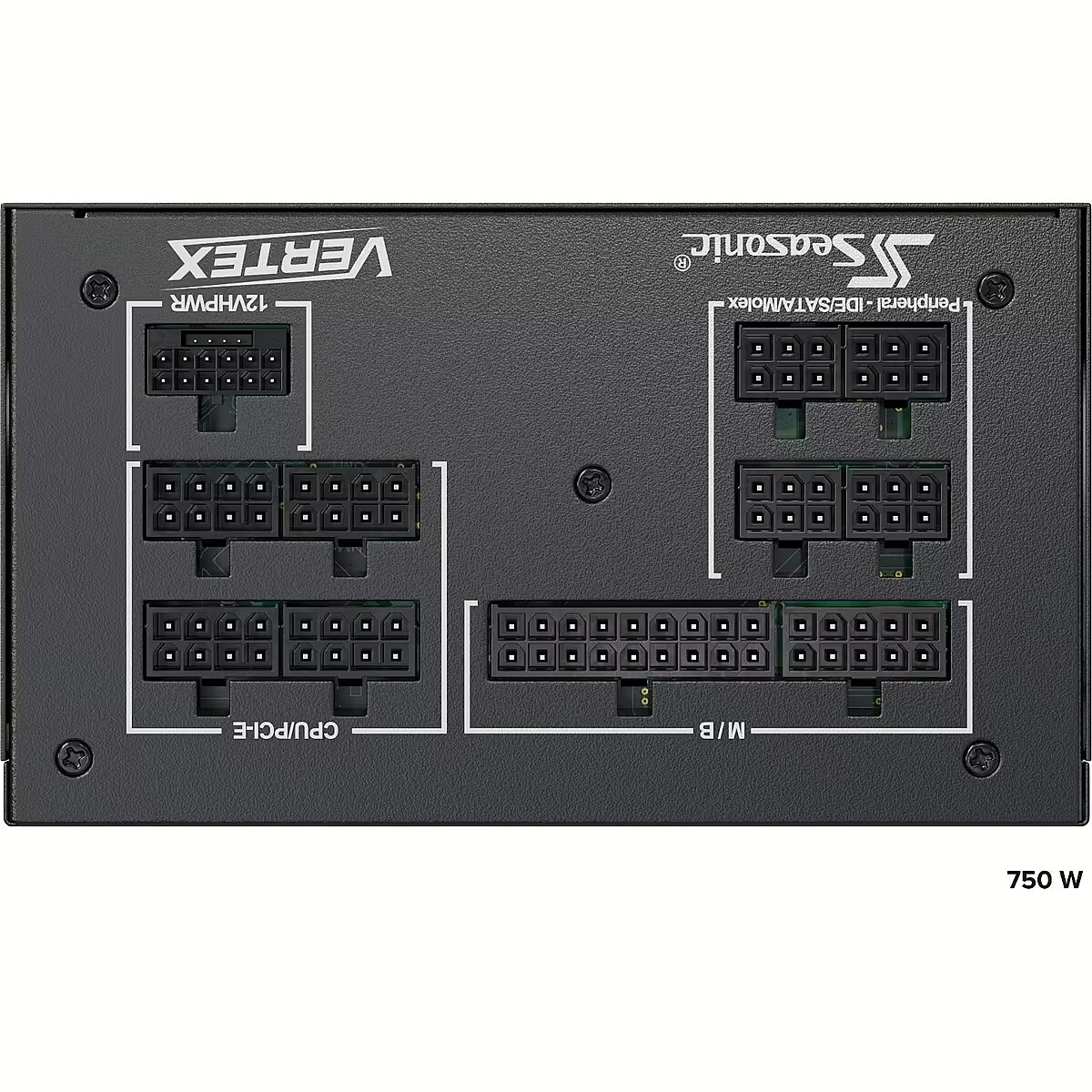

Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PCIe 5.0
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - VERTEX PX-750
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 744 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - REACH, RoHS, WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 65 cm
Depth Weight & dimensions - 160 mm
Description - 80 PLUS® PLATINUM
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load. ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards. PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level. FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.Super-High Efficiency, 80 PLUS® Platinum CertifiedFully ModularATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)Top-Quality 135 mm Fluid Dynamic Bearing FanPremium Hybrid Fan ControlTight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]Gold Plated High Current Terminal (MB, CPU and PCIe)
ean - 4711173877738
EAN_code - 4711173877738
EPS power connector (8-pin) Ports & interfaces - Yes
Fan diameter Design - 13.5 cm
Height Weight & dimensions - 86 mm
Input current Power - 10 - 5 A
Manufacturer - Seasonic
Manufacturer_code - VERTEX PX-750
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 150000 h
Model name - VERTEX PX
Motherboard power cable length Ports & interfaces - 61 cm
Motherboard power connector Ports & interfaces - 24-pin ATX
Name - Seasonic VERTEX PX-750 750W, PC power supply (black, 3x PCIe, cable management, 750 watts)
name - Seasonic Vertex PX 80 PLUS Platinum Netzteil, modular, ATX 3.0, PCIe 5.0 - 750 Watt
Number of fans Design - 1 fan(s)
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
PCI Express power cable length Ports & interfaces - 75 cm
PCI Express power connectors (16-pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 470,690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over power, Over voltage, Short circuit, Under power
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
SATA power cable length Ports & interfaces - 470,550,570,700,760,860,950 mm
Summary - Seasonic Vertex PX-750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 470,550,570,700,760,860,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Sustainability certificates Technical details - ENERGY STAR
Total power Power - 750 W
Unit Box Height - 0.185
Unit Box Length - 0.35
Unit Box Width - 0.12
Unit Calculated Volume - 0.00777 cubm
Unit Calculated Weight - 3.53 kg
Units per Shipping Box - 1
Vendor Homepage - https://seasonic.com/vertex-px#
Warranty - 144 months
Weight - 3,55
Width Weight & dimensions - 150 mm
