10/100/1000/2500 Mbps ports - 8
10G support Network - Yes
Accessories included -
Application - Home and small office
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 8
Basic switching RJ-45 Ethernet ports type Ports & interfaces - 2.5G Ethernet (100/1000/2500)
brand - MikroTik
Built-in processor Performance - Yes
category - Mājas un biroju tīkli > Komutatori > 1G komutatori
Category Code - SWI
Certificates - CE EAC ROHS
Certification Certificates - CE, EAC, ROHS
Chassis type - Rack
Code - CRS310-8G+2S+IN
DC input voltage Power - 18 - 57 V
Depth Weight & dimensions - 206.1 mm

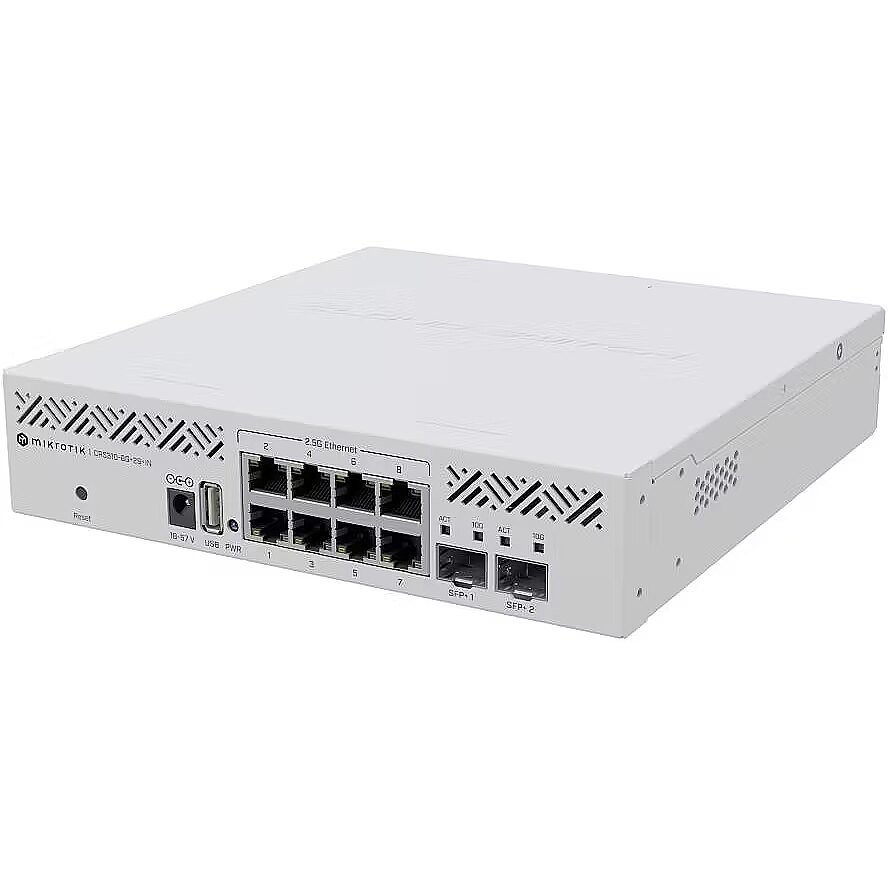

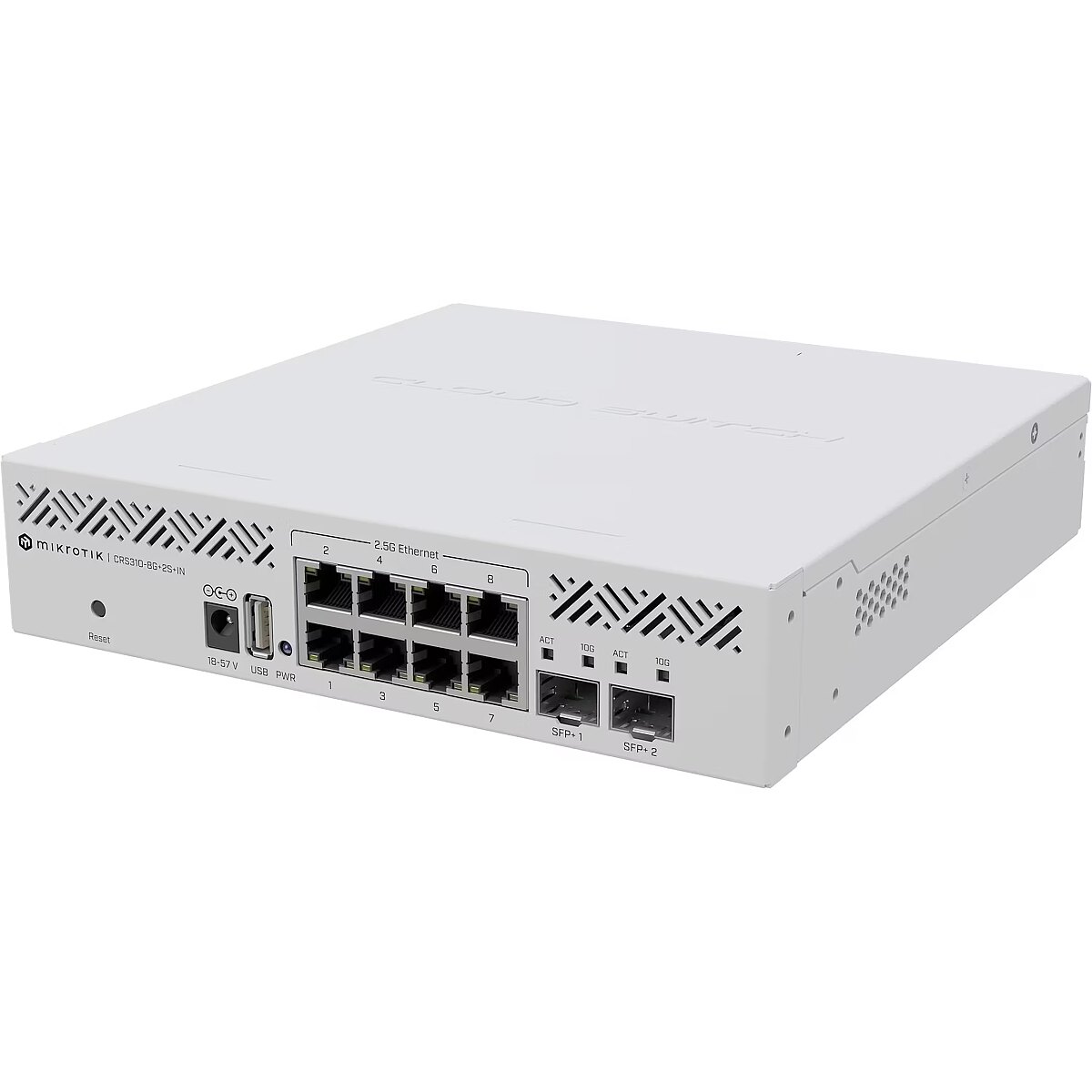

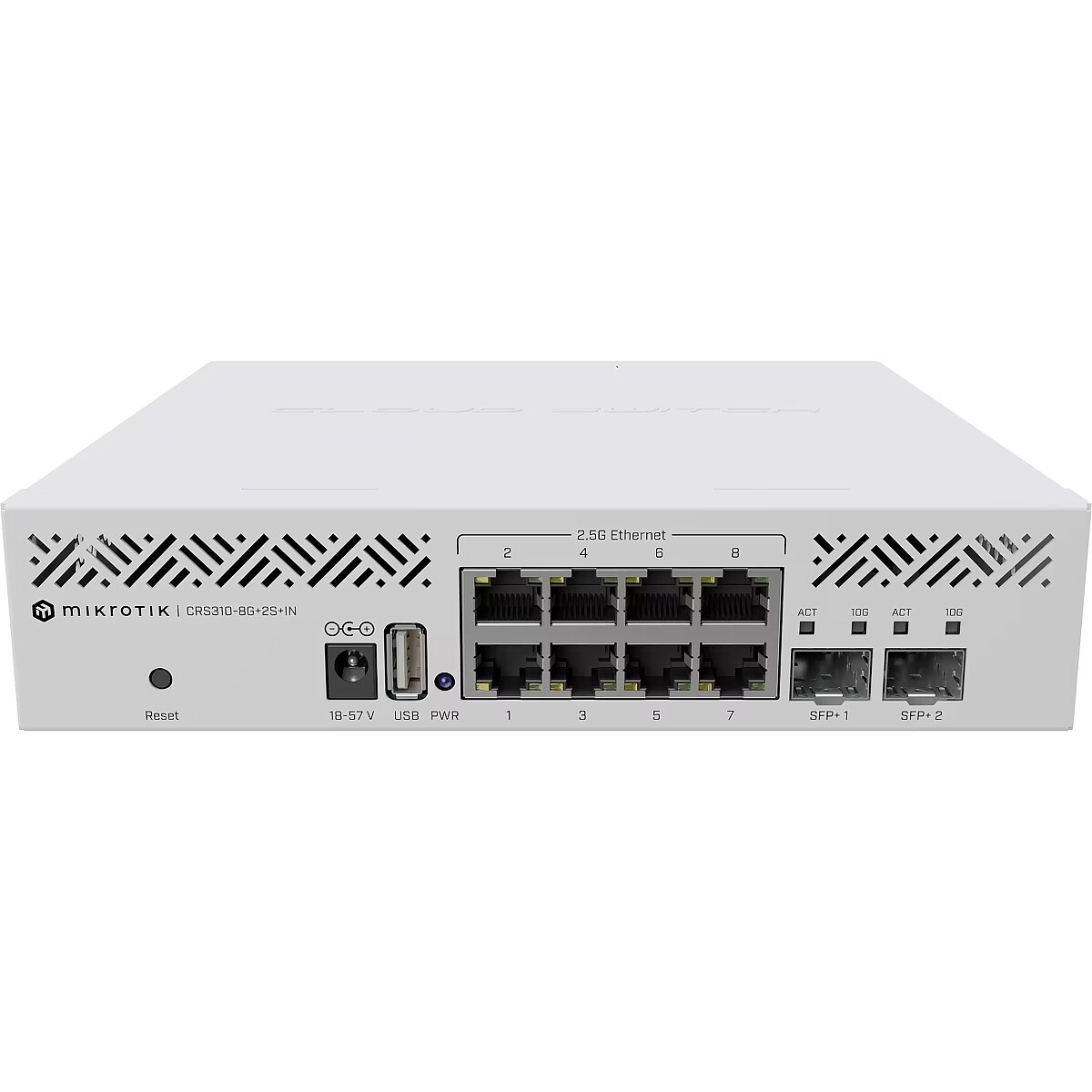

Description - CRS310-8G+2S+IN Take advantage of an incredibly fast 2.5/10 Gigabit connection and upgrade your workplace! This switch can utilise the full potential of RouterOS v7: run VLANs, jumbo frames, link aggregation, ACL rules and much more! The networking world is on the move. Even small offices are moving away from gigabit connections to 2.5 gigabit instant connectivity. Our goal is to provide the CRS310-8G+2S+IN tools to put you ahead of the competition with a powerful combination of eight 2.5 Gigabit Ethernet ports and two 10 Gigabit SFP+ ports in a compact, powerful package! What's more, these SFP+ cages support multiple data rates: 1G, 2.5G and 10G. So you can use this switch as a 10x 2.5G switch if required. Classic MikroTik flexibility! The amazing Marvell 98DX226S switching chip and the integrated dual-core ARM processor can handle the full potential of RouterOS v7. Run VLANs, jumbo frames, link aggregation, ACL rules and much more! You can even perform Layer 3 routing with hardware offload. There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19-inch rack using the supplied rack mount brackets. Another option is to purchase the RMK-2/10 accessory kit, which allows you to mount two CRS310 units in the same 1U 19 rack space or to mount them in a 10 rack. The choice is yours!
Description - The world of networking is on the move. Even small offices are shifting from Gigabit connections to the lightning-fast realm of 2.5 Gigabit connectivity. With CRS310-8G+2S+IN, we aim to give you the tools to outpace your competition with a strong combination of eight 2.5 Gigabit Ethernet ports and two 10 Gigabit SFP+ ports in a compact, powerful package! Furthermore, these SFP+ cages support multiple data rates: 1G, 2.5G, and 10G. So you can use this switch as a 10x 2.5G switch, if needed. Classic MikroTik flexibility! The amazing Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing. There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19” rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19” rack space or mount it in a 10” rack. The choice is yours!
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 250 mm
Dimensions - 200 x 206.1 x 44 mm
dimension weight - 1000 g
dimension width - 380 mm
EAN - 4752224008367
ean - 4752224008367
Environment requirements - -40°C do 60°C
Fan - Yes
Flash memory Performance - 32 MB
Form factor Design - 1U
guarantee - 24
guarantee_type - normal
height - 0.08 m
Height Weight & dimensions - 44 mm
Internal memory Performance - 256 MB
International Protection (IP) code Design - IP20
L2 features -
L3 features -
length - 0.37 m
Link - https://mikrotik.com/product/crs310_8g_2s_in
Management, monitoring, configuration -
Mean time between failures (MTBF) Performance - 200000 h
Model name - CRS310-8G+2S+IN
mpn - CRS310-8G+2S+IN
Name - Cloud Router Switch | CRS310-8G+2S+IN
name - Clous Router Switch CRS310-8G+2S+IN
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of fans Design - 1 fan(s)
Number of PoE++ ports - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP+ ports - 2
Number of SFP56 ports - None
Number of SFP ports - None
Operating system installed Performance - RouterOS
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Other features -
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 320.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 188 pc(s)
Package features > Paper/Pasteboard - 427.00 g
Package features > Plastic (No PET) - 48.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > TI weight (kg) - 0 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/0/1/3/9/0/4/8341f70a6646cdbf7d9e6567f458b71a/original.pdf
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 2.5 Gbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 2
Power consumption - 34 W
Power consumption (max) Power - 34 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - DC
Power supply - DC jack input Voltage 18-57 V
Power supply included Power - Yes
Processor frequency Performance - 800 MHz
Processor model Performance - 98DX226S
producer - MikroTik
Producer product family - Cloud Router Switch
Producer product name - CRS310-8G+2S+IN
Product colour Design - White
QoS -
Rack mounting Design - Yes
Security - IP 20
SFP+ module slots quantity Ports & interfaces - 2
Summary - Mikrotik CRS310-8G+2S+IN: L3 Smart Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. DC input voltage: 18 - 57 V. Rack mounting, Form factor: 1U
Supported protocols and standards -
Switch class - Managed
Switch layer Management features - L3
Switch type Management features - Managed
Technical details > Gross weight - 1.68 kg
Technical details > Net weight - 1.20 kg
Technical details > Producer - MikroTik
title - MikroTik CRS310-8G+2S+IN
Unit Box Height - 0.245
Unit Box Length - 0.37
Unit Box Width - 0.06
Unit Calculated Volume - 0.006253 cubm
Unit Calculated Weight - 1.42 kg
Units per Shipping Box - 6
USB Type-A ports quantity Ports & interfaces - 1
Vendor Homepage - https://mikrotik.com/product/crs310_8g_2s_in#fndtn-downloads
vendpn - CRS310-8G+2S+IN
Video -
VLAN -
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
weight - 1.43 kg
width - 0.25 m
Width Weight & dimensions - 200 mm
