10/100/1000/2500 Mbps ports - None
10G support Network - Yes
Accessories included - Rack holders for CSS610-8G-2S+IN K-48 mounting kit IEC cable
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Application - Home and small office
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 8
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
brand - MikroTik
Broadcast storm control Network - Yes
Cables included Packaging content - AC
category - Mājas un biroju tīkli > Komutatori > PoE komutatori
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates -
Certification Certificates - EAC
Chassis type - Rack
Code - CSS610-8P-2S+IN
Compliance certificates Certificates - CE, RoHS
Dane techniczne: Dodatkowe informacje - pamieć flash: 64 KB
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Głębokość - 208 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 8 szt.
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Porty PoE - 8 szt.
Dane techniczne: Producent - MikroTik
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Sloty SFP+ 10G - 2 szt.
Dane techniczne: Szerokość - 272 mm
Dane techniczne: Typ - zarządzalny
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Zarządzalność - tak
DC input voltage Power - 48 - 57 V
Depth Weight & dimensions - 216 mm

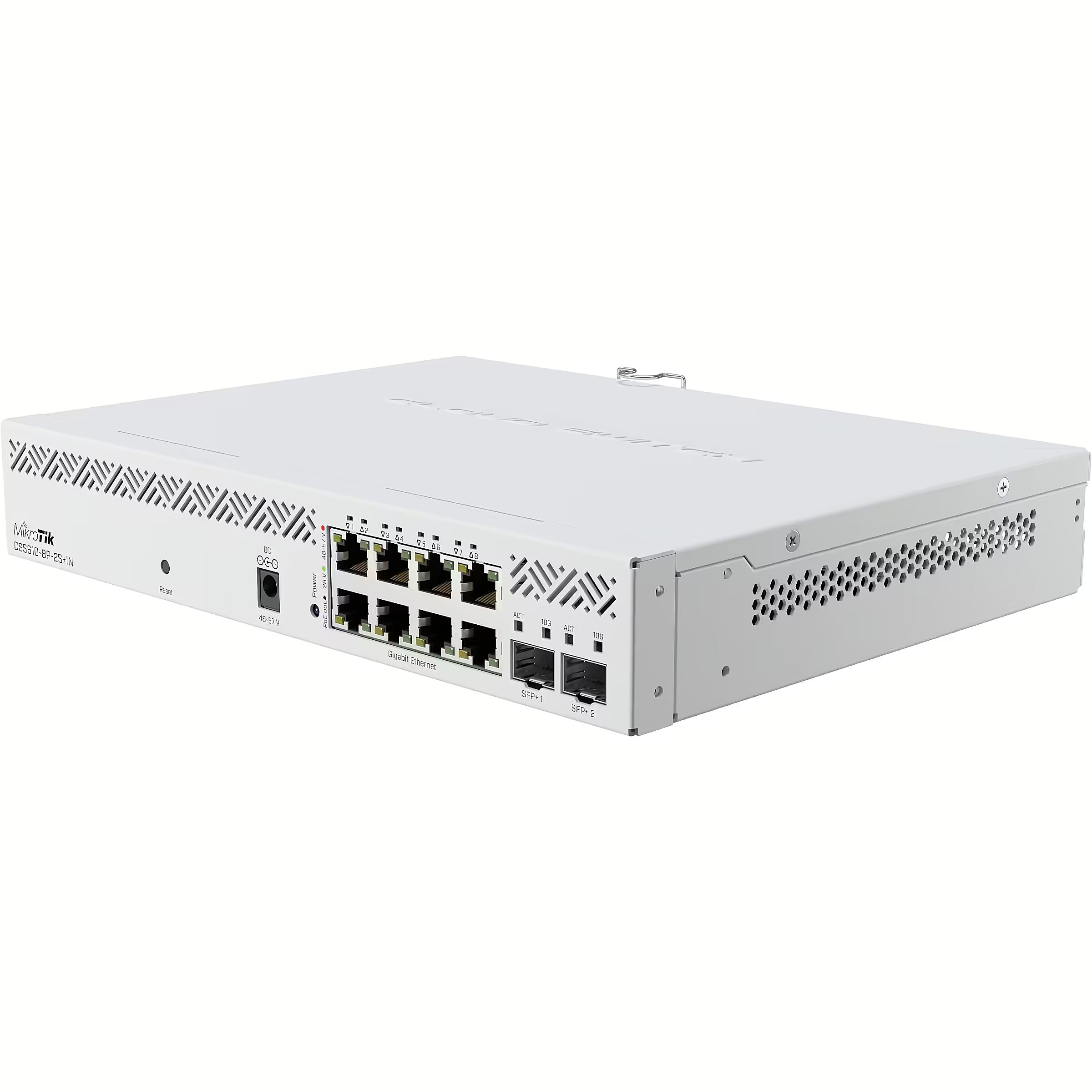

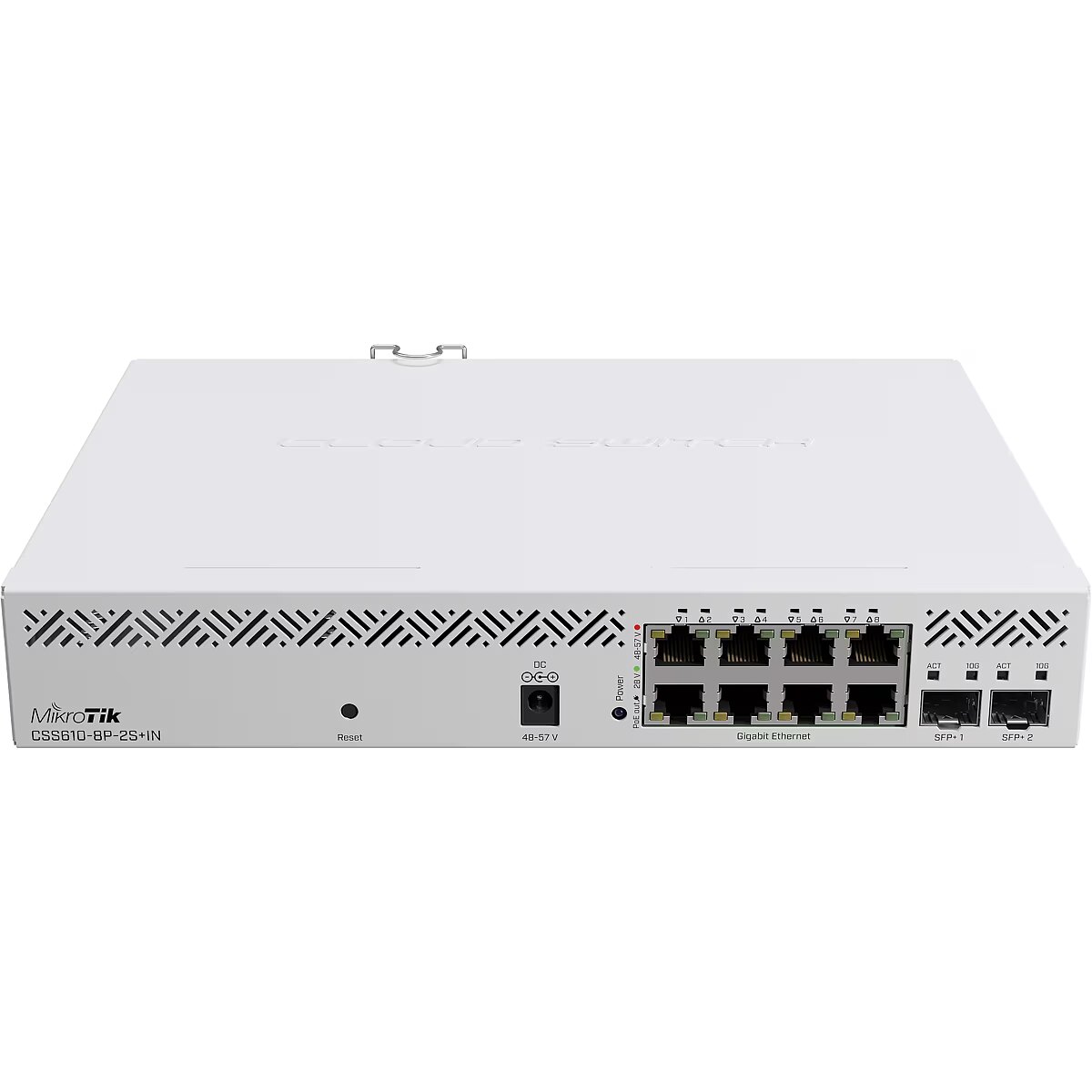

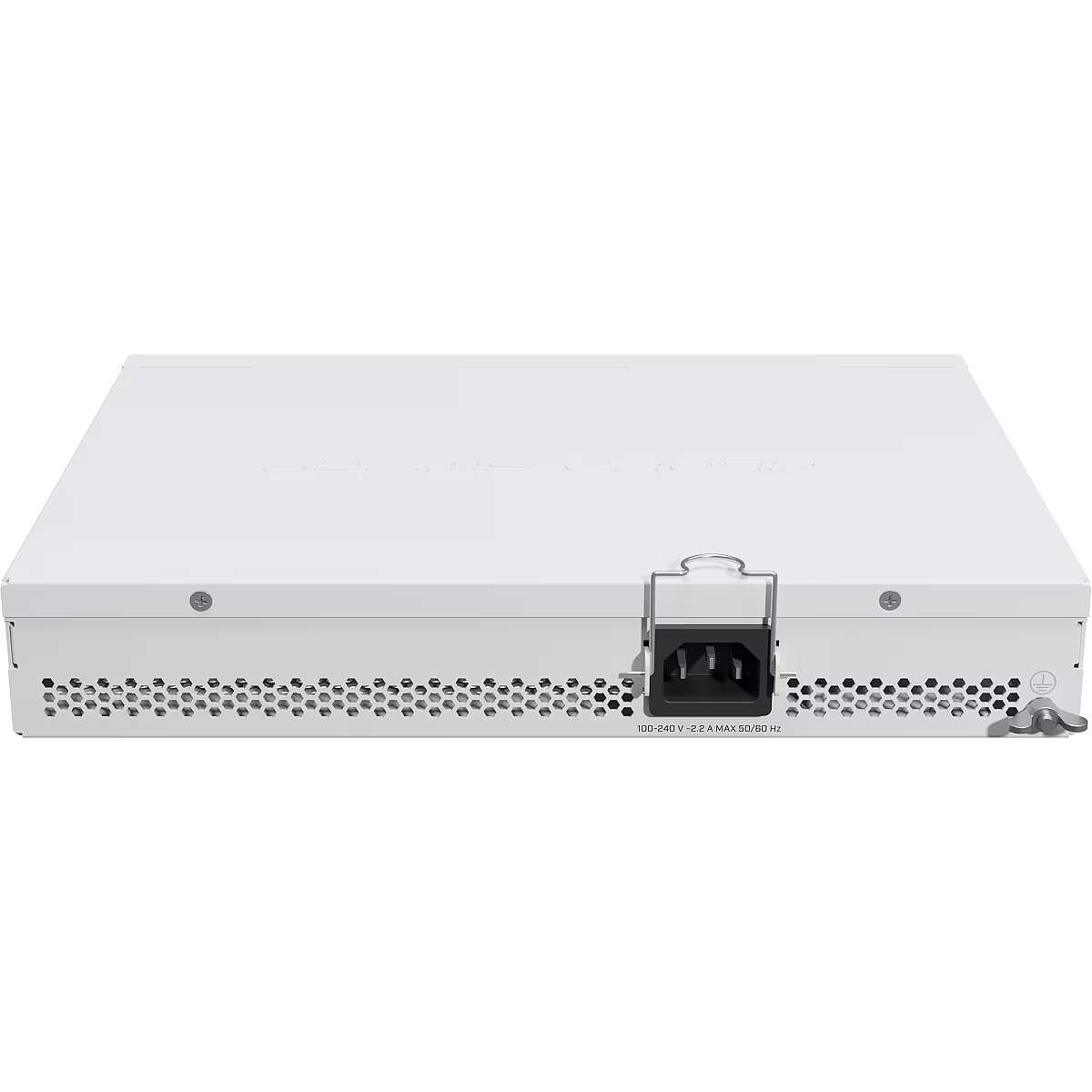

Description - CSS610-8P-2S+IN is one of the most versatile switches on the market. It fits perfectly into a wide variety of configurations: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features and price offers incredible scalability potential. There are two SFP+ ports for 10-gigabit fiber connectivity and eight Gigabit Ethernet ports with support for 802.3af/at and passive PoE output (one power supply is enough to provide both). This switch is all about hassle-free and easy setup. The compact form factor means easier shipping and handling, and the lightweight SwOS means easier setup. You can even configure this switch in your web browser! It provides all the basic features of a managed switch and more: you can manage port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limits, and even customize some MAC address and IP header fields.
Description - CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential. There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out. This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields. But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor! Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.
Design > Form factor - Rack Mountable
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 390 mm
Dimensions - 272 x 216 x 50 mm
dimension weight - 2000 g
dimension width - 260 mm
EAN - 4752224007216
ean - 4752224007216
Eans - 4752224007216
Environment requirements - Tested ambient temperature: -40°C to 70°C
Fan - No
Fanless Performance - Yes
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Flash memory Performance - 0.064 MB
guarantee - 12
guarantee_type - normal
height - 0.073 m
Height Weight & dimensions - 50 mm
Input current Power - 2.2 A
Installed SFP+ modules quantity Ports & interfaces - 2
International Protection (IP) code Design - IP20
L2 features -
L3 features -
LED indicators Design - Yes
length - 0.39 m
Link - https://mikrotik.com/product/css610_8p_2s_in
MAC address filtering Security - Yes
Management, monitoring, configuration -
Management features > Switch type - Router Switch
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h
Mean time between failures (MTBF) Performance - 200000 h
Model - CSS610-8P-2S+IN
mpn - CSS610-8P-2S+IN
MPN - CSS610-8P-2S+IN
Name - 8P+2 Mikrotik CSS610-8P-2S+IN SFP+ POE M
Name - Cloud Router Switch | CSS610-8P-2S+IN | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 8 | Mesh Support No | MU-MiMO No | No mobile broadband
name - MikroTik Cloud Smart Sw itch 8P CSS610-8P-2S+IN
Name - MikroTik CSS610-8P-2S+IN
Network architecture - GigabitEthernet
Networking > PoE in - 802.3af/at
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE++ ports - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 2
Number of SFP56 ports - None
Number of SFP ports - None
Operating system installed Performance - SwitchOS Lite
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 8
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 75.00 mm
Package features > Gross width (mm) - 170.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 452 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/3/9/2/0/7/3/88f14b015b2158021d1a85e9646b991c/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 2
Power > Power consumption (max) - 162 W
Power > Voltage - 48-57 V
Power consumption - 162 W
Power consumption (max) Power - 162 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 8
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) type supported Power over Ethernet (PoE) - Passive PoE
Power source Power - AC/DC
Power supply -
Power supply included Power - Yes
Processor model Performance - Marvell 88E6193X
producer - MikroTik
Producer - MikroTik
ProducerCode - CSS610-8P-2S+IN
Producer product family - Cloud Router Switch
Producer product name - CSS610-8P-2S+IN
Product colour Design - White
QoS -
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Reset button Design - Yes
Security -
ShortDescription -
Software > Operating system installed - SwitchOS Lite
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Mikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting
Supported protocols and standards -
Sustainability compliance Sustainability - Yes
Switch class - Managed
Switching capacity Data transmission - 56 Gbit/s
Switch type Management features - Managed
Technical details > Gross weight - 0.90 kg
Technical details > Net weight - 0.70 kg
Technical details > Producer - MikroTik
Technical details > Software type - SwitchOS Lite
title - MikroTik CSS610-8P-2S+IN
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 140 W
Unit Box Height - 0.25
Unit Box Length - 0.38
Unit Box Width - 0.065
Unit Calculated Volume - 0.006175 cubm
Unit Calculated Weight - 1.98 kg
Units per Shipping Box - 1
Vendor Homepage - https://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads
vendpn - CSS610-8P-2S+IN
VLAN -
VLAN support Network - Yes
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 1.989
weight - 2.2 kg
width - 0.26 m
Width Weight & dimensions - 272 mm
Wireless LAN features > Wi-Fi band - No Wi-Fi
