Accessories included - Uniwersalny uchwyt montażowy ze śrubami
Antenna - Built-in
Antenna - Antenna gain level (max) - 4 dBi
Antenna - Antenna type - Internal
Antenna gain - 4 dBi
Brand - Zyxel
BrandPartCode - WAC500H-EU0101F
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Certificates - Certification - FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2
FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438
EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Color - White
Description - Uzyskaj nie tylko łączność bezprzewodową, ale także przewodową i PoE Zyxel WAC500H został zaprojektowany z myślą o scenariuszach wdrażania w każdym pomieszczeniu. Zmienia płytkę ścienną Ethernet w nie tylko bezprzewodowy punkt dostępowy zapewniający usługę WiFi, ale także przełącznik Gigabit z PoE, zasilający telefon VoIP dla usług sieciowych ostatniej mili. Wyposażony w NebulaFlexTM Pro, WAC500H może być zarządzany za pośrednictwem lokalnego interfejsu zarządzania sieciowego, kontrolera sprzętowego lub z roczną bezpłatną licencją na platformę zarządzania chmurą Nebula. Wszechstronne opcje montażu Wszechstronna, ale niskoprofilowa konstrukcja montażowa pozwala punktowi dostępowemu płynnie i gustownie wtopić się w każdy wystrój, gdy jest on montowany bezpośrednio na puszce, w miejscu na uboczu, a nawet na biurku.
Design - Placement - Wall
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 120 mm
Dimensions - 173 x 97 x 29 / 6.81 x 3.82 x 1.14 (WxDxH)(mm/in.)
dimension weight - 430 g
dimension width - 190 mm
ean - 4718937615209
EAN - 4718937615209
EAN_code - 4718937615209
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Band steering - Yes
Features - Channel bandwidth - 80 MHz
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Fast roaming - Yes
Features - Maximum data transfer rate - 1200 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 866 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Features - Receiver sensitivity - -99 dBm
Features - Transmitting power - 26 dBmW
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
GTIN - 4172937615209
GTIN - 4718937615209
guarantee - 24
guarantee_type - external
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Get not only wireless but wired and PoE connectivity, tooThe Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services.Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform.Versatile mounting optionsThe versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop.More than WiFiAs well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés.Work from home like a Pro!Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices.The “RF First” and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly.Most flexible managementThe WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes - standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.
LongProductName - 2.4/5 GHz, IEEE802.11 ac/n/g/b/a, 2x2 MIMO, 173x97x29 mm
LongSummaryDescription - Zyxel WAC500H. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration - IPv6, VLANs, WMM, U-APSD, DiffServ marking
Management features - Command-line interface (CLI) - Yes
Management features - Web-based management - Yes
Manufacturer - Zyxel
Manufacturer_code - WAC500H-EU0101F
MPN - WAC500H-EU0101F
name - WAC500H SP 1YNCC Pro WAC500H-EU0101F

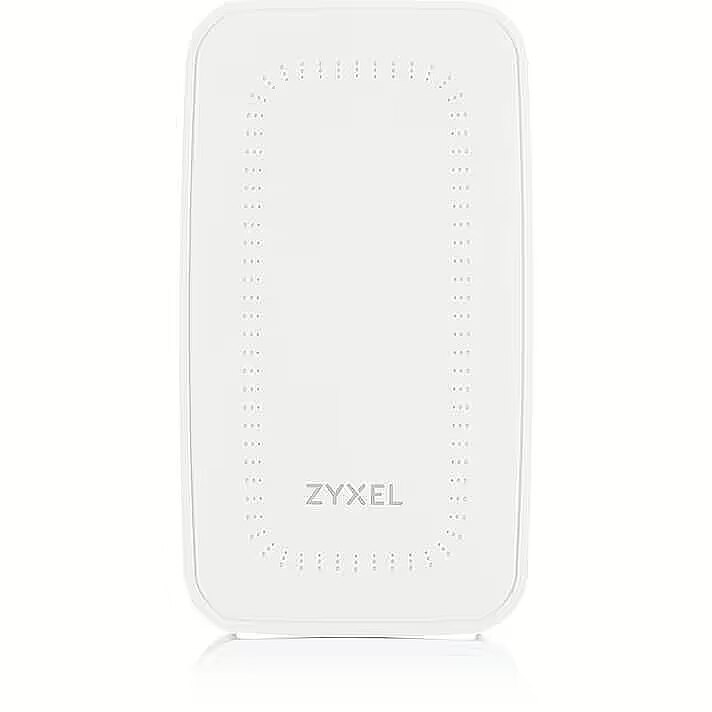

Name - Zyxel WAC500H, Access Point
Name - Zyxel WIFI5 AC1200 WAC500H
Network architecture - GigabitEthernet
Number of antennas - 2
Operating frequency - 3 GHz
Operating frequency - 850 MHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 120 mm
Packaging data - Package height - 53 mm
Packaging data - Package weight - 444 g
Packaging data - Package width - 195 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 0.3 A
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power over Ethernet (PoE) - Yes
Power supply - Wejście: AC 100 - 240V - 50/60 Hz 0,3A; Wyjście: DC + 12V 1A PoE (802.3at / af): pobór mocy 18 W.
producer - Zyxel
ProductName - WAC500H
Security - Szyfrowanie: WEP, WPA, WPA2-PSK, WPA3 Poświadczenie: WPA, WPA2-Enterprise, EAP, IEEE 802.1X, Uwierzytelnianie RADIUS Zarządzanie dostępem: Izolacja L2, Filtrowanie adresów MAC
Security - Auto Wireless Distribution System (WDS) - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
ShortSummaryDescription - Zyxel WAC500H, 2.4 GHz, 5 GHz, 1200 Mbit/s, EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3, 10,100,1000 Mbit/s
Software -
Special functions - Tryb pracy Nebula Cloud zarządzana Zarządzane przez kontroler Samodzielny ZON Utility Odkrycie przełączników, punktów dostępowych i bramek Zyxel Scentralizowane i wsadowe konfiguracje Konfiguracja IP Odnowienie adresu IP Ponowne uruchomienie urządzenia Lokalizowanie urządzenia Dostęp do internetowego interfejsu GUI Aktualizacja oprogramowania Konfiguracja hasła Zyxel Wireless Optimizer Planowanie AP WiFi Wykrywanie zasięgu WiFi Bezprzewodowe zarządzanie stanem
Standards - 802.11ac
System Requirements -
Title - Zyxel WAC500H 1200 Mbit/s White Power over Ethernet (PoE)
URL - https://www.zyxel.com/products_services/802-11ac-Wave-2-Wall-Plate-Unified-Access-Point-WAC500H/
vendpn - WAC500H-EU0101F
WarrantyInfo -
Weight - 0,43
Weight - 0.412
Weight - 223 g
Weight & dimensions - Depth - 97 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Weight - 223 g
Weight & dimensions - Width - 173 mm
