Accessories included - Device Power adapter Ethernet cable Quick Start Guide Safety warning card
Antenna - Built-in
Brand - Zyxel
BrandPartCode - EE3301-00-EU01V1F
Category - Hardware Firewalls
Certificates - CE UKCA
Color - White
Description - EE3301-00 Dual-Band Wireless BE7200 2.5G Ethernet VoIP Gateway
The Zyxel EE3301-00 Dual-Band Wireless BE7200 VoIP Gateway delivers
service providers' ultimate 2.5G internet speed. Compliant with the latest wireless 802.11be (Wi-Fi 7) technology, the EE3301-00 is engineered to boost network capacity with ultra-fast connectivity. It provides superior Wi-Fi service for all devicesanywhere in their home.
Unleash peak performance with Wi-Fi 7 (802.11be)
Supporting the latest Wi-Fi 7 (802.11be) standard and rated as BE7200, the EE3301-00 delivers dual-band Wi-Fi with exceptional performance. With Multi-Link Operation (MLO) technology, the EE3301-00 not only optimizes reliability and maximizes data speeds but also significantly reduces latency. By intelligently utilizing multiple frequency bands simultaneously, MLO provides a smoother, low-latency experience-ideal for real-time applications such as gaming and video streaming. The addition of extra antennas enables Zero-wait DFS, ensuring seamless connectivity by monitoring radar channels without interrupting data transmission. It also increases signal sensitivity and delivers broader coverage, reducing dead zones and improving performance across larger spaces.
Premium MPro Mesh for whole-home Wi-Fi coverage
Featuring EasyMesh fully compliant Zyxel MPro Mesh Solutions, the EE3301-00 enhances your subscribers' experience by providing self-adapting, easy-to-manage whole-home Wi-Fi coverage, while reducing your service OPEX.
Zyxel OPAL firmware achieves superior flexibility and shortens time to market
Compliant with the same OPAL firmware trunk applied to all Zyxel CPEs, the EE3301-00 inherits a rich, field-proven feature set for guaranteed same user experience after migrating to new devices.
TR-069/TR-369 remote management for lower OPEX
Compliant with TR-069/TR-369 standards, the EE3301- 00 significantly simplifies deployment complexity and lowers operating and maintenance costs with its remote management capabilities. The additional support to the latest TR-181 issue-2 data model also enhances service providers' visibility on subscriber LAN networks to offer improved customer assistance.
Commitment to sustainability
The EE3301-00 is built with 100% recycled plastics and features an easily removable case, simplifying refurbishment to extend its lifespan. Its packaging is designed with recycled paper and printed using VOC-free vegetable oil ink, minimizing waste and harmful substances while eliminating single-use plastics.
Description - ZYXEL WIFI 7 BE7200 2.5G ETHERNET VOIP GATEWAY WITH MPRO MESH SUPPORT (2Y WARRANTY)
Design - Form factor - Desktop
Designation - CE+WEEE
dimensionalWeight - 1176
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 190 x 65 x 200.5 mm
dimension weight - 1150 g
dimension width - 235 mm
ean - 4718937645855
Environment requirements - Operating temperature: 0°C to 40°C (32F to 104F) Humidity temperature: 10% to 90% (Non-condensing) Storage temperature: -30°C to 70°C (-22F to 158F) Storage humidity: 10% to 95% (Non-condensing)
GTIN - 4718937645855
guarantee - 24
guarantee_type - external
Height - 100.000000

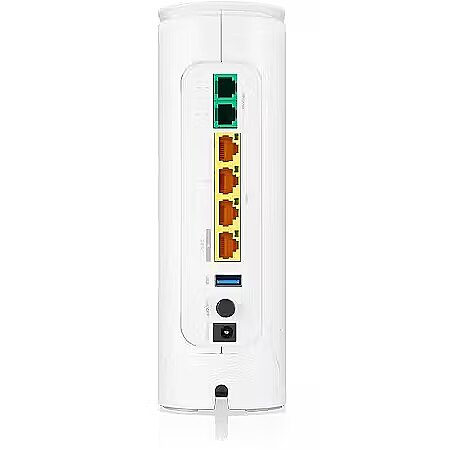

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 1 x USB 3.0
I/O ports - 2 x FXS (RJ-11)
I/O ports - 3 x 10/100/1000 Mbit/s
Length - 250.000000
LongDesc - The Zyxel EE5301-00/EE3301-00 Series Gateway leverages Wi-Fi 7 (802.11be) for ultra-low latency, peak performance, and superior whole-home coverage. The Series offers either 10G or 2.5G WAN options with a built-in SFP+ cage, seamlessly integrating with copper or fiber infrastructure to handle high bandwidth demands while future-proofing your setup for evolving technology.Wi-Fi 7 powerhouse: speed, coverage, stabilityDesigned to the latest Wi-Fi 7 (11be) standard and delivering dual-band speeds up to 7.2 Gbps* for premium, lag-free streaming. With Multi-link Operation (MLO), the Series ensures reliable connectivity, higher data rates, and lower latency. Zero-wait DFS ensures uninterrupted connectivity, while optimized signal sensitivity and broader coverage eliminate dead zones, boosting performance in larger spaces.Seamless control with an intuitive companion appManage your whole-home Mesh Wi-Fi effortlessly with an intuitive app designed for quick, easy setup. From installation to advanced features like parental controls, the app simplifies network management while helping reduce service OPEX. Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions**, it ensures a smooth, reliable experience for every connected device.
LongProductName - Dual-Band Wireless BE7200 2.5G Ethernet VoIP Gateway - 2.5GbE Ethernet WAN, 3x GbE LAN + 1x 2.5GbE LAN
LongSummaryDescription - Zyxel EE3301-00. Wi-Fi standards: Wi-Fi 7 (802.11be), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Management protocols: SNMP. Connectivity technology: Wired & Wireless, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, WAN connection: Ethernet (RJ-45). Form factor: Desktop. Width: 65 mm, Depth: 190 mm, Height: 200.5 mm
Management, monitoring, configuration - Web GUI (HTTP/HTTPS) TR-069 via TR-098/TR-181 i2 data model TR-369 via TR-181i2 data model Firmware upgrade via web GUI/ TR-369/TR-069 protocol 2-tier level access and administration Zyxel One APP management
Manufacturer - Zyxel
ManufacturerPartNumber - EE3301-00-EU01V1F
Model - EE3301-00
name - Router EE3301-00-EU01V1F
Network - DHCP client - Yes
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network architecture - GigabitEthernet
Number of antennas - 8
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
PeriodofWarranty - 24 M
Ports & interfaces - Connectivity technology - Wired & Wireless
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 2500 Mbit/s
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power supply - 12 V DC/2.5 A
producer - Zyxel
producerCode - EE3301-00-EU01V1F
ProductName - EE3301-00
productName - Zyxel EE3301-00 hardware firewall Desktop
productSize - Normal
Protocols - Management protocols - SNMP
Security - IPv4/IPv6 firewall (Stateful Packet Inspection) Denial-of-Service (DoS) attack prevention ICMP blocking
ShortSummaryDescription - Zyxel EE3301-00, Wi-Fi 7 (802.11be), Dual-band (2.4 GHz / 5 GHz), SNMP, Wired & Wireless, 10,100,1000,2500 Mbit/s, Ethernet (RJ-45)
sizeX - 245
sizeY - 100
sizeZ - 240
Software - Zyxel One APP
Special functions - Auto channel selection Wi-Fi Multimedia (WMM) Wireless output power management Multiple SSIDs up to 4 Wi-Fi Protected Setup (WPS) Intra-BSS traffic block MAC address filtering WPS Zero-wait DFS (ZWDFS)
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11be
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Title - Zyxel EE3301-00 hardware firewall Desktop
Type - xDSL
URL - https://www.zyxel.com/service-provider/global/en/products/ethernet-cpe/ethernet-iads/ee5301ee3301-00-series
vendpn - EE3301-00-EU01V1F
WarrantyInfo -
warrantyLength - 24
warrantyType - F
Weight - 1.150000
Weight - 1135 g
weight - 1150
Weight & dimensions - Depth - 190 mm
Weight & dimensions - Height - 200.5 mm
Weight & dimensions - Weight - 849 g
Weight & dimensions - Width - 65 mm
Width - 236.000000
