2.4 GHz Features - Yes
5 GHz Features - Yes
6 GHz Features - Yes
Access Control List (ACL) Security - Yes

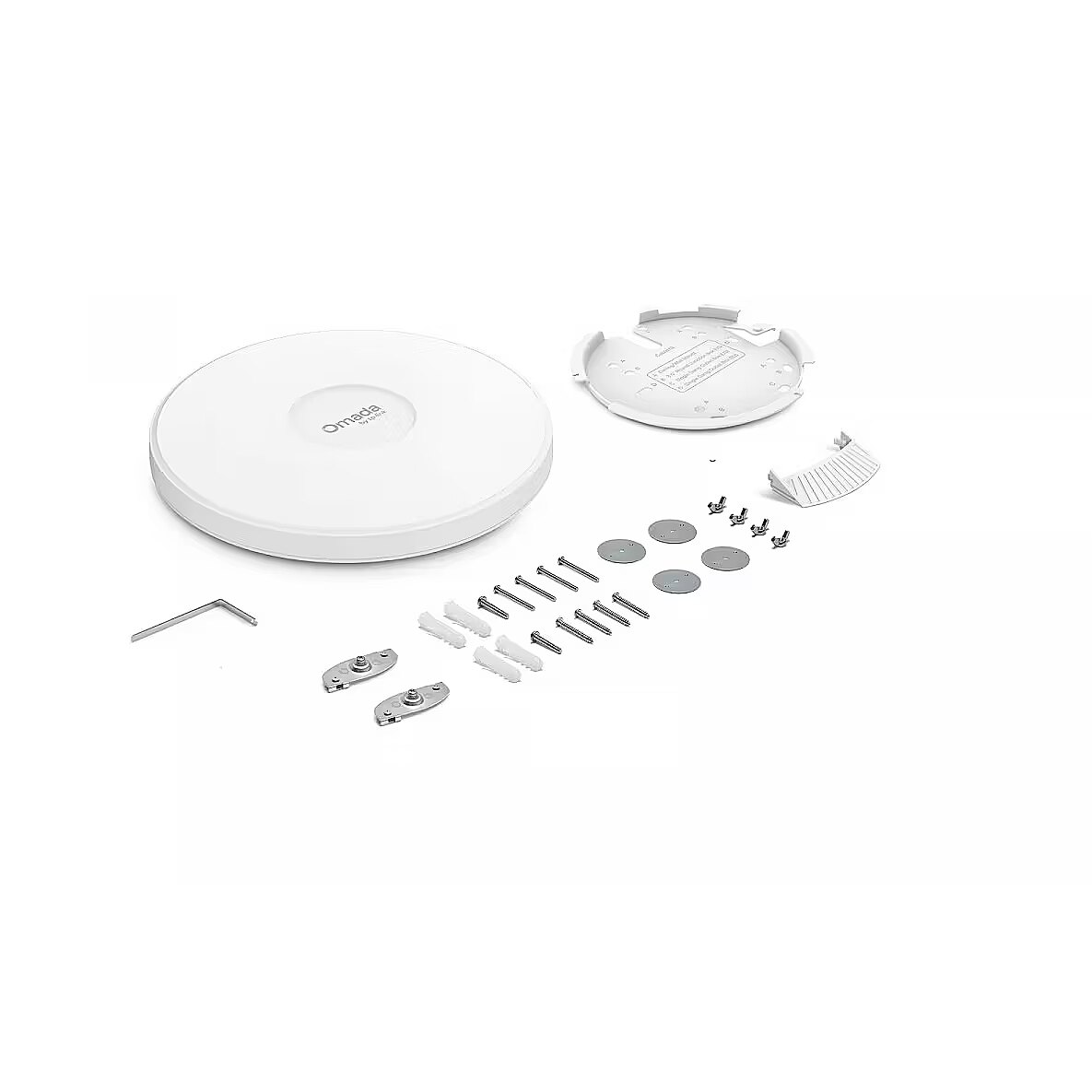

Accessories included - EAP787 Installation Instructions Ceiling/Wall/Junction Box Mounting Kit Note: Power supply NOT included.
Airtime Fairness (ATF) Features - Yes
Antenna - Built-in
Antenna gain - 5 dBi
Antenna type Antenna - Internal
ARTIKEL1 - BE12000 WI-FI 7 ACCESS POINT
ARTIKEL2 - CEILING MOUNT TRI-BAND
Automatic channel scanning Features - Yes
Automatic channel selection Features - Yes
Band steering Features - Yes
BeamForming Features - Yes
Bluetooth Features - Yes
Category Code - WAP
Certificates - CE, FCC, RoHS, IC
Certification Certificates - CE, FCC, RoHS, IC
Code - EAP787
Color - White
Coverage area Features - 1750 m²
Data Act - Link
DC-in jack Ports & interfaces - Yes
DC voltage range Power - 12 V
Depth Weight & dimensions - 220 mm
Description - - Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment. Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.Tri-Band 8-Stream Wi-Fi 7Wi-Fi Speeds up to 15.0 Gbps†Dedicated Spectral Analyzer Radio1× 10G/2.5G Port802.3bt/at PoEOmada Mesh & Seamless Roaming△Centralized ManagementEasy, Quick Setup
Description - BE15000 Tri-Band Ceiling-Mount Wi-Fi 7 Access Point
Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference mitigation for robust wireless performance. Maximum 6 GHz Coverage with AFC: Unlock stronger signals and extended performance on the 6 GHz band. Tri-Band, 8-Stream Wi-Fi 7: 5765 Mbps on the 6 GHz band, 8648 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band. 1 10G Port: Ensures fast connectivity throughout the network. Low Latency and Interference: 320 MHz bandwidth, multi-link support, multi-RU support, and 4K-QAM modulation ensure high network performance. Flexible Deployment and Easy Configuration: Supports both 802.3bt PoE and DC power for flexible installation, thanks to Omada SDN, which enables one-click configuration. Advanced Features: Supports centralized management, mesh networking, and seamless roaming. Greater Throughput and Coverage: Supports over 510 concurrent clients and covers an area of up to 190 square meters, ensuring reliable and extensive wireless connectivity.
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 260 mm
Dimensions - 220 × 220 × 38.8 mm
dimension weight - 705 g
dimension width - 280 mm
EAN - 1210002600569
ean - 1210002600569
EANCode - 1210002600569
Environment requirements - Operating temperature: 0°C-40°C Storage temperature: -40°C-70°C Operating humidity: 10%-90% non-condensing Storage humidity: 5%-90% non-condensing
Flow control support Features - Yes
Frequency band Features - 2.4 - 6 GHz
Gross Weight Kg - 2,44
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 38.8 mm
HERSTELLER - TP-LINK
HSTNUMMER - EAP787
I/O ports - 1 x 10/100/1000 Mbit/s PoE
Input current Power - 2.5 A
LED indicators Design - Yes
Management, monitoring, configuration - Omada App Cloud Access: Yes. Requires an Omada Controller. Email Alerts LED On/Off Control MAC Access Control Management SNMP v1, v2c, v3 System Logging: Local/Remote Syslog Web-based Management Central Management: Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller
Manufacturer Code - EAP787
Manufacturer Name - TP-LINK
Maximum data transfer rate (2.4 GHz) Features - 688 Mbit/s
Maximum data transfer rate (5 GHz) Features - 8648 Mbit/s
Maximum data transfer rate (6 GHz) Features - 5765 Mbit/s
MIMO Features - Yes
MIMO type Features - Multi User MIMO
Model - EAP787
Model name - EAP787
Mounting kit Packaging content - Yes
name - TP-Link EAP787
Name - TP-Link EAP787 BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point | TP-LINK
Name - WRL ACCESS POINT 15000MBPS/TRI-BAND EAP787 TP-LINK
Network architecture - GigabitEthernet
Networking standards Features - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Number of antennas - 1
Number of users Features - 510 user(s)
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating frequency - 6 GHz
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 220.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 220.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 893 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package type Packaging data - Box
Placement Design - Ceiling, Wall
Power over Ethernet (PoE) Power - Yes
Power supply - 802.3bt/at PoE or 12V/2.5A DC
producer - TP-LINK
Product colour Design - White
Product Net Weight ELKO Verified Logistics Data - 1 kg
Quality of Service (QoS) support Features - Yes
Quantity per pack Packaging content - 1 pc(s)
Quick start guide Packaging content - Yes
Rate limiting Features - Yes
Reset button Design - Yes
Security - Captive Portal Authentication Access Control MAC Address Filter Wireless Isolation Between Clients VLANs Rogue Access Point Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Security algorithms Security - WPA, WPA2, WPA3
Shipping Box Depth ELKO Internal Logistics Data - 54 cm
Shipping Box Height ELKO Internal Logistics Data - 30.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 9.8 kg
Shipping Box Width ELKO Internal Logistics Data - 30 cm
Short description - TP-LINK WLAN BE19000 Access Point Tri-Band EAP787 Wi-Fi 7, PoE++, 1×10G RJ45 Port
Standards - 802.11a
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11be
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 6
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - OMADA EAP787. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: WPA, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White
Technical details > Gross weight - 1.09 kg
Technical details > Net weight - 0.89 kg
Technical details > Producer - TP-LINK
Unit Box Height - 0.26
Unit Box Length - 0.28
Unit Box Width - 0.09
Unit Calculated Volume ELKO Internal Logistics Data - 0.008235 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 1.63 kg
Unit Depth ELKO Verified Logistics Data - 28 cm
Unit Height ELKO Verified Logistics Data - 26 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 6
Unit Width ELKO Verified Logistics Data - 9 cm
Vendor Homepage - https://www.omadanetworks.com/my/business-networking/omada-wifi-ceiling-mount/eap787/
vendpn - EAP787
VLAN support Features - Yes
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
Width Weight & dimensions - 220 mm
