10/100/1000M LAN Ports - 4/1
Accessories included - Zasilacz Instrukcja szybkiej instalacji
Antenna - Detachable external
Antenna - Antenna design - External
Antenna - Antenna direction type - Directional
Antenna - Antenna gain level (max) - 4.5 dBi
Antenna - Antennas quantity - 5
Antenna - Detachable antenna(s) - Yes
Antenna gain - 5 dBi
Brand - TP-Link
BrandPartCode - ER706WP-4G
Category - Wireless Routers
Category Code - ROU
Certificates - CE, FCC, RoHS
CnCode CnCode - 85176200
Color - Black
Description - ER706WP-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+ - Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US). - AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*** - 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity. - 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals. - Centralized Management: Cloud access and the Omada app for easy management. - Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*? - High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.?
Description - ER706WP-4G Gigabitowa brama sieciowa VPN Omada, 4G+ Cat6, AX3000, 4 porty PoE+ Modem 4G+ Cat6: Włóż kartę Nano SIM i korzystaj z sieci komórkowej o prędkości do 300 Mb/s Dwupasmowe Wi-Fi 6, AX3000: Do 2402 Mb/s w paśmie 5 GHz i do 574 Mb/s w paśmie 2,4 GHz 5 gigabitowych portów Ethernet: Wysoka prędkość połączeń przewodowych 5 wydajnych, odłączalnych anten: 2 anteny LTE i 3 dwupasmowe anteny WiFi Scentralizowane zarządzanie: Dostęp z poziomu Chmury i aplikacji Omada to wygoda zarządzania Omada Mesh: Płynne łączenie punktów dostępowych EAP wspierających technologię Mesh Bezpieczna sieć VPN: IPSec, SSL, Wireguard, OpenVPN, PPTP, L2TP Stabilny dostęp do internetu dla Twojej firmy
Dwa sloty na karty SIM zapewniają ciągłość pracy i redundancję nawet w scenariuszach gdzie zawiodą inne rezerwowe połączenia WAN. Platforma Omada SDN i dostęp z Chmury
Scentralizowane zarządzenie w Chmurze dla Bram sieciowych Omada, Przełączników i Punktów dostępowych znajdujących się w wielu lokacjach, dzięki kontrolerowi Omada opartemu na Chmurze, oferującemu bezpłatną wersję Essentials usług chmurowych oraz obniżającemu koszty konserwacji.
Design - LED indicators - LTE, Power, Status, System, WLAN
Design - Product colour - Black
Design - Product type - Desktop/pole router

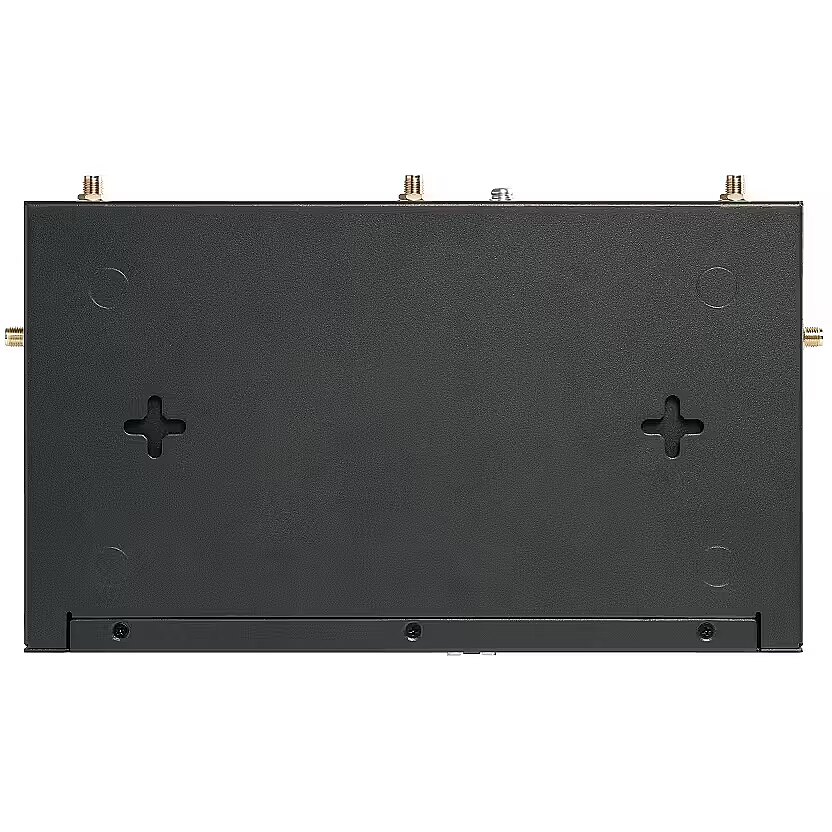

Design - Wall mountable - Yes
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 290 mm
Dimensions - 226 × 131 × 35 mm
dimension weight - 1972 g
dimension width - 275 mm
ean - 8885020627428
Environment requirements - Dopuszczalna temperatura pracy: 0-40 stopni Celsjusza Dopuszczalna temperatura przechowywania: -40-70 stopni Celsjusza Dopuszczalna wilgotność powietrza: 10-90%, bez kondensacji Dopuszczalna wilgotność przechowywania: 5-90% bez kondensacji
Features - Flash memory - 256 MB
Features - Internal memory - 512 MB
Features - Internal memory type - DDR4
Full Description Line - Network Device Type Router|4x10/100/1000M|1xSPF|1x10/100/1000M|LAN \ WAN ports 5|Power supply requirements 4 Ports PoE+ Output, 45 W PoE Budget|Included Accessories • ER706WP-4G• Power Adapter• Quick Installation Guide|Operating temperature range 0 °C to 40 °C
GTIN - 1210002608398
guarantee - 60
guarantee_type - normal
I/O ports - 1 x SFP
I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10/100/1000 Mbit/s LAN / WAN (Combo)
Included Accessories - • ER706WP-4G
• Power Adapter
• Quick Installation Guide
LAN \ WAN ports - 5
LongDesc - Ideal for Small Business Networking UseCombines 4G Internet access, Wi-Fi 6 wireless technology and 4 Gigabit PoE+ out ports all in one device.Dual SIM Ensures Business ContinuityIn scenarios involving automatic failover mechanisms, backup WAN connections, and various network switching situations, the system ensures business continuity.Software Defined Networking (SDN) with Cloud AccessCentralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloudbased controller offering the Essentials version of cloud services for free, reducing maintaince costs.
LongProductName - 4G, SIM, GbE, PoE+, DDR4, VPN
LongSummaryDescription - TP-Link ER706WP-4G. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 300 Mbit/s, Modulation: OFDMA. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, VPN support: IPsec VPN PPTP VPN L2TP VPN OpenVPN WireGuard VPN. Mobile network generation: 4G, 4G bands supported: 800,850,900,1500,1700,1800,1900,2000,2300,2400,2500,2600,3400,3500,3600,3700 MHz, SIM card type: NanoSIM. Security algorithms: IPSec, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3-Personal, NAT functionality: DHCP, PPPoE, L2TP, PPTP
Management, monitoring, configuration -
Management features - Intelligent Mesh technology - Yes
Management features - MU-MIMO technology - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Mobile network - 4G bands supported - 800,850,900,1500,1700,1800,1900,2000,2300,2400,2500,2600,3400,3500,3600,3700 MHz
Mobile network - Dual SIM support - Yes
Mobile network - Mobile network generation - 4G
Mobile network - Short Message Service (SMS) - No
Mobile network - SIM card type - NanoSIM
Model - ER706WP-4G
Model - ER706WP-4G
name - Omada 4G+ Cat6 AX3000 Gigabit VPN Gate with 4-Port PoE+PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Port forwarding - Yes
Network - SSID-based VLAN assignment - Yes
Network - Static route - Yes
Network - VPN Passthrough - Yes
Network - VPN support - IPsec VPN
PPTP VPN
L2TP VPN
OpenVPN
WireGuard VPN
Network - VPN tunnels quantity - 50
Network architecture - GigabitEthernet
Network Device Type - Router
Number of antennas - 5
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating temperature range - 0 °C to 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Antenna included - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - USB port - Yes
Power - Power over Ethernet (PoE) - Yes
Power - Power source type - DC, PoE
Power supply - 4 porty z wyjściem PoE+ Zasilanie PoE o łącznej mocy 45W
Power supply requirements - 4 Ports PoE+ Output, 45 W PoE Budget
producer - TP-LINK
ProductName - ER706WP-4G
Product Net Weight - 1 kg
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Security - DPI: Kontrola aplikacji poprzez DPI / zaktualizowaną bibliotekę aplikacji IDS/IPS: Wykrywanie zagrożeń IPS/IDS na podstawie sygnatur Kontrola dostępu: Kontrola dostępu oparta na źródłowym/docelowym adresie IP Ochrona przed atakami sieciowymi: TCP/UDP/ICMP Flood Defense, Blokowanie skanowania TCP (Stealth FIN/Xmas/Null), Blokowanie pakietów ping z sieci WAN
Security - Filtering - Yes
Security - NAT functionality - DHCP, PPPoE, L2TP, PPTP
Security - Network address translation (NAT) - Yes
Security - Security algorithms - IPSec, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3-Personal
Security - URL filtering - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 29 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.966 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortSummaryDescription - TP-Link ER706WP-4G, Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 4G, Black, Desktop/pole router
Software -
Special functions - Płynny roaming Mesh (z EAP obsługującymi Mesh) OFDMA Beamforming MU-MIMO Ograniczenie prędkości: Oparte na SSID/Klient Airtime Fairness Szyfrowanie sieci bezprzewodowej: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multi SSID: 16 łącznie (8 na pasmo)
SPF LAN Ports - 1
Standards - 802.1Q
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
Title - TP-Link ER706WP-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Type - xDSL
Unit Box Height - 0.28
Unit Box Length - 0.29
Unit Box Width - 0.07
Unit Calculated Volume - 0.005684 cubm
Unit Calculated Weight - 1.97 kg
Units per Shipping Box - 1
URL - https://www.omadanetworks.com/au/business-networking/omada-router-4g-wifi-router/er706wp-4g/
Vendor Homepage - www.omadanetworks.com/en/business-networking/omada-router-4g-wifi-router/er706wp-4g/
vendpn - ER706WP-4G
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - DSL WAN - Yes
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 131 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
Wireless LAN features - Modulation - OFDMA
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - WLAN data transfer rate (max) - 300 Mbit/s
