Accessories included - Power adapter Ethernet cable Installation instructions
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 6.8 dBi
Antenna - Antennas quantity - 4
Brand - Cudy
BrandPartCode - WR3600E
Category - Wireless Routers
Certificates - FCC CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC)
Color - White
Data Act - Link
Description - Dual-band Wi-Fi 7 router with MLO rate aggregation, ideal for latency-sensitive and speed-demanding scenarios. Dual-band speeds of 2.8Gbps + 688Mbps. Broadcom 2 GHz Quad-Core CPU 4-Stream Dual-Band Wi-Fi 7 2882 Mbps + 688 Mbps Wi-Fi 4× Gigabit Ethernet Ports Up to 200 connected devices Covering 130 square meters with ePA VPN Server and Client Cudy App, Cloud Control More Stable High-Speed Performance. BE3600 Gigabit Wi-Fi 7 Router.
Powerful Quad-Core CPU
Feel the instantaneous response and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.
Boosted Coverage
Provides 50% faster speed compared to the last-gen Wi-Fi when the client is 50 m away from the router.
Connect 200 Devices and Stay Fast
The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provide 25 smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interference in other channels.
Cudy Mesh
Create same-name Wi-Fi coverage throughout your home and enjoy fast roaming between Wi-Fi zones. Compatible with other Cudy Mesh routers and repeaters.
Parental Control
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Design - LED indicators - LAN, Power, Status, WAN
Design - LED indicators - LAN, System, WAN, WLAN
Design - Product colour - White
Design - Product type - Tabletop router
Designation - CE+WEEE
dimensionalWeight - 828
dimension depth - 80 mm
dimension height - 240 mm
Dimensions - 209 × 48 × 220.4 mm
dimension weight - 750 g
dimension width - 220 mm
ean - 6971690793739
Environment requirements - Operating Temperature: 0~40 degrees Celsius Storage Temperature: -40~70 degrees Celsius Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Features - Built-in processor - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 512 MB
Features - Internal memory type - DDR3L
Features - Processor architecture - ARM Cortex A7
Features - Processor cores - 4
Features - Processor frequency - 2000 MHz
GTIN - 6971690793739
guarantee - 24
guarantee_type - normal

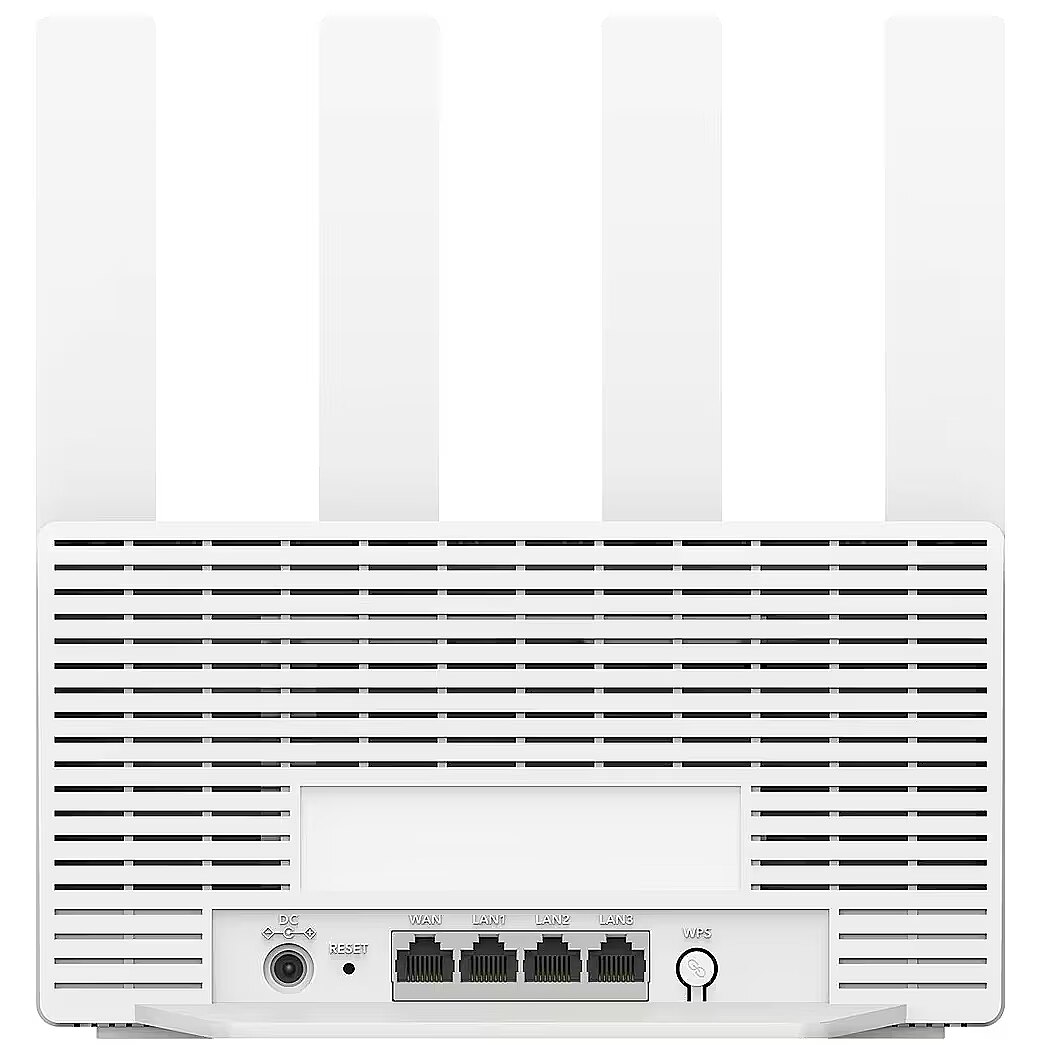

I/O ports - 1 x WAN (RJ-45)
I/O ports - 3 x 10/100/1000 Mbit/s
LongDesc - Connect 200 Devices and Stay FastThe upgrade OFDMA in Wi-Fi 7 features Multi-RU that provide 25 smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interference in other channels.Cudy MeshCreate same-name Wi-Fi coverage throughout your home and enjoy fast roaming between Wi-Fi zones. Compatible with other Cudy Mesh routers and repeaters.Parental ControlSet Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
LongProductName - BE3600 Gigabit Wi-Fi 7 Router
LongSummaryDescription - Cudy WR3600E. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: White, LED indicators: LAN, System, WAN, WLAN
Management features - MIMO - Yes
Management features - MU-MIMO technology - Yes
Management features - OFDMA - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Wake-on-LAN ready - Yes
Management features - Web-based management - Yes
Management features - Wireless statistics - Yes
Management features - WPS push button - Yes
name - Router WR3600 BE3600 Gigabit Dual Band Wi-Fi 7 Router 4 x 10/100/1000Mbps Ports, 4 x 5dBi fixed antennas, WiFi router/AP/ Repeater/ WISP
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Number of guest networks (2.4 GHz) - 1
Network - Number of guest networks (5 GHz) - 1
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - VPN server - WireGuard OpenVPN IPsec Zerotier PPTP L2TP
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package depth - 231.5 mm
Packaging data - Package height - 73 mm
Packaging data - Package type - Box
Packaging data - Package weight - 736.8 g
Packaging data - Package width - 221 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Number of Ethernet WAN ports - 1
Ports & interfaces - USB port - No
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power consumption (max) - 8.5 W
Power - Power source type - DC
Power supply - Input: 100 ~ 240 V, 50/60 Hz AC Output: 12 V 1 A DC
producer - Cudy
producerCode - WR3600E
productName - Router CUDY WR3600E BE3600 Gigabit Wi-Fi 7 Mesh
ProductName - WR3600E
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Supported network protocols - IPv4 / IPv6
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Do not dismantle the unit yourself, there is a risk of electric shock.
Safety warning - Warnings - Do not expose the device to extreme temperatures.
Safety warning - Warnings - Do not expose the device to water or moisture.
Security - DMZ support - Yes
Security - Filtering - Yes
Security - Firewall - Yes
Security - Firewall security - SPI, DoS
Security - Guest access - Yes
Security - IGMP snooping - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Parental control - Yes
Security - Security algorithms - WPA
Security - Security algorithms - WPA, WPA2, WPA3
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
Security - URL filtering - Yes
ShortSummaryDescription - Cudy WR3600E, Wi-Fi 7 (802.11be), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, White, Tabletop router
sizeX - 78
sizeY - 225
sizeZ - 236
Title - Cudy WR3600E wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Type - xDSL
URL - https://www.cudy.com/en-eu/products/wr3600e-1-0?_pos=1&_psq=WR3600E&_ss=e&_v=1.0#overview
vendpn - WR3600E
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 339.8 g
weight - 750
Weight & dimensions - Depth - 48 mm
Weight & dimensions - Height - 220.4 mm
Weight & dimensions - Weight - 339.8 g
Weight & dimensions - Width - 209 mm
Wireless LAN features - Modulation - 4096-QAM
Wireless LAN features - Point-to-point protocol over Ethernet (PPPoE) - Yes
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Wireless LAN features - Wi-Fi standards - Wi-Fi 7 (802.11be)
Wireless LAN features - WLAN data transfer rate (first band) - 688 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 2882 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2882 Mbit/s
