Accessories included - Zasilacz Zestaw montażowy Kabel Ethernet Przewodnik instalacji
Antenna - Built-in
Antenna - Antenna direction type - Omni-directional
Antenna - Antennas quantity - 5
Antenna - Antenna type - Internal
Antenna gain - 5.6 dBi
Brand - Cudy
BrandPartCode - AP3000_P
Category - Wireless Access Points
Category1 - Network Wireless
Category 1 - Netzwerk
Category 2 - Accesspoints
Certificates -
Color - White
Data Act - Link
Description - Punkt dostępowy AX3000 2,5G Wi-Fi 6
Punkt dostępowy Wi-Fi 6 do montażu na ścianie/suficie, wyposażony w dużą pamięć RAM i ekranowane porty 2,5G, przeznaczony do łączenia dużych biur, sal lekcyjnych i infrastruktury transportowej o dużej gęstości.
Description1 - Cudy wifi Access Point AP3000_P - 2.4 / 5 GHz
Design - Placement - Ceiling, Wall
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 240 mm
Dimensions - Średnica 231.9 × 57.1 mm
dimension weight - 1000 g
dimension width - 280 mm
ean - 6971690793289
EAN - 6971690793289
Environment requirements - Temperatura pracy: -10 ~ 60 Temperatura przechowywania: -40 ~ 70 Wilgotność robocza: 10% ~ 90% bez kondensacji Wilgotność przechowywania: 5% ~ 90%, bez kondensacji
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Channel bandwidth - 160 MHz
Features - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Features - Fast roaming - Yes
Features - Maximum data transfer rate - 2976 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2402 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Spread spectrum method - OFDMA
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GTIN - 6971690793289
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000/2500 RJ-45 port
Logistics data - Country of origin - China
LongDesc - Premium Wi-Fi 6 with 2.5G PortImpress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.Connects 512 Devices with 512 MB RAM1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.5 Antennas and 3+2 Strucutre Boost CoverageFive antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.Seamless Coverage with Fast RoamingMesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.Advanced Business FeaturesCaptive PortalImprove your brand awareness by displaying a customized login page for new clients.Band SteeringAssign devices to less congested bands.Auto Channel SelectionAvoid signal interruptions with nearby access points.Auto Mesh OptimizationForm mesh backhaul via less congested routes automatically.Multi-Mode for Multiple ScenariosAccess PointSimply create a Wi-Fi spot behind a router.Wi-Fi RouterPlease use the Router mode when PPPoE authorization or creating a separate subnet is needed.Range ExtenderThe Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.WISPWISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.Flexible Wired-and-Wireless Hybrid BackhaulVersatile Powering and InstallationPoE or DC Power Supply- Supports 802.3at/af PoE- 48-57V Passive PoE- 12-48V DCVersatile Mounting- Ceiling Mounting- Wall Mounting
LongProductName - AX3000 2.5G Wi-Fi 6 Access Point
LongSummaryDescription - Cudy AP3000_P. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration -
Manufacturer - Cudy
ManufacturerID - AP3000_P
MPN - AP3000_P
name - Access Point AP3000_P 2.5G WiFi 6 AX3000
Name - Cudy AX3000 Wi-Fi 6 2.5G Access Point
Network architecture - GigabitEthernet
Number of antennas - 5
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
PackageHeight - 72
PackageLength - 284
PackageWeight - 1250
PackageWidth - 239
Packaging content - AC adapter included - No
Packaging content - Bundled software - Cudy Software
Packaging content - Cables included - UTP

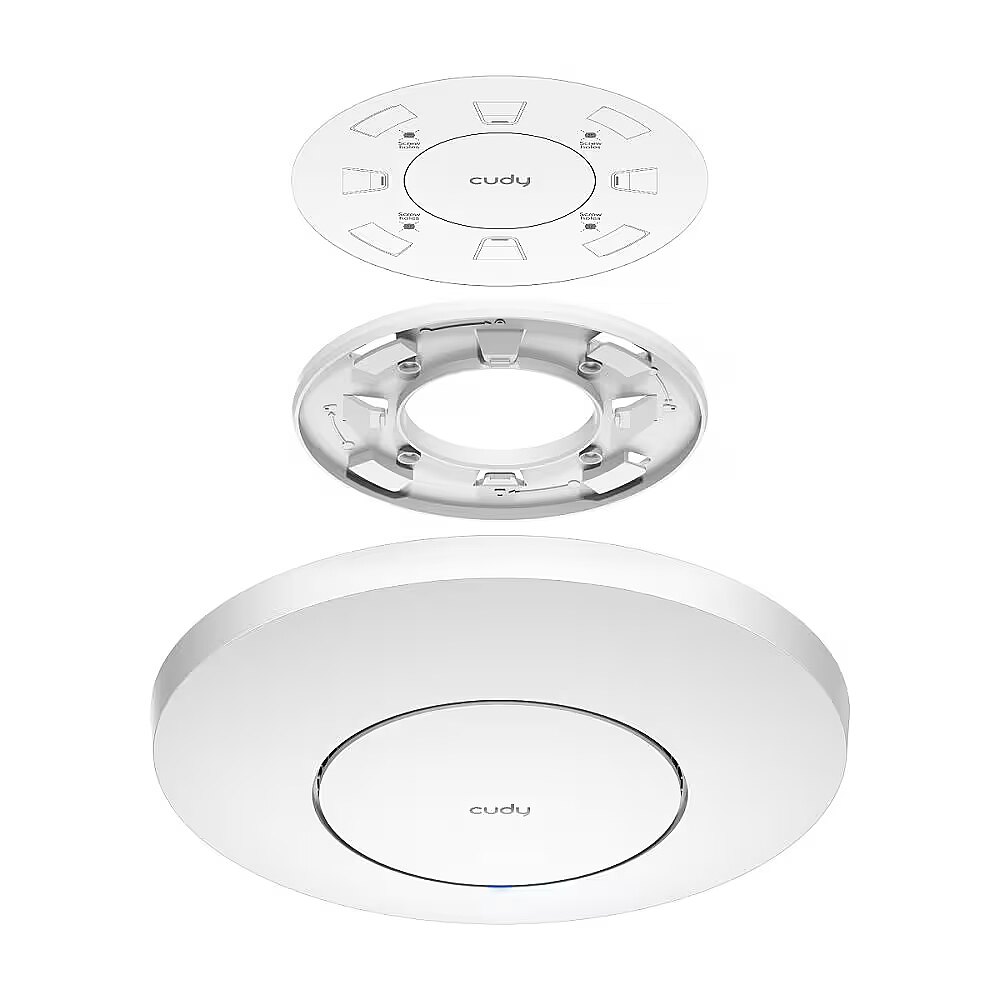

Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 238 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.01 kg
Packaging data - Package width - 283 mm
Performance - Built-in processor - Yes
Performance - Compatible operating systems - Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Performance - Flash memory - 256 MB
Performance - Processor frequency - 1300 MHz
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power - Output voltage - 12 V
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Active PoE
Power supply - 12V 1.5A
producer - Cudy
ProductName - AP3000_P
Security -
Security - Security algorithms - WPA, WPA2, WPA3
Security - Service Set Identifier (SSID) features - Multiple SSIDs
ShortSummaryDescription - Cudy AP3000_P, 2.4 GHz, 5 GHz, 2976 Mbit/s, WPA, WPA2, WPA3, 100,1000,2500 Mbit/s
Software -
Special functions -
Standards - 802.3at
System Requirements -
Title - Cudy AP3000_P wireless access point 2976 Mbit/s White Power over Ethernet (PoE)
URL - https://www.cudy.com/products/ap3000-1-0#overview
vendpn - AP3000_P
WarrantyInfo -
WEEE - DE46285170
Weight - 1.015
Weight - 494 g
Weight & dimensions - Depth - 232 mm
Weight & dimensions - Height - 57.1 mm
Weight & dimensions - Weight - 489.6 g
Weight & dimensions - Width - 232 mm
