2.5GbE Ports - 1

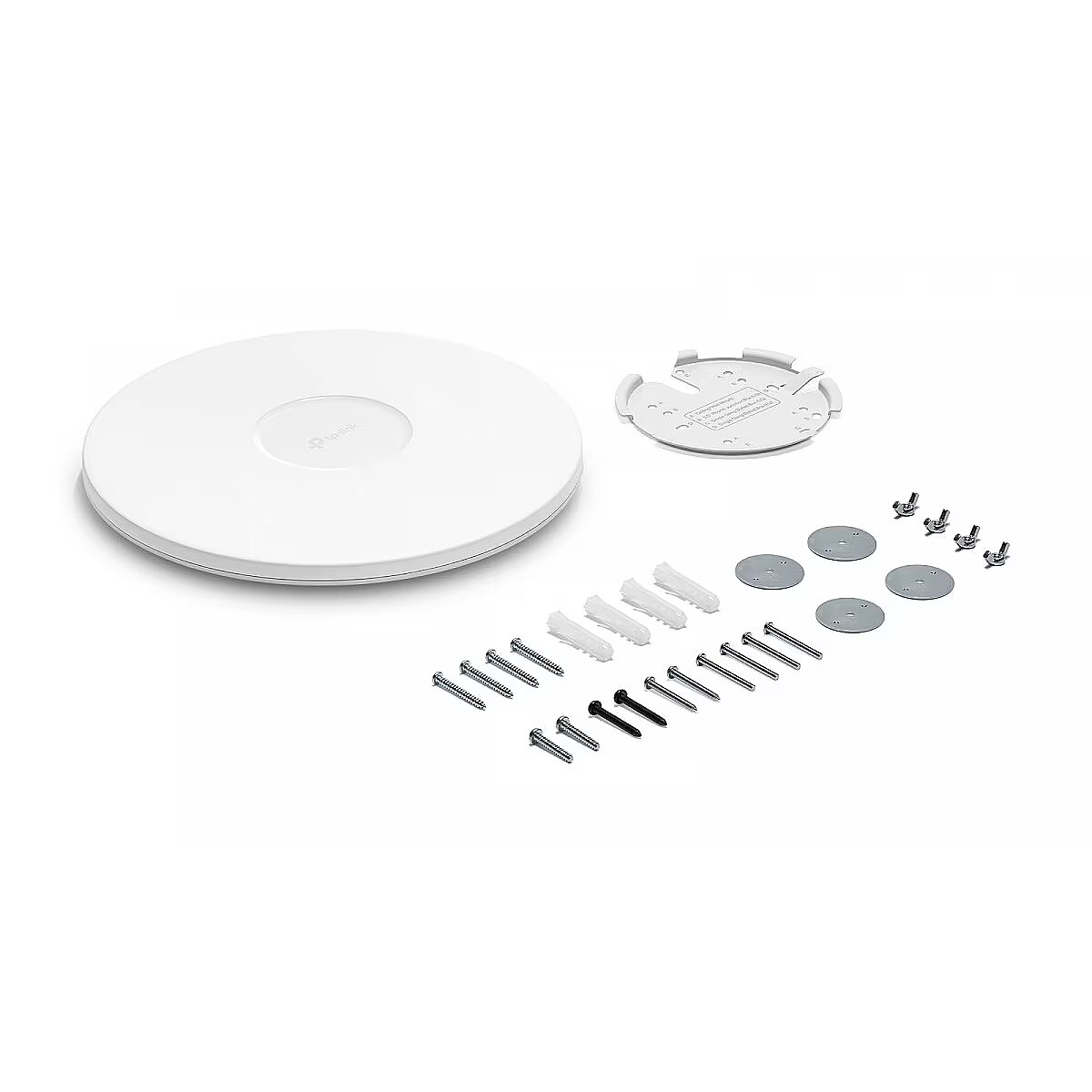

Accessories included - EAP683 UR Ceiling/Wall Mount Kit Installation Guide
Antenna - Built-in
Antenna - Antenna direction type - Omni-directional
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antenna type - Internal
Antenna gain - 5 dBi
Antenna Type - Omni-Directional
ARTIKEL1 - OMADA AX6000 WI-FI 6 AP
ARTIKEL2 - CEILING MOUNT DUAL-BAND
Bluetooth 5.2 Network standard - Yes
Brand - TP-Link
BrandPartCode - EAP683 UR
Breite - 0
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Certificates - CE,FCC,RoHS
Color - White
Colour - White
Data transmission speed - 6000 Mbps
Description - Ceiling-mount WiFi 6 access point, AX6000 standard WiFi 6 speed: Supports speeds of up to 1148 Mbps on the 2.4 GHz band and 4804 Mbps on the 5 GHz band, for a total of up to 5952 Mbps Wide wireless coverage with built-in 4×4 MIMO antennas and high transmission power Support for WiFi 6 technologies such as HE160, 1024-QAM, etc. Integration with Omada SDN platform enables centralized management Advanced features: Omada Mesh, Seamless Roaming, and more§ The access point supports 802.3at PoE+ and DC power (power supply not included)
Description - EAP683 UR New AX6000 Ceiling Mount WiFi 6 Access Point - Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz - Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power. - Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc. - Integrates with the Omada SDN platform for centralized management. - Advanced Features: Omada Mesh, Seamless Roaming, and more. - PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Design - LED indicators - Yes
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 260 mm
Dimensions - 220 x 220 x 32.5 mm
Dimensions - 220 × 220 × 32.5 mm
dimension weight - 1370 g
dimension width - 280 mm
ean - 8885020621938
EAN - 8885020621938
EANCode - 8885020621938
Environment requirements - Permissible operating temperature: 040 Permissible storage temperature: -4070 Permissible air humidity: 10%90%, non-condensing Permissible storage humidity: 5%90%, non-condensing
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Fast roaming - Yes
Features - Frequency band - 2.4 - 5 GHz
Features - Frequency band - 2.4 - 6 GHz
Features - Maximum data transfer rate - 6000 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 1148 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 4804 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Number of users - 510 user(s)
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - VLAN support - Yes
Full Description Line - Omada|EAP683 UR|Type Wireless Access Point|Data transmission speed 6000 Mbps|IEEE 802.11a|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|Bluetooth 5.2|Antenna Type Omni-Directional|Wireless Frequency Range 2.4GHz-5GHz|Colour White|Dimensions 220 × 220 × 32.5 mm
Gewicht - 1
Gross Weight Kg - 2,3
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0810142821018
GTIN - 810142821018
GTIN - 8885020621938
GTIN - 8885020621945
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - EAP683 UR
I/O ports - 1 x 10/100/1000/2500 RJ-45 port
IEEE 802.11ac Network standard - Yes
IEEE 802.11a Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
Laenge - 0
Linux OS compatibility - Yes
LongSummaryDescription - TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration - Omada App Yes Cloud Access: Yes. Requires OC300, OC200, Omada Cloud-based Controller or Omada Software Controller Email Notifications LED Offset MAC Access Control SNMP v1, v2c, v3 System Log: Local and Remote SSH HTTP/HTTPS Web Management L3 Management Multi-site Management VLAN Management ZTP Zero-touch Configuration: Yes. Requires Omada Cloud-based Controller. Central Management: Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-based Controller
Management features - Firmware upgradeable - Yes
Management features - Syslog - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP683 UR
Manufacturer Name - TP-LINK
Model name - EAP683 UR
MPN - EAP683 UR
name - TP-Link EAP683 UR Acces s Point AX6000
Name - TP-Link Omada EAP683 UR WIFI6 AX6000
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick start guide - Yes
Packaging data - Package type - Box
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC voltage range - 12 V
Power - Power over Ethernet (PoE) - Yes
Power supply - 802.3at PoE 12 V / 2 A DC Power supply not included Power consumption EU: 20.43W
producer - TP-LINK
ProductName - AX6000 Ceiling Mount WiFi 6 Access Point
Product Net Weight - 0.6946 kg
Safety warning - Warnings - Do not expose to prolonged moisture.
Safety warning - Warnings - Electronic products should be recycled at specialist electronic waste collection facilities.
Security - Welcome Page Authentication Access Control MAC Filtering Wireless Client Isolation SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Encryption
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - HTTPS
Security - Security algorithms - HTTPS, SNMP, SNMPv2, SNMPv3, SSH
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security - Security algorithms - SSH
Security - Service Set Identifier (SSID) features - Multiple SSIDs
Series - Omada
Shipping Box Depth Shipping/Package Box Dimensions - 28.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
Short description - TP-LINK WLAN AX6000 4800 Mbit Access Point Dualband Wi-Fi 6 1x 2,5 GB Port, w/o PoE adapter, Omada
ShortSummaryDescription - TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 6000 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, 10,100,1000,2500 Mbit/s
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 6
Stck_Pal - 6
Storno - Y
System Requirements - Microsoft Windows XP, Vista, 7, 8, 10, 11 Linux
Title - TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point
Unit Box Height - 0.09
Unit Box Length - 0.285
Unit Box Width - 0.26
Unit Calculated Volume - 0.006669 cubm
Unit Calculated Weight - 1.35 kg
Units per Shipping Box - 1
Vendor Homepage - www.tp-link.com/en/business-networking/omada-wifi-ceiling-mount/eap683-ur/
vendpn - EAP683 UR
Warranty - 60 months
Weight - 1.293
Weight - 694.6 g
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 32.5 mm
Weight & dimensions - Width - 220 mm
Windows 7 OS compatibility - Yes
Windows 8 OS compatibility - Yes
Windows 10 OS compatibility - Yes
Windows 11 OS compatibility - Yes
Windows Vista OS compatibility - Yes
Windows XP OS compatibility - Yes
Wireless Frequency Range - 2.4GHz-5GHz
