Accessories included -
Antenna - Fixed external
Antenna - Antennas quantity - 2
Antenna - Antenna type - Omni-directional
Antenna gain - 5 dBi
Color - White

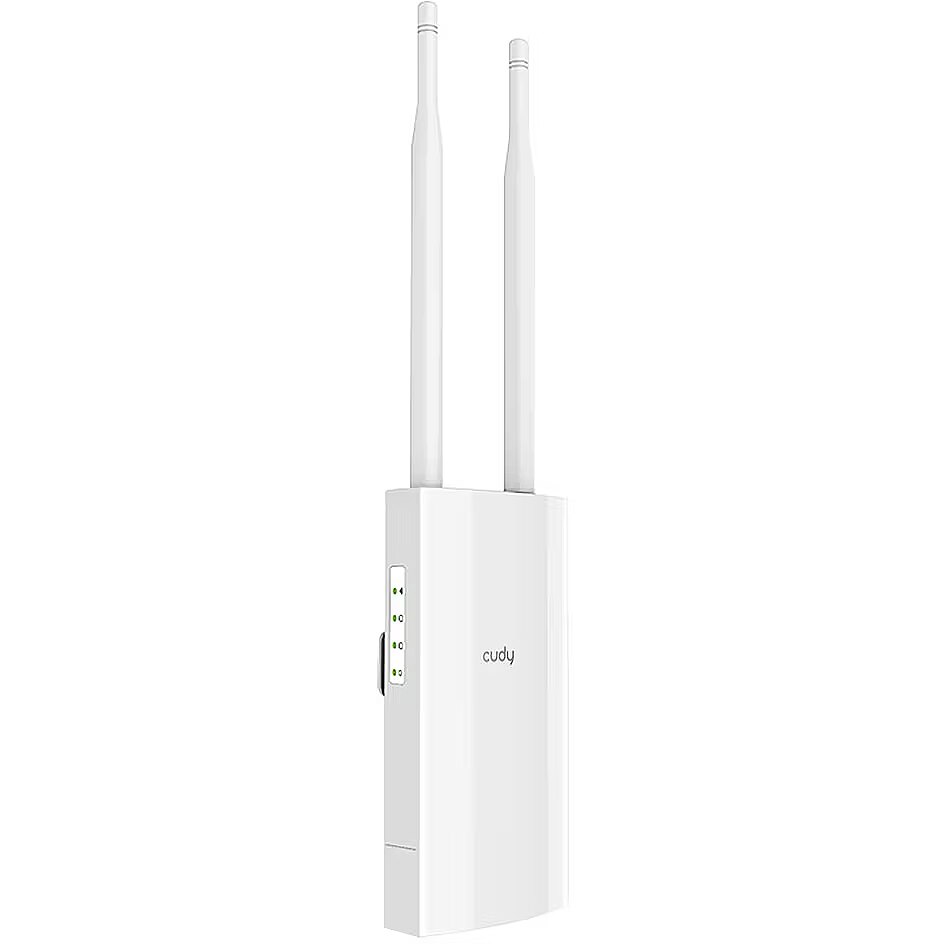

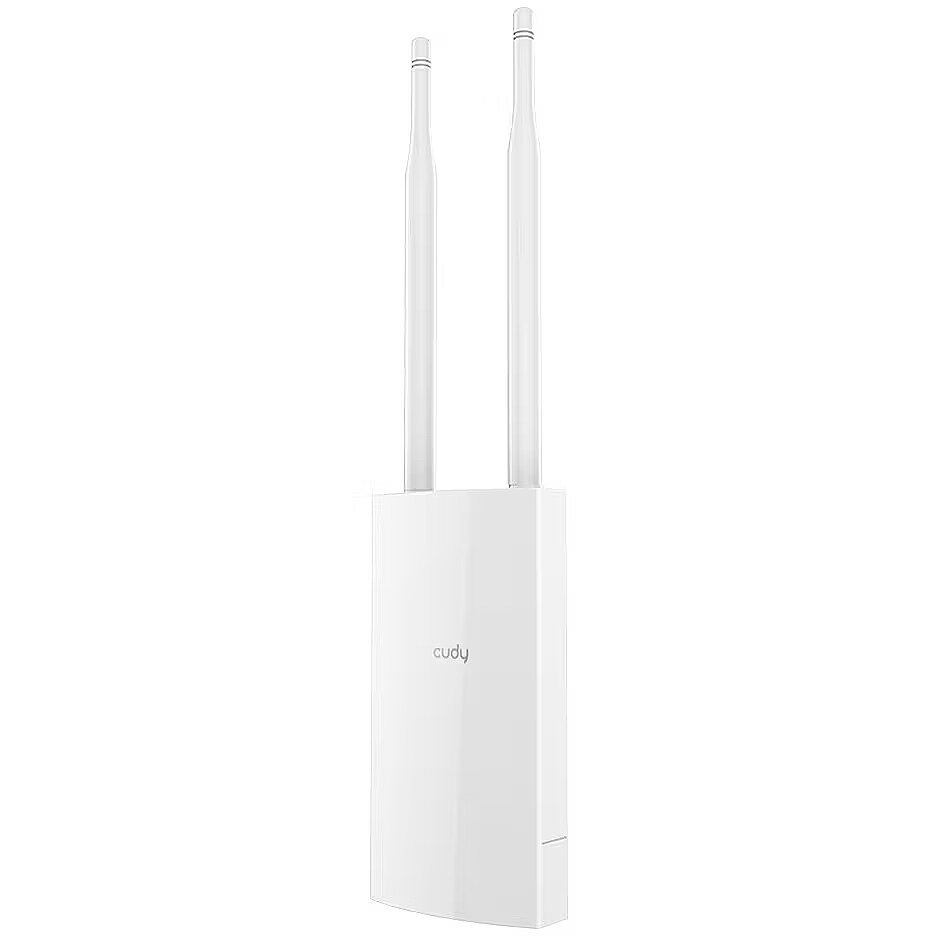

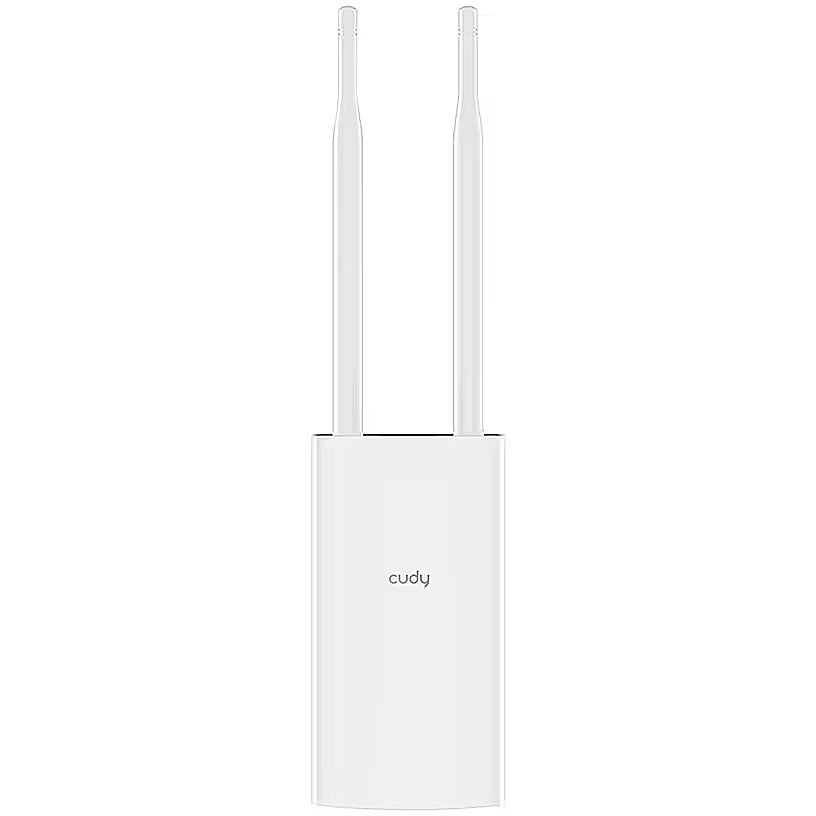

Description - Wireless outdoor AC1200 access point, model: AP1200-Outdoor 2 Fast Ethernet ports for connecting wired devices 2.4 GHz Wi-Fi speed 300 Mbps + 5 GHz 867 Mbps POE power supply support IP66 Weatherproof Excellent Wi-Fi performance and long range A dedicated high-power amplifier and professional antennas, together with the latest generation 802.11ac standard, ensure excellent Wi-Fi performance and long range in the 2.4 GHz and 5 GHz wireless bands. Automatically select the best channel The AP1200-Outdoor automatically selects the best channel according to the wireless channel usage in the environment to avoid inter-channel interference and ensure the stability of the wireless network. Compatible with IEEE 802.3af/at PoE Compliant with 802.af/at PoE, the AP1200-Outdoor can be powered by standard PoE switches, increasing deployment flexibility and reducing costs.
Design - LED indicators - Yes

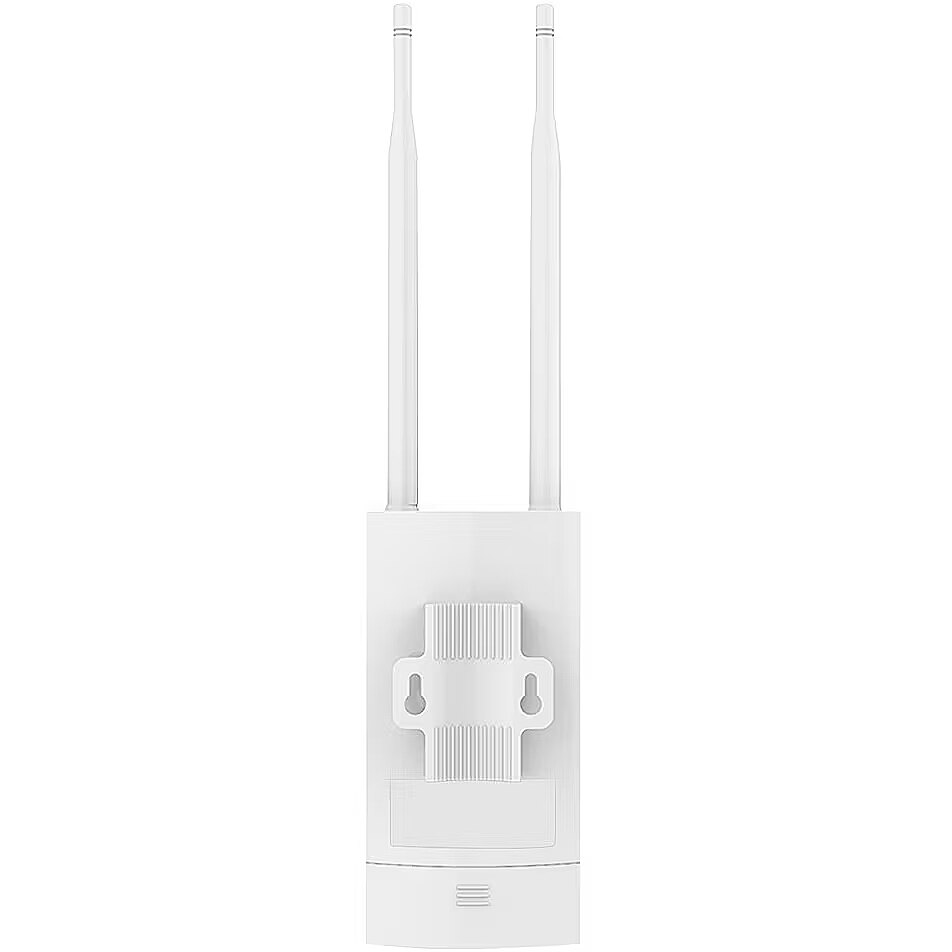

Design - Mounting type - Wall/Pole
Design - Product colour - White
Design - Quantity per pack - 1 pc(s)
Design - Reset button - Yes
Designation - CE+WEEE
dimensionalWeight - 643
dimension depth - 85 mm
dimension height - 325 mm
Dimensions - 353 x 85 x 44 mm
dimension weight - 760 g
dimension width - 110 mm
ean - 6971690794347
guarantee - 24
guarantee_type - normal
I/O ports - 2 x 10/100 Mbit/s
Management, monitoring, configuration -
Memory - Flash memory - 8 MB
Memory - Internal memory - 64 MB
name - AP1200 Outdoor Acc ess Point AC1200 Outdoo
Network - Bandwidth - 0.08 GHz
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network - Quality of Service (QoS) support - Yes
Network - Security algorithms - WPA-PSK
Network - Security algorithms - WPA2-PSK
Network - Wi-Fi - Yes
Network - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Network - Wi-Fi data rate (max) - 867 Mbit/s
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network architecture - FastEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Manual - Yes
Packaging content - Wall mounting kit - Yes
Performance - BeamForming - Yes
Performance - Chipset - MT7628DA
Performance - Ethernet LAN data rates - 10
Performance - Ethernet LAN data rates - 100
Performance - International Protection (IP) code - IP65
Performance - Linux operating systems supported - Yes
Performance - Mac compatibility - Yes
Performance - Mac operating systems supported - Yes
Performance - Maximum transfer distance - 170 m
Performance - Mobile operating systems supported - Android
Performance - Mobile operating systems supported - iOS
Performance - Type - Network repeater
Performance - Windows operating systems supported - Yes
Performance - WPS push button - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Power over Ethernet (PoE) voltage range - 0 - 24 V
Power - Total Power over Ethernet (PoE) budget - 12 W
Power supply - POE 802.3af/802.3at power supply (0-100m); POE power adapter 48V 0.32A (configured)
producer - Cudy
producerCode - AP1200 Outdoor
productName - Cudy RE1200 Outdoor WiFi 5 AC1200 1xLAN Passive PoE Amplifier
productSize - Normal
Safety warning - Warnings - Avoid direct contact with water.
Safety warning - Warnings - Do not expose to prolonged moisture.
Safety warning - Warnings - Electronic products should be recycled at specialist electronic waste collection facilities.
Security - IP66
sizeX - 109
sizeY - 328
sizeZ - 90
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
vendpn - AP1200 Outdoor
warrantyLength - 24
warrantyType - F
weight - 762
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 53.7 mm
Weight & dimensions - Width - 240 mm
