Brand - Viewsonic
BrandPartCode - LS740W
Category - Data Projectors
Category 1 - Beamer & Zubehör
Category 2 - Beamer
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Business
Design - Product colour - White
Design - Product type - Standard throw projector
Display - Built-in display - No
EAN - 0766907022599
Features - HDCP - Yes
Features - HDCP version - 1.4/2.2
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level (economic mode) - 29 dB
Features - Number of OSD languages - 27
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Danish, German, Hungarian, Arabic, Dutch, Norwegian, English, Indonesian, Swedish, Spanish, Italian, Polish, Thai, Japanese, Portuguese, Turkish, Romanian, Simplified Chinese, Finnish, Korean, Russian, Vietnamese, Traditional Chinese, French, Greek, Czech, Slovak
GTIN - 0766907022599
GTIN - 766907022599

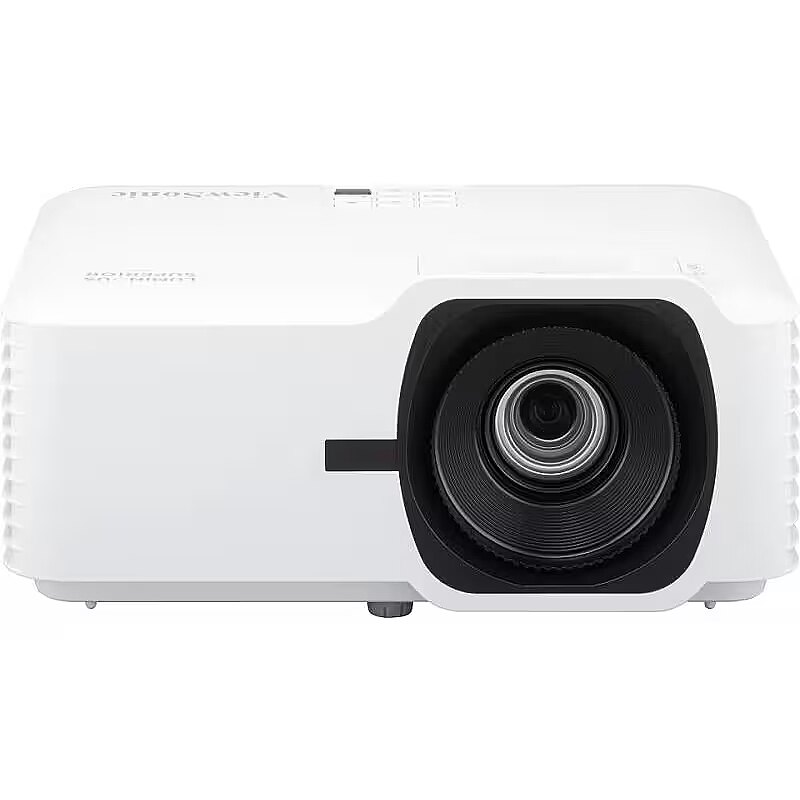

Lens system - Digital zoom - 2x
Lens system - F-number (relative aperture) - 2.8
Lens system - Fixed focal length - 7.51 mm

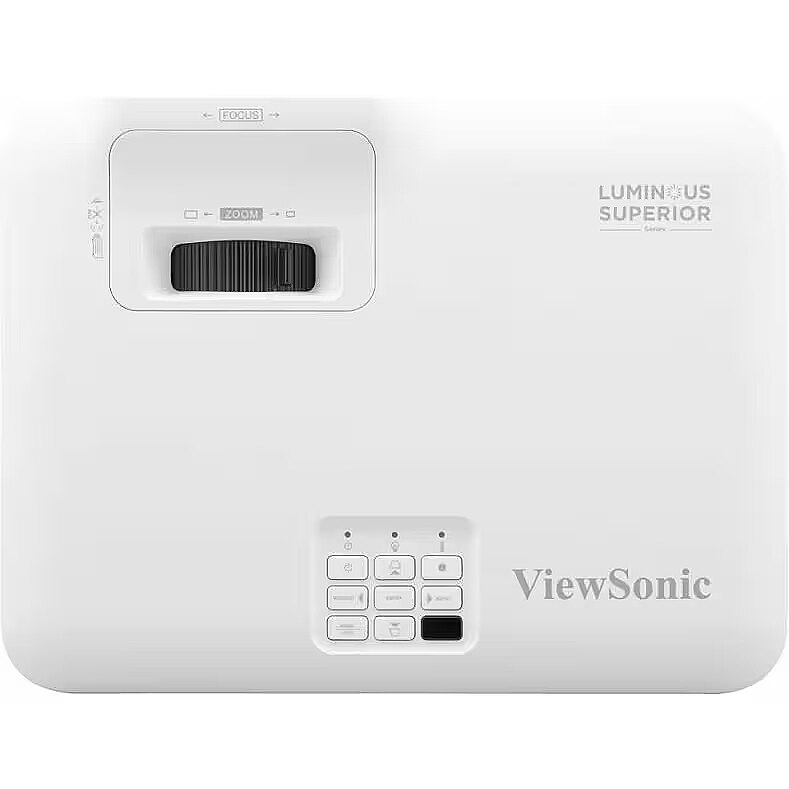

Lens system - Focus - Manual
Lens system - Offset - 132%
Lens system - Throw ratio - 0.49
Lens system - Zoom capability - Yes
Lens system - Zoom type - Manual
Light source - Light source type - Laser
Light source - Service life of light source - 20000 h
Light source - Service life of light source (economic mode) - 30000 h
Logistics data - Quantity per pack - 1 pc(s)

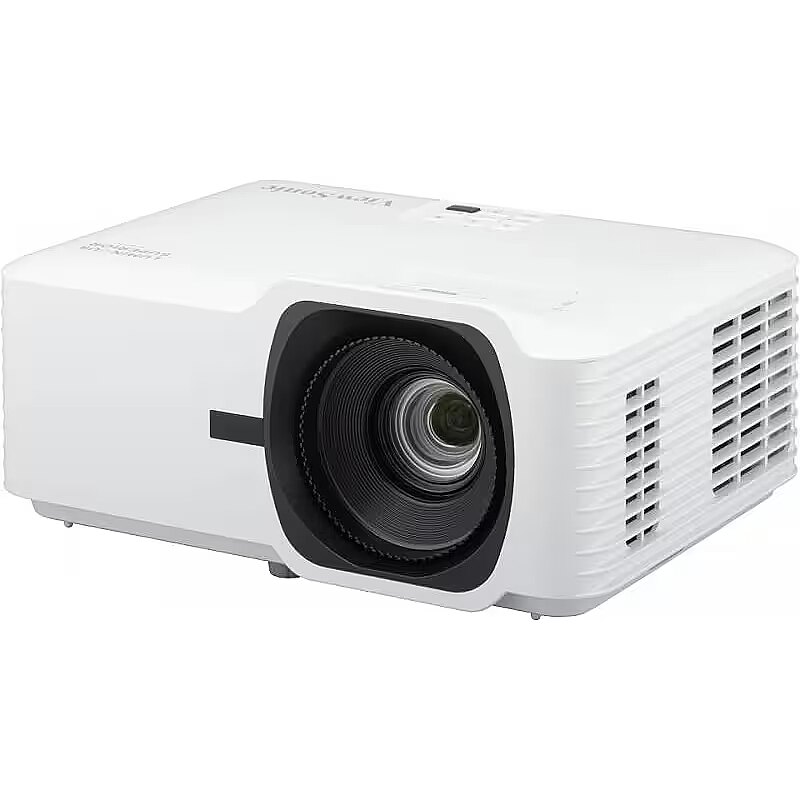

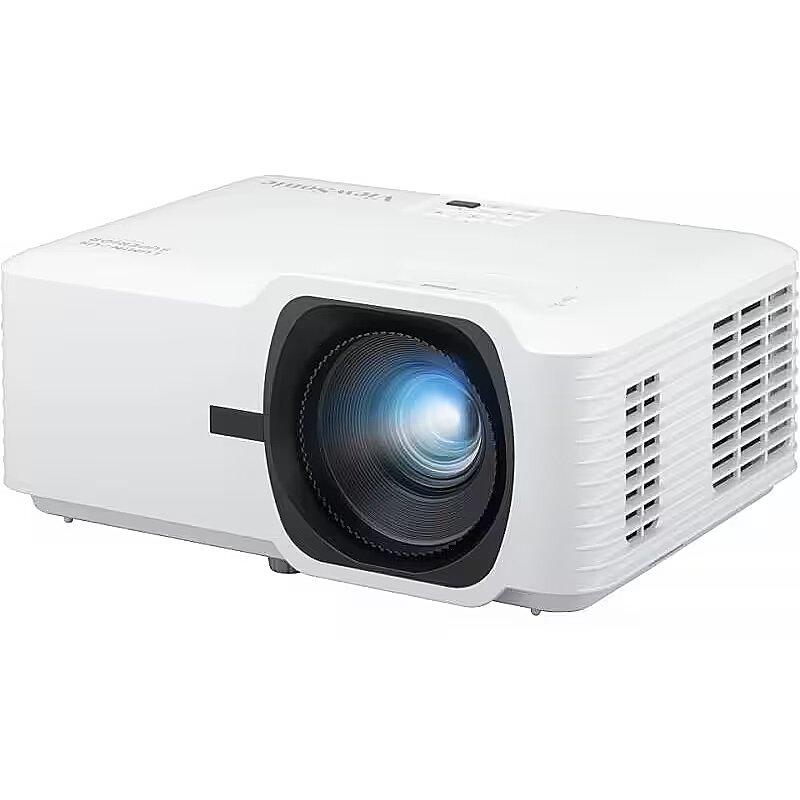

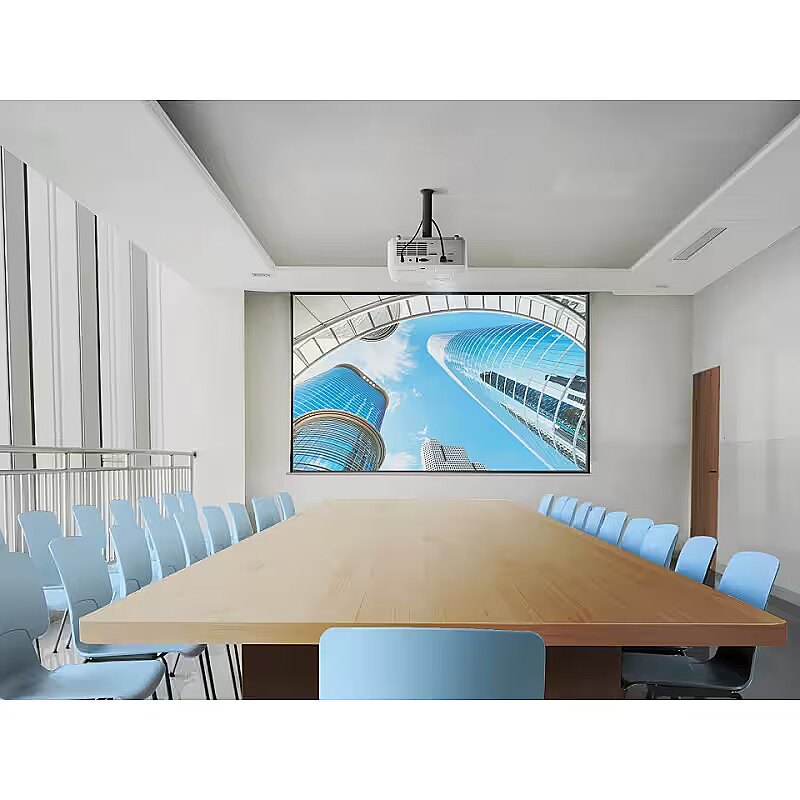

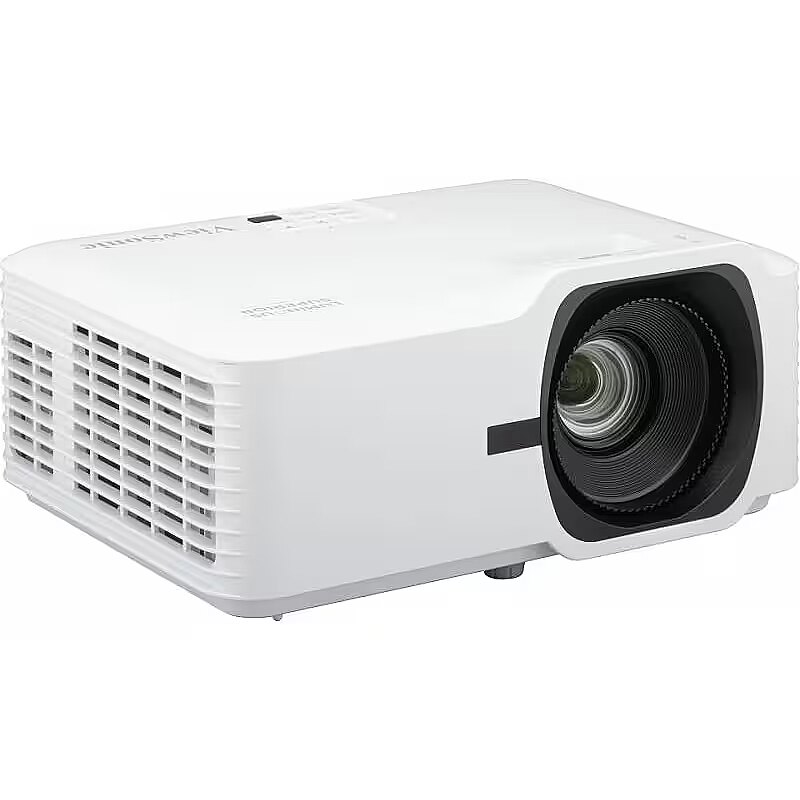

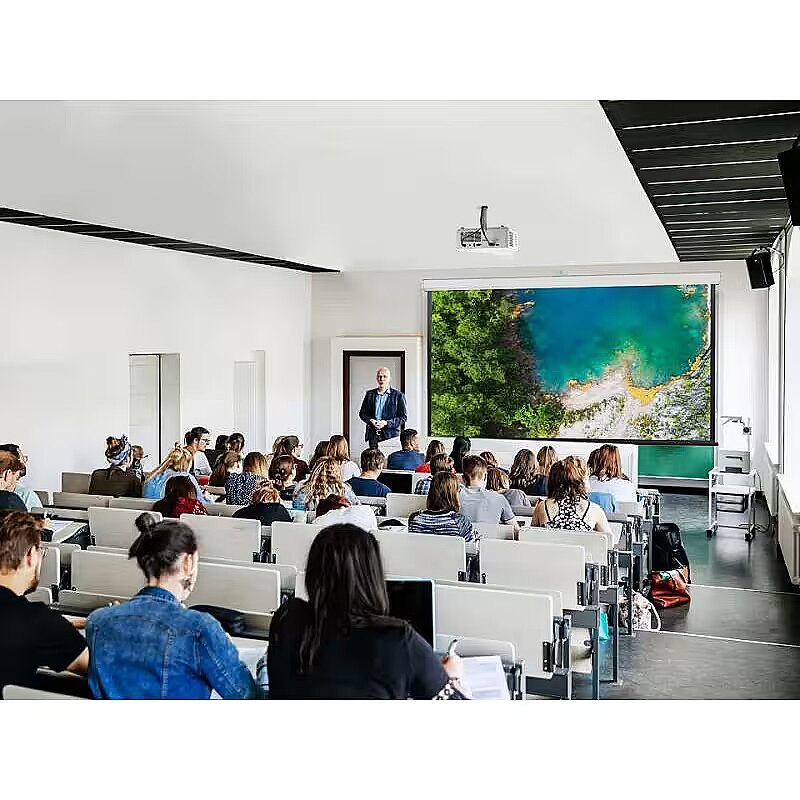

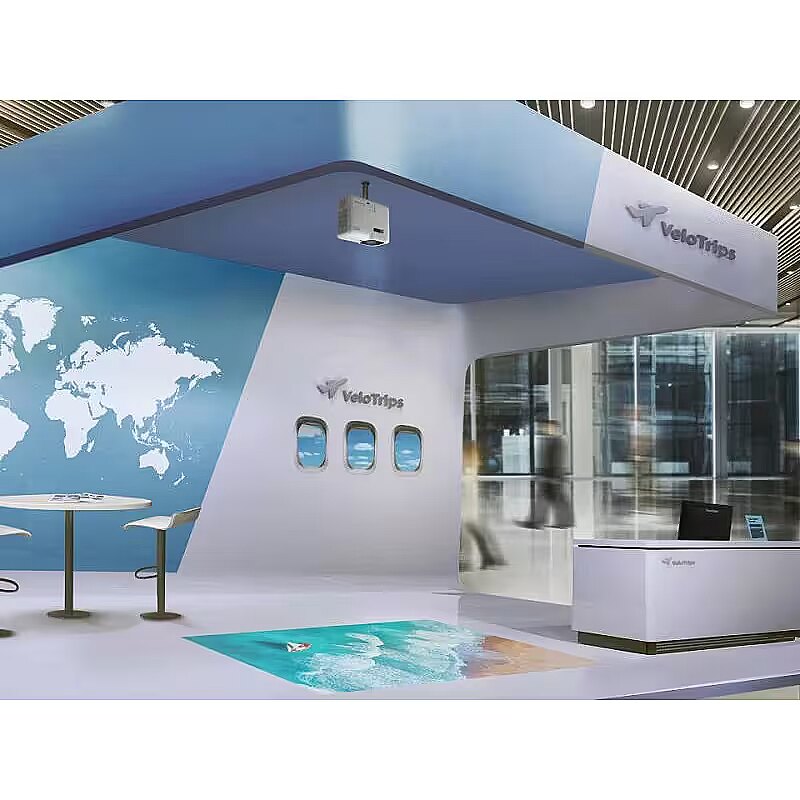

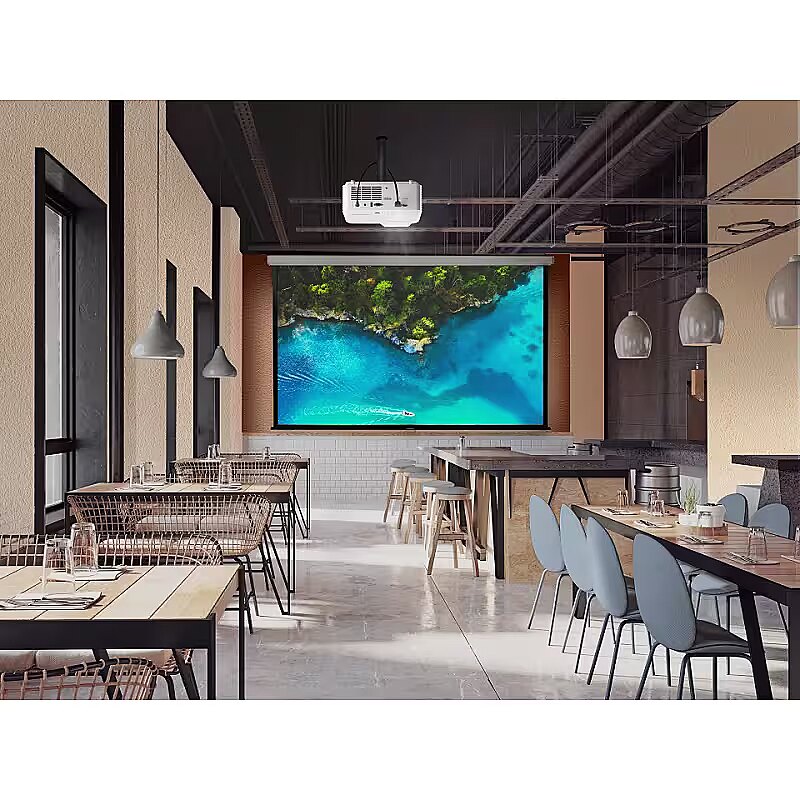

LongDesc - The LS740W belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector line up designed for commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector‘s light weight and compact design reduces transportation costs. With up to 300“ projection and high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces. This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.Bright, Compact, DurableThe LS740W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.Bright Images for Large VenuesDelivering 5,000 ANSI Lumens, the LS740W provides vibrant and clear projection in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.Unmatched Contrasts, Enhanced VisibilityThe projector's high native contrast ratio, achieved through its Texas Instruments 0.65" DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.Ultra-large Screen with Lower Cost-per-inchThis easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.Easy and Cost-effective InstallationThe LS740W is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.Save on Costs and EnergyWith its advanced lamp-free light source, the LS740W offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.Enhanced Installation FlexibilityEquipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.Get Perfectly-shaped Images EffortlesslyHorizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.Versatile Creative ApplicationsThe projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.Present the Best with Vibrant ColorsImpress any audience with ViewSonic’s exclusive color technology, elevating your presentation witha true-to-life color experience.Non-stop 24/7 OperationThe projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.A Simpler Way to Update Projector SoftwareSkip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.Directly Power Wireless HDMI DongleThe built-in 5V/1.5A USB-A output conveniently delivers power to a wireless HDMI dongle, eliminating the need for separate power adapters when streaming multimedia content.Enhanced Dust ResistanceMaintain crystal-clear image quality and product longevity with an advanced IP6X sealed engine design that prevents dust from entering and affecting internal components.
LongProductName - Full HD, 4200 ANSI, 3000000:1, 1.07 B, 2, 15W x2, RJ45, HDMI, Audio-out, RS232, USB, 100-240 V, 4.5 kg
LongSummaryDescription - Viewsonic LS740W. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1200x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 7.51 mm, Zoom type: Manual. Analog signal format system: NTSC, PAL, SECAM, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Manufacturer - Viewsonic
MPN - LS740W
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 2
Multimedia - RMS rated power - 30 W
Name - Viewsonic Beamer LS740W 5000 Lumen WXGA Laser DLP
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Quick start guide - Yes

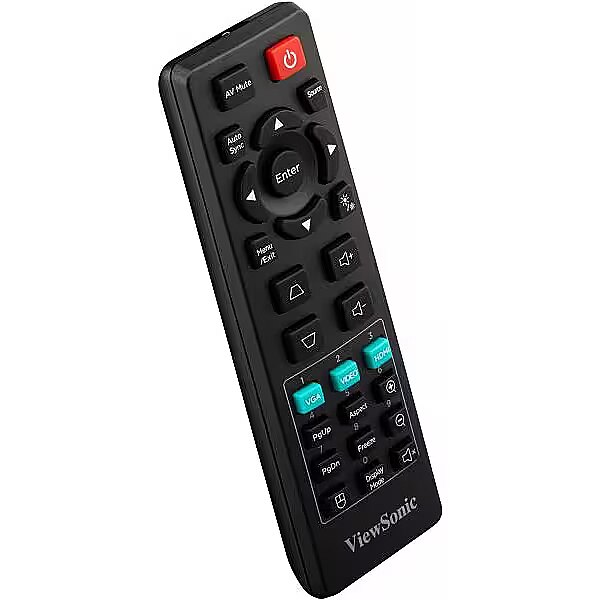

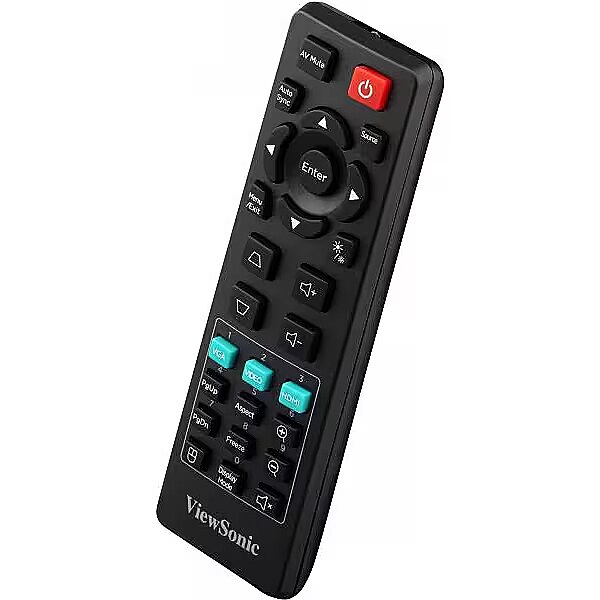

Packaging content - Remote control included - Yes
Packaging content - Warranty card - Yes

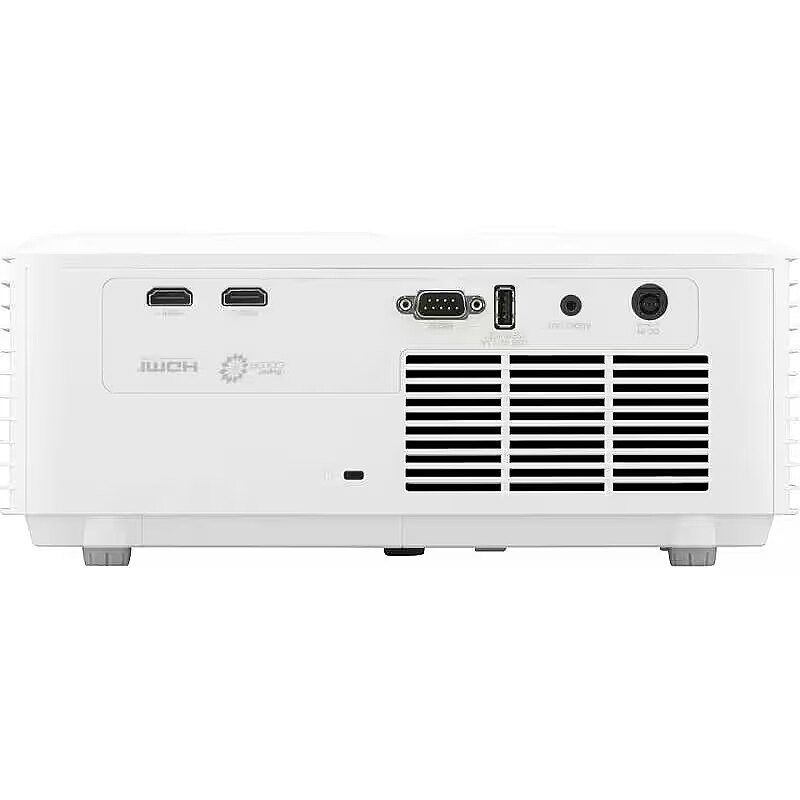

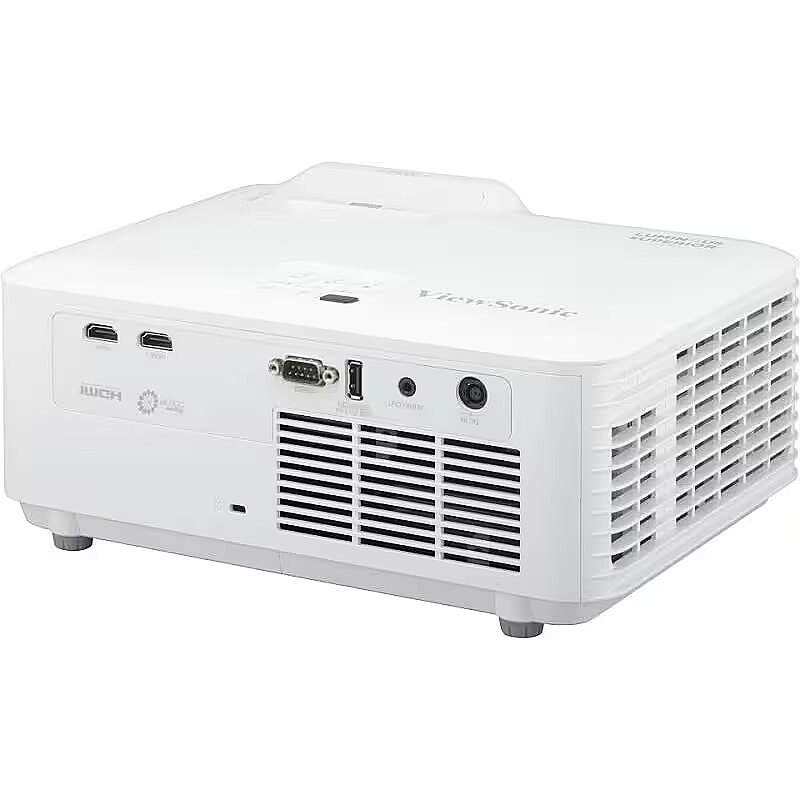

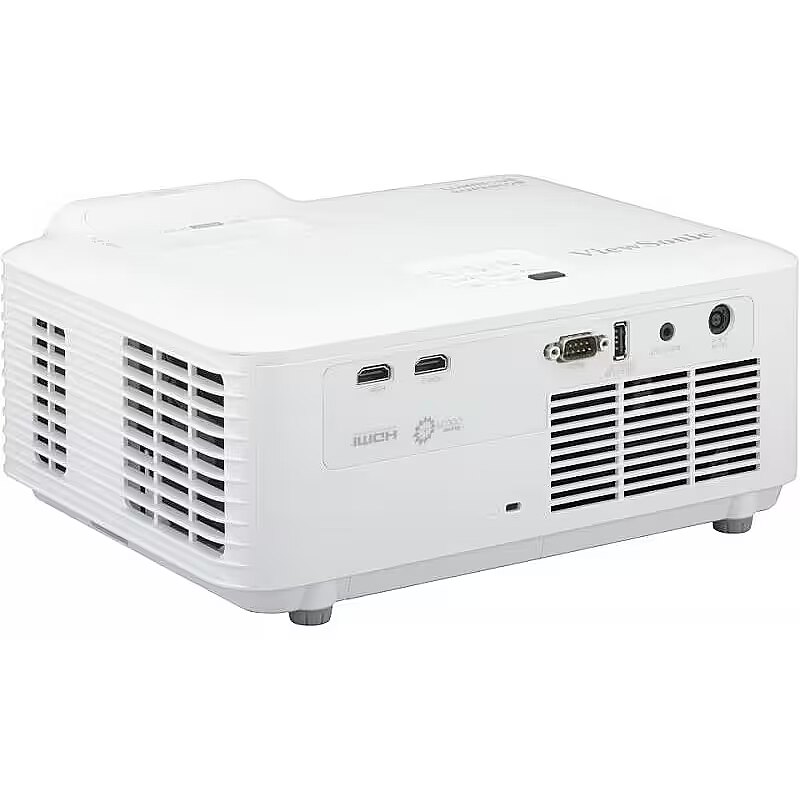

Ports & interfaces - AC (power) in - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Service port type - USB Type-A
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 245 W
Power - Power source - AC
ProductName - LS740W
Projector - Contrast ratio (typical) - 3000000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, horizontal - -15 - 15°
Projector - Keystone correction, vertical - -15 - 15°
Projector - Native aspect ratio - 16:9
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 0.43 - 3.25 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 5000 ANSI lumens
Projector - Projector native resolution - WXGA (1200x800)
Projector - Screen size compatibility - 1016 - 7620 mm (40 - 300")
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
ShortSummaryDescription - Viewsonic LS740W, 5000 ANSI lumens, 3LCD, WXGA (1200x800), 3000000:1, 16:9, 1016 - 7620 mm (40 - 300")
Storage - Card reader integrated - No
Technical details - Image lag time - 49.9 ms
Title - Viewsonic LS740W data projector Standard throw projector 5000 ANSI lumens 3LCD WXGA (1200x800) White
URL - https://www.viewsonic.com/global/products/projectors/LS740W
Video - 3D - No
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - Yes
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
WarrantyInfo -
Weight & dimensions - Depth - 265 mm
Weight & dimensions - Height - 131.5 mm
Weight & dimensions - Package depth - 195 mm
Weight & dimensions - Package height - 387 mm
Weight & dimensions - Package weight - 6.6 kg
Weight & dimensions - Package width - 496 mm
Weight & dimensions - Weight - 4.5 kg
Weight & dimensions - Width - 337 mm
