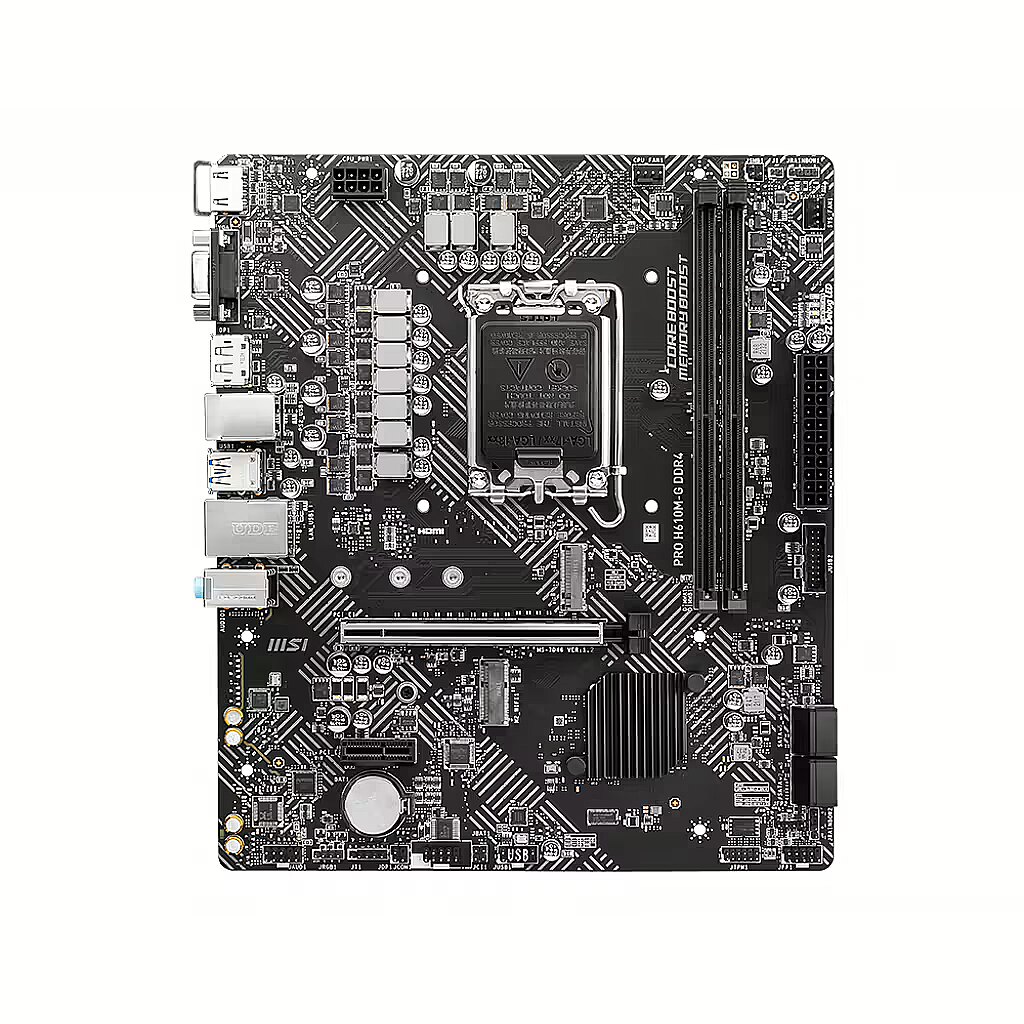

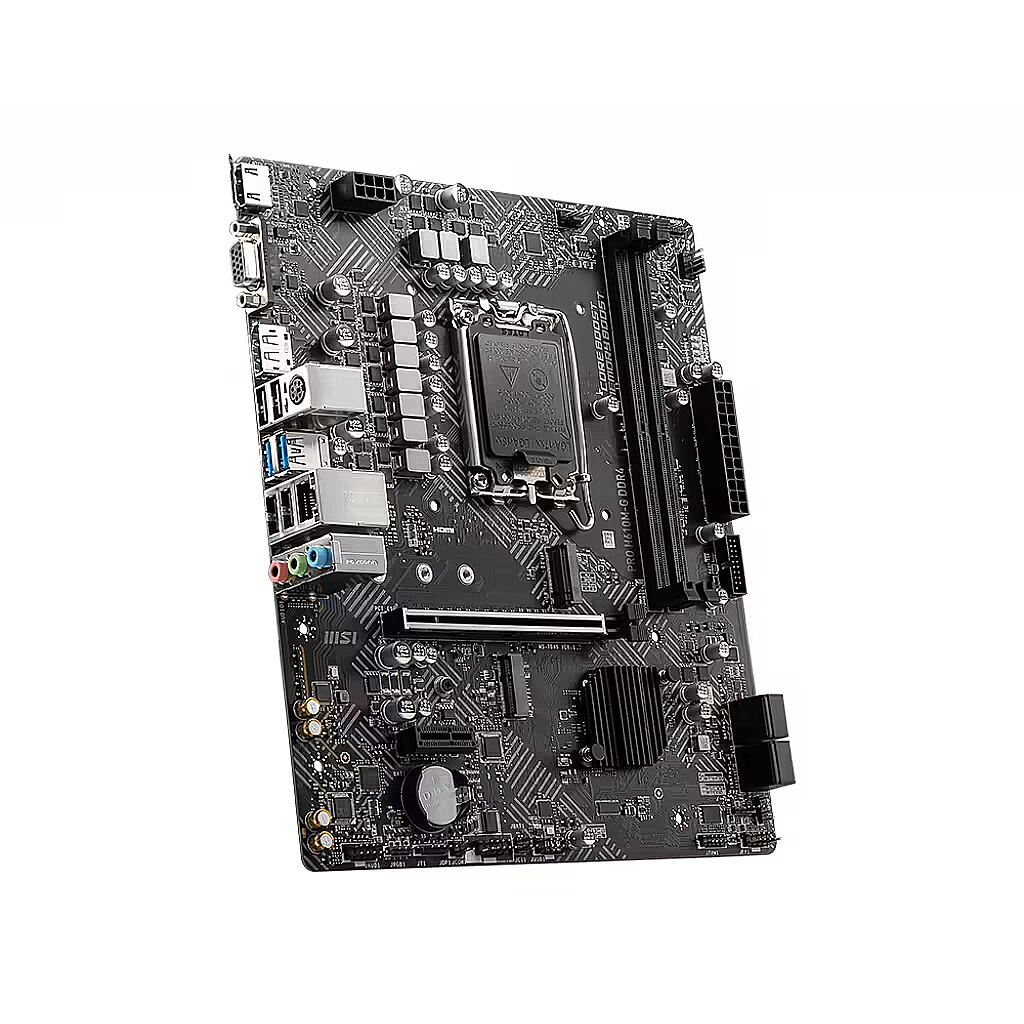

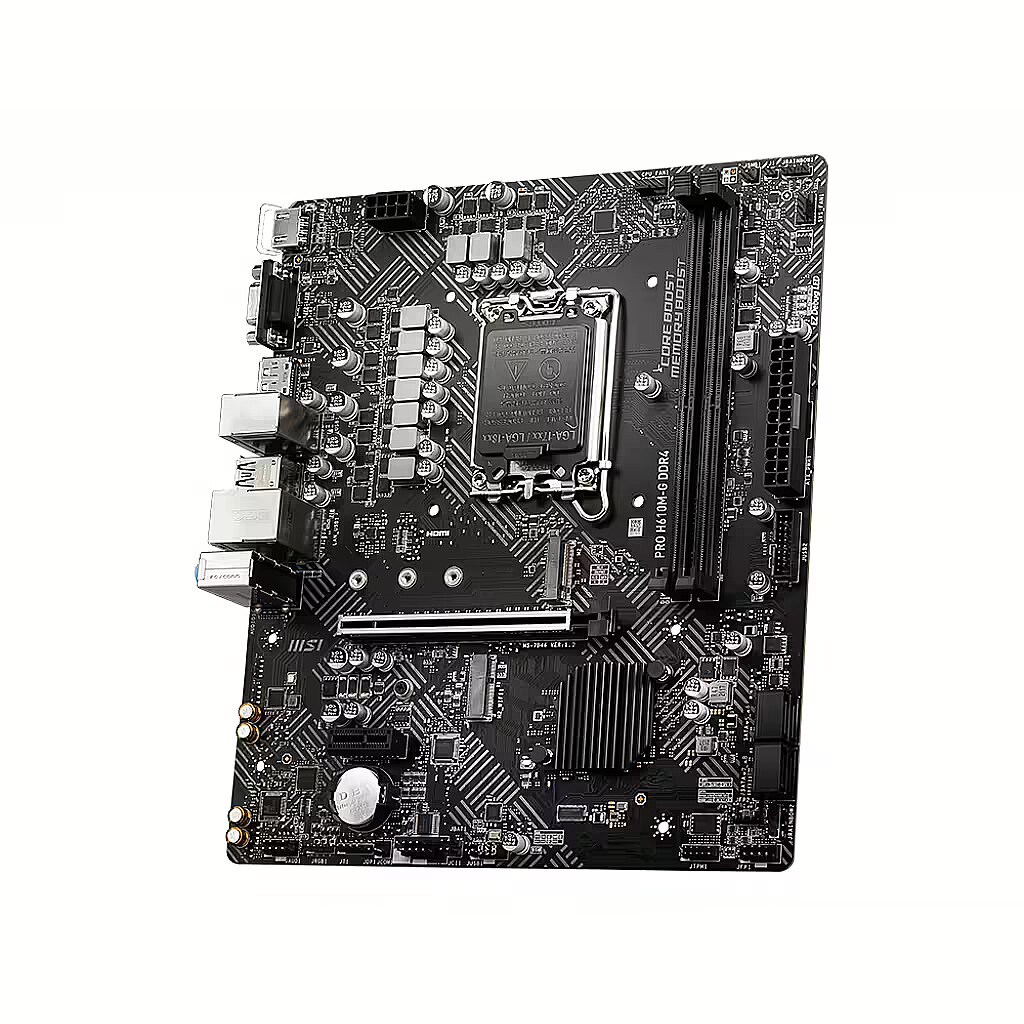

MSI PRO H610M-G DDR4

12V power connector Internal I/O - Yes
Accessories included -
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS -
BIOS - BIOS type - UEFI AMI
BIOS type BIOS - UEFI AMI
Brand - MSI
BrandPartCode - PRO H610M-G DDR4
Cables included Packaging content - SATA
Category - Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700|H610
Category - Root/Electronics/PC parts/Motherboards
Category1 - Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset manufacturer - Intel
Chipset type - Intel H610 Chipset
code - 7D46-009R
Code - PROH610M-GDDR4
COM connector / port - No
Compatible processor series Processor - Intel® Core™ i9
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Data Act - Link
Depth Weight & dimensions - 244 mm
Desc - Mikroshēmu tips | chipset: Intel H610, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 64 GB, WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - PRO H610M-G DDR4 motherboard Supports Intel 12th generation Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 memory, up to 3200 (MAX.) MHz Core Boost: premium chip that supports more cores for better performance Memory boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Lightning-fast performance: PCIe 4.0 Audio Boost: reward your ears with studio quality audio Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Description - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socketSupports DDR4 Memory, up to 3200(MAX) MHzCore Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0Audio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Description1 - MSI Mainboard PRO H610M-G DDR4 - Micro ATX - Socket LGA1700 - Intel H610
Description2 - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 1x M.2 socket (M key, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/2260/2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
dimension depth - 55 mm
dimension height - 260 mm
Dimensions - 24.4 x 21.1 cm
dimension weight - 742 g
dimension width - 260 mm
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
Drivers included Packaging content - Yes
Dźwięk: Zintegrowana karta dźwiękowa - yes (Realtek ALC897 7.1)
EAN - 4719072925024
ean - 4719072925024
Eans - 4719072925024
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Graphics - 1x HDMI 2.1 with HDR port, supports maximum resolution of 4K 60Hz 1x VGA port, supports maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 supports maximum resolution of 4K 60Hz
Graphics - DirectX version - 12.0
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 1
GTIN - 0824142278789
GTIN - 824142278789
GTIN - 4719072925024
guarantee - 36
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84733020
HDMI ports quantity Rear panel I/O ports - 1
Height Weight & dimensions - 65 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Zintegrowana karta sieciowa - yes (Intel I219V 1Gbps LAN)
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LongProductName - Micro-ATX, LGA1700, Intel H610, DDR4, SSD, Windows 10/11
LongSummaryDescription - MSI PRO H610M-G DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - MSI
Manufacturer Code - PRO H610M-G DDR4
ManufacturerID - 7D46-009R
Manufacturer Name - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 64 GB
Max memory size - 64 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2666,2933,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Model - PRO H610M-G DDR4
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 7D46-009R
Name - 1700 MSI PRO H610M-G DDR4
Name - MB H610 S1700 MATX/PRO H610M-G DDR4 MSI
name - Motherboard PRO H610M-G s1700 DDR4 DP/HDMI M.2 mATX
name - MSI PRO H610M-G, Socket LGA 1700, Intel H610M, Micro-ATX - DDR4
Name - MSI PRO H610M-G DDR4
Name - Pamatplate MSI Pro H610M-G
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Not available
Network - Wi-Fi - No
Network interface -
Number of DDR4 slots - 2
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Other features - Weight - 764 g
Other information -
PackageHeight - 60
PackageLength - 263
PackageWeight - 750
PackageWidth - 264
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - yes
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 64 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-2933 (PC4-23400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Parallel processing technology support Graphics - Not supported
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV.
Churchilllaan 202
5705 BK Helmond

producer - MSI
Producer - MSI
ProducerCode - PRO H610M-G DDR4
ProductName - PRO H610M-G DDR4
Product Net Weight ELKO Verified Logistics Data - 0.47 kg
RAID - No

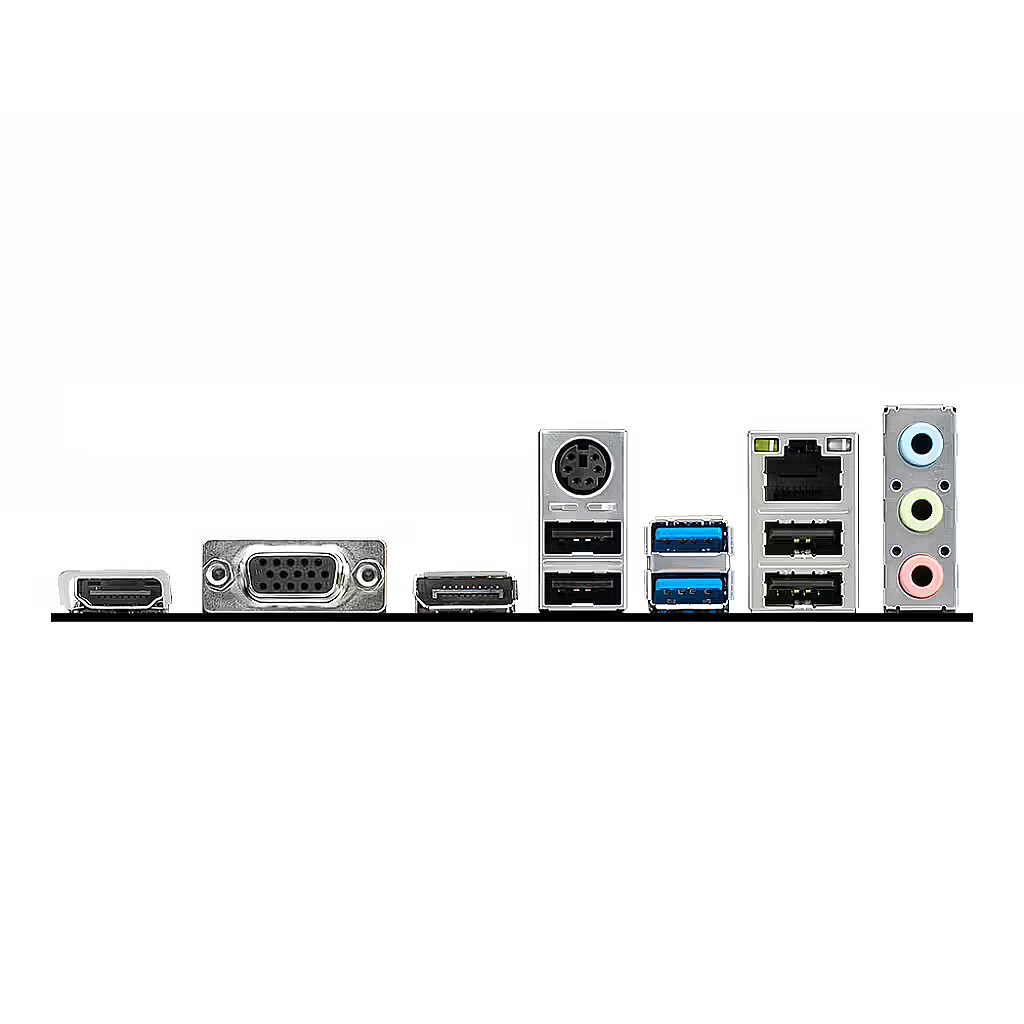

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Shipping Box Depth ELKO Internal Logistics Data - 59 cm
Shipping Box Height ELKO Internal Logistics Data - 29 cm
Shipping Box Weight ELKO Internal Logistics Data - 17.02 kg
Shipping Box Width ELKO Internal Logistics Data - 53.5 cm
Short description - MSI PRO H610M-G DDR4 S1700/DP-HDMI-VGA/M.2/LAN/µATX
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - MSI PRO H610M-G DDR4, Intel, LGA 1700, Intel® Core™ i9, LGA 1700, DDR4-SDRAM, 64 GB
Software -
Sound card - Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - SSD
Summary - MSI PRO H610M-G DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speeds Memory - 2133,2666,2933,3200 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - SSD
Title - MSI PRO H610M-G DDR4 motherboard Intel H610 LGA 1700 micro ATX
TPM connector Internal I/O - Yes
Unit Box Height - 0.055
Unit Box Length - 0.26
Unit Box Width - 0.26
Unit Calculated Volume ELKO Internal Logistics Data - 0.004577 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.851 kg
Unit Depth ELKO Verified Logistics Data - 26 cm
Unit Height ELKO Verified Logistics Data - 5.5 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 20
Unit Width ELKO Verified Logistics Data - 26 cm
URL - https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/Overview
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB ports at back panel - 6
USB ports on motherboard - 8
Vendor Homepage - https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/Overview
vendpn - PRO H610M-G DDR4
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
WarrantyInfo -
WEEE - DE83654239
Weight - 0.763
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Width - 211 mm
Weight Other features - 764 g
Wi-Fi Network - No
Width Weight & dimensions - 211 mm
Windows operating systems supported Features - Windows 10, Windows 11
Wymiary: Szerokość - 211 mm
Wymiary: Wysokość - 244 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
