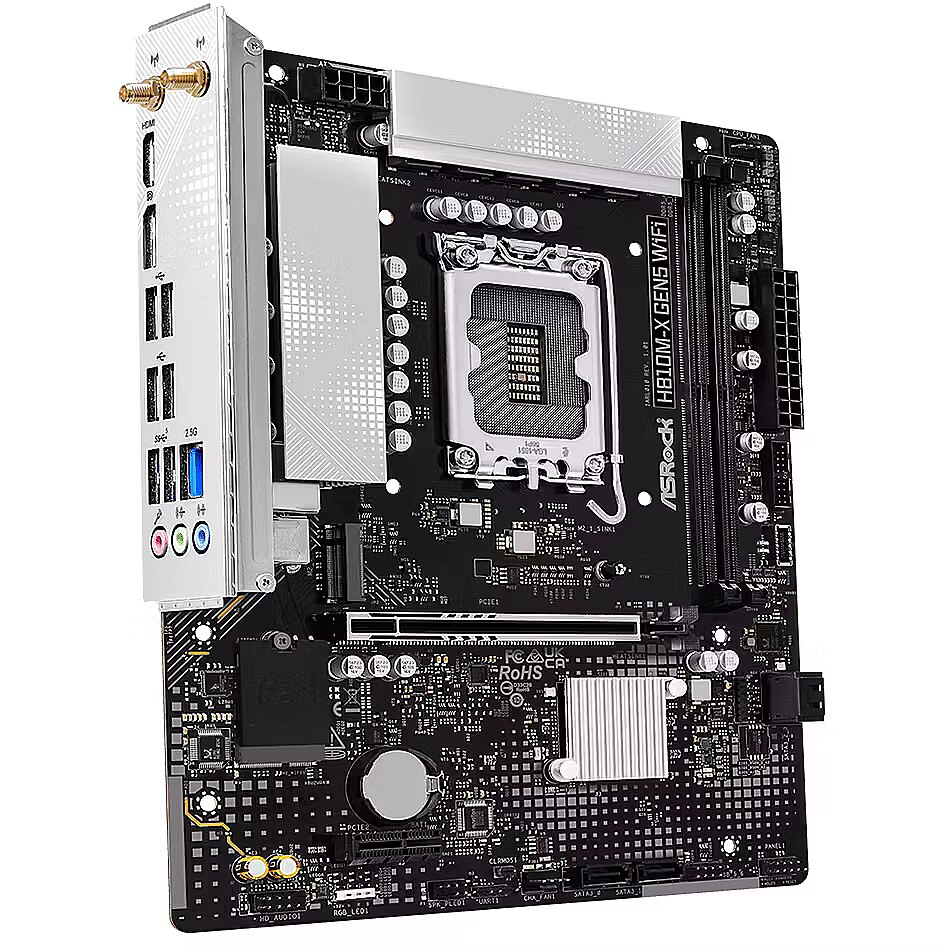

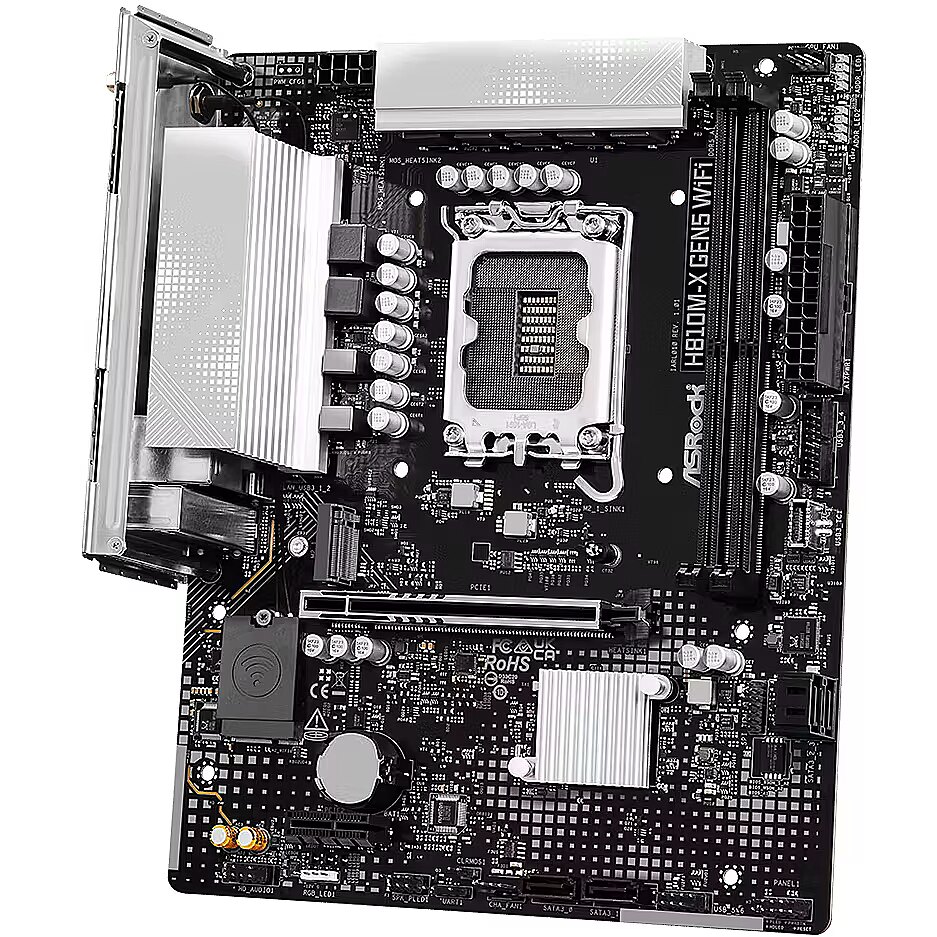

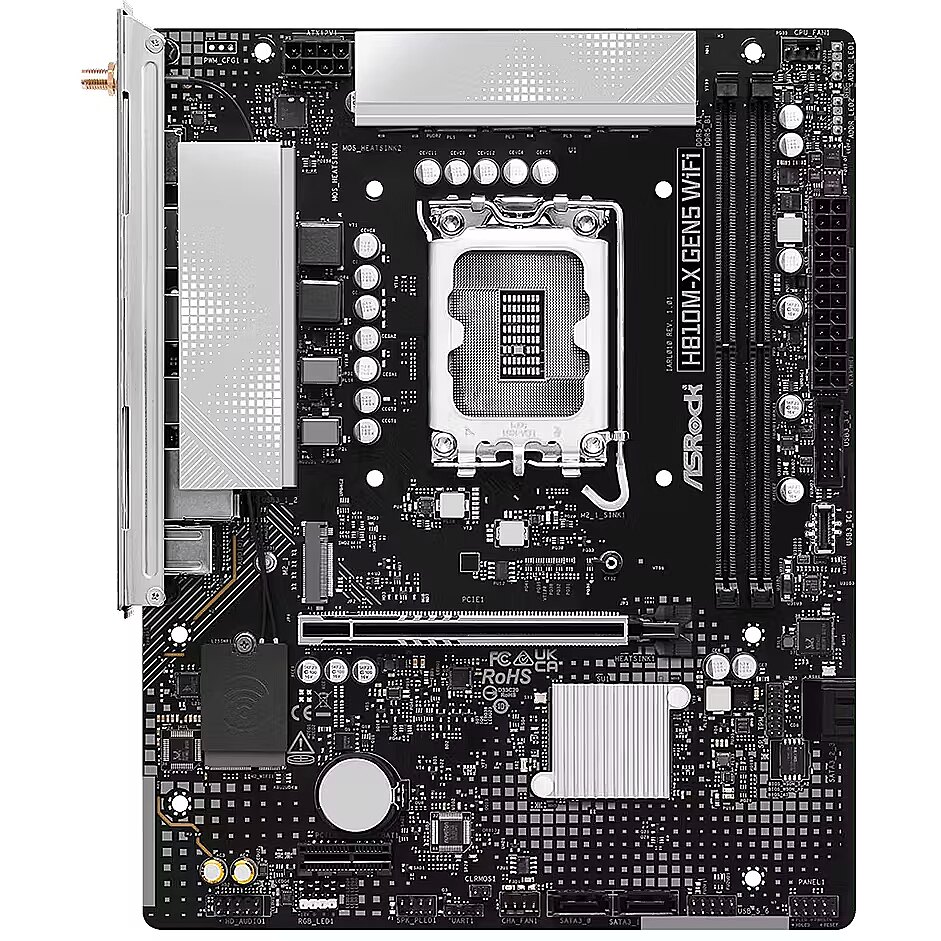

ASRock H810M-X Gen5 WiFi

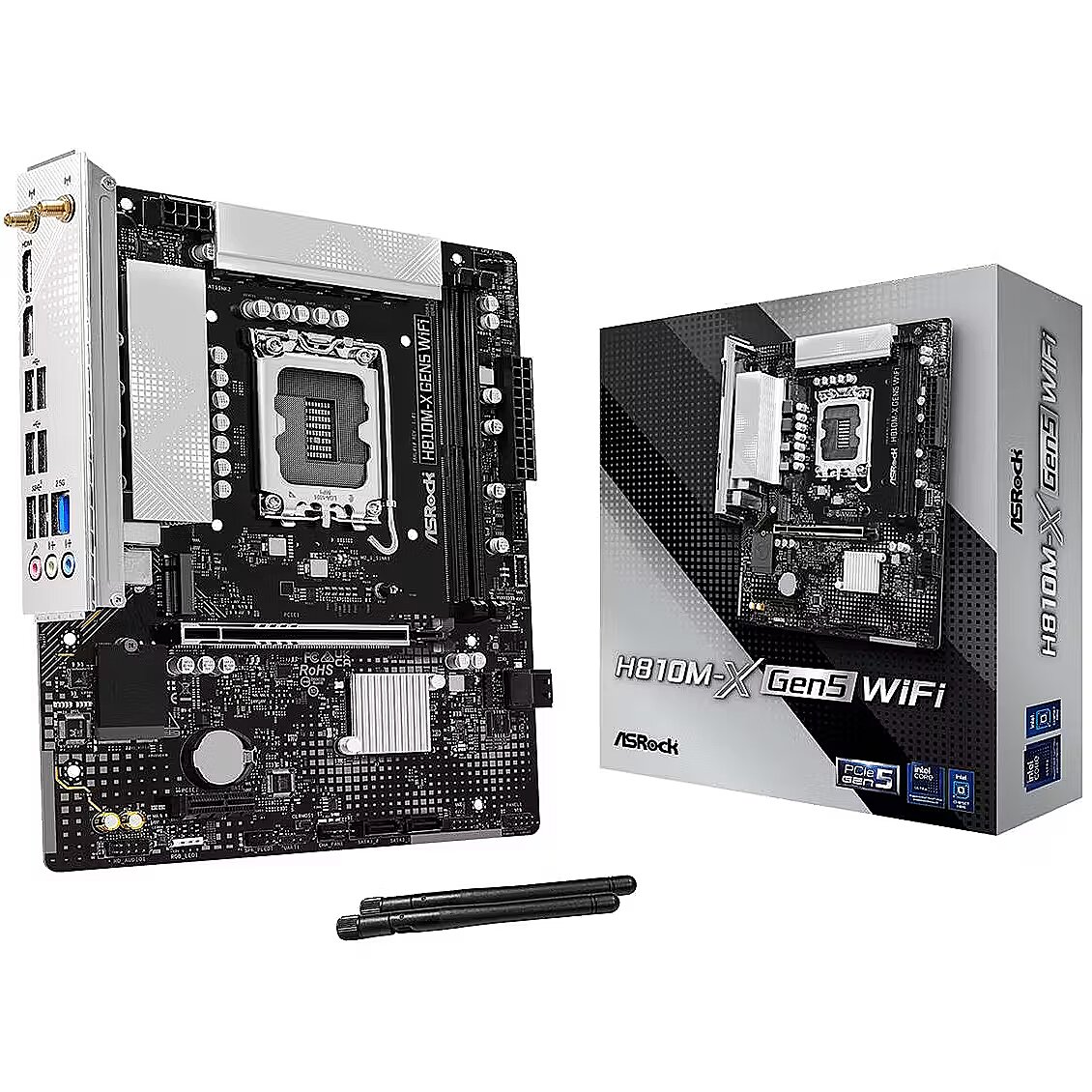

Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.3
Cables included Packaging content - SATA
Category Code - MBI
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 193 mm
Description - X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency. Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Wi-Fi 6 802.11ax
Wi-Fi 6 (802.11ax) supports speeds of up to 2.4 Gbps and operates natively across both the 2.4 GHz and 5 GHz bands. It also delivers significantly improved bi-directional MU-MIMO support for more efficient multi-device connectivity. M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

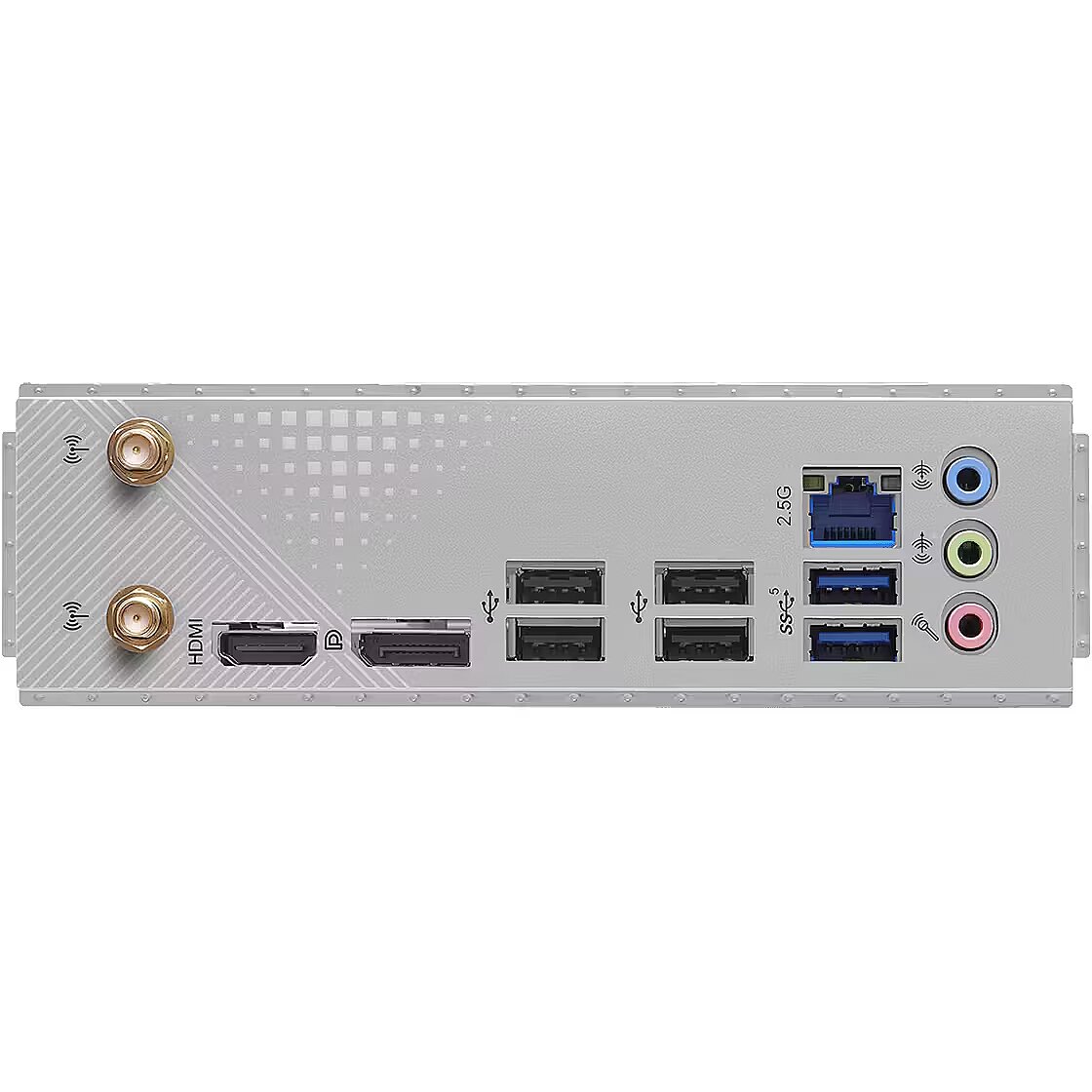

DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Front panel audio connector Internal I/O - Yes
HDCP Graphics - Yes
HDCP version Graphics - 2.3
HDMI ports quantity Rear panel I/O ports - 1
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
Maximum internal memory Memory - 128 GB
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H810
Motherboard form factor Features - micro ATX
Number of chassis fan connectors Internal I/O - 1
Number of CPU fan connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
RGB LED pin header Internal I/O - Yes
Summary - Asrock H810M-X Gen5 WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - SATA III, M.2
Top Wi-Fi standard Network - Wi-Fi 6 (802.11ax)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.265
Unit Box Length - 0.26
Unit Box Width - 0.06
Unit Calculated Volume - 0.005111 cubm
Unit Calculated Weight - 1.05 kg
Units per Pallet - 0
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 1
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.asrock.com/MB/Intel/H810M-X%20Gen5%20WiFi/index.asp#Specification
Warranty - 36 months
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 11 x64
