ID: 1385056
Tuotekoodi: 90-MXBS0-A0UAYZ
Voidaan tilata 33 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 3 vuotta

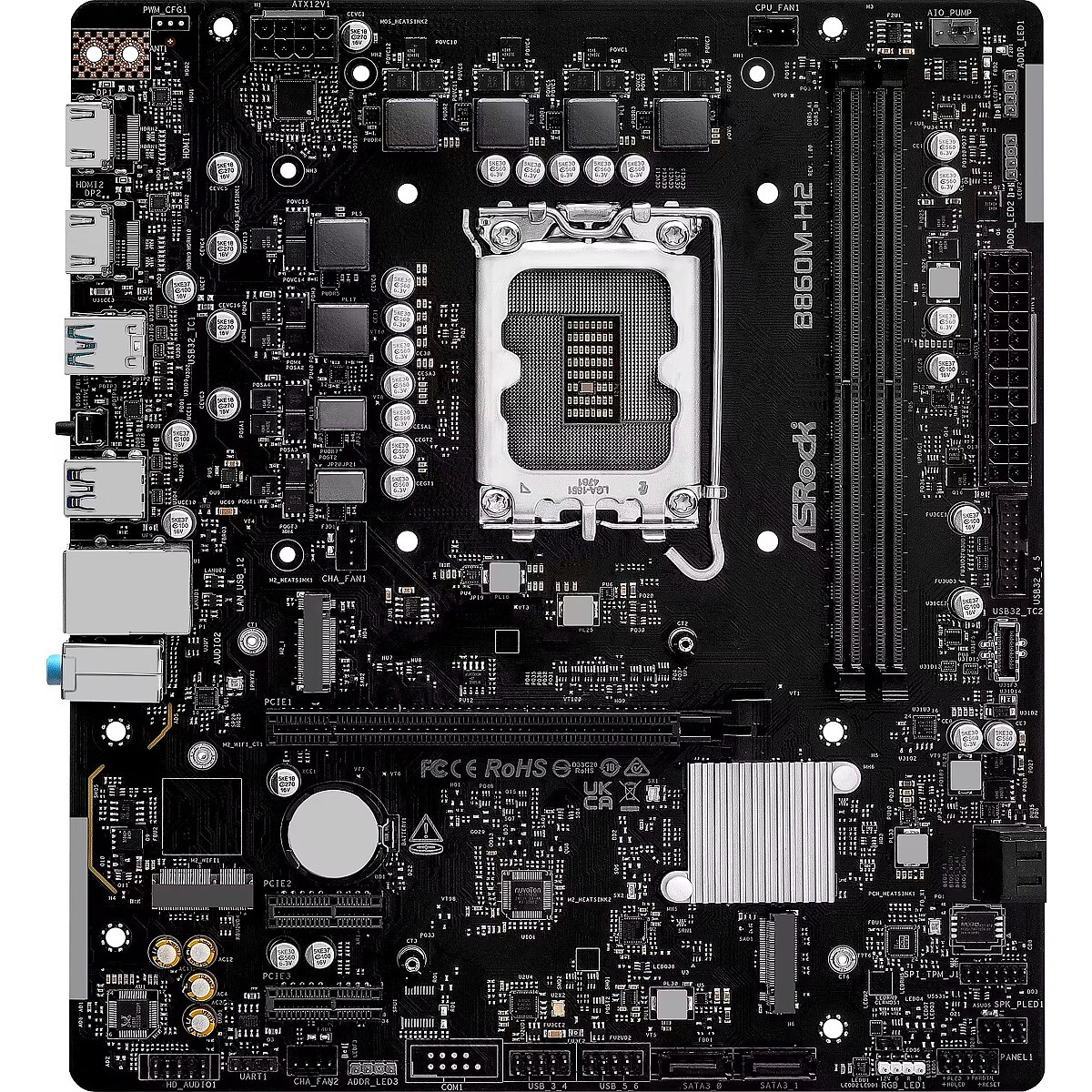

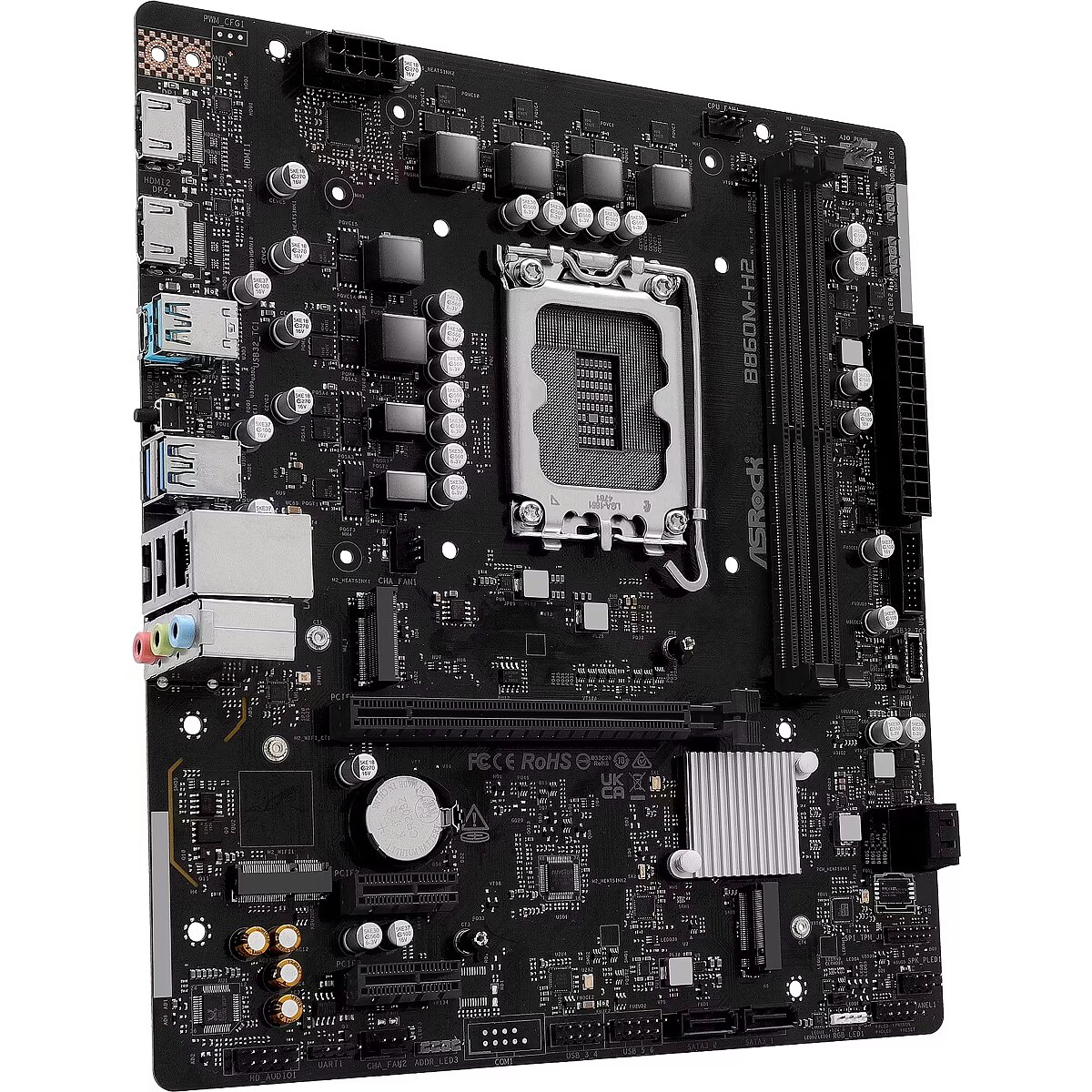

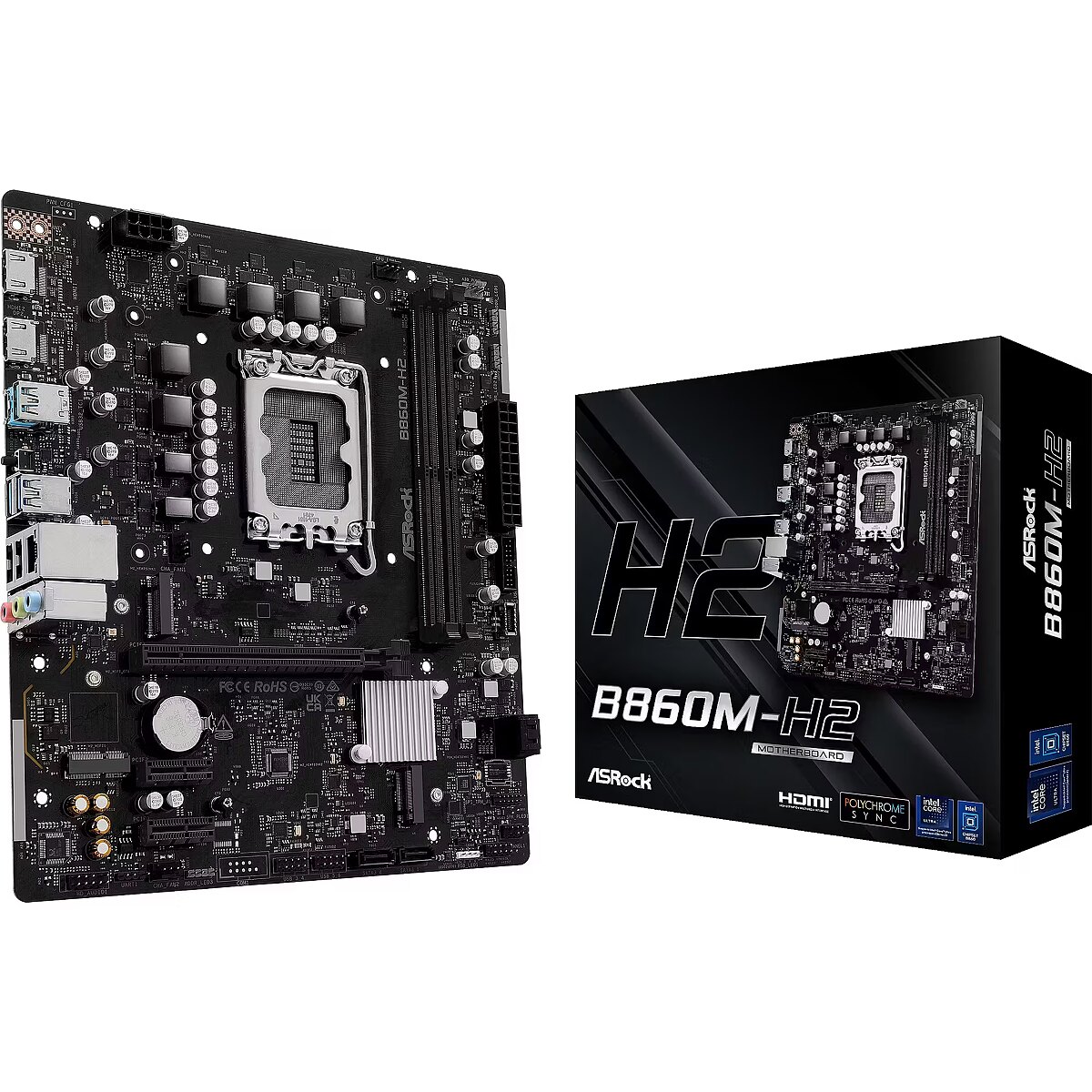

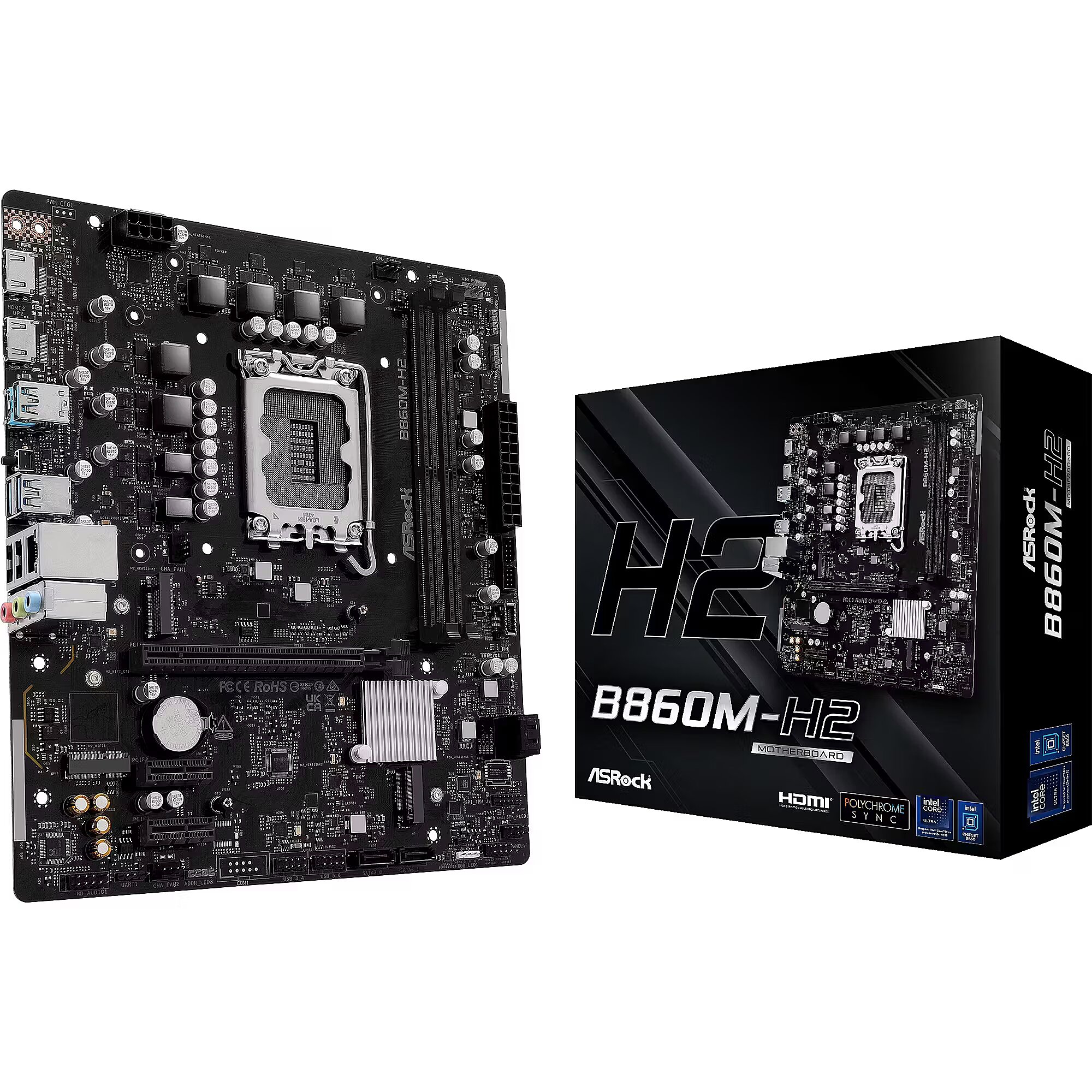

ASRock B860M-H2
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: Ei mitään
- CPU-kanta: LGA 1851
- Piirisarja: Intel B860
- Muotoilutekijä: Micro ATX
- Tyyppi: DDR5
- RAM-paikat: 2
- Sisäänrakennettu Wi-Fi: Ei mitään
Perustiedot
Sarja
: Ei mitään
CPU-kanta
LGA 1851
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel B860
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
Micro ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR5
RAM-paikat
2
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR5 5600 (OC 8333)
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla CPU:lla
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 2
DisplayPort
: 0
Integroitu äänikortti
: Realtek ALC897
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Ei ole
Sisäänrakennettu Wi-Fi
: Ei mitään
Wi-Fi-standardi
: Nav Wi-Fi
Ulkoiset portit
LAN-portin nopeus
: 1G
LAN-porttien määrä
: 1
Ulkoinen USB Type-C
: 1
Ulkoinen USB 2.0
: 2
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 2
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 1
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 3
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 2
Sisäinen USB 3.0
: 1
Sisäinen USB Type-C
: 1
M.2-portti
: 2
SATA3-portti
: 4
Yksityiskohtaisempi erittely
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
CnCode - 84733020
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 211 mm
Description - PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. USB 3.2 Gen2x2 20Gbps Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done! BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)5+1+1+1+1 Power Phase2 x DDR5 DIMMsSupports Dual Channel, up to 8333+ (OC)1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: 2 HDMIRealtek ALC897 7.1 CH HD Audio Codec4 SATA31 Blazing M.2 (PCIe Gen5x4)1 Hyper M.2 (PCIe Gen4x4)1 USB 3.2 Gen2x2 Type-C (Rear)1 USB 3.2 Gen1 Type-C (Front)5 USB 3.2 Gen1 (3 Rear, 2 Front)6 USB 2.0 (2 Rear, 4 Front)Realtek Gigabit LANSupports BIOS Flashback
dimensionalWeight - 805
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4711581490437
Eans - 4711581490437
EAN_code - 4711581490437
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - Number of SATA III connectors - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE, ErP/EuP
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 11 x64
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 2
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of USB 3.2 Gen 2 Type-C ports - 1
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Gigabit LAN)
LAN controller Network - Realtek RTL8111H
Line-in Rear panel I/O ports - Yes
Manufacturer - Asrock
Manufacturer - ASRock EUROPE B.V.
Manufacturer_code - 90-MXBS0-A0UAYZ
Maximum internal memory Memory - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - B860M-H2
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - 90-MXBS00-A0UAYZ
Name - ASRock B860M-H2
Name - ASROCK B860M-H2 (1851) (D)
Name - ASRock B860M-H2 - Socket 1851 - motherboard black
Network - Bluetooth - No
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI Express x1 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
Producer - ASRock
producerCode - B860M-H2
ProducerCode - B860M-H2
Product colour Features - Black
productName - ASRock B860M-H2 motherboard
productSize - Normal
RAID levels Storage controllers - 0, 1, 5, 10
RAID support Storage controllers - Yes

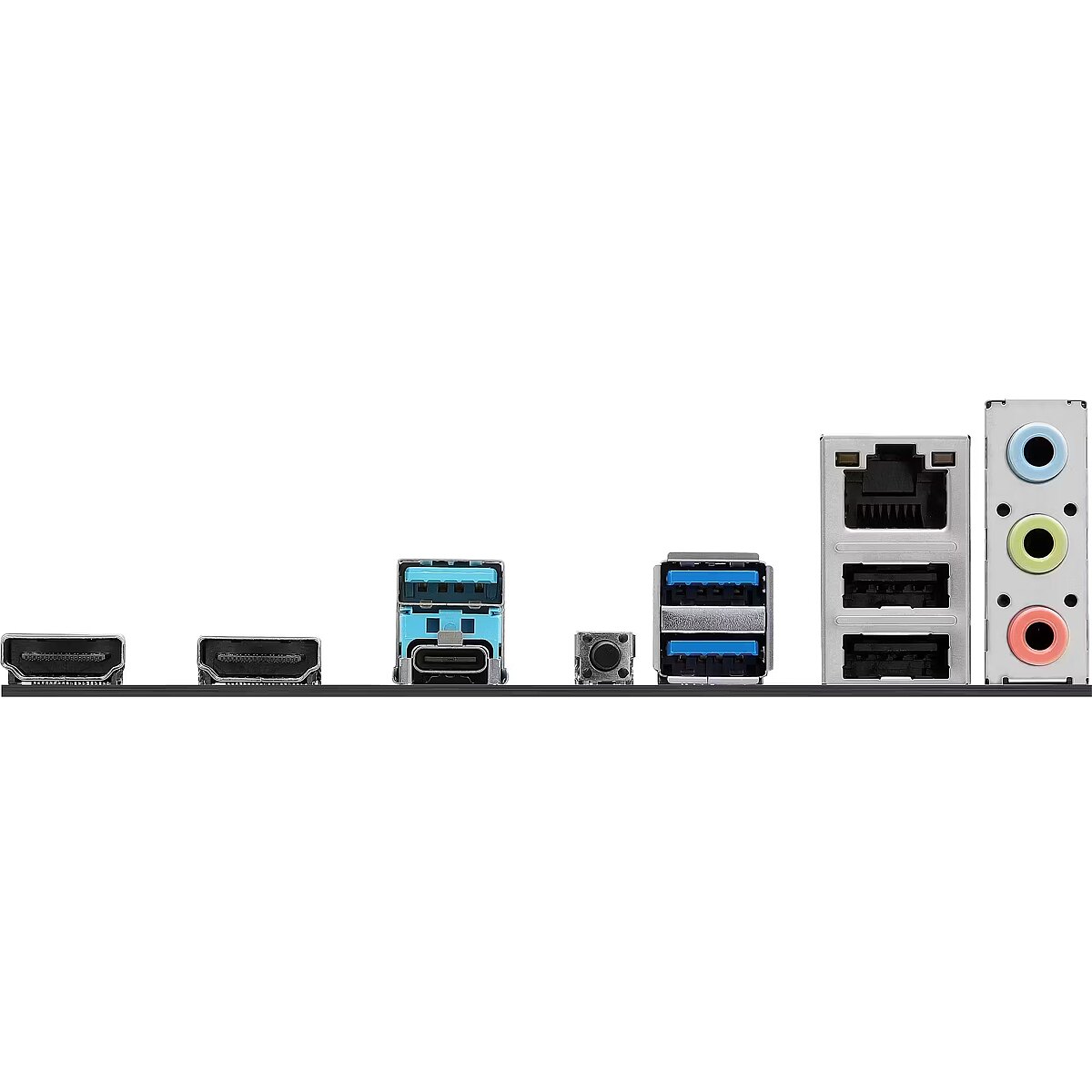

Rear panel I/O ports - Antennas quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-C
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Do not open or modify the motherboard to prevent damage.
Safety warning - Warnings - In case of installation problems, contact a qualified service technician.
Safety warning - Warnings - When disposing of the product, follow local regulations for the recycling of electronics.
ShortDescription - Socket 1851 | Chipset Intel B860 | DDR5
sizeX - 275
sizeY - 240
sizeZ - 61
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock B860M-H2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 8333 MHz
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.06
Unit Box Length - 0.28
Unit Box Width - 0.24
Unit Calculated Volume - 0.004423 cubm
Unit Calculated Weight - 0.798 kg
Units per Pallet - 0
Units per Shipping Box - 20
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/MB/Intel/B860M-H2/index.asp#Overview
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 0,70
Weight - 0.74
weight - 730
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 11 x64
Wymiary: Szerokość - 218 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 2 x HDMI
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x4
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
CnCode - 84733020
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 211 mm
Description - PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. USB 3.2 Gen2x2 20Gbps Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done! BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)5+1+1+1+1 Power Phase2 x DDR5 DIMMsSupports Dual Channel, up to 8333+ (OC)1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: 2 HDMIRealtek ALC897 7.1 CH HD Audio Codec4 SATA31 Blazing M.2 (PCIe Gen5x4)1 Hyper M.2 (PCIe Gen4x4)1 USB 3.2 Gen2x2 Type-C (Rear)1 USB 3.2 Gen1 Type-C (Front)5 USB 3.2 Gen1 (3 Rear, 2 Front)6 USB 2.0 (2 Rear, 4 Front)Realtek Gigabit LANSupports BIOS Flashback
dimensionalWeight - 805
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4711581490437
Eans - 4711581490437
EAN_code - 4711581490437
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - Number of SATA III connectors - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE, ErP/EuP
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 11 x64
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 2
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of USB 3.2 Gen 2 Type-C ports - 1
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Gigabit LAN)
LAN controller Network - Realtek RTL8111H
Line-in Rear panel I/O ports - Yes
Manufacturer - Asrock
Manufacturer - ASRock EUROPE B.V.
Manufacturer_code - 90-MXBS0-A0UAYZ
Maximum internal memory Memory - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - B860M-H2
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - 90-MXBS00-A0UAYZ
Name - ASRock B860M-H2
Name - ASROCK B860M-H2 (1851) (D)
Name - ASRock B860M-H2 - Socket 1851 - motherboard black
Network - Bluetooth - No
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI Express x1 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
Producer - ASRock
producerCode - B860M-H2
ProducerCode - B860M-H2
Product colour Features - Black
productName - ASRock B860M-H2 motherboard
productSize - Normal
RAID levels Storage controllers - 0, 1, 5, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - Antennas quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-C
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Do not open or modify the motherboard to prevent damage.
Safety warning - Warnings - In case of installation problems, contact a qualified service technician.
Safety warning - Warnings - When disposing of the product, follow local regulations for the recycling of electronics.
ShortDescription - Socket 1851 | Chipset Intel B860 | DDR5
sizeX - 275
sizeY - 240
sizeZ - 61
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock B860M-H2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 8333 MHz
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.06
Unit Box Length - 0.28
Unit Box Width - 0.24
Unit Calculated Volume - 0.004423 cubm
Unit Calculated Weight - 0.798 kg
Units per Pallet - 0
Units per Shipping Box - 20
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/MB/Intel/B860M-H2/index.asp#Overview
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 0,70
Weight - 0.74
weight - 730
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 11 x64
Wymiary: Szerokość - 218 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 2 x HDMI
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x4
