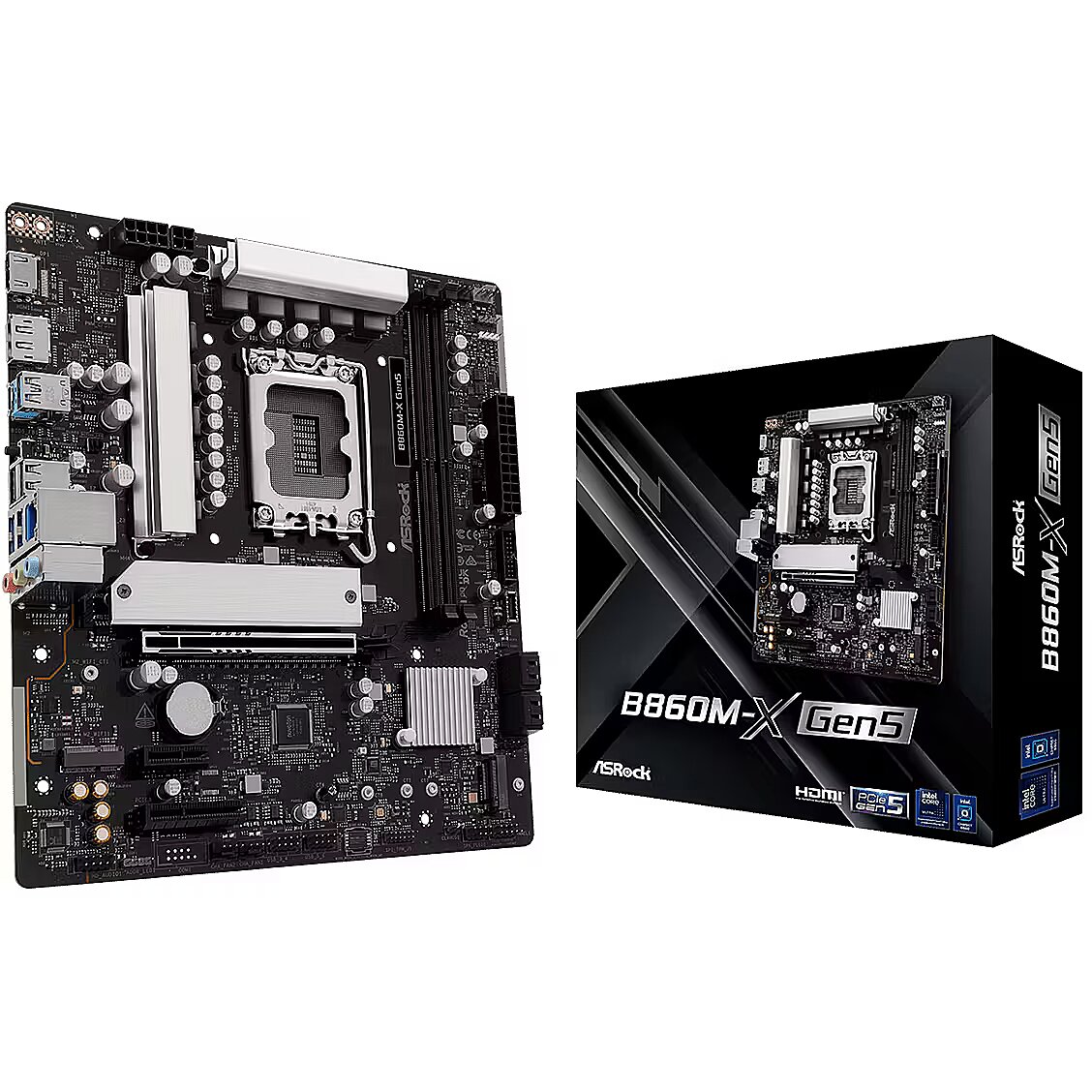

ASRock B860M-X Gen5

Accessories included - I/O Shield SATA Data Cables Screws for M.2 Sockets Standoff for M.2 Socket
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - EFI AMI
Cables included Packaging content - SATA
Category1 - Mainboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Depth Weight & dimensions - 218 mm
Description - B860M-X Gen5 Motherboard Supports Intel(R) Core(TM) Ultra Processors (Series 2) (LGA1851) 7+1+1+1+1 Phase Power Design 2 DDR5 DIMM slots Supports Dual Channel DDR5 memory, up to 9066+ MHz (OC) 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4, 1 × PCIe 4.0 x1, 1 × M.2 Key E for Wi-Fi Graphics Output Options: 1 × HDMI, 1 × DisplayPort Realtek ALC897 7.1-Channel HD Audio Codec 4 × SATA3 ports 1 × Blazing M.2 (PCIe Gen5x4) 1 × Hyper M.2 (PCIe Gen4x4) 1 × USB 3.2 Gen2x2 Type-C (Rear) 1 × USB 3.2 Gen1 Type-C (Front) 5 × USB 3.2 Gen1 (3 Rear, 2 Front) 6 × USB 2.0 (2 Rear, 4 Front) Realtek 2.5G LAN Supports BIOS Flashback
Description - X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency. 6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Description1 - ASRock Mainboard B860M-X Gen5 - Micro ATX - Socket LGA1851 - Intel B860
Design - BIOS flashback button - Yes
Design - DisplayPorts quantity - 1
Design - Ethernet LAN (RJ-45) ports - 1
Design - HDMI ports quantity - 1
Design - Number of M.2 (E) slots - 1
Design - Number of M.2 (M) slots - 2
Design - Number of SATA III connectors - 4
Design - Number of USB 3.2 Gen 1 ports - 5
Design - RGB LED pin header - Yes
Design - TPM connector - Yes
Design - USB 2.0 connectors - 6
Design - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Design - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 936
dimension depth - 60 mm
dimension height - 265 mm
Dimensions - 24.4 x 21.8 cm
dimension weight - 1100 g
dimension width - 300 mm
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
ean - 4711581490727
EAN - 4711581490727
EAN_code - 4711581490727
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Generation - second
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDCP version Graphics - 2.3
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Integrated CPU - No
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - AsRock
ManufacturerID - 90-MXBSE0-A0UAYZ
Manufacturer_code - 90-MXBSE0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5 DIMM
Memory bus frequency - 9066 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Model - B860M-X
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
Name - Asrock B860M-X GEN 5 (black/silver)
name - Motherboard B860M-X GEN5 s1851 2DDR5 mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of chassis fan connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 2
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x USB 2.0/1.1 header
PackageHeight - 67
PackageLength - 298
PackageWeight - 1180
PackageWidth - 264
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x4 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Peripheral (Molex) power connectors (4-pin) Internal I/O - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
producer - ASRock
producerCode - B860M-X GEN5
productName - Motherboard Asrock B860M-X GEN5
productSize - Normal
RAID - Yes
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
Shipping Box Depth ELKO Internal Logistics Data - 54.5 cm
Shipping Box Height ELKO Internal Logistics Data - 32 cm
Shipping Box Weight ELKO Internal Logistics Data - 11.8000001907349 kg
Shipping Box Width ELKO Internal Logistics Data - 32.5 cm
sizeX - 260
sizeY - 300
sizeZ - 60
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Summary - Asrock B860M-X Gen5. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - SATA III, M.2
Supported storage drive types Storage controllers - HDD & SSD
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.06
Unit Box Length - 0.295
Unit Box Width - 0.265
Unit Calculated Volume ELKO Internal Logistics Data - 0.005668 cubm
Unit Calculated Weight ELKO Logistics Data - 1.18 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 10
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.asrock.com/MB/Intel/B860M-X%20Gen5/index.asp#Overview
vendpn - B860M-X GEN5
Warranty - 36 months
warrantyLength - 36
warrantyType - G
WEEE - DE83654239
Weight - 0,00
weight - 1150
Weight & dimensions - Depth - 218 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 11 x64
