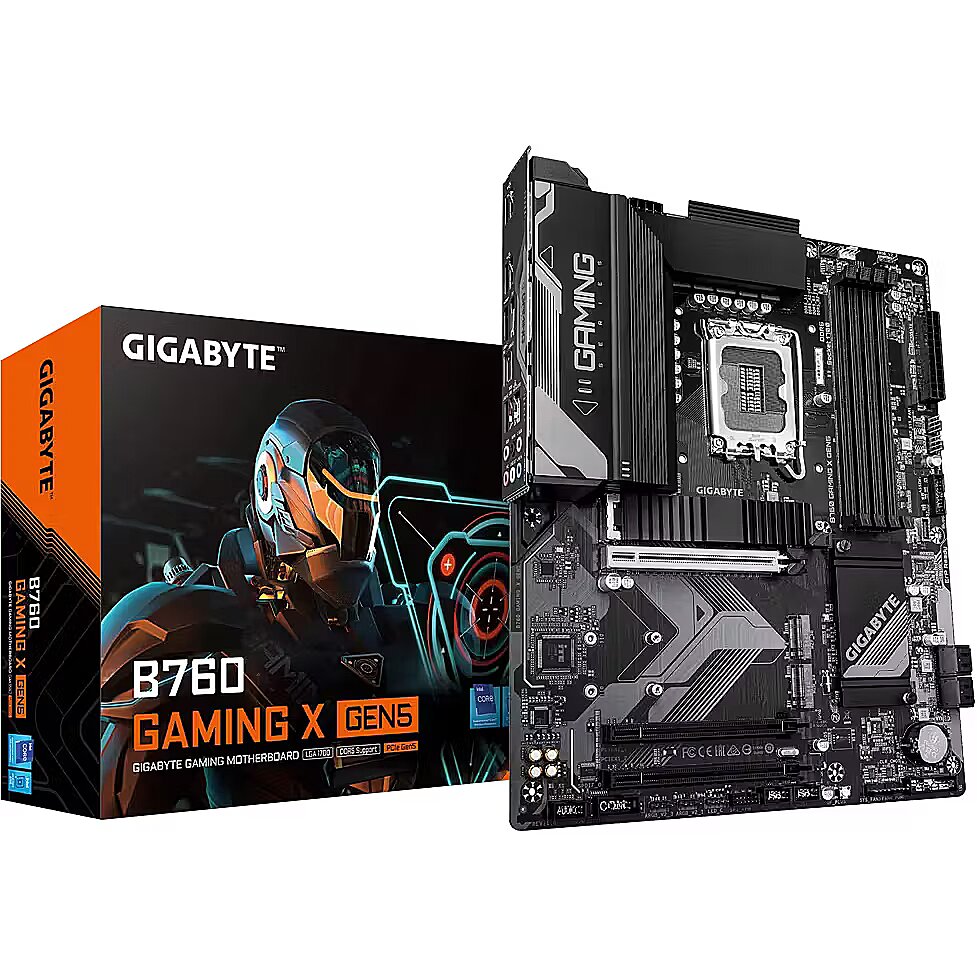

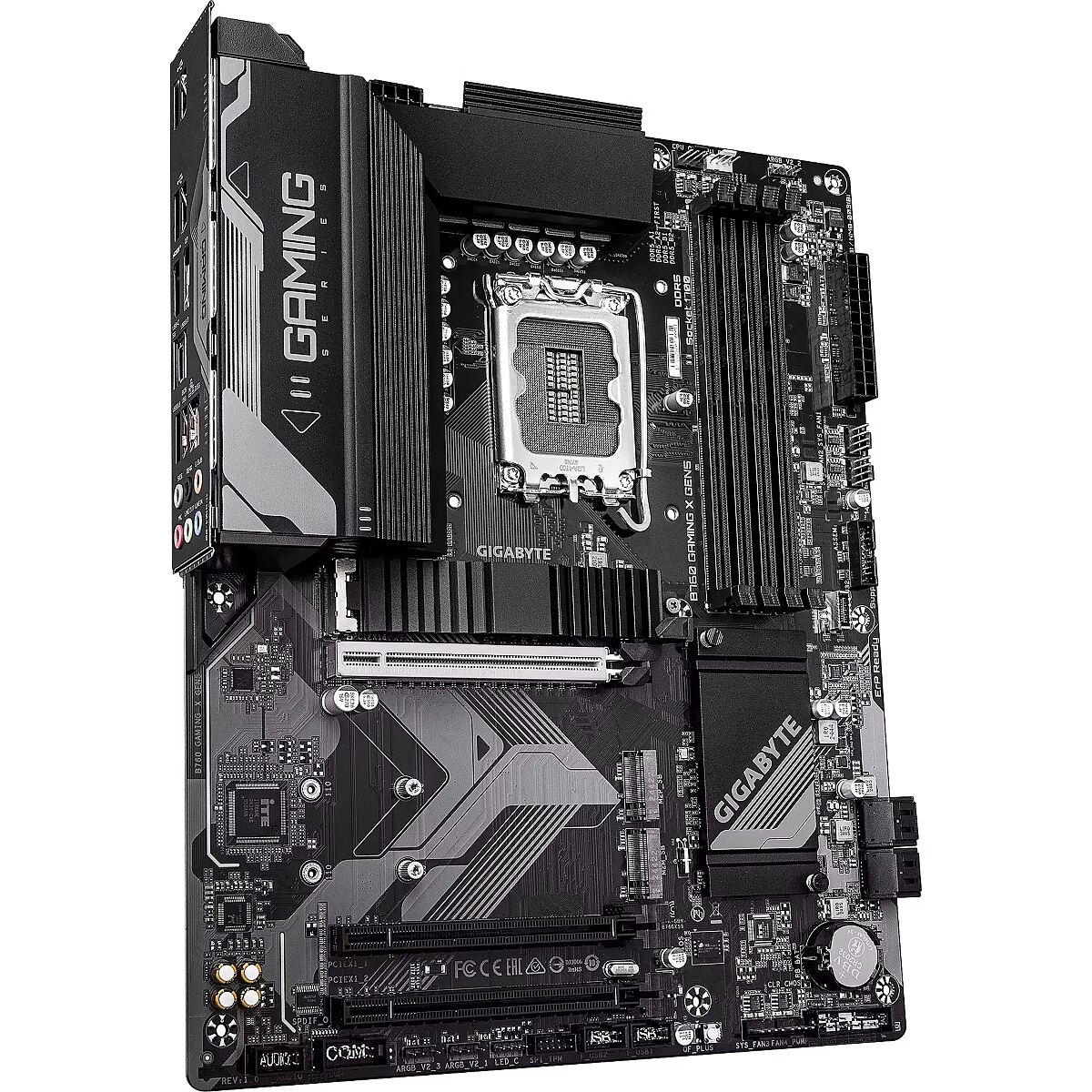

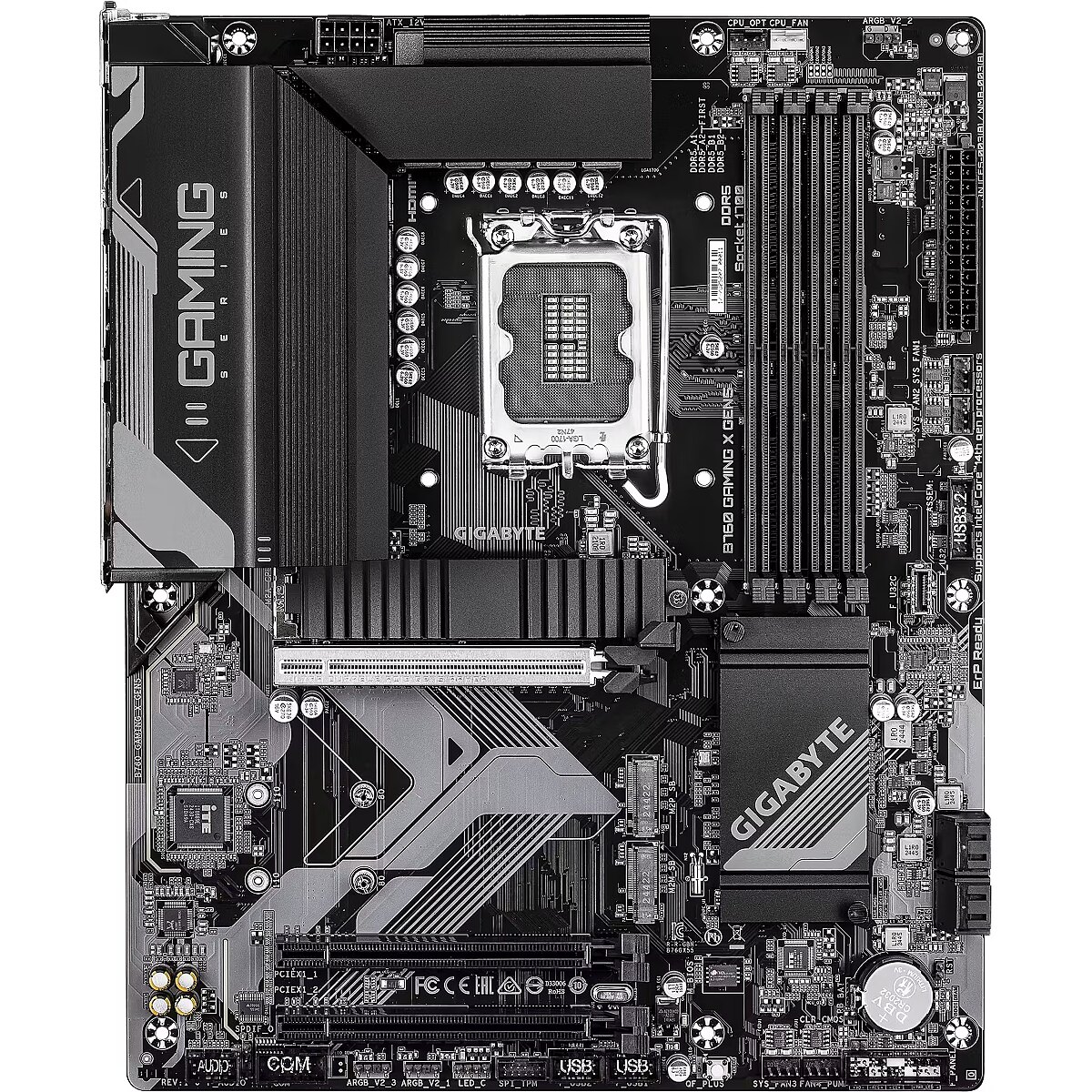

Gigabyte B760 GAMING X GEN5

Audio port Input/Output connectors - 6
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B760 GAMING X GEN5
Category - Motherboards
Category Code - MBI
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760 Express Chipset
COM connector / port - Yes
CPU socket - LGA1700
Description - B760 GAMING X GEN5 PCIe Gen5 Performance : Perfect Sync to Win Supports Intel® Core™ 14th/ 13th/12 processors Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support Fast Networks : 2.5GbE LAN Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - Płyta główna B760 GAMING X GEN5 Wydajność PCIe Gen5: Idealna synchronizacja, która gwarantuje zwycięstwo Obsługa procesorów Intel Core 14., 13. i 12. generacji Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard EZ-Latch: Gniazdo PCIe 5.0 x 16 z konstrukcją Quick Release Gniazdo PCIe UD: SMD PCIe 5.0 Armor dla lepszej obsługi kart graficznych Niezrównana wydajność: Hybrydowe rozwiązanie VRM 8+1+1 faz Dwukanałowa pamięć DDR5: 4 moduły DIMM z obsługą modułów pamięci XMP Szybkie sieci: LAN 2,5 GbE Rozszerzona łączność: Przednie złącze USB-C 10 Gb/s, DP, HDMI Pamięć masowa nowej generacji: 3 złącza PCIe 4.0 x4 M.2 Inteligentny wentylator 6: Wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP Q-Flash Plus: Aktualizacja BIOS-u bez instalowania procesora, pamięci i karty graficznej
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 gniazdo PCI Express x16, obsługujące PCIe 5.0 i działające w trybie x16 (PCIEX16) Chipset: 2 gniazda PCI Express x16, obsługujące PCIe 3.0 i działające w trybie x1 (PCIEX1_1, PCIEX1_2)
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1570 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
ean - 4719331872120
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x PCIe 4.0 x 4
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.0
External connectors - 1 x USB 3.0 Type-C
External connectors - 1 x USB 3.1
External connectors - 2 x SMA
External connectors - 5 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Dark brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6800/7000/7200/7400/7600 MHz
Graphics - Zintegrowany procesor graficzny obsługa Intel HD Graphics
1 x DisplayPort, obsługujący maksymalną rozdzielczość 4096 x 2304 przy 60 Hz Obsługa wersji DisplayPort 1.2 i HDCP 2.3. 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096 x 2160 przy 60 Hz Obsługa wersji HDMI 2.1 i HDCP 2.3. Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331872120
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
LPT connector / port - No
M.2 Expansion slots - 3
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 133 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760 Gaming X
Model - B760 GAMING X GEN5
name - B760 GAMING X GEN5 s170 0 4DDR5 DP/HDMI ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.56 kg
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.8 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - Gigabyte
ProductName - B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2
Product Net Weight - 1.2 kg
RAID - SATA 0, 1, 5, 10
RAID - Yes

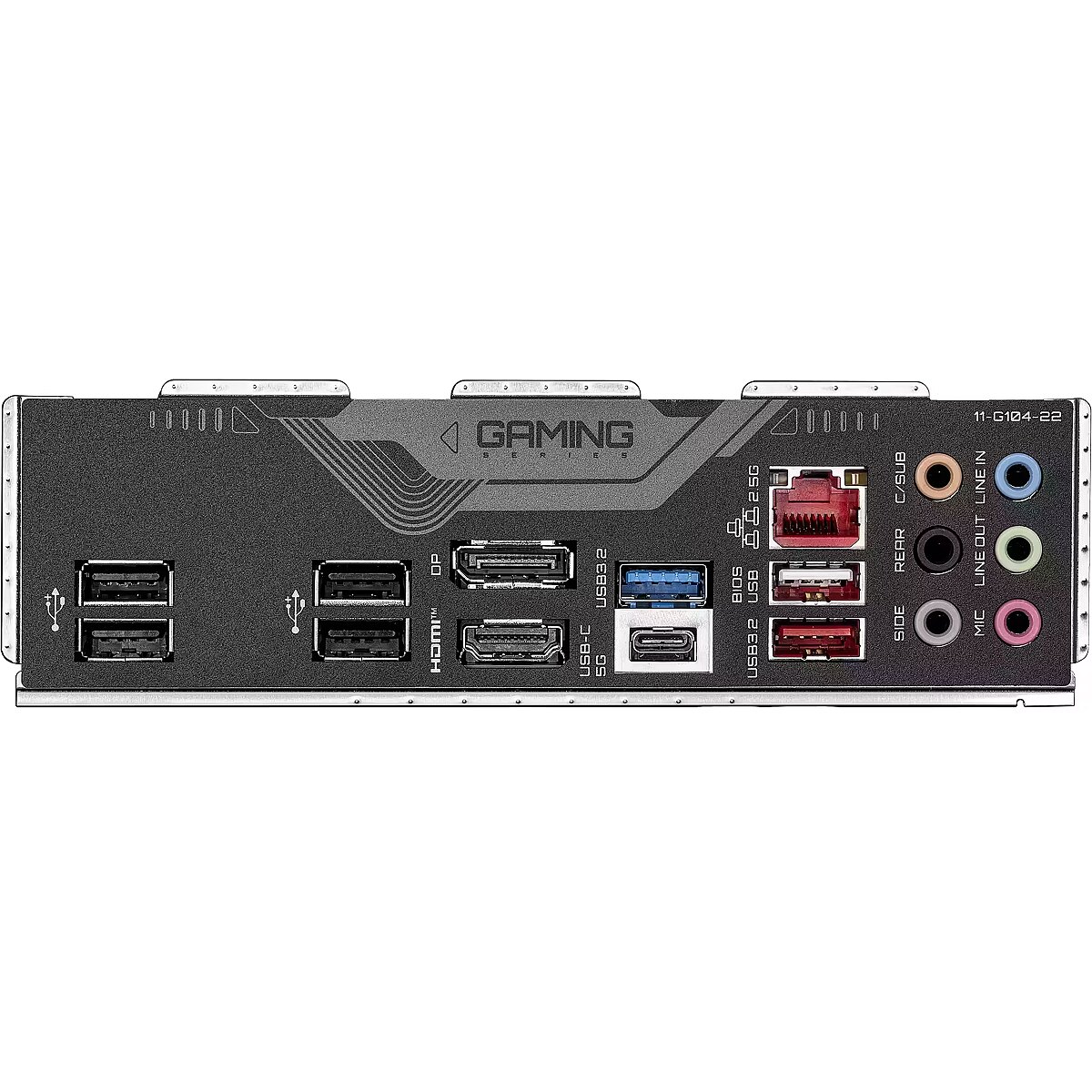

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
ShortSummaryDescription - GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB
Socket - LGA1700
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Special functions - Monitoring sprzętowy: Wykrywanie napięcia Wykrywanie temperatury Wykrywanie prędkości wentylatora Wykrywanie przepływu wody chłodzącej Ostrzeżenie o awarii wentylatora Sterowanie prędkością wentylatora
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.335
Unit Box Width - 0.27
Unit Calculated Volume - 0.007236 cubm
Unit Calculated Weight - 1.55 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 Input/Output connectors - 5
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B760-GAMING-X-GEN5
vendpn - B760 GAMING X GEN5
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
