ID: 1152190
Tuotekoodi: Z890 Pro-A
Voidaan tilata 12 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 3 vuotta

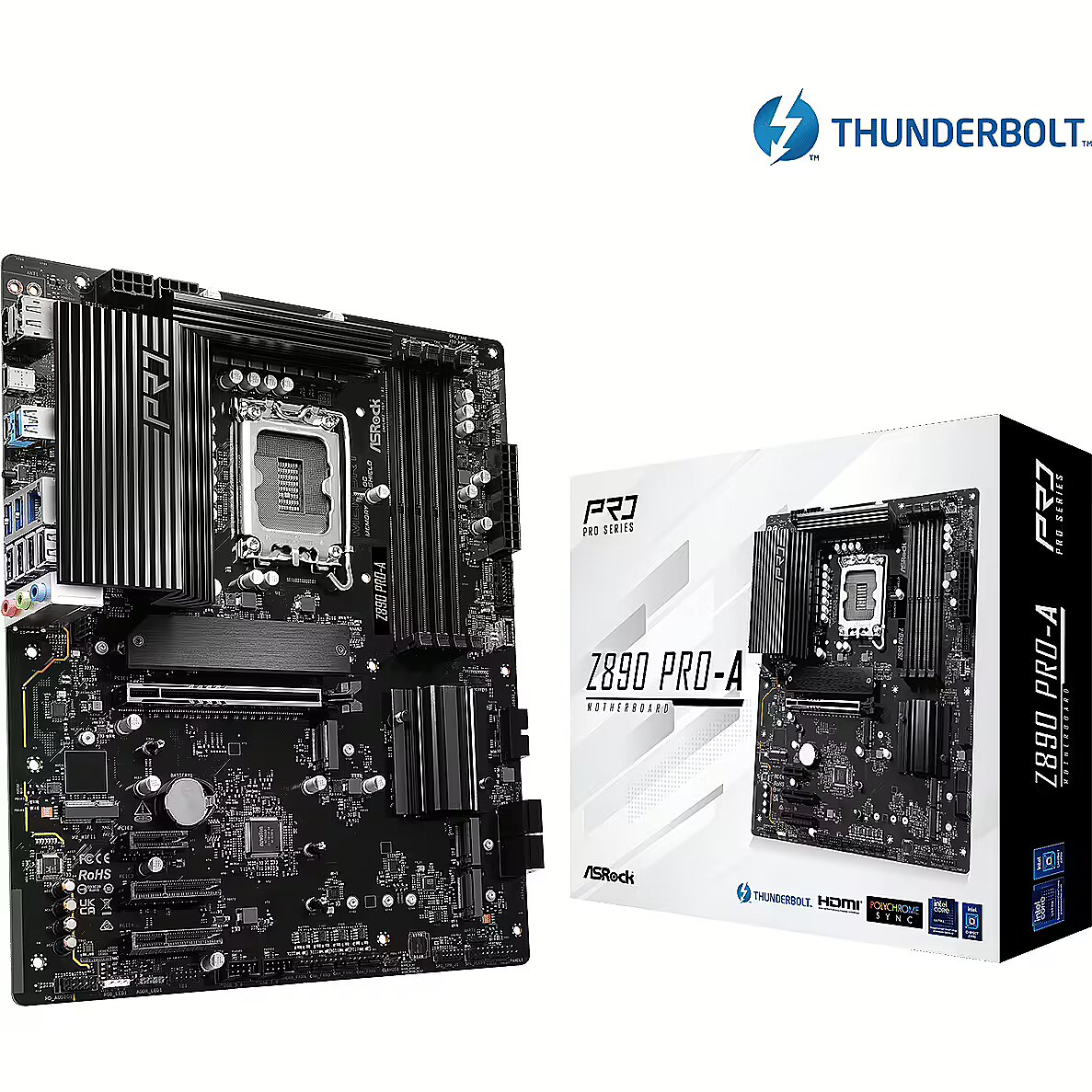

ASRock Z890 PRO-A
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: ASRock Pro
- CPU-kanta: LGA 1851
- Piirisarja: Intel Z890
- Muotoilutekijä: ATX
- Tyyppi: DDR5
- RAM-paikat: 4
- Sisäänrakennettu Wi-Fi: Ei ole
Perustiedot
Sarja
: ASRock Pro
CPU-kanta
LGA 1851
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel Z890
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR5
RAM-paikat
4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR5 5600 (OC 9066)
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integroitu äänikortti
: Realtek ALC897
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Nav
Sisäänrakennettu Wi-Fi
: Ei ole
Ulkoiset portit
Ulkoinen USB Type-C
: 2
Ulkoinen USB 2.0
: 4
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 2
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 1
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 3
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 2
Sisäinen USB 3.0
: 2
Sisäinen USB Type-C
: 1
M.2-portti
: 4
SATA3-portti
: 4
Yksityiskohtaisempi erittely
12V power connector Internal I/O - Yes
Accessories included - I/O Shield 2 x SATA Data Cables M.2 Slot Screw
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBP50-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Compliance certificates Technical details - CE/Federal Communications Commission (FCC)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Depth Weight & dimensions - 244 mm
Description - Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs. Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits: ●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance. 2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT4 x DDR5 DIMMsSupports Dual Channel, up to 9066+ (OC)1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-CRealtek ALC897 7.1 CH HD Audio Codec4 SATA31 Blazing M.2 (PCIe Gen5 x4)2 Hyper M.2 (PCIe Gen4 x4)1 Hyper M.2 (PCIe Gen4 x4 & SATA3)1 Thunderbolt™ 4 Type-C (Rear)2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)1 USB 3.2 Gen2 Type-A (Rear)6 USB 3.2 Gen1 (2 Rear, 4 Front)8 USB 2.0 (4 Rear, 4 Front)Realtek 2.5G LANSupports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Description - Z890 Pro-A
The Pro-A series is designed for enhanced stability, durability and efficiency, offering reliable performance, user-friendly features and a streamlined design, making it ideal for everyday computing needs. Supports Intel Core Ultra (Series 2) Processors (LGA1851) 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT 4 x DDR5 DIMM Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 1 Thunderbolt 4 Type-C (back) 2 USB 3.2 Gen2x2 Type-C (1 rear, 1 front), 1 USB 3.2 Gen2 Type-A (rear), 6 USB 3.2 Gen1 (2 rear, 4 front), 8 USB 2.0 (4 rear, 4 front) Realtek 2.5G LAN Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF capacity
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1568
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1648 g
dimension width - 350 mm
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
ean - 4710483947537
EAN - 4710483947537
EAN_code - 4710483947537
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 4
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x4 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x Thunderbolt 4
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBP50-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6533 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 8666 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - Z890 Pro-A
Model - Z890 PRO-A
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z890
Motherboard form factor Features - ATX
MPN - 90-MXBP50-A0UAYZ
Name - 1851 ASRock Z890 Pro-A DDR5
Name - ASRock Asro Z890 Pro-A - Socekt 1851 - motherboard (black)
name - ASRock Z890 PRO-A Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 PRO-A ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of chassis fan connectors Internal I/O - 5
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of HDDs supported Storage controllers - 4
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x4 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
producer - ASRock
producerCode - Z890 Pro-A
productName - ASRock Z890 Pro-A Intel Z890 LGA 1851 (Socket V1) ATX motherboard
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
sizeX - 280
sizeY - 80
sizeZ - 350
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock Z890 Pro-A. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 9066 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Thunderbolt ports quantity Rear panel I/O ports - 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.008906 cubm
Unit Calculated Weight - 1.88 kg
Units per Shipping Box - 5
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 9
USB ports on motherboard - 9
Vendor Homepage - https://www.asrock.com/mb/Intel/Z890%20Pro-A/index.asp#Overview
vendpn - Z890 PRO-A
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,64
Weight - 1.636
weight - 1650
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 11 x64
Accessories included - I/O Shield 2 x SATA Data Cables M.2 Slot Screw
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBP50-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Compliance certificates Technical details - CE/Federal Communications Commission (FCC)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Depth Weight & dimensions - 244 mm
Description - Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs. Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits: ●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance. 2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT4 x DDR5 DIMMsSupports Dual Channel, up to 9066+ (OC)1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-CRealtek ALC897 7.1 CH HD Audio Codec4 SATA31 Blazing M.2 (PCIe Gen5 x4)2 Hyper M.2 (PCIe Gen4 x4)1 Hyper M.2 (PCIe Gen4 x4 & SATA3)1 Thunderbolt™ 4 Type-C (Rear)2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)1 USB 3.2 Gen2 Type-A (Rear)6 USB 3.2 Gen1 (2 Rear, 4 Front)8 USB 2.0 (4 Rear, 4 Front)Realtek 2.5G LANSupports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Description - Z890 Pro-A
The Pro-A series is designed for enhanced stability, durability and efficiency, offering reliable performance, user-friendly features and a streamlined design, making it ideal for everyday computing needs. Supports Intel Core Ultra (Series 2) Processors (LGA1851) 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT 4 x DDR5 DIMM Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 1 Thunderbolt 4 Type-C (back) 2 USB 3.2 Gen2x2 Type-C (1 rear, 1 front), 1 USB 3.2 Gen2 Type-A (rear), 6 USB 3.2 Gen1 (2 rear, 4 front), 8 USB 2.0 (4 rear, 4 front) Realtek 2.5G LAN Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF capacity
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1568
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1648 g
dimension width - 350 mm
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
ean - 4710483947537
EAN - 4710483947537
EAN_code - 4710483947537
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 4
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x4 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x Thunderbolt 4
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBP50-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6533 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 8666 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - Z890 Pro-A
Model - Z890 PRO-A
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z890
Motherboard form factor Features - ATX
MPN - 90-MXBP50-A0UAYZ
Name - 1851 ASRock Z890 Pro-A DDR5
Name - ASRock Asro Z890 Pro-A - Socekt 1851 - motherboard (black)
name - ASRock Z890 PRO-A Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 PRO-A ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of chassis fan connectors Internal I/O - 5
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of HDDs supported Storage controllers - 4
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x4 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
producer - ASRock
producerCode - Z890 Pro-A
productName - ASRock Z890 Pro-A Intel Z890 LGA 1851 (Socket V1) ATX motherboard
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
sizeX - 280
sizeY - 80
sizeZ - 350
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock Z890 Pro-A. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 9066 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Thunderbolt ports quantity Rear panel I/O ports - 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.008906 cubm
Unit Calculated Weight - 1.88 kg
Units per Shipping Box - 5
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB 3.2 Gen 2x2 Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 9
USB ports on motherboard - 9
Vendor Homepage - https://www.asrock.com/mb/Intel/Z890%20Pro-A/index.asp#Overview
vendpn - Z890 PRO-A
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,64
Weight - 1.636
weight - 1650
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 11 x64
