ID: 1028153
Tuotekoodi: 7D48-019R
Varastossa >50 yksiköt
Takuu: 3 vuotta

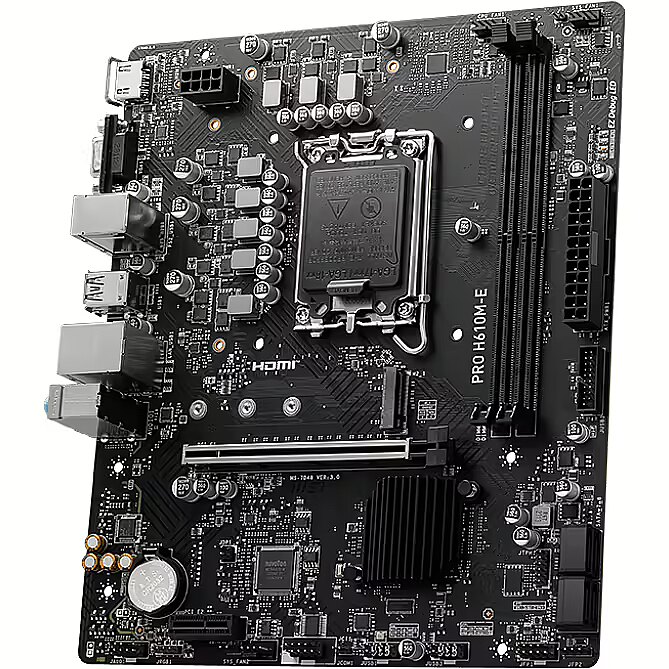

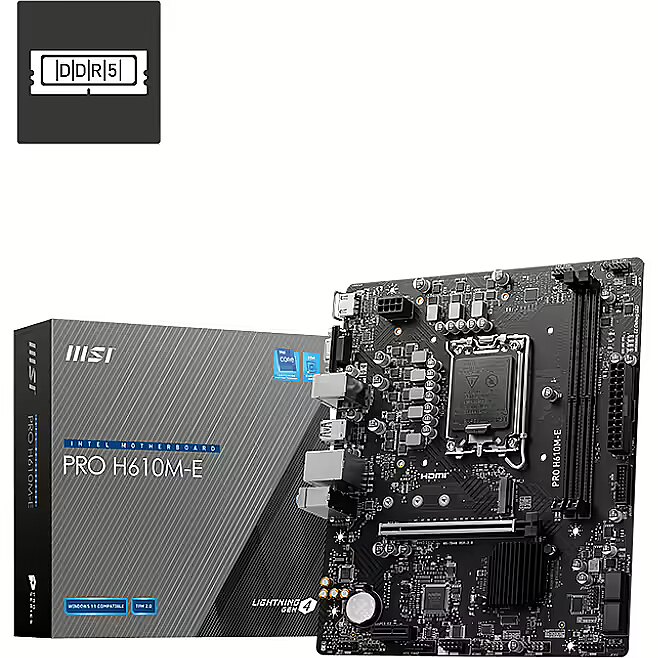

MSI PRO H610M-E DDR5
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: MSI PRO
- CPU-kanta: LGA 1700
- Piirisarja: Intel H610
- Muotoilutekijä: Micro ATX
- Tyyppi: DDR5
- RAM-paikat: 4
- Sisäänrakennettu Wi-Fi: Ei ole
Perustiedot
Sarja
: MSI PRO
CPU-kanta
LGA 1700
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel H610
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
Micro ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR5
RAM-paikat
4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR5 5600
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integroitu äänikortti
: Realtek ALC897
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Nav
Sisäänrakennettu Wi-Fi
: Ei ole

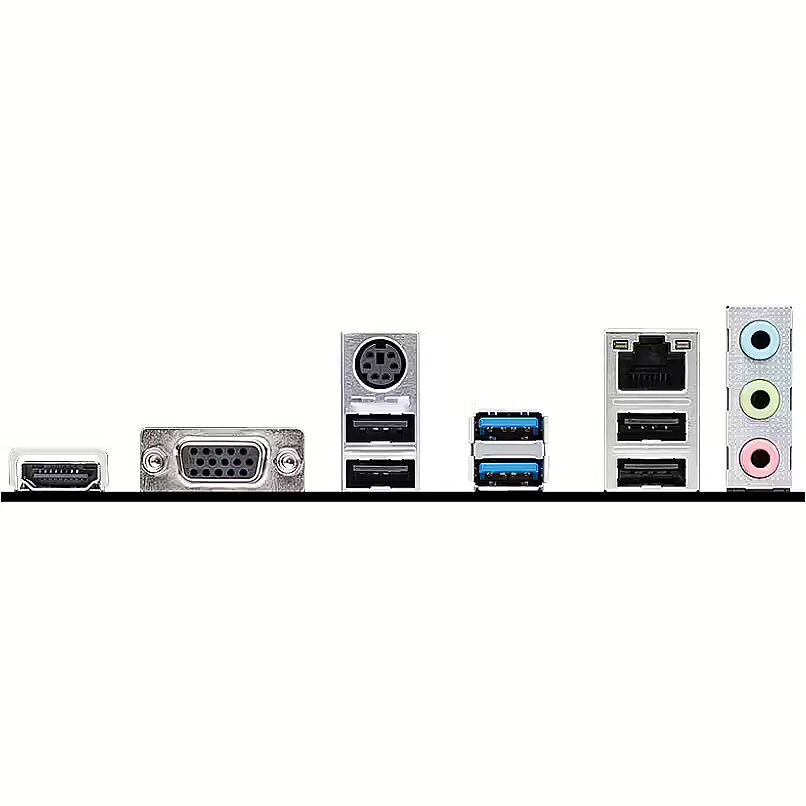

Ulkoiset portit
Ulkoinen USB Type-C
: 0
Ulkoinen USB 2.0
: 4
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 2
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 0
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 0
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 2
Sisäinen USB 3.0
: 1
Sisäinen USB Type-C
: 0
M.2-portti
: 1
SATA3-portti
: 4
Yksityiskohtaisempi erittely
ACPI version BIOS - 6.4
ATX Power connector (24-pin) Internal I/O - Yes
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Brand - MSI
BrandPartCode - PRO H610M-E
Cables included Packaging content - SATA
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 7D48-019R
Code - PRO H610M-E
Compatible processor series Processor - Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium G
Component for Features - PC
Cooling type Features - Active
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 236.16 mm
Description - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays. LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, up to 5600(MAX) MHzCore Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0Audio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
dimensionalWeight - 650
Drivers included Packaging content - Yes
EAN - 4711377125147
ean - 4711377125147
Eans - 4711377125147
EAN_code - 4711377125147
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Front panel audio connector Internal I/O - Yes
Gross weight - 1.64 kg
GTIN - 4711377125147
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 1.4
Headphone outputs Rear panel I/O ports - 2
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 2
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H610M-E-DDR4
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.LOW LATENCY GAMING LAN POWERED BY INTEL®Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LongProductName - Intel H610, LGA 1700, 2x DDR5, 1x HDMI, 1x VGA, mATX
LongSummaryDescription - MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - MSI
Manufacturer_code - 7D48-019R
Maximum internal memory Memory - 96 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5600 MHz
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 4GB, 8GB, 16GB, 32GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR5-SDRAM
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - PRO H610M-E
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 7D48-019R
Name - MSI PRO H610M-E
name - MSI Pro H610M-E, Intel H610 Mainboard - Sockel 1700, DDR5
Name - MSI PRO H610M-E - Socket 1700 - motherboard
Name - MSI | PRO H610M-E | Processor family Intel | Processor socket LGA1700 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - PRO H610M-E (H610.S1700.mATX.DDR5)
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 257 mm
Package features > Gross height (mm) - 260 mm
Package features > Gross width (mm) - 55 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0036751 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel Pentium G
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producer - MSI
producerCode - 7D48-019R
ProducerCode - PRO H610M-E
productName - MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
ProductName - PRO H610M-E
Product Net Weight - 0.5 kg
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
ShortDescription - Socket 1700| Chipset Intel H610 | DDR5 |
ShortSummaryDescription - MSI PRO H610M-E, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR5-SDRAM, 96 GB
sizeX - 260
sizeY - 250
sizeZ - 50
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speeds Memory - 5600 MHz
Supported memory module capacities Memory - 16GB/32GB/4GB/8GB
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO H610M-E
Thunderbolt headers Internal I/O - 2
Title - MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
Unit Box Height - 0.057
Unit Box Length - 0.26
Unit Box Width - 0.26
Unit Calculated Volume - 0.004739 cubm
Unit Calculated Weight - 0.8 kg
Units per Shipping Box - 20
URL - https://www.msi.com/Motherboard/PRO-H610M-E/Overview
USB 2.0 connectors Internal I/O - 4
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.msi.com/Motherboard/PRO-H610M-E/Overview
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,72
Weight - 0.712
weight - 715
Weight & dimensions - Depth - 236.2 mm
Weight & dimensions - Width - 200 mm
Wi-Fi Network - No
Width Weight & dimensions - 200 mm
Windows operating systems supported Features - Windows 10/Windows 11
ATX Power connector (24-pin) Internal I/O - Yes
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Brand - MSI
BrandPartCode - PRO H610M-E
Cables included Packaging content - SATA
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 7D48-019R
Code - PRO H610M-E
Compatible processor series Processor - Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium G
Component for Features - PC
Cooling type Features - Active
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 236.16 mm
Description - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays. LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, up to 5600(MAX) MHzCore Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0Audio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
dimensionalWeight - 650
Drivers included Packaging content - Yes
EAN - 4711377125147
ean - 4711377125147
Eans - 4711377125147
EAN_code - 4711377125147
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Front panel audio connector Internal I/O - Yes
Gross weight - 1.64 kg
GTIN - 4711377125147
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 1.4
Headphone outputs Rear panel I/O ports - 2
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 2
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H610M-E-DDR4
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.LOW LATENCY GAMING LAN POWERED BY INTEL®Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LongProductName - Intel H610, LGA 1700, 2x DDR5, 1x HDMI, 1x VGA, mATX
LongSummaryDescription - MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - MSI
Manufacturer_code - 7D48-019R
Maximum internal memory Memory - 96 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5600 MHz
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 4GB, 8GB, 16GB, 32GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR5-SDRAM
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - PRO H610M-E
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 7D48-019R
Name - MSI PRO H610M-E
name - MSI Pro H610M-E, Intel H610 Mainboard - Sockel 1700, DDR5
Name - MSI PRO H610M-E - Socket 1700 - motherboard
Name - MSI | PRO H610M-E | Processor family Intel | Processor socket LGA1700 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - PRO H610M-E (H610.S1700.mATX.DDR5)
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 257 mm
Package features > Gross height (mm) - 260 mm
Package features > Gross width (mm) - 55 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0036751 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel Pentium G
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producer - MSI
producerCode - 7D48-019R
ProducerCode - PRO H610M-E
productName - MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
ProductName - PRO H610M-E
Product Net Weight - 0.5 kg
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
ShortDescription - Socket 1700| Chipset Intel H610 | DDR5 |
ShortSummaryDescription - MSI PRO H610M-E, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR5-SDRAM, 96 GB
sizeX - 260
sizeY - 250
sizeZ - 50
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speeds Memory - 5600 MHz
Supported memory module capacities Memory - 16GB/32GB/4GB/8GB
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO H610M-E
Thunderbolt headers Internal I/O - 2
Title - MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
Unit Box Height - 0.057
Unit Box Length - 0.26
Unit Box Width - 0.26
Unit Calculated Volume - 0.004739 cubm
Unit Calculated Weight - 0.8 kg
Units per Shipping Box - 20
URL - https://www.msi.com/Motherboard/PRO-H610M-E/Overview
USB 2.0 connectors Internal I/O - 4
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.msi.com/Motherboard/PRO-H610M-E/Overview
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,72
Weight - 0.712
weight - 715
Weight & dimensions - Depth - 236.2 mm
Weight & dimensions - Width - 200 mm
Wi-Fi Network - No
Width Weight & dimensions - 200 mm
Windows operating systems supported Features - Windows 10/Windows 11
