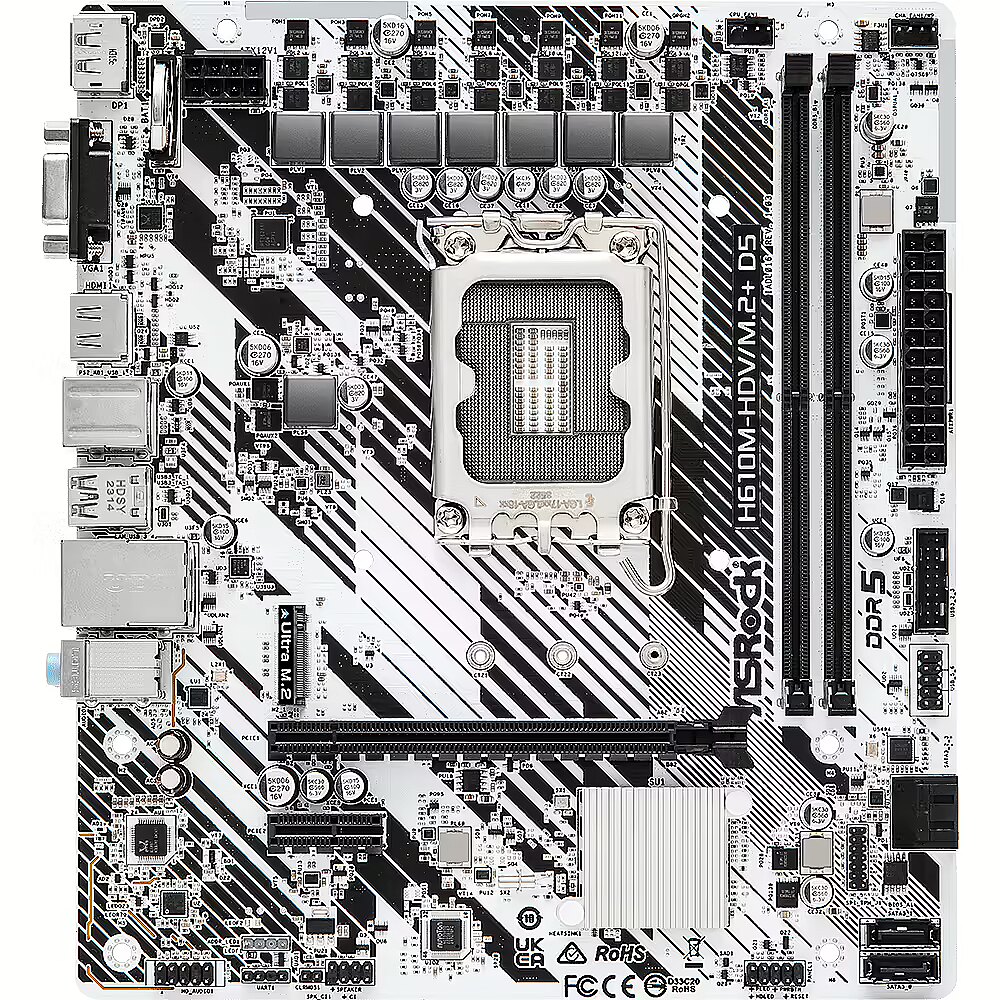

ASRock H610M-HDV/M.2+ D5

ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category1 - Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Component for Features - PC
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 193 mm
Description - 6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. POLYCHROME RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case. Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done! 3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)6+1+1 Power PhaseSupports DDR5 5600MHz*1 PCIe 4.0 x16, 1 PCIe 3.0 x1Graphics Output Options: HDMI, DisplayPort, D-SubRealtek ALC897 7.1 CH HD Audio Codec4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)1 USB 3.2 Gen1 Type-C (Rear)3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front)6 USB 2.0 (4 Rear, 2 Front)Realtek Gigabit LAN
Description1 - ASRock Mainboard H610M-HDV/M.2+ D5 - Micro ATX - Socket LGA1700 - Intel H610
Description2 - Discover the ASRock H610M-HDV/M.2+ D5 motherboard, designed to elevate your computing experience. This motherboard is built on the Intel H610 chipset and supports the LGA1700 socket CPUs, making it a solid foundation for building a powerful PC. With support for DDR5 SDRAM at speeds of up to 5600 MHz, it ensures that your system can handle demanding applications and multitasking with ease.The motherboard features high definition audio (8-channel) for an immersive sound experience, whether you're gaming or enjoying media. It also offers a variety of connectivity options, including USB-C 3.2 Gen 1 and USB 3.2 Gen 1 ports, providing high-speed connections for your peripherals. The 6+1+1 Phase Power Design ensures stable and reliable power delivery to your components, enhancing overall system performance.For those looking to expand their system, the motherboard includes a range of expansion slots, including PCIe 4.0 x16 and PCIe 3.0 x1, as well as a 2242/2260/2280 M.2 Key M slot for SSDs. With its micro ATX form factor, it offers a compact solution without compromising on performance or features. Whether you're building a new PC or upgrading an existing one, the ASRock H610M-HDV/M.2+ D5 motherboard offers a solid foundation with room to grow.
description_en - The Asrock H610M-HDV M.2+ D5 motherboard is designed for Intel 12th, 13th and 14th Gen CPUs, supporting DDR5 memory and M.2 PCIe storage. Its compact Micro-ATX format suits home and office builds, offering HDMI and VGA outputs, PCIe expansion slots, Gigabit LAN and essential connectivity.
SpecificationsModel: Asrock H610M-HDV M.2+ D5Device type: motherboardChipset: Intel H610Socket: LGA1700Form factor: Micro-ATXCPU support: Intel Core 12th / 13th / 14th GenArchitectures: Alder Lake, Raptor LakeIntegrated graphics support: depends on CPU
MemoryType: DDR5Slots: 2Max capacity: depends on versionSupported speeds: DDR5 (module dependent)Channel mode: dual-channel
Storage1 × M.2 PCIe NVMePCIe support: depends on board versionSATA support: yes
Expansion slots1 × PCIe x161 × PCIe x1
Video outputsHDMIVGA
AudioIntegrated audio controllerMulti-channel support (version dependent)
NetworkGigabit LAN
USB portsConfiguration varies by version
Other parametersPCB: multilayerPCB colour: variesBIOS: UEFI
Physical parametersWeight: 0.65 kgGross weight: 1.10 kgPackage dimensionsLength, m: 0.2900Height, m: 0.0700Width, m: 0.2400
description_lv - Asrock H610M-HDV M.2+ D5 mātesplate ir piemērota sistēmām ar Intel 12., 13. un 14. paaudzes procesoriem. Tā atbalsta DDR5 atmiņu un M.2 PCIe datu nesējus, padarot to piemērotu mūsdienu biroja un mājas datoriem. Plate nodrošina HDMI un VGA video izvades, Gigabit LAN tīklu un nepieciešamos paplašināšanas slotus.
RaksturlielumiModelis: Asrock H610M-HDV M.2+ D5Ierīces tips: mātesplateČipsets: Intel H610Ligzda: LGA1700Formfaktors: Micro-ATXProcesoru atbalsts: Intel Core 12./13./14. paaudzeArhitektūras: Alder Lake, Raptor LakeGrafikas atbalsts: atkarīgs no procesora
AtmiņaTips: DDR5Sloti: 2Maksimālā ietilpība: atkarīga no versijasAtbalstītie ātrumi: DDR5 (atkarīgs no moduļiem)Kanālu režīms: divkanālu
Datu glabāšana1 × M.2 PCIe NVMePCIe režīms: atkarīgs no versijasSATA atbalsts: ir
Paplašināšanas sloti1 × PCIe x161 × PCIe x1
Video izejasHDMIVGA
AudioIntegrēts audio kontrolieris
TīklsGigabit LAN
USB portiKonfigurācija atkarīga no piegādes
Citi parametriPCB: daudzslāņuPCB krāsa: atkarīga no versijasBIOS: UEFI
Fiziskie parametriSvars: 0.65 kgBruto svars: 1.10 kgIepakojuma izmēriGarums, m: 0.2900Augstums, m: 0.0700Platums, м: 0.2400
description_ru - Материнская плата Asrock H610M-HDV M.2+ D5 создана для систем на базе процессоров Intel Core 12-го, 13-го и 14-го поколений. Форм-фактор Micro-ATX обеспечивает совместимость с компактными корпусами, а поддержка DDR5 и накопителей M.2 PCIe позволяет собирать современные конфигурации для дома и офиса. Модель оснащена видеовыходами HDMI и VGA, гигабитной сетевой картой, слотами PCIe и необходимыми интерфейсами для периферии.
ХарактеристикиМодель: Asrock H610M-HDV M.2+ D5Тип устройства: материнская платаЧипсет: Intel H610Сокет: LGA1700Форм-фактор: Micro-ATXПоддержка процессоров: Intel Core 12-го / 13-го / 14-го поколенияПоддерживаемые архитектуры: Alder Lake, Raptor LakeПоддержка графики: зависит от процессора
ПамятьТип памяти: DDR5Количество слотов: 2Максимальный объём: зависит от версииПоддерживаемые частоты: зависит от модуля DDR5Режим работы: двухканальный
Хранение данныхM.2 слот: 1 × M.2 PCIe NVMeПоддержка PCIe: зависит от версии (3.0 / 4.0)Поддержка SATA: есть
Слоты расширения1 × PCIe x161 × PCIe x1
ВидеовыходыHDMIVGA
АудиосистемаИнтегрированный аудиоконтроллерМногоканальная поддержка (зависит от версии поставки)
СетьGigabit LAN
USB портыНабор портов зависит от партии поставки
Прочие параметрыМатериал PCB: многослойныйЦвет платы: зависит от партииBIOS: UEFI
Физические параметрыВес: 0.65 кгВес брутто: 1.10 кгРазмеры упаковкиДлина, м: 0.2900Высота, м: 0.0700Ширина, м: 0.2400
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4710483943478
Eans - 4710483943478
EAN_code - 4710483943478
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Front panel audio connector Internal I/O - Yes
gross_weight - 1.1 kg
HDMI ports quantity Rear panel I/O ports - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8111H)
LAN controller Network - Realtek RTL8111H
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer - AsRock
ManufacturerID - 90-MXBM50-A0UAYZ
Manufacturer_code - 90-MXBM50-A0UAYZ
Maximum internal memory Memory - 96 GB
Maximum number of SMP processors Processor - 1
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model -
Model - H610M-HDV/M.2+ D5
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 90-MXBM50-A0UAYZ
Name - ASRock H610M-HDV/M.2+ D5
Name - ASROCK H610M-HDV/M.2+ D5 (1700) (D)
Name - ASRock H610M-HDV/M.2+ D5 - Socket 1700 - motherboard
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
PackageHeight - 61
PackageLength - 276
PackageWeight - 777.5
PackageWidth - 242
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 96 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen

Producer - ASRock
ProducerCode - H610M-HDV/M.2+D5
PS/2 ports quantity Rear panel I/O ports - 1
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR5 |
Summary - Asrock H610M-HDV/M.2+ D5. Processor manufacturer: Intel, Processor socket: LGA 1700. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - SATA III
title_en - Asrock H610M-HDV M.2+ D5 Motherboard Micro-ATX / Intel H610 / LGA1700 / DDR5
title_lv - Asrock H610M-HDV M.2+ D5 Mātesplate Micro-ATX / Intel H610 / LGA1700 / DDR5
title_ru - Asrock H610M-HDV M.2+ D5 Материнская плата Micro-ATX / Intel H610 / LGA1700 / DDR5
TPM connector Internal I/O - Yes
Unbuffered memory Memory - No
Unit Box Height - 0.06
Unit Box Length - 0.275
Unit Box Width - 0.24
Unit Calculated Volume - 0.004268 cubm
Unit Calculated Weight - 0.78 kg
Units per Shipping Box - 20
USB 2.0 connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/MB/Intel/H610M-HDVM.2+%20D5/index.asp#Overview
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 24 months
WEEE - DE83654239
Weight - 0,70
weight - 0.65 kg
Weight - 0.714
Wi-Fi Network - No
Width Weight & dimensions - 220 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
Wymiary: Szerokość - 193 mm
Wymiary: Wysokość - 220 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
