Asus Prime H610M-K

12V power connector Internal I/O - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1GA0-M0EAY0
Cables included Packaging content - SATA
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Clear CMOS jumper BIOS - Yes
code - 90MB1GA0-M0EAY0
Code - 90MB1GA0-M0EAY0
Compatible processor series Processor - Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 203 mm
Description - FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Cooler by Design Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. PERFORMANCE Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. DDR5 Performance Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. M.2 slot (up to 32 Gbps) PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. PCIe 4.0 Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. Armoury Crate Within a single intuitive interface, Armoury Crate offers easily customized settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processorsUltrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1Comprehensive Cooling: PCH heatsink and Fan Xpert 2+5X Protection III: Multiple hardware safeguards for all-round protection
EAN - 4711387336328
ean - 4711387336328
EAN_code - 4711387336328
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Multicolour
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Front panel audio connector Internal I/O - Yes
GTIN - 4711387336328
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 36.5 mm
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Line-in Rear panel I/O ports - Yes
LongDesc - FLEXIBILITYComprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Cooler by DesignPrime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.PERFORMANCEPrime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. DDR5 PerformanceComprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. M.2 slot (up to 32 Gbps)PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. PCIe 4.0Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.Armoury CrateWithin a single intuitive interface, Armoury Crate offers easily customized settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community. Q-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
LongProductName - Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header
LongSummaryDescription - ASUS Prime H610M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1GA0-M0EAY0
Maximum internal memory Memory - 96 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - PRIME H610M-K
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610
Motherboard form factor Features - micro ATX
MPN - 90MB1GA0-M0EAY0
Name - ASUS PRIME H610M-K (Intel.1700.DDR5.mATX)
name - ASUS Prime H610M-K, Intel H610 Mainboard, Sockel LGA1700, DDR5
Name - ASUS PRIME H610M-K - Socket 1700 - motherboard
Name - Asus Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Other features - Weight - 470 g
Package depth Packaging data - 263 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 51.5 mm
Package weight Packaging data - 820 g
Package width Packaging data - 270 mm

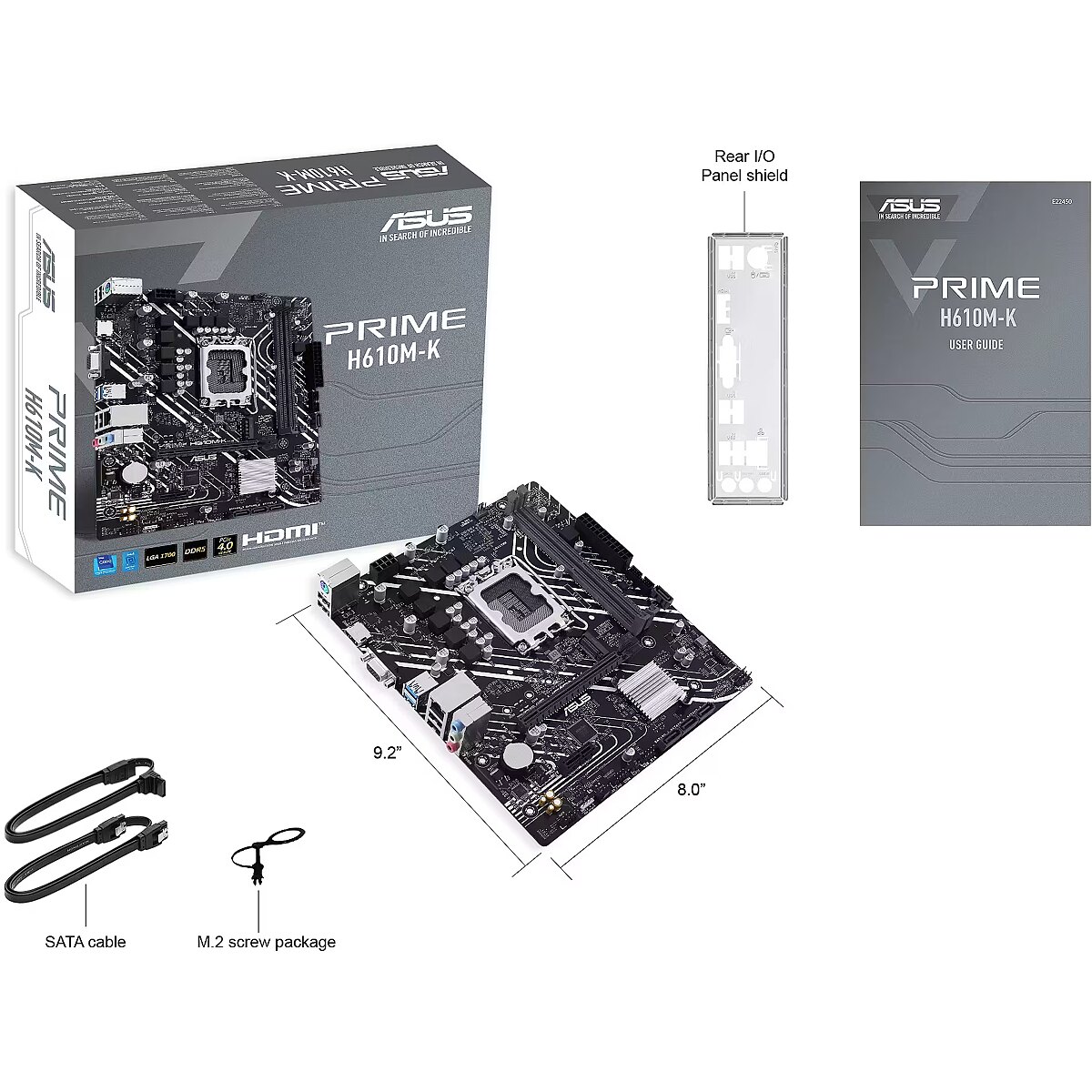

Packaging content - Cables included - SATA
Packaging data - Package depth - 263 mm
Packaging data - Package height - 51.5 mm
Packaging data - Package weight - 820 g
Packaging data - Package width - 270 mm
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Product colour Features - Multicolour
ProductName - Prime H610M-K
Product Net Weight - 0.62 kg
PS/2 ports quantity Rear panel I/O ports - 1

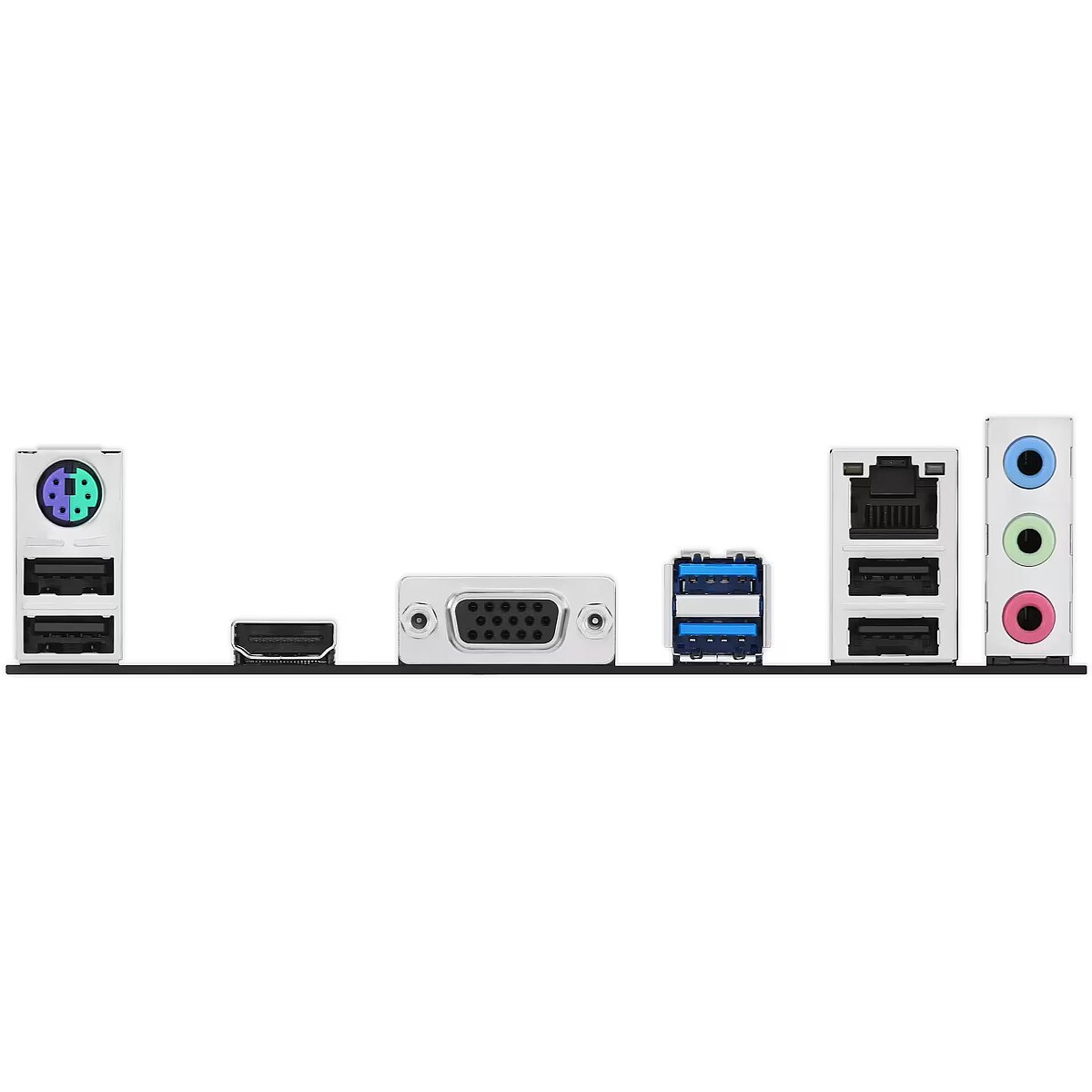

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
ShortSummaryDescription - ASUS Prime H610M-K, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 96 GB, DIMM
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS Prime H610M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet
Supported memory clock speeds Memory - 4800/5000/5200/5400/5600 MHz
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Title - ASUS Prime H610M-K Intel H610 LGA 1700 micro ATX
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.265
Unit Calculated Volume - 0.004915 cubm
Unit Calculated Weight - 0.95 kg
Units per Shipping Box - 10
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k/
USB 2.0 connectors Internal I/O - 1
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
Vendor Homepage - https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k/
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 0,87
Weight - 0.88
Weight & dimensions - Depth - 203 mm
Weight & dimensions - Height - 36.5 mm
Weight & dimensions - Width - 234 mm
Weight Other features - 470 g
Wi-Fi Network - No
Width Weight & dimensions - 234 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11
