15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - A620M DS3H
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD A620
Chipset manufacturer - AMD
Chipset type - AMD A620
code - A620M DS3H
Code - A620M DS3H
COM connector / port - No
CPU socket - Socket AM5
Description - A620M DS3H motherboard AMD Socket AM5: Supports AMD Ryzen 7000 series processors Unrivaled performance: 5+2+2 phase digital VRM solution Dual-channel DDR5 memory: 4 x SMD DIMMs with support for AMD EXPO and Intel XMP memory modules Superfast storage: PCIe 4.0 x4 M.2 EZ-Latch: PCIe x16 slot with Quick Release design Fast networks: GbE LAN Extended connectivity: DP, HDMI, D-Sub Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: BIOS update without installing CPU, memory and graphics card
Description - GIGABYTE A620M DS3H (rev. 1.1) AMD Socket AM5 Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors Unparalleled Performance 5+2+2 Phases Digital VRM Solution Dual Channel DDR5 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support SuperSpeed Storage PCIe 4.0 x4 M.2 Connector EZ-Latch PCIe x16 Slot with Quick Release Design Fast Networks GbE LAN Extended Connectivity DP, HDMI, D-Sub Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
dimensionalWeight - 787
dimension depth - 55 mm
dimension height - 270 mm
Dimensions - 24.4 x 17.4 cm
dimension weight - 956 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331855567
ean - 4719331855567
EAN_code - 4719331855567
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

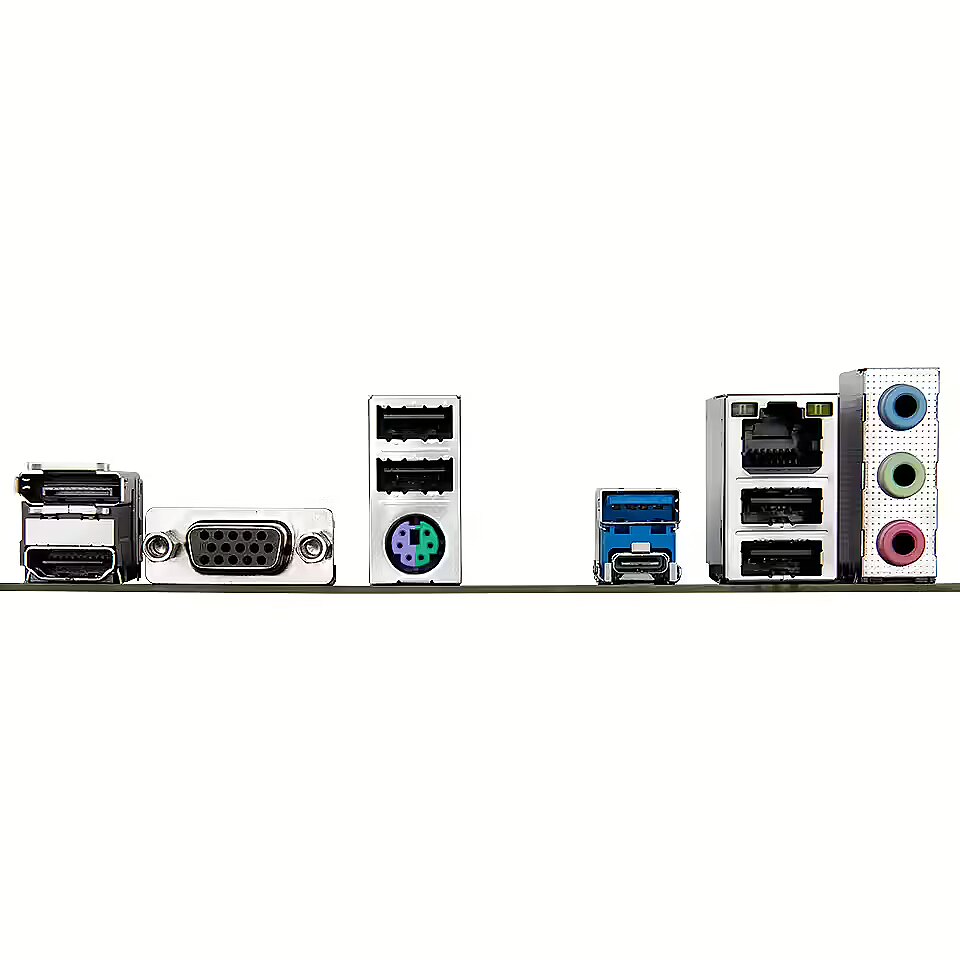

External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Full Description Line - AMD A620|SAM5|Micro-ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 4x|1xPCI-Express 3.0 1x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.1 and HDCP 2.3 versions. Supports native HDMI 2.1 TMDS compatible ports. 1 x D-Sub port supporting a maximum resolution of 1920x1200 at 60 Hz
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331855567
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-11#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - A620M DS3H
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - A620M DS3H
Model - A620M DS3H (rev. 1.1)
MPN - A620M DS3H
Name - GA-A620M DS3H (AM5) (D)
name - GIGABYTE A620M DS3H, AMD A620 Mainboard - Sockel AM5, DDR5
Name - GIGABYTE A620M DS3H - Socket AM5 - motherboard
Name - Gigabyte A620M DS3H | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard A620M DS3H AM5 4DDR5 HDMI/DP M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 54.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 140.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.17 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 1.07 kg
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - Gigabyte
producerCode - A620M DS3H
ProductName - A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
productName - GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
Product Net Weight - 1 kg
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping Box Weight Shipping/Package Box Dimensions - 10.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 192 GB, DDR5-SDRAM
sizeX - 270
sizeY - 265
sizeZ - 55
Socket - SAM5
Software -
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1
Special functions - GIGABYTE Control Center (GCC) Support Q-Flash support Support for Q-Flash Plus
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.07 kg
Technical details > Net weight - 0.90 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - A620M DS3H
Title - GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.265
Unit Box Width - 0.055
Unit Calculated Volume - 0.004752 cubm
Unit Calculated Weight - 1.04 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 4
Vendor Homepage - www.gigabyte.com/Motherboard/A620M-DS3H-rev-11#kf
vendpn - A620M DS3H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,95
Weight - 0.88
weight - 940
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
