12V power connector Internal I/O - Yes
Accessories included -
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1200
Audio output channels Features - 7.1 channels
BIOS -
BIOS - Clear CMOS jumper - Yes
Brand - MSI
BrandPartCode - MAG B550 TOMAHAWK MAX WiFi
Cables included Packaging content - SATA
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chassis intrusion connector Internal I/O - Yes
Chipset manufacturer - AMD
Chipset type - AMD B550 Chipset
Clear CMOS jumper BIOS - Yes
code - 7C94-043R
Code - MAG B550 TOMAHAWK MAX WIFI
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM4
Dane techniczne: Chipset płyty głównej - AMD B550
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - Conquer the battlefield The MAG series is the result of rigorous quality testing and has been designed as a symbol of robustness and durability. With a focus on providing the best user experience possible, the MAG Series features a simple setup process coupled with a user-friendly interface, making it the best choice for first-time players. Thermal solution for more cores and higher performance For processors with more cores, the thermal and power design is more important to ensure a lower temperature is maintained. MSI's extended PWM heatsink and refined circuit design ensure that even the most powerful CPUs will run at full speed on MSI motherboards. M.2 SHIELD FROZR The world's fastest SSDs can start degrading performance as they heat up. Part of the motherboard's heatsink design, M.2 Shield Frozr is a next-generation M.2 thermal solution that avoids this by offering the best thermal protection to ensure your SSD maintains peak performance. Full control in bios and software MSI motherboards provide speed and temperature management for all system and CPU fans. Total Fan Control allows you to check basic system parameters in a simplified graphical interface. You can also set up to 4 target temperatures for the CPU and motherboard, which will automatically adjust the fan speed. Optimized for water cooling Designed to support the most popular universal and custom water cooling solutions on the market. Dedicated water pump PIN header supports up to 3 amps, giving you full control over water pump speed. A clearly marked inaccessible zone allows for easy and safe installation and a perfect fit. 10 + 2 + 1 duo rail power system Unleash and maintain peak performance with an aggressive VRM design built with a total of 10 digital CPU power stages. Combining the exclusive Core Boost technology, the MAG series motherboard is ready to withstand heavy gaming loads. Core reinforcement Core Boost technology combines MSI's superior circuitry and digital power design to deliver faster and undistorted power to the CPU with the utmost precision. This creates ideal conditions for a multi-core processor when working with heavy loads. Load line calibration What you set is what you get. LLC ensures that CPU voltage remains 100% stable under any load. This greatly improves stability when more CPU performance is required. High voltage protection Prevents potential damage to the CPU and other critical components due to a short circuit. Digital power design The all-digital design of the power supply allows faster and uninterrupted power delivery to the processor with the highest precision. Creating ideal conditions for overclocking the processor. 1 second overclock! MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. Extreme stability and compatibility tests MSI conducts thorough memory tests with the most popular memory brands under extreme conditions to ensure your system will run stably no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more that optimize memory modules, configurations and even improve overclocking. A giant leap in DDR performance MSI OC LAB not only works hard on extreme overclocking. Compared with the A-XMP memory profile of the B450 motherboard, MSI has greatly improved the performance and efficiency of the B550 motherboards. Easy-to-enable A-XMP profile with automatic power settings for the best memory speed and stability. Easy overclocking with the A-XMP profile A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It can be easily turned on with automatic power settings for the best memory speed and stability. High bandwidth, low latency network 2.5Gbps LAN provides incredible data transfer speeds, faster than regular Gigabit LAN. This is a premium solution for demanding users. Surface with true MU-MIMO technology The latest Wi-Fi 6E solution supports the 6GHz band, Bluetooth 5.2, two-way MU-MIMO and BSS color technologies, providing up to 4x faster network bandwidth and performance in a high signal density environment, providing speeds up to 2400 Mbps. Optimize your online gaming traffic to reduce latency! MSI LAN Manager automatically classifies and prioritizes latency-sensitive online gaming applications for the best low-latency online gaming experience. MSI LAN MANAGER Automatically prioritizes games over other apps Allows you to change the priority of application traffic It allows you to adjust the bandwidth for each application MAG B550 TOMAHAWK MAX WIFI Supports AMD Ryzen 5000 series, 5000 G series, 4000G series and 3000 series Supports DDR4 memory, up to 5100+(OC) MHz Lightning-fast gaming speed: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2 Ultimate thermal solution: Extended heatsink design with an additional 7W/mk choke thermal pad and 2oz thickened copper PCB are built for high system performance and uninterrupted gameplay. Improved Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost. 2.5G LAN and AMD Wi-Fi 6E solution: Enhanced networking solution for professional and multimedia use. It provides a secure, stable and fast network connection. Pre-installed I/O shield: better EMI protection and installation convenience. Audio Enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience. Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire
Description - Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processorsSupports DDR4 Memory, up to 5100+(OC) MHzLightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experienceEnhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionPre-installed I/O Shield: Better EMI protection and more convenience for installationAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experienceMulti-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Digital audio optical out Rear panel I/O ports - 1
dimensionalWeight - 1304
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1777 g
dimension width - 345 mm
DisplayPorts quantity Rear panel I/O ports - 1
Drivers included Packaging content - Yes
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 - 7.1)
ean - 4719072957957
EAN - 4719072957957
Eans - 4719072957957
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 2
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.0
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Number of mounting holes - 9
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Grafika: Obsługa technologii CrossFire - tak
Graphics - 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16GB
Graphics - Maximum graphics card memory - 16000 MB
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - 2-Way CrossFireX
GTIN - 4719072957957
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 6E | Bluetooth 5.2
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8125B 2.5Gbps LAN)
LAN controller Network - Realtek RTL8111H, Realtek RTL8125B
LongDesc - Conquer the BattlefieldThe MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.LIGHTNING GEN 4 M.2Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.HIGH-BANDWIDTH AND LOW-LATENCY NETWORK2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
LongProductName - AMD B550, AM4, 4x DDR4, HDMI, DP, SATA III, M.2, USB 3.2, 1/2.5G LAN, WIFI, PS/2, S/PDIF, ATX, 305x244 mm
LongSummaryDescription - MSI MAG B550 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H, Realtek RTL8125B
LPT connector / port - No
Max. number of SATA devices - 6
Maximum graphics card memory Graphics - 16000 MB
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 1866
Memory - Supported memory clock speeds - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3066
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4533 MHz
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4733
Memory - Supported memory clock speeds - 5100 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 1866 MHz
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3066 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4

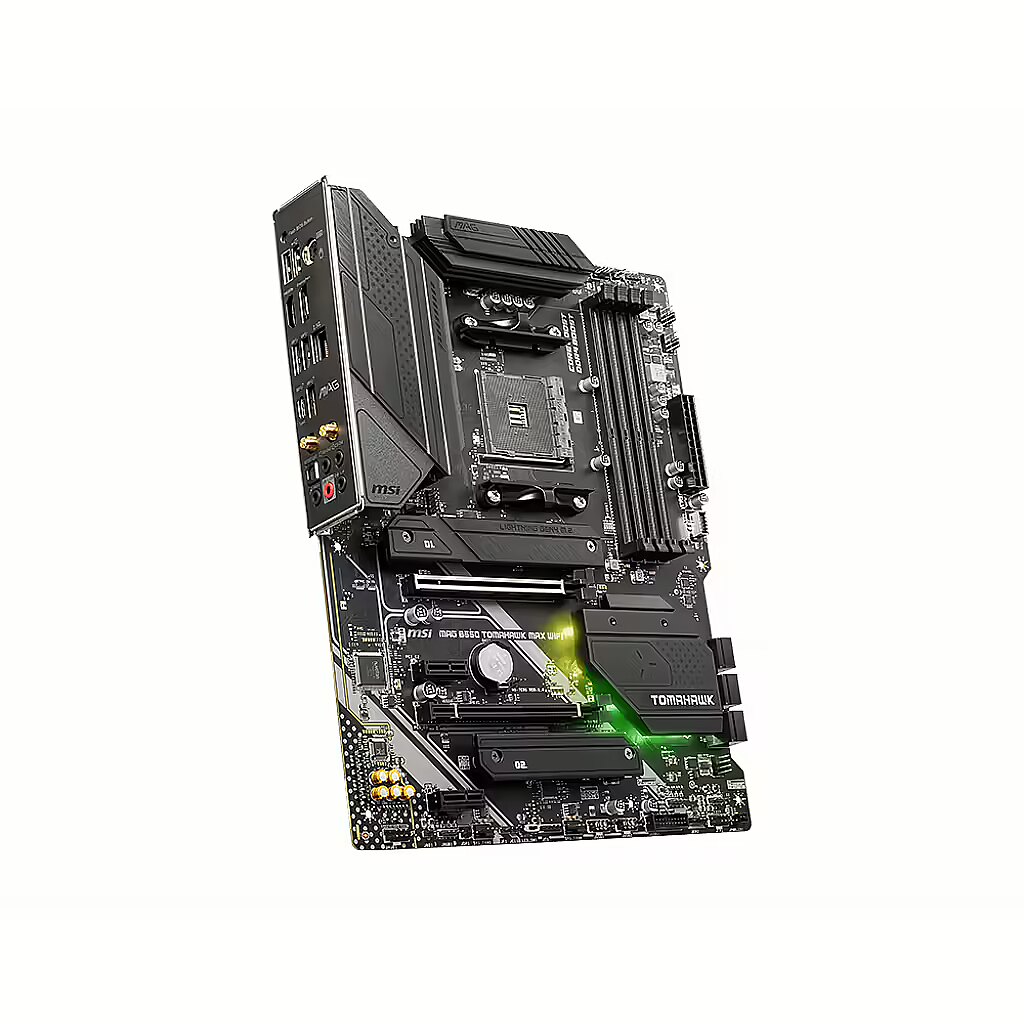

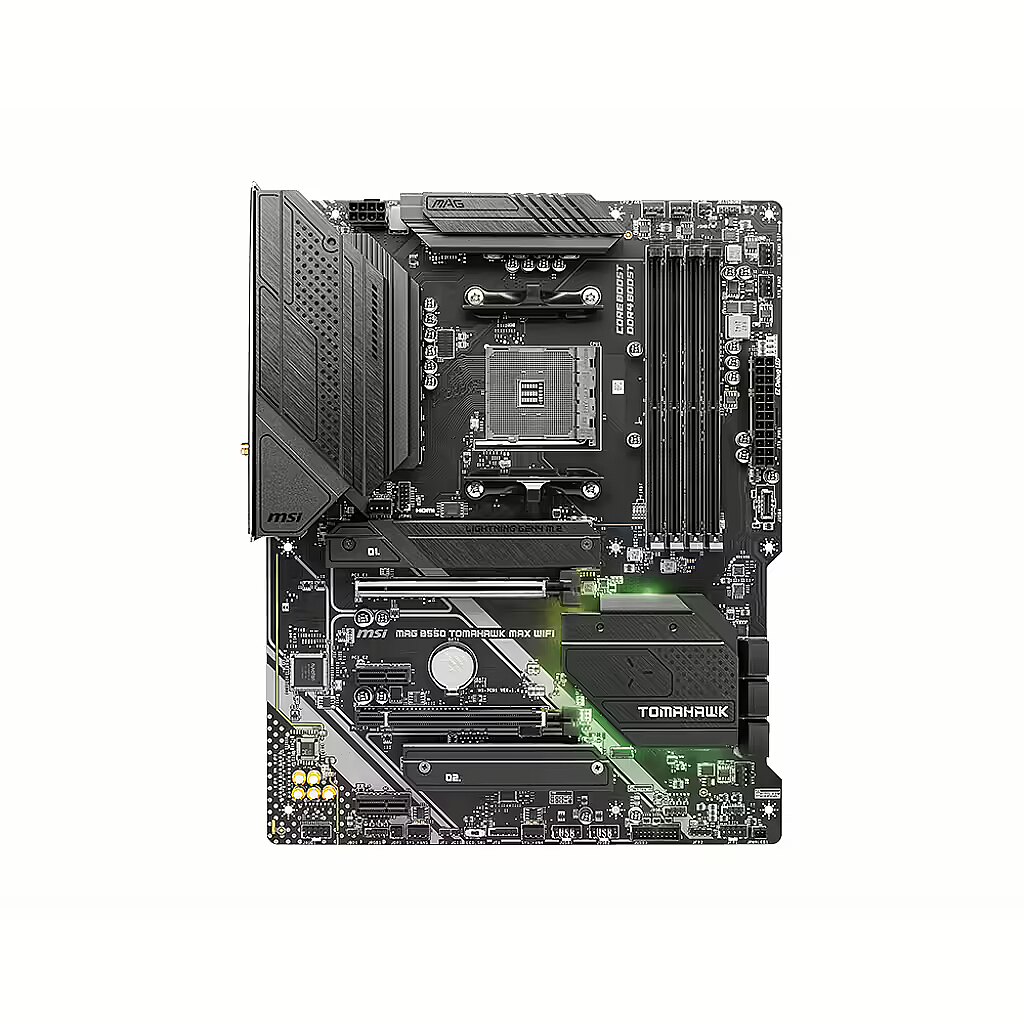

Model - MAG B550 TOMAHAWK MAX WIFI
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B550
Motherboard form factor Features - ATX
name - Motherboard MAG B550 TOMAHAWK MAX WIFI AM4 4DDR4 HDMI/DP 2M.2 ATX
Name - MSI MAG B550 TOMAHAWK MAX WIFI
name - MSI MAG B550 Tomahawk Max WiFi, AMD B550 Mainboard - Sockel AM4
Name - MSI | MAG B550 TOMAHAWK MAX WIFI | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset AMD B550 | ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - LAN controller - Realtek RTL8111H, Realtek RTL8125B
Network - LAN controller - Realtek RTL8125B
Network - Wi-Fi - No
Network - Wi-Fi - Yes
Network interface - Bluetooth
Network interface - Realtek RTL8125B 2.5Gbps LAN controller
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of chassis fan connectors Internal I/O - 6
Number of DDR4 slots - 4
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of mounting holes Features - 9
Number of SATA III connectors Internal I/O - 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x System panel header
Onboard connectors - 6 x 4pin wentylator obudowy
Onboard connectors - 6 x SATA III 6Gb/s
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - No
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3466 (PC4-27700)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3600 (PC4-28800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3866 (PC4-30900)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4000 (PC4-32000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4133 (PC4-33000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4400 (PC4-35200)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4600 (PC4-36800)
Parallel processing technology support Graphics - 2-Way CrossFireX
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 5000
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV
EScience Park Eindhoven 5706
5692 ER Son Eindhoven producer - MSI
Producer - MSI
producerCode - 7C94-043R
ProducerCode - MAG B550 TOMAHAWK MAX WIFI
ProductName - MAG B550 TOMAHAWK MAX WIFI
productName - MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID - Yes
RAID levels Storage controllers - 0, 1, 10
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Safety warning - Warnings - Avoid direct contact with sensitive electronic components.
Safety warning - Warnings - Dispose of according to local electro-waste regulations.
Safety warning - Warnings - Store away from water and sources of moisture.
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - MSI MAG B550 TOMAHAWK MAX WIFI, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
sizeX - 345
sizeY - 270
sizeZ - 70
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - MSI MAG B550 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H, Realtek RTL8125B
Supported memory clock speeds Memory - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - Socket AM4
Supported storage drive interfaces Storage controllers - SATA III
Supported storage drive types Storage controllers - HDD & SSD
Title - MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Calculated Volume - 0.006521 cubm
Unit Calculated Weight - 1.75 kg
Units per Shipping Box - 1
URL - https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI/Overview
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB ports at back panel - 6
USB ports on motherboard - 10
Vendor Homepage - https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI/Overview
vendpn - MAG B550 TOMAHAWK MAX WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1750
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 10 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 6 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
