12V power connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 256000 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256000 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.0
Brand - ASUS
BrandPartCode - 90MB14S0-M0EAY0
Cables included Packaging content - SATA
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
code - 90MB14S0-M0EAY0
Code - ROGSTRIXB550-FGAMING
Compatible processor series Processor - AMD Ryzen 3000 Series
Component for Features - PC
Cooling type Features - Active
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Desc - Mikroshēmu tips | chipset: AMD B550, Plates formfaktors: ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, WiFi: Nav, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description - Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost. All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues. Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots. ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want. UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsBest gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output supportSmooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuardRobust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitorsRenowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming buildsDIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlotUnmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB headerIndustry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.2
Drivers included Packaging content - Yes
EAN - 4718017749688
ean - 4718017749688
EAN_code - 4718017749688
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express slots version - 3.0, 4.0
Expansion slots - PCI Express x1 (Gen 3.x) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI slots - 7
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - 2-Way CrossFireX
Gross Weight Kg - 1
GTIN - 0192876749685
GTIN - 192876749685
GTIN - 0192876749692
GTIN - 192876749692
GTIN - 4718017749688
Harmonized System (HS) code Logistics data - 84733020
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 68 mm
Internal I/O - 12V power connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LAN controller Network - Intel I225-V
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Advance Your Gaming ImmersionROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.PCIe 4.0-ReadyROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.All-round PerformanceROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.Play Your Own StyleThe cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.UNDENIABLY ROG STRIXROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.ROG Gives You MoreROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.UEFI BIOSThe renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
LongProductName - AMD Socket AM4, 4 x DIMM, AMD B550, 6 x SATA-III 6Gbps, 2 x M.2, 2.5G Ethernet, Bluetooth 5.1, 2 x USB 2.0, 2 x USB 3.2 Gen.1, USB 3.2 Gen.2 type-A, USB 3.2 Gen.2 type-C, HDMI, DP, ATX, 305 x 244mm
LongSummaryDescription - ASUS ROG STRIX B550-F GAMING. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
Manual Packaging content - Yes
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB14S0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB14S0-M0EAY0
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Memory - Maximum internal memory - 128 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B550
Motherboard form factor Features - ATX
MPN - 90MB14S0-M0EAY0
Name - AM4 ASUS ROG STRIX B550-F GAMING
Name - Asus ROG STRIX B550-F GAMING
name - ASUS ROG STRIX B550-F Gaming, AMD B550 Mainboard - Sockel AM4
Name - Asus ROG STRIX B550-F GAMING - Socket AM4 - mainboard
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I225-V
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 3
Number of EATX power connectors Internal I/O - 1
Number of HDDs supported Storage controllers - 6
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 6
On-board graphics card Graphics - No
Other features - Weight - 945 g
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - Manual - Yes
Parallel processing technology support Graphics - 2-Way CrossFireX
PC health monitoring Features - CPU/Fan
PCI Express slots version Expansion slots - 3.0/4.0
PCI Express x1 (Gen 3.x) slots Expansion slots - 3
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI slots Expansion slots - 7
Power source type Features - ATX
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Product colour Features - Black
ProductName - ROG STRIX B550-F GAMING
RAID levels Storage controllers - 0/1/10
RAID support Storage controllers - Yes

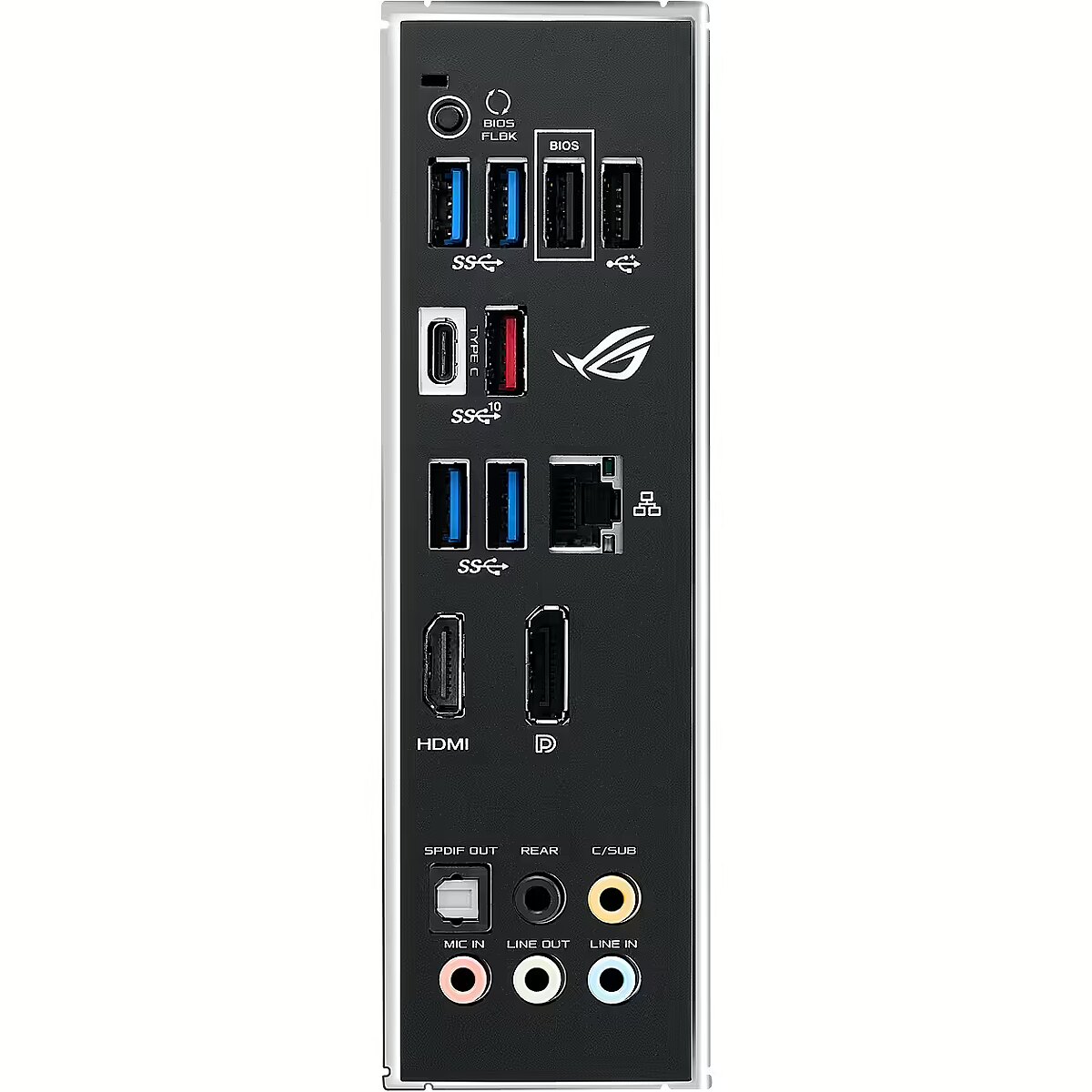

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
S/PDIF out port Rear panel I/O ports - Yes
Short description - ASUS ROG STRIX B550-F GAMING AM4 B550/M.2/ATX PCI-Express 4.0 Support
ShortSummaryDescription - ASUS ROG STRIX B550-F GAMING, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Storage controllers - Number of HDDs supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS ROG STRIX B550-F GAMING. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
Supported memory clock speeds Memory - 2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600 MHz
Supported memory types Memory - DDR4-SDRAM
Supported processor sockets Processor - Socket AM4
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Thunderbolt headers Internal I/O - 1
Title - ASUS ROG STRIX B550-F GAMING AMD B550 Socket AM4 ATX
Unit Box Height - 0.07
Unit Box Length - 0.34
Unit Box Width - 0.275
Unit Calculated Volume - 0.006545 cubm
Unit Calculated Weight - 1.68 kg
Units per Shipping Box - 1
URL - https://www.asus.com/Motherboards/ROG-STRIX-B550-F-GAMING
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asus.com/Motherboards/ROG-STRIX-B550-F-GAMING
Wake-on-LAN ready Network - Yes
Warranty - 36 months
WarrantyInfo -
Weight - 1,70
Weight - 1.689
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 68 mm
Weight & dimensions - Width - 305 mm
Weight Other features - 945 g
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
