1st M.2 highest PCI Express generation Expansion slots - 3.0
1st M.2 largest key size Expansion slots - 2280
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS type BIOS - UEFI
Cables included Packaging content - SATA
Category Code - MBA
Clear CMOS jumper BIOS - Yes
Compatible processor series Processor - AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 235 mm
Description - AMD A520 chipset
AMD A520 chipset provides a simple, stable platform and more than enough connectivity and bandwidth options to satisfy both demanding home users and media aficionados. HD Audio
Provides high quality sound with minimal loss of audio fidelity. HDMI® 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI® cable for displaying 4K2K data. DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. Integrated HDMI® with HDCP
Onboard HDMI® connector allows full video & audio support. It has industry-leading high definition video quality. PCIe M.2
PCIe M.2 32Gb/s delivers the highest bandwidth and lower latency. It is 3 times faster compared with PCIe M.2 10Gb/s. PCIe 3.0
PCIe 3.0 is the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces. SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II. Dual DDR4
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate. USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products. Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design, the Super Durable Solid Caps doubles the lifespan. Moistureproof PCB
The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moistureproof PCB meets high density and high reliability requirements for moisture proof. OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. BullGuard Internet Security (90 days FREE trial)
BullGuard Internet Security comes with the broadest line-up of internet security features on the market, including: a cutting-edge dual Antivirus engine, Online Backup for your precious files, PC Tune Up to speed up your system, a Game Mode for a seamless gaming experience, Parental Control, Firewall, Safe Browsing and many more. Make the most of your digital life with Bullguard! UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons lead users into the setup layer directly. BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility. A.I FAN
With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios, users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance. A.I TP Control
A.I TP Control is designed for overclockers. It provides a user-friendly BIOS environment that overclockers can adjust the temperature setting to keep your PC safe and enjoy extreme overclocking performance. Smart Update
Biostar Smart Update is a utility that can help users run online update. It can download the drivers for your motherboard from Biostar official website and install them automatically.Support AMD RyzenTM 5000/5000G/4000G/3000/3000G series ProcessorsAMD A520 single chip architectureSupports 2-DIMM DDR4 up to 64 GB MemorySupports USB 3.2 Gen1Supports PCIe M.2Supports HDMI® 4K resolution
DirectX version Graphics - 12.0
Drivers included Packaging content - Yes
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Fast Ethernet, Gigabit Ethernet

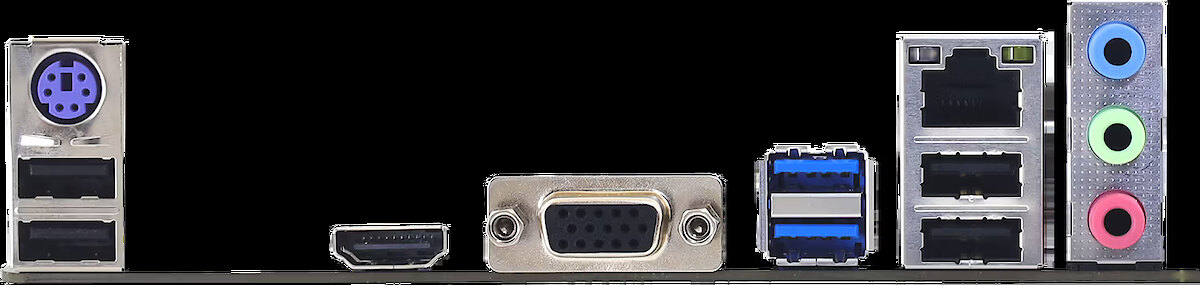

Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
LAN controller Network - Realtek RTL8111H
Maximum internal memory Memory - 64 GB
Maximum internal memory per slot Memory - 32 GB
Memory channels Memory - Dual-channel
Memory slot pin count Memory - 288
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD A520
Motherboard form factor Features - micro ATX
Name - MB AMD A520 SAM4 MATX/A520MHP 2.0 BIOSTAR
Number of COM connectors Internal I/O - 1
Number of CPU fan connectors Internal I/O - 1
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Parallel processing technology support Graphics - Not supported
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Product colour Features - Black
Product Net Weight ELKO Logistics Data - 0.68 kg
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes
Shipping Box Depth ELKO Internal Logistics Data - 63.5 cm
Shipping Box Height ELKO Internal Logistics Data - 47.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 14.3 kg
Shipping Box Width ELKO Internal Logistics Data - 28.5 cm

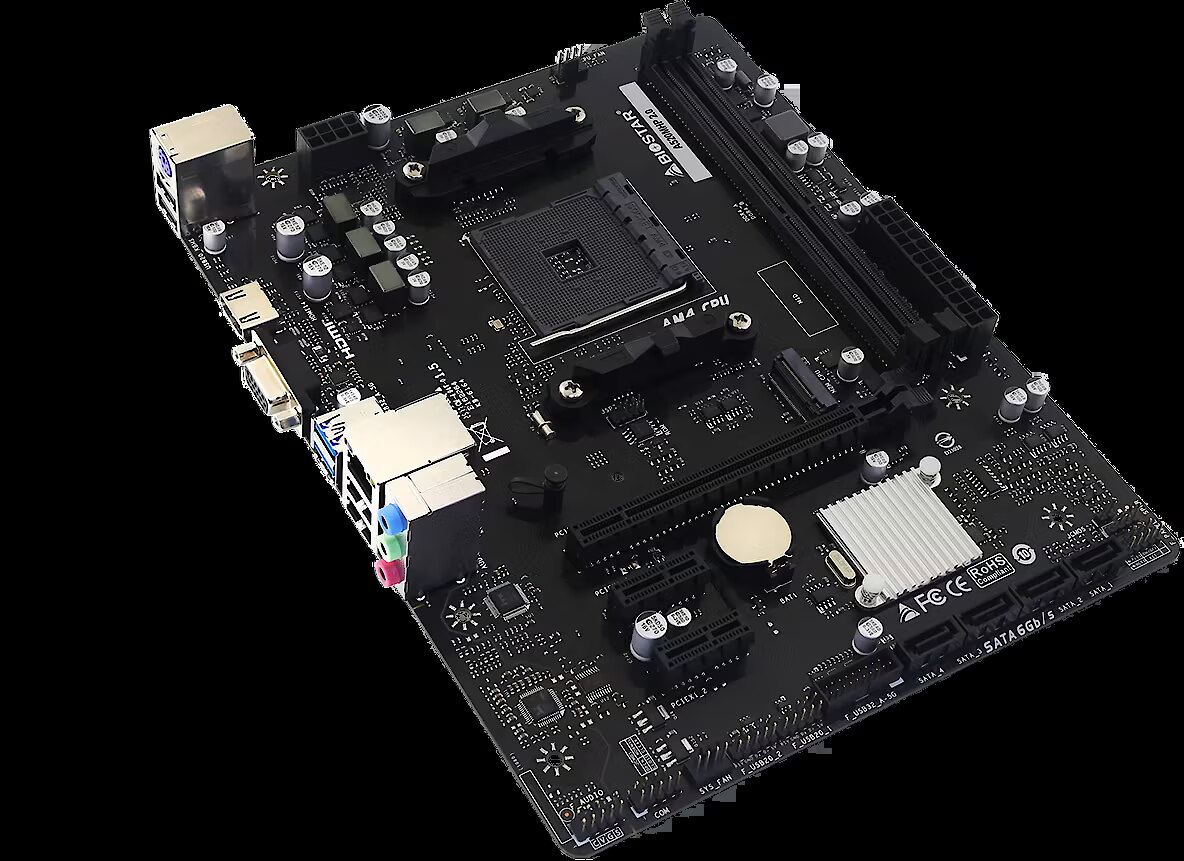

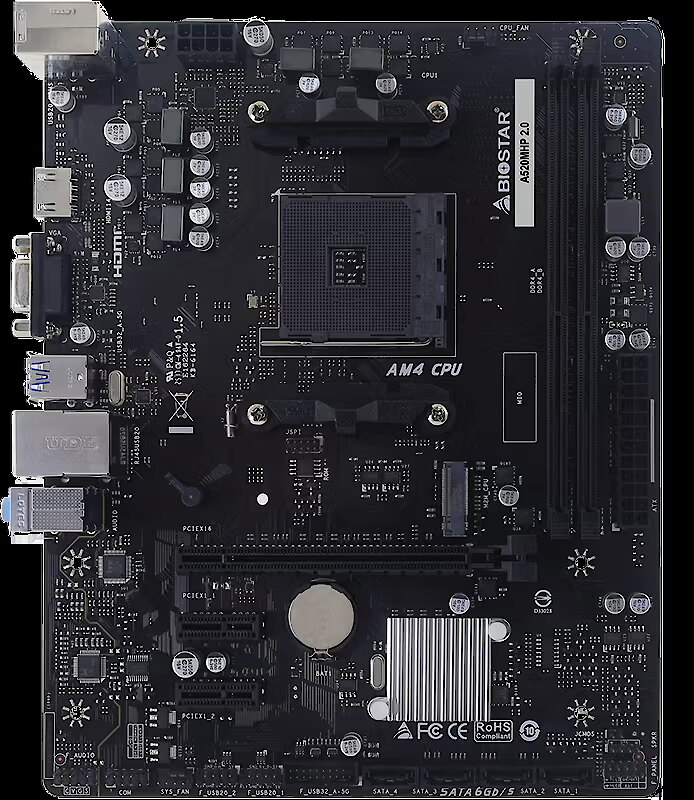

Summary - Biostar A520MHP 2.0. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max) Memory - 4400 MHz
Supported memory clock speeds Memory - 4266,4133,4000,3800,3600,3200,2933,2667,2400,2133,4400 MHz
Supported memory types Memory - DDR4-SDRAM
Supported processor sockets Processor - Socket AM4
Supported storage drive interfaces Storage controllers - PCI Express 3.0, SATA III
Supported storage drive types Storage controllers - HDD & SSD
Unit Box Height - 0.225
Unit Box Length - 0.265
Unit Box Width - 0.06
Unit Calculated Volume ELKO Internal Logistics Data - 0.004298 cubm
Unit Calculated Weight ELKO Logistics Data - 0.715 kg
Unit Depth ELKO Logistics Data - 26.5 cm
Unit Height ELKO Logistics Data - 22.5 cm
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 20
Unit Width ELKO Logistics Data - 6 cm
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
Vendor Homepage - https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1206
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
Wi-Fi Network - No
Width Weight & dimensions - 190 mm
Windows operating systems supported Features - Windows 11 x64, Windows 10 x64
