BIOS - BIOS memory size - 64 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1P20-M0EAY0
Category - Motherboards
dimensionalWeight - 1944
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 2280
Expansion slots - 5th M.2 highest PCI Express generation - 4.0
Expansion slots - 5th M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 4711636407946
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 2

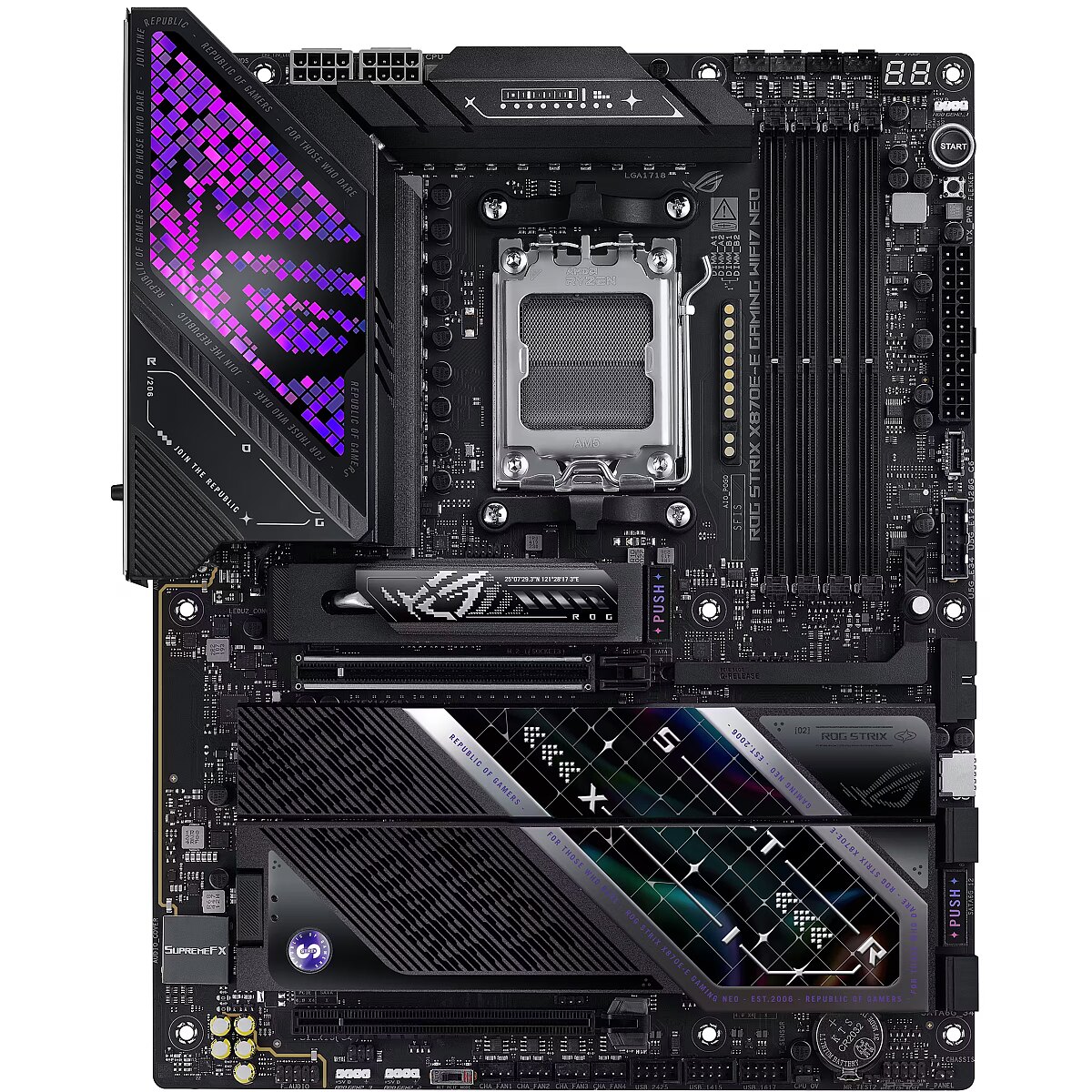

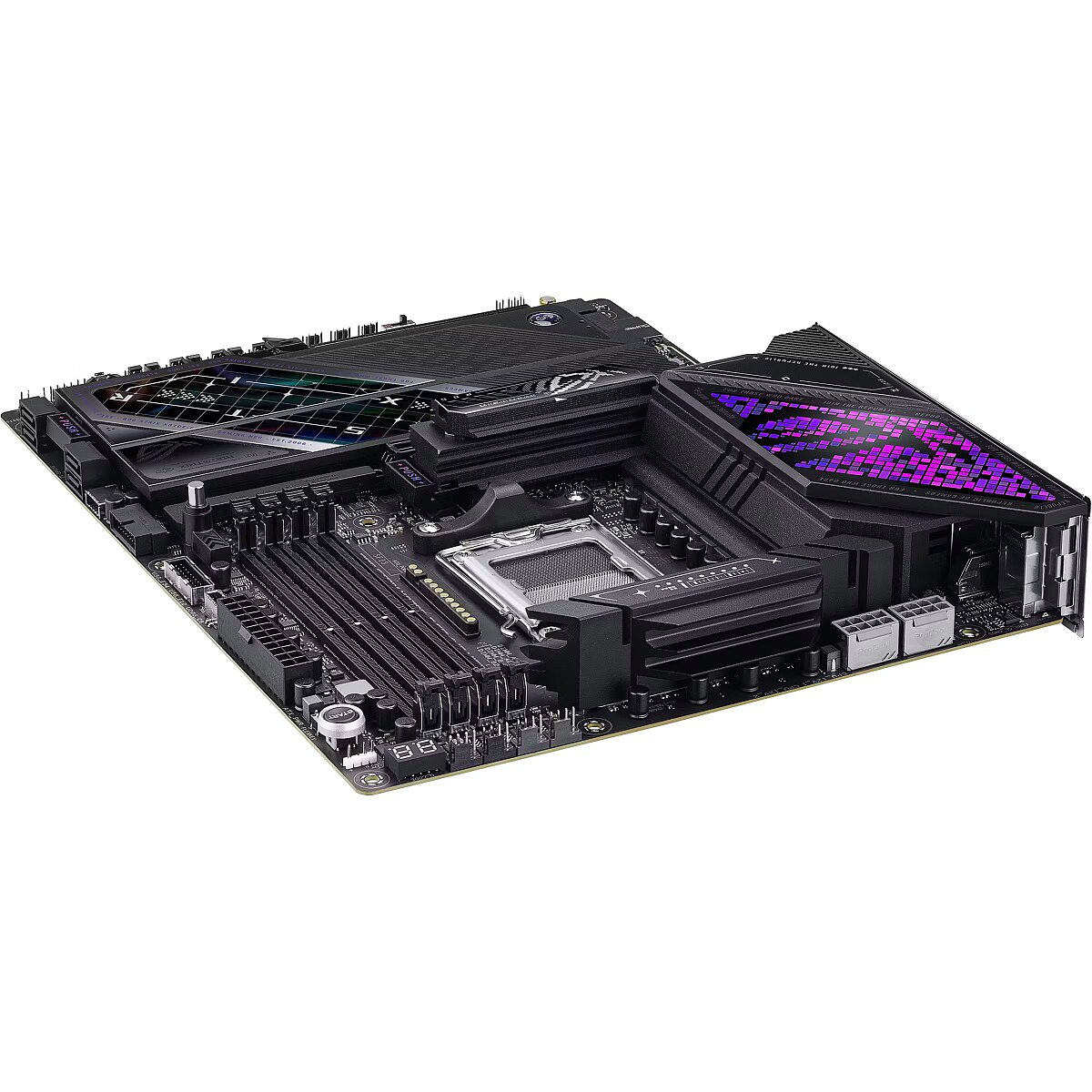

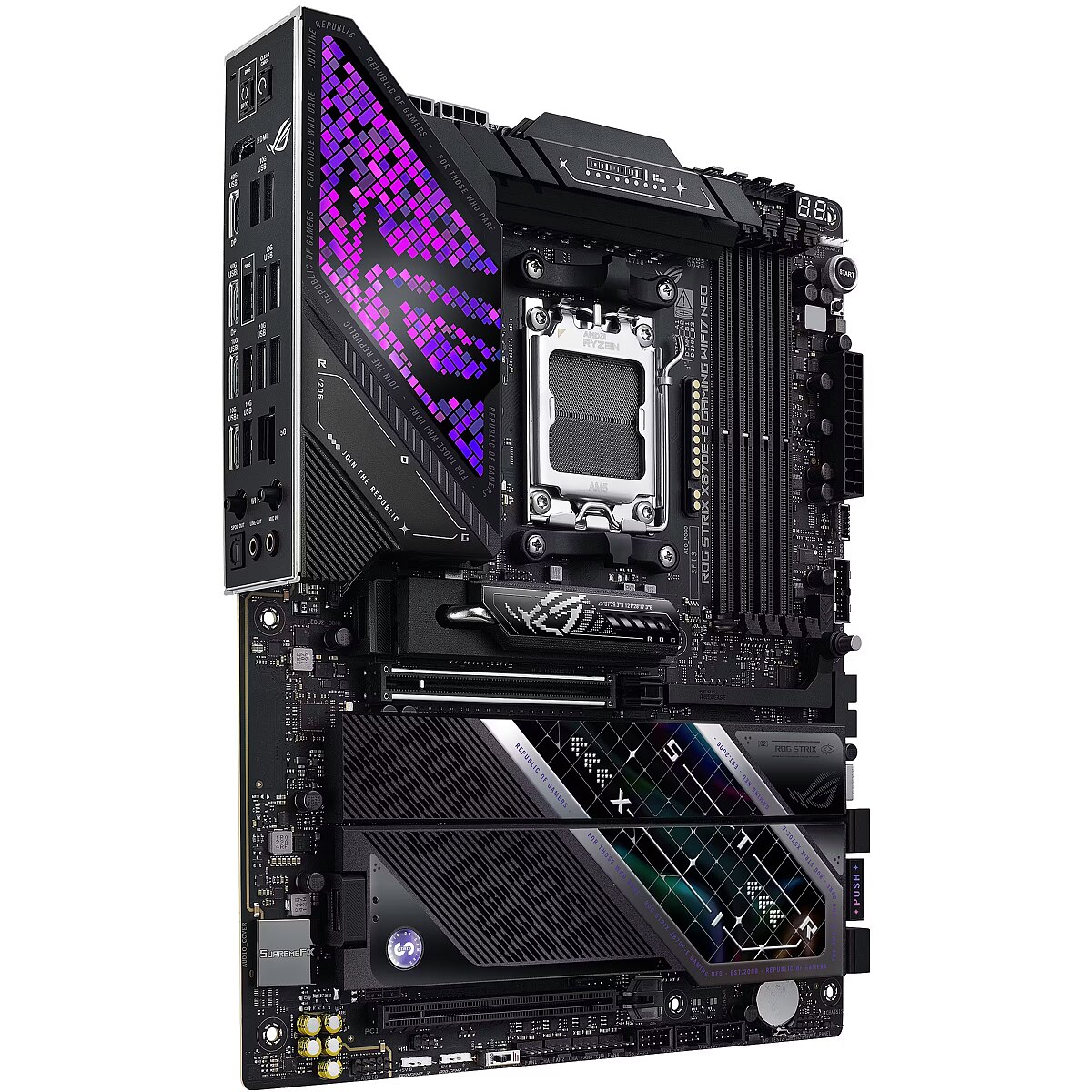

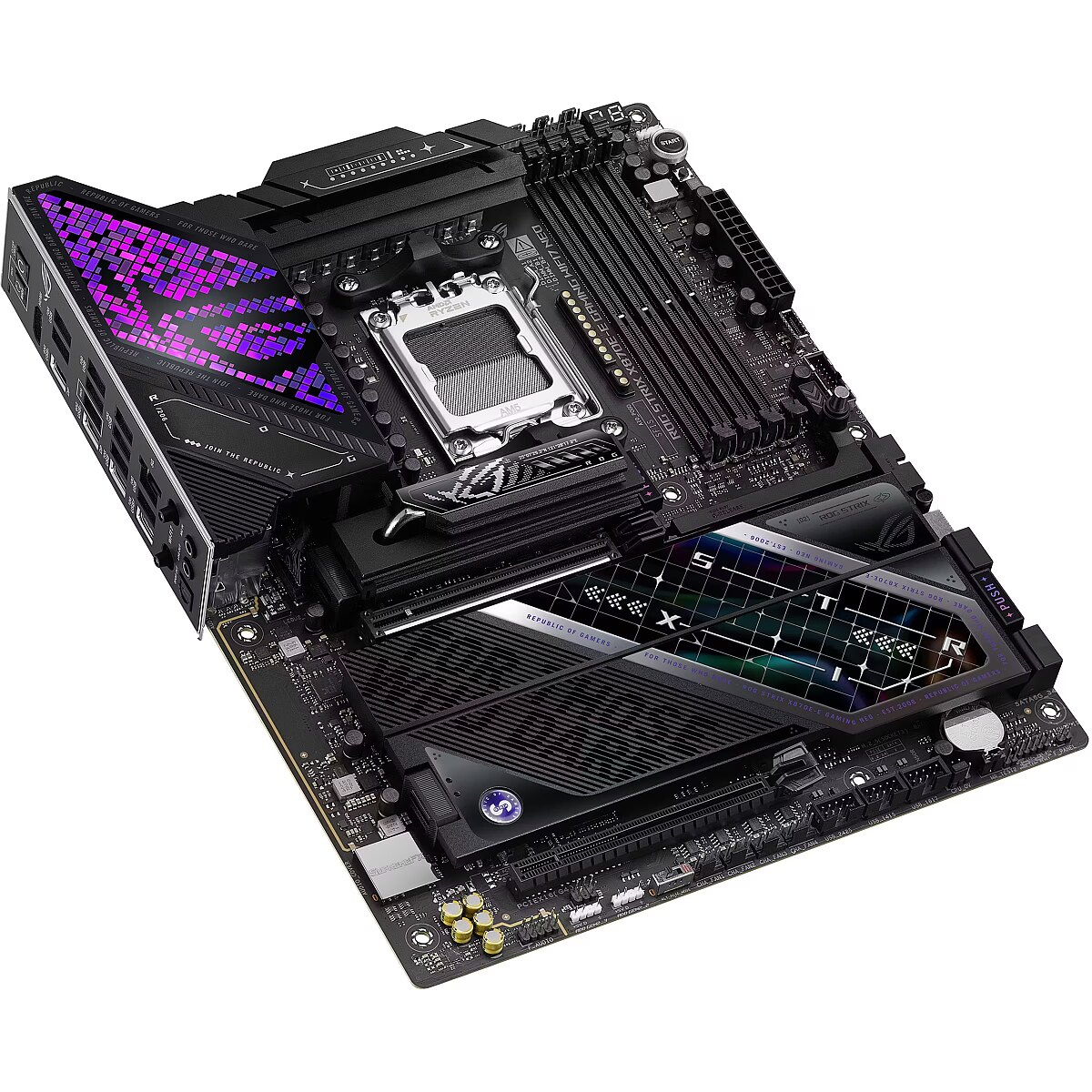

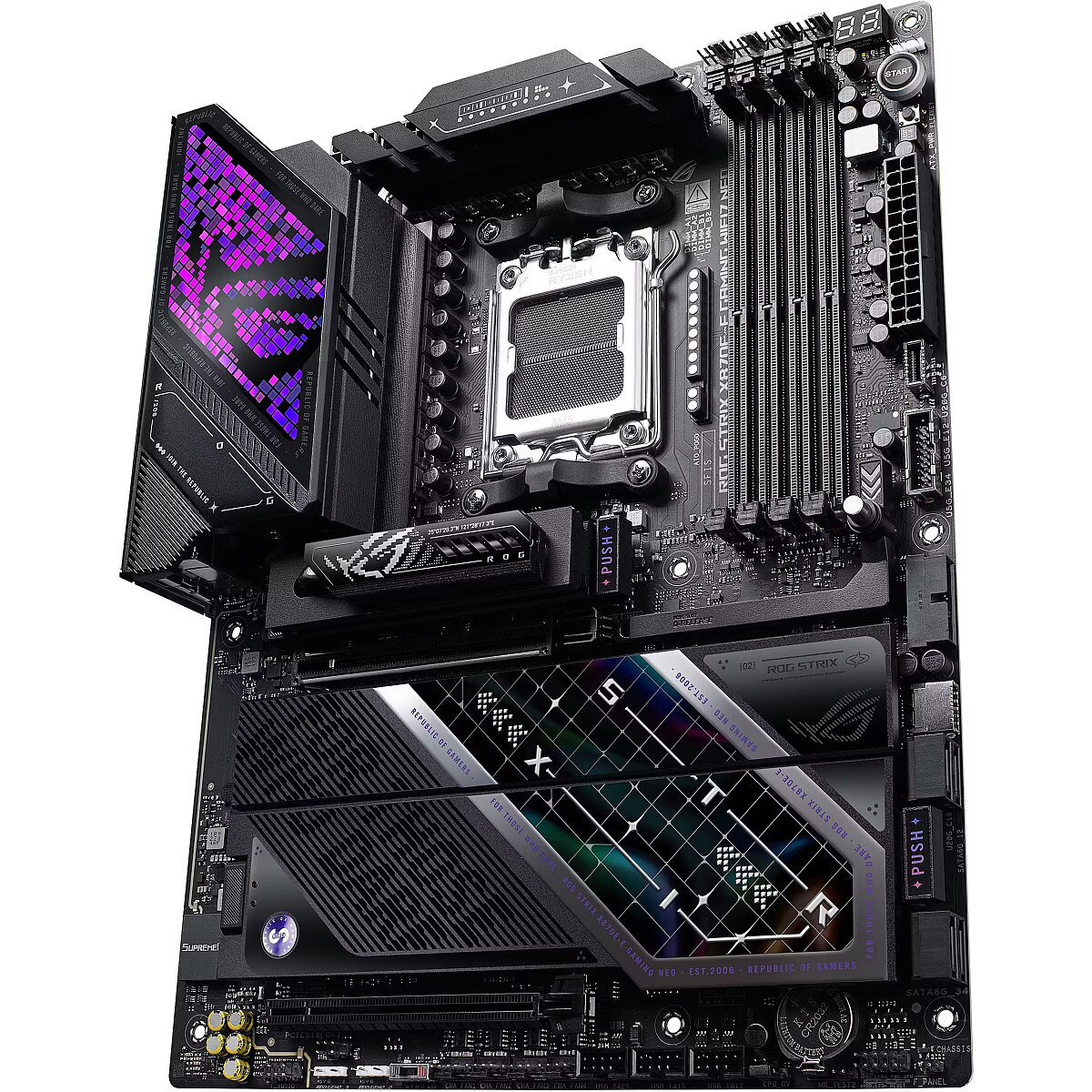

LongDesc - ROG Strix X870E-E Gaming WiFi7 NeoThe ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.
LongProductName - Socket AM5, AMD X870E Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 5 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI7 NEO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Network - Bluetooth - Yes
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - MediaTek MT7927
Other features - Weight - 1.9 kg

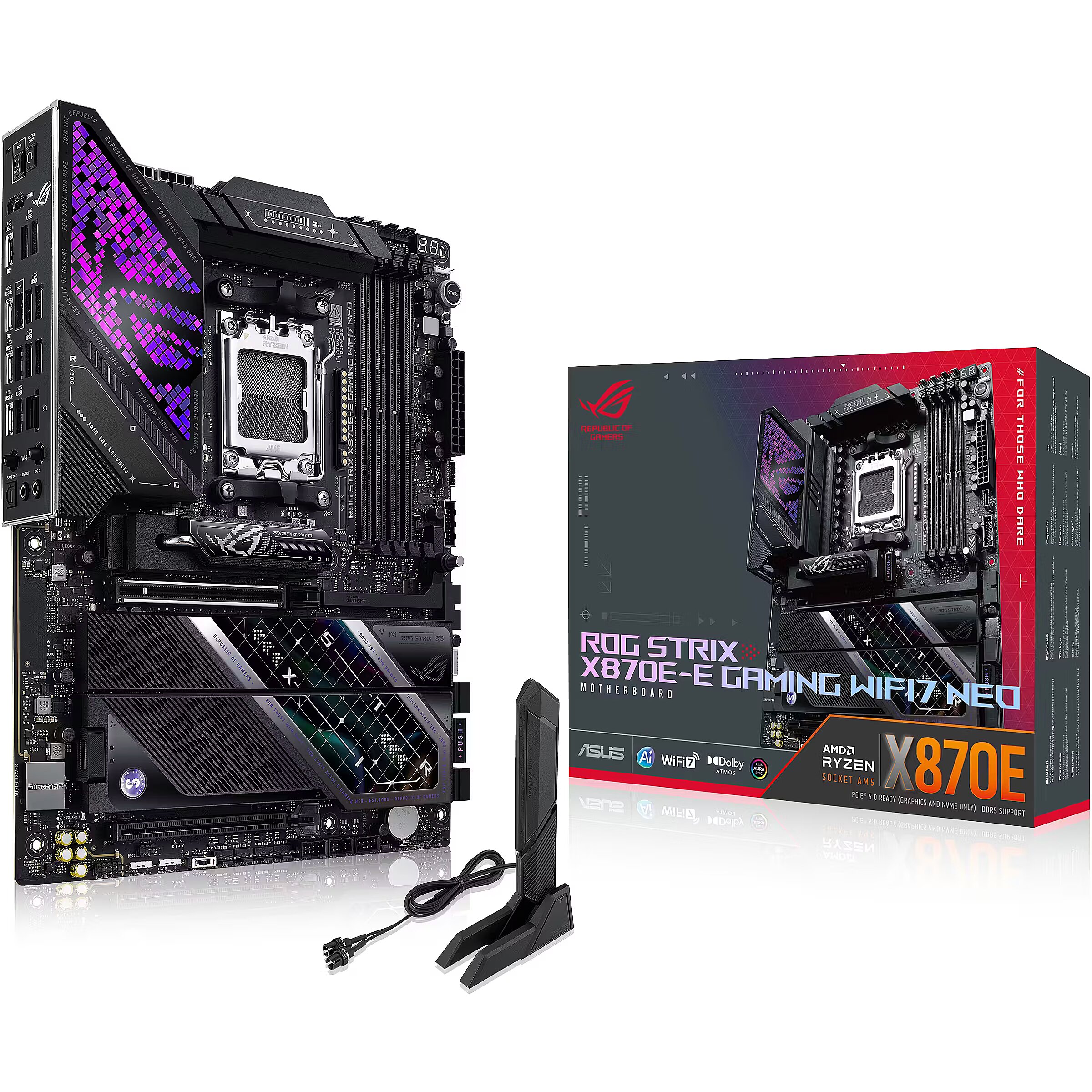

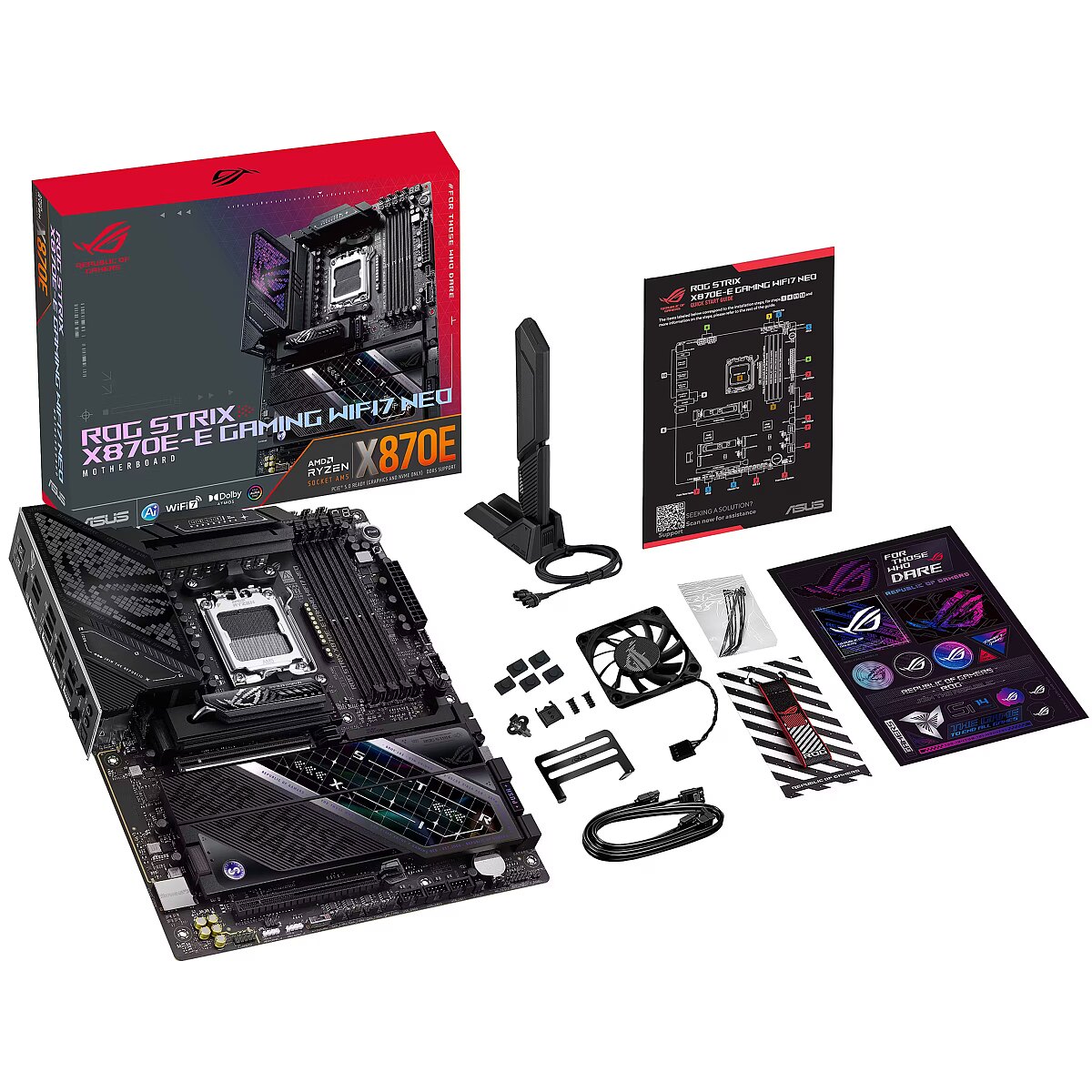

Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 2.7 kg
Packaging data - Package width - 353 mm
Processor - Compatible processor series - AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
producerCode - 90MB1P20-M0EAY0
productName - Płyta główna ASUS ROG STRIX X870E-E GAM. WIFI7 NEO
ProductName - ROG STRIX X870E-E GAMING WIFI7 NEO
productSize - Normal

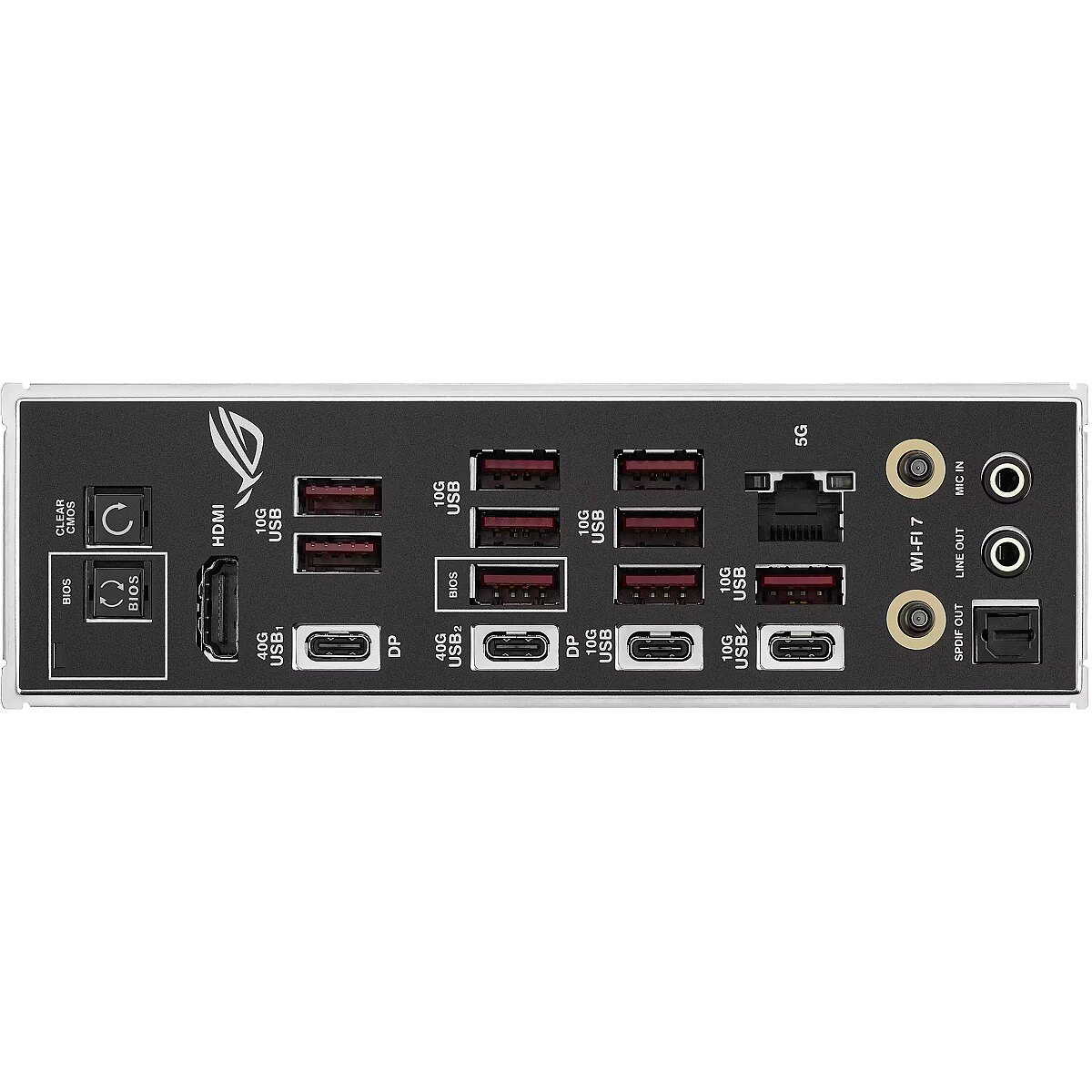

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 9
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 2
ShortSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI7 NEO, AMD, Socket AM5, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, DDR5-SDRAM, 256 GB, DIMM
sizeX - 90
sizeY - 360
sizeZ - 300
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III, M.2
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi7-neo/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2740
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
