BIOS - ACPI version - 6.2
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.2
Brand - ASUS
BrandPartCode - 90MB10T0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
code - 90MB10T0-M0EAY0
ean - 4718017378505
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X570
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Graphics - Parallel processing technology support - 2-Way CrossFireX, 3-Way CrossFireX, 3-Way SLI
GTIN - 4718017378505
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of EATX power connectors - 2
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - AMD X570 ATX gaming motherboard with PCIe 4.0, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lightingBOOSTED PERFORMANCE, NO BOTTLENECKSROG Crosshair VIII Hero comes equipped with an optimised power-design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors without performance-zapping thermal throttling.POWER DESIGN THAT BUCKS TRENDS The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 16 strategically paired power stages, the Hero's VRM is geared for any workload and all operating conditions.COMPREHENSIVE COOLING ZONEROG Crosshair VIII Hero features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.HEATSINKSHeatsinks are extremely important for motherboards, as they absorb heat from critical areas to ensure components do not stagger due to overheating. With VRM, PCH and M.2 heatsinks, ROG Crosshair VIII Hero ensures efficient and stable operation even when pushed hard.UNCOMPLICATED SYSTEM TUNINGROG gives you powerful tools that make optimising your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organised into intuitive categories that provide the ability to tweak every aspect of your system. ACCURATE VOLTAGE MONITORINGConventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Hero features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately. PERFORMANCE LEVEL UPAI Suite 3's dashboard-style control panel lets you fine-tune almost every aspect of your system. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.ULTRAFAST CONNECTIONROG Crosshair VIII Hero offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including Wi-Fi 6 (802.11x) and dual Ethernet with one 2.5G port, ROG Crosshair VIII Hero removes all bottlenecks for online and LAN play, minimising lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximise the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.SupremeFXImmerse yourself in sound with SupremeFX audio technology. Utilising the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.ASUS NODE CONNECTORASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.
LongProductName - AMD X570, AM4, Intel I211-AT, Realtek RTL8125-CG 2.5G LAN, Intel Wi-Fi 6 AX200, Bluetooth 5.0, 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, ATX 20.5 cm x 24.4 cm
LongSummaryDescription - ASUS ROG Crosshair VIII Hero (WI-FI). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express, PCI Express 2.0, PCI Express 3.0, SATA, SATA II, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, 3-Way CrossFireX, 3-Way SLI. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel® I211-AT, Wi-Fi standards: 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Memory - ECC сompatibility - ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
name - ASUS ROG Crosshair VIII Hero (WI-FI), AMD X570 Mainboard - Sockel AM4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I211-AT

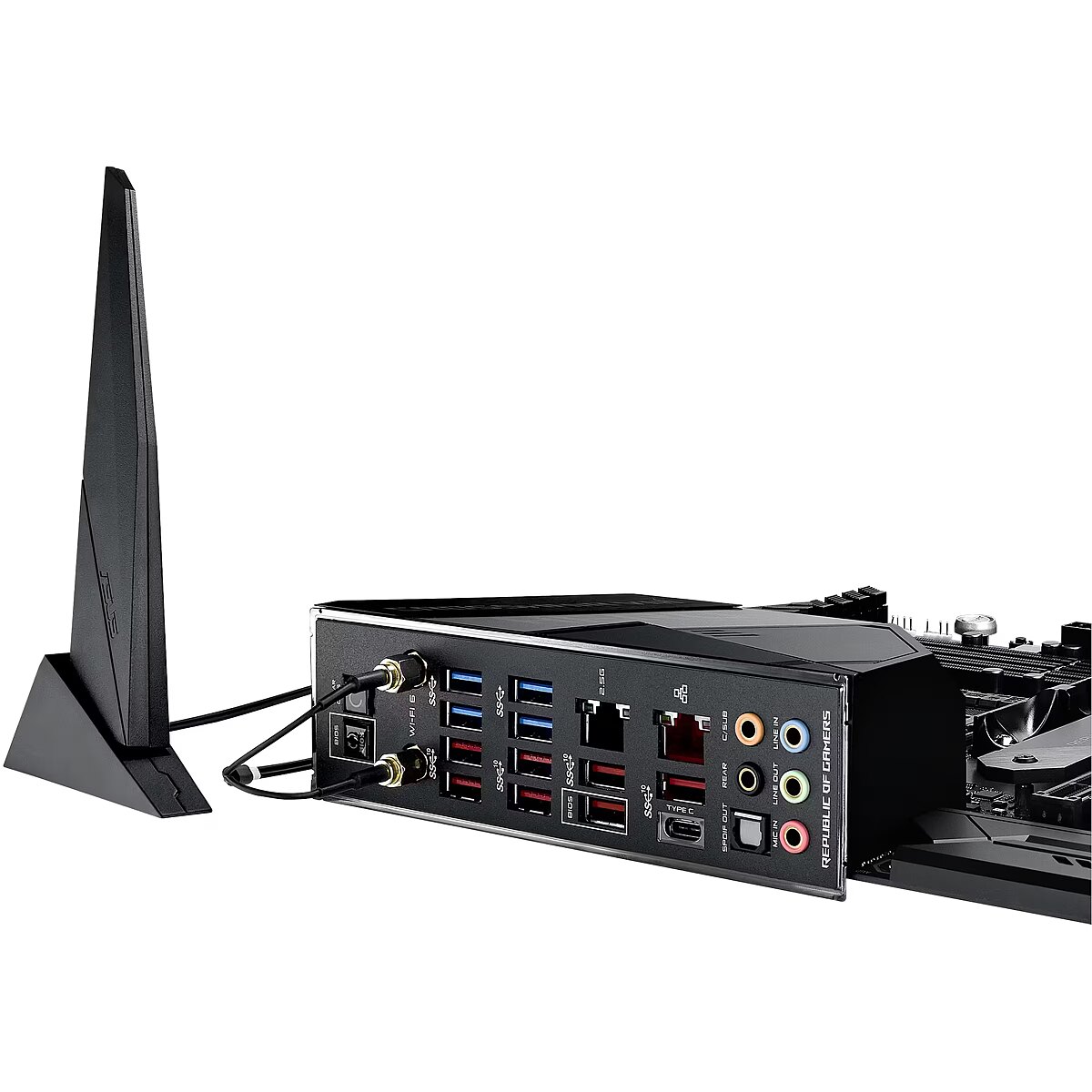

Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Other features - Analog audio output - 5
Other features - BIOS switch button - Yes
Other features - Quick installation guide - Yes
Other features - Weight - 2 kg
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
ProductName - ROG Crosshair VIII Hero (WI-FI)

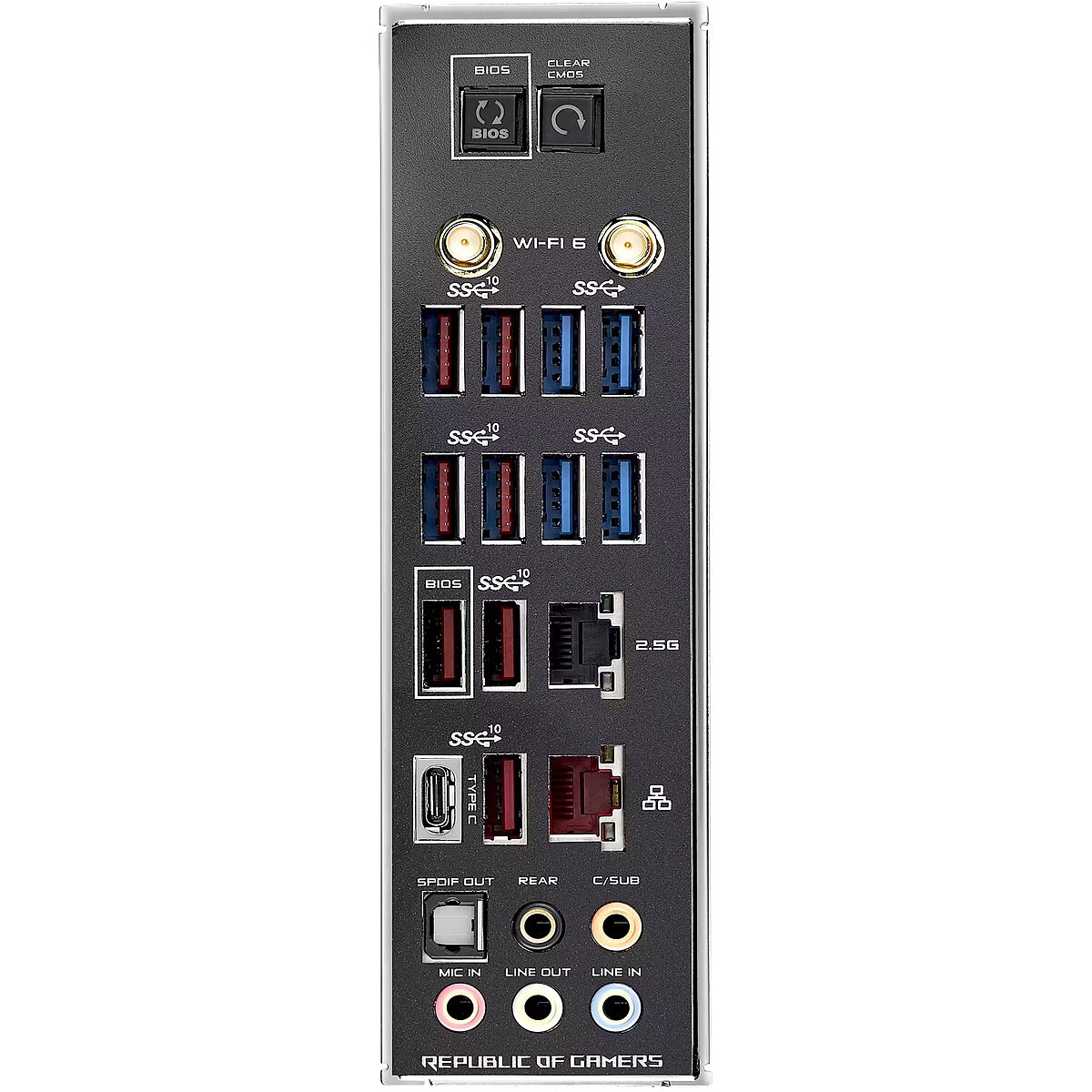

Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 8
ShortSummaryDescription - ASUS ROG Crosshair VIII Hero (WI-FI), AMD, Socket AM4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express, PCI Express 2.0, PCI Express 3.0, SATA, SATA II, SATA III
Storage controllers - Supported storage drive types - HDD & SSD

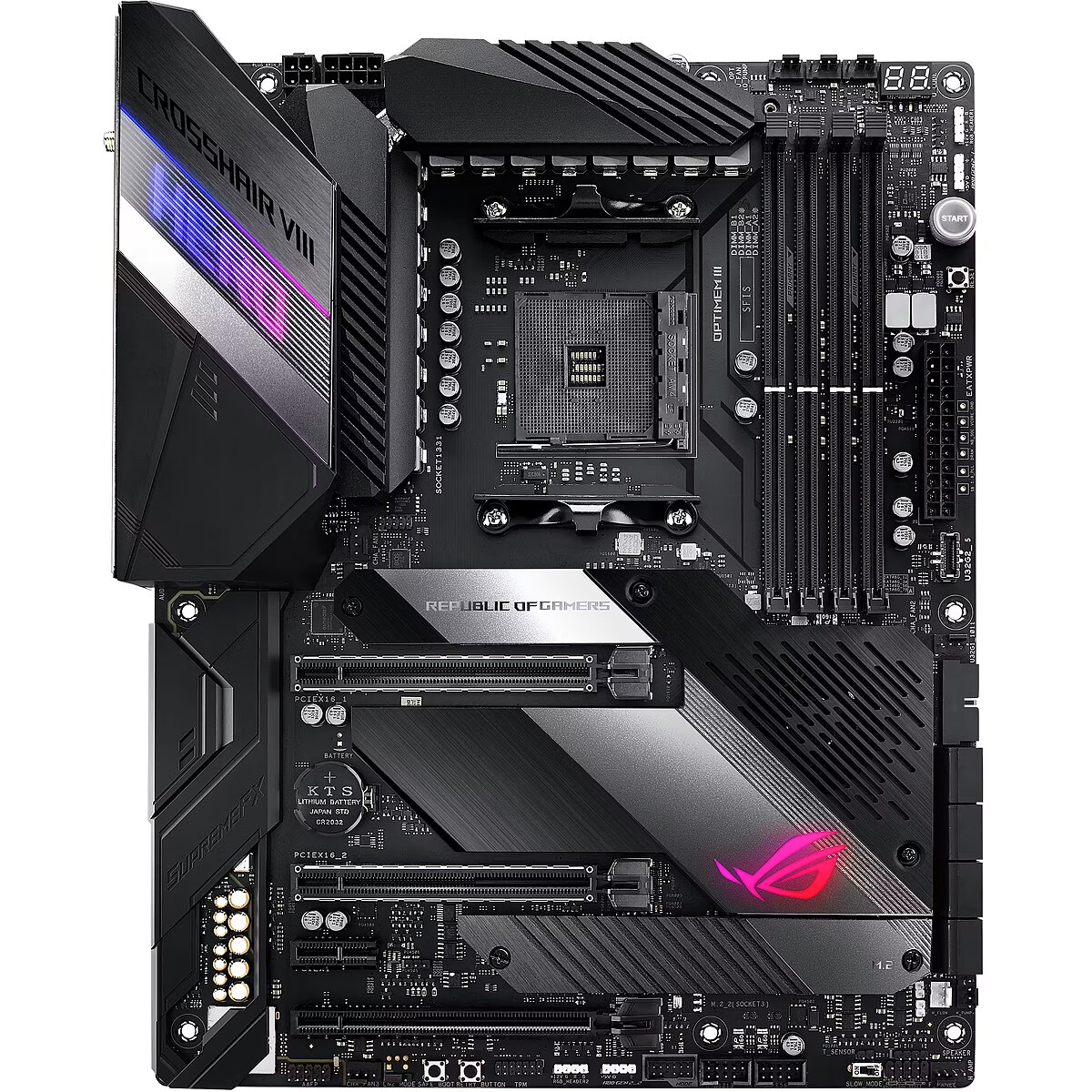

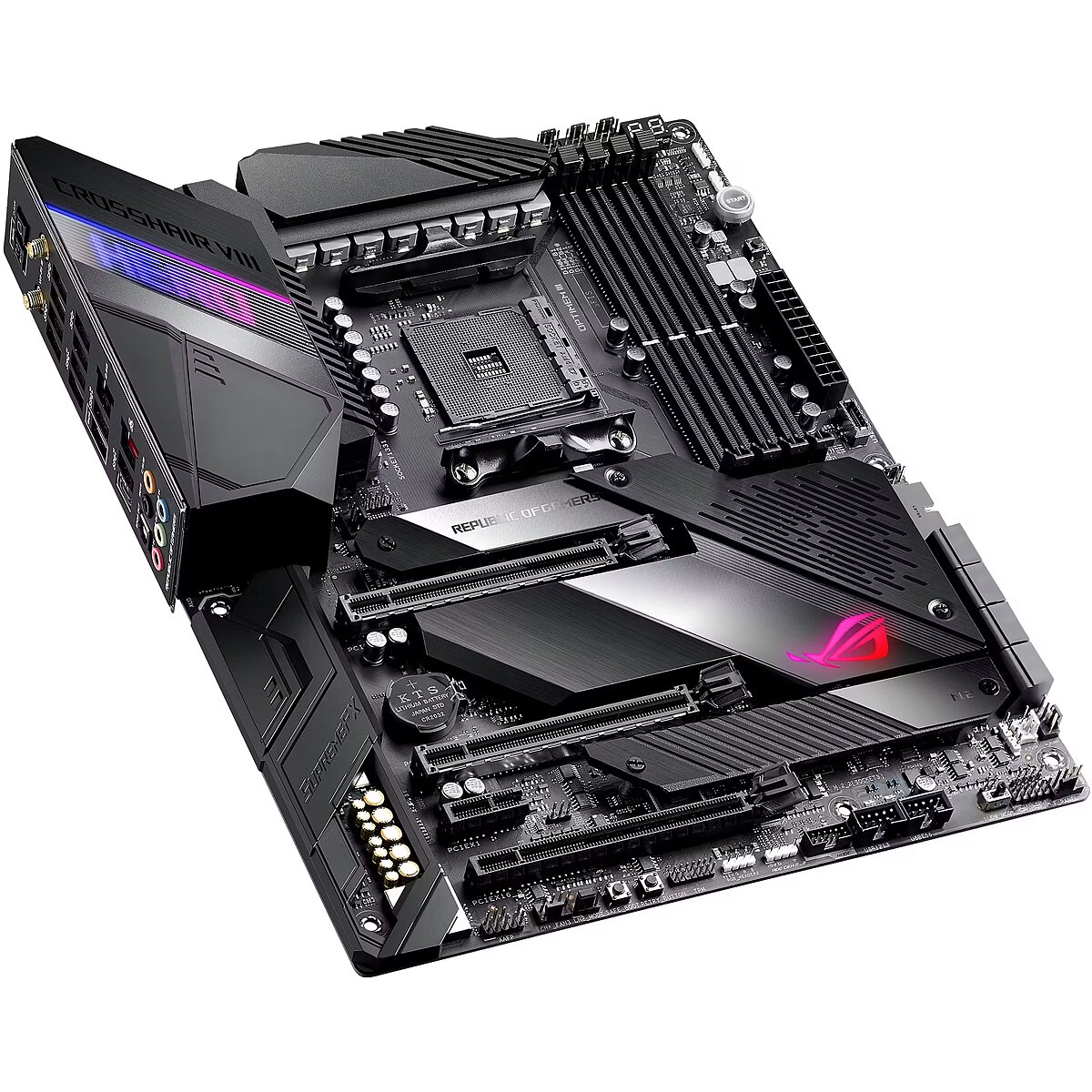

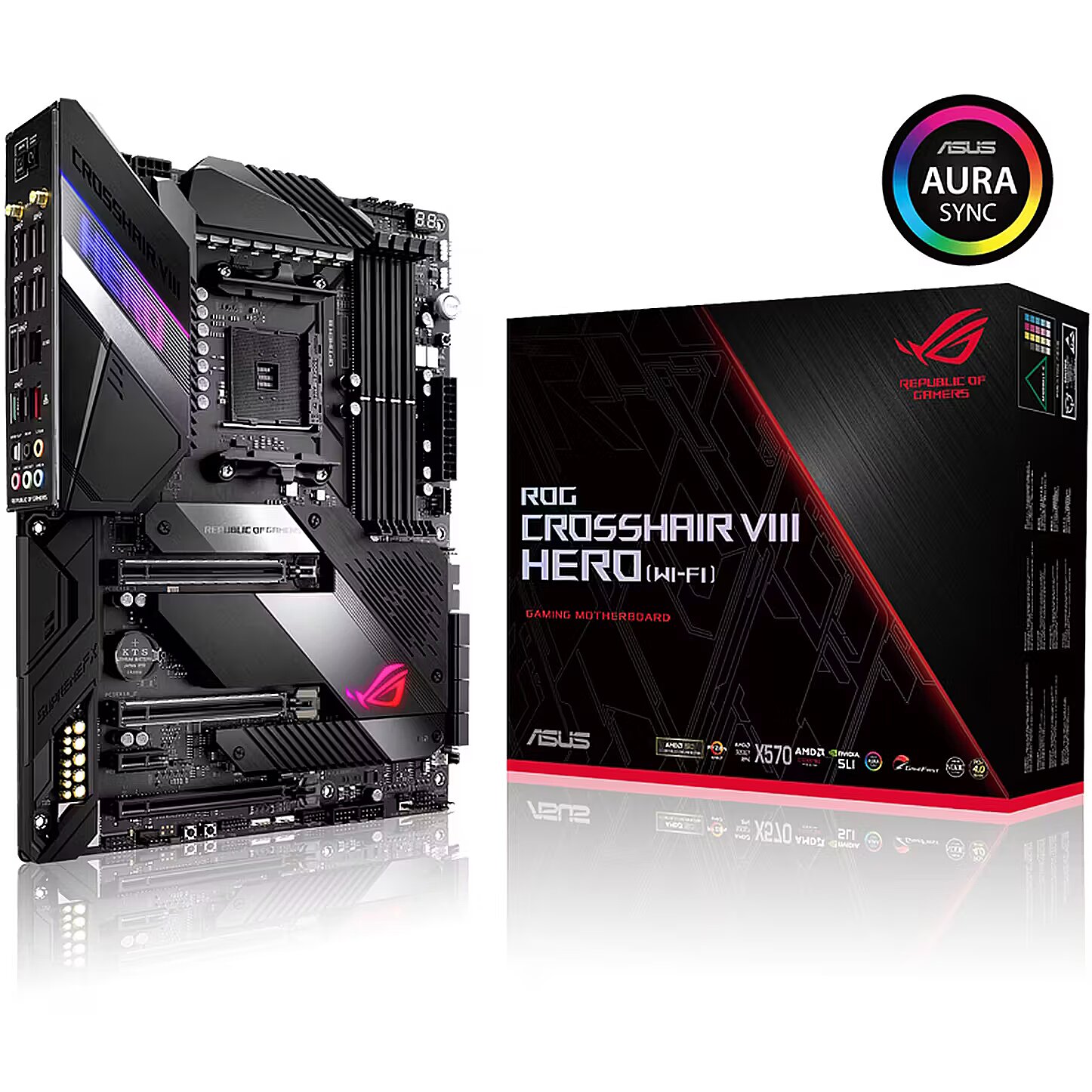

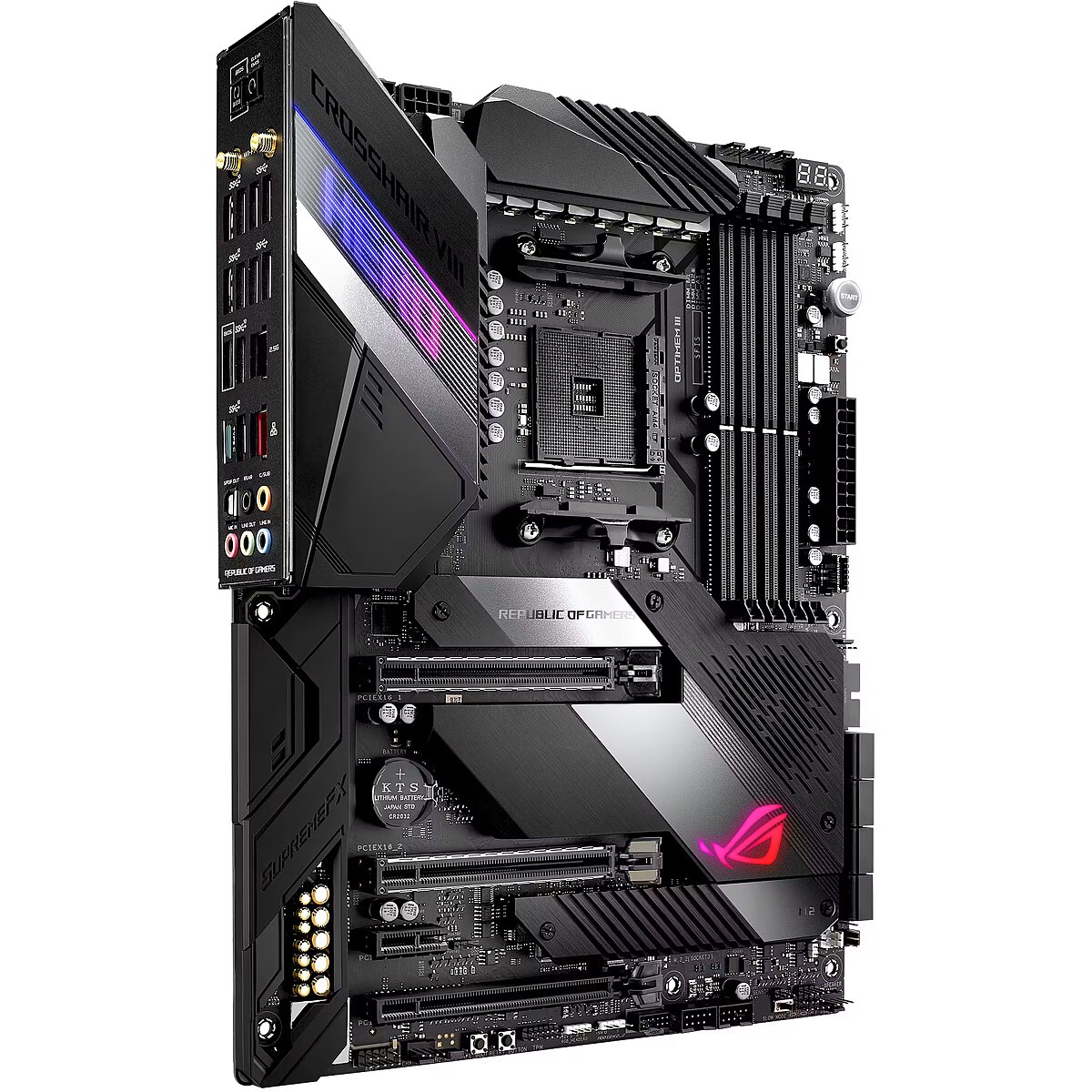

Title - ASUS ROG Crosshair VIII Hero (WI-FI) AMD X570 Socket AM4 ATX
URL - https://www.asus.com/uk/Motherboards/ROG-Crosshair-VIII-Hero-WI-FI/
WarrantyInfo -
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 108 mm
Weight & dimensions - Width - 205 mm
