BIOS - ACPI version - 6.5
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.7
Brand - MSI
BrandPartCode - PRO X870E-S EVO WIFI
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category1 - Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD X870E
Code - PRO X870E-S EVO WIFI
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Data Act - Link
Description - PRO X870E-S EVO WIFI
PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen(TM) 9000 series processors.
Description1 - MB MSI AMD AM5 PRO X870E-S EVO WIFI *
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Storage 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M2_1 slot o Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) o Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) RAID Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
dimensionalWeight - 1321
dimension depth - 280 mm
dimension height - 70 mm
Dimensions - 304.8 mm x 243.84 mm
dimension weight - 1900 g
dimension width - 340 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4711377412230
ean - 4711377412230
Eans - 4711377412230
EAN_code - 4711377412230
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x PCIe x 16
Expansion slots - 3 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Expansion slots - PCI Express x16 slots - 3

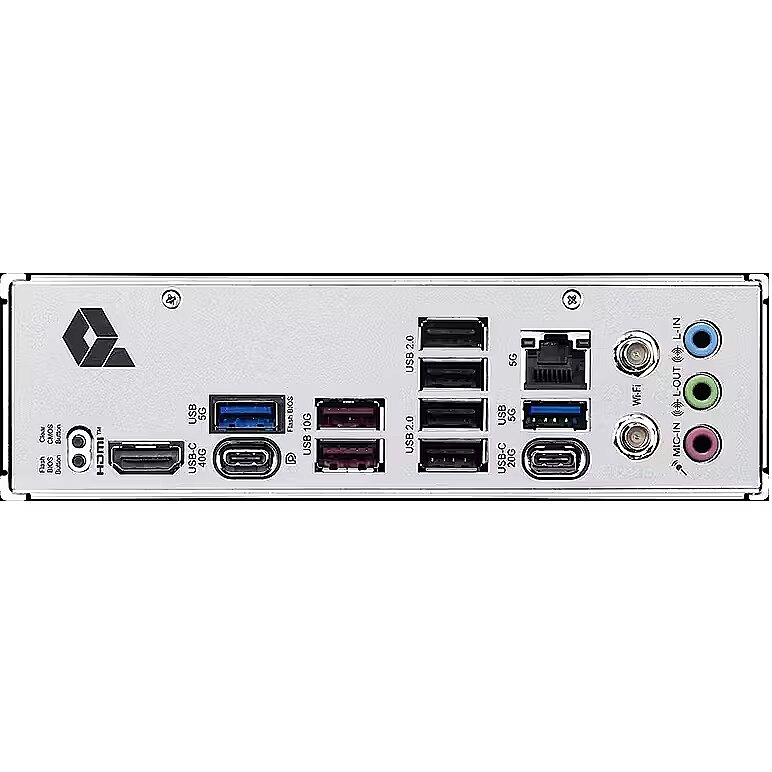

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 1 x USB 3.2 Gen 2x2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - 1x HDMI Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Graphics - On-board graphics card - No
GTIN - 4711377412230
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 6
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8126VB 5G LAN)
Link - https://www.msi.com/Motherboard/PRO-X870E-S-EVO-WIFI
LongDesc - PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-S EVO WIFI is ready for the challenge of high-end processors.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
LongProductName - Socket AM5, AMD X870E Chipset, 4 x DDR5-SDRAM up to 256GB, WLAN, 1 x RJ-45, 4 x SATA III, 3 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - MSI PRO X870E-S EVO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
Manufacturer - MSI
ManufacturerID - 7E86-003R
Manufacturer_code - 7E86-003R
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4800,5600,8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 8200 MHz
Memory type - DDR5
Model - PRO X870E-S EVO WIFI
name - Motherboard PRO X870E-S EVO WIFI AM 5 4DDR5 ATX
Name - MSI PRO X870E-S EVO WIFI
Name - MSI PRO X870E-S EVO WIFI (black)
Name - MSI PRO X870E-S EVO WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 8126VB 5G LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8-pin PCIe
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x EZ Memory Detection LED
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x Tuning Controller connector
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x System panel header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 3.2 Gen 1 Type-A
Onboard connectors - 6 x 4pin wentylator obudowy
Onboard connectors - 6 x USB 2.0/1.1
Package features > Classification of battery - CL126:NEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 269 pc(s)
Package features > Paper/Pasteboard - 720.00 g
Package features > Plastic (No PET) - 180.00 g
Package features > Tare weight (kg) - 0.90 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 76
PackageLength - 343
PackageWeight - 2070
PackageWidth - 271
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7200 (PC5-57600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV.
Churchilllaan 202
5705 BK Helmond
producer - MSI
Producer - MSI
producerCode - PRO X870E-S EVO WIFI
ProducerCode - PRO X870E-S EVO WIFI
ProductName - PRO X870E-S EVO WIFI
productName - Płyta główna MSI PRO X870E-S EVO WIFI
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 1
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
ShortSummaryDescription - MSI PRO X870E-S EVO WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 340
sizeY - 270
sizeZ - 72
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 2.85 kg
Technical details > Net weight - 1.95 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO X870E-S EVO WIFI

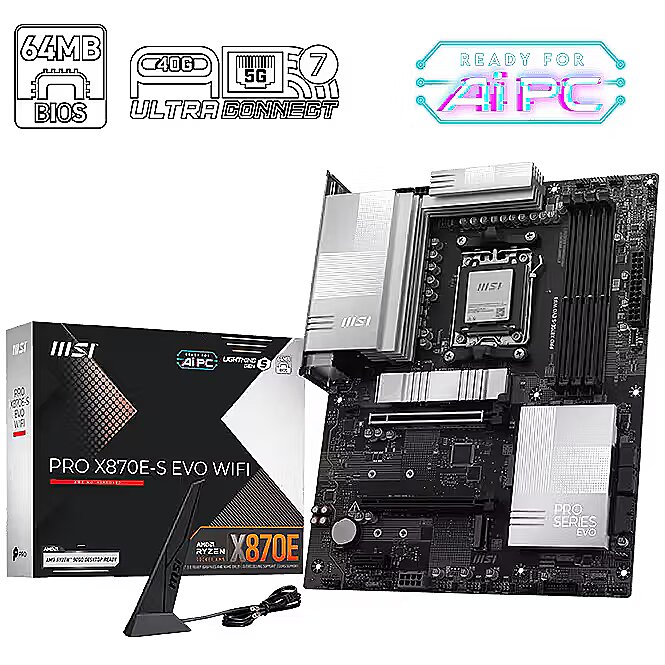

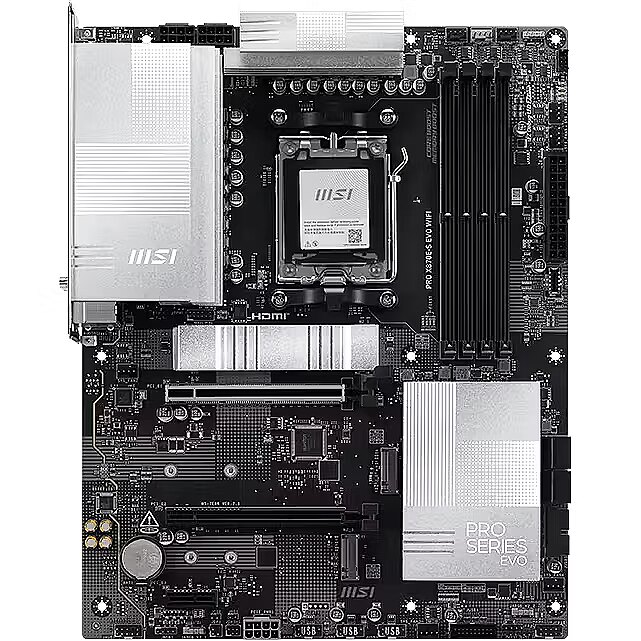

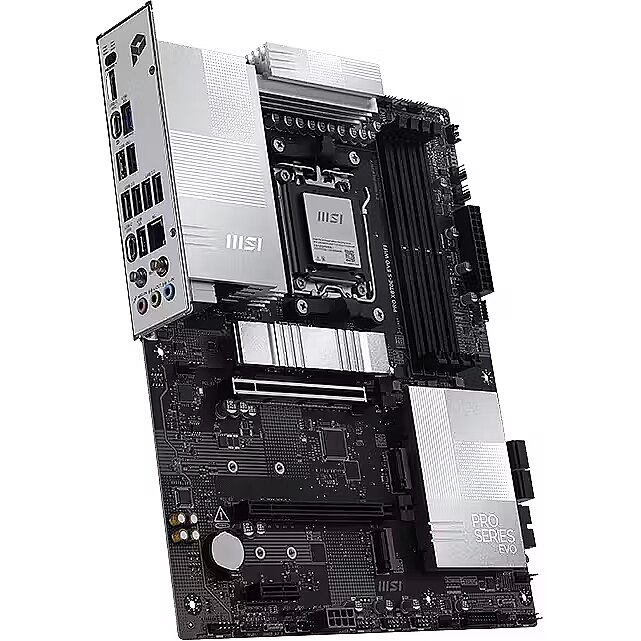

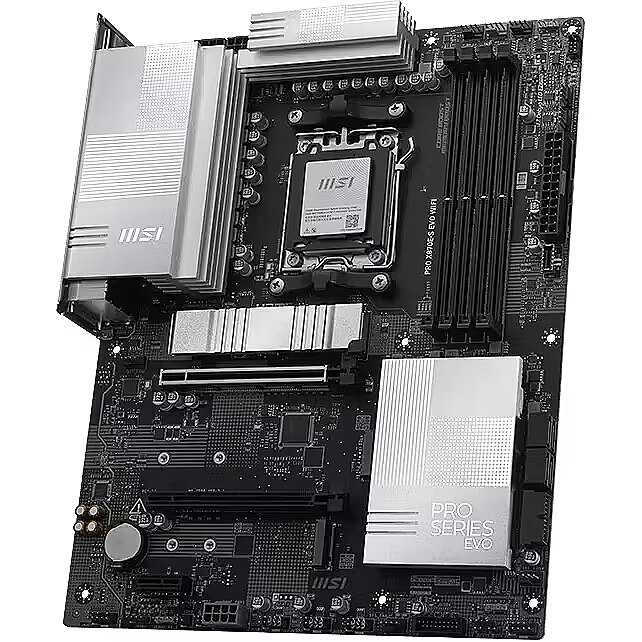

Title - MSI PRO X870E-S EVO WIFI motherboard AMD X870E Socket AM5 ATX
URL - https://www.msi.com/Motherboard/PRO-X870E-S-EVO-WIFI
USB ports at back panel - 10
USB ports on motherboard - 11
vendpn - PRO X870E-S EVO WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
WEEE - DE83654239
Weight - 1,95
weight - 1900
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 1 x USB4
Złącza: Złącza na tylnym panelu - 2 x USB 3.1 (Gen2)
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
