1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 25110
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 22110
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 22110
4th M.2 highest PCI Express generation Expansion slots - 4.0
4th M.2 largest key size Expansion slots - 22110
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1220-VB
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery capacity - 220 mAh
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery capacity Battery - 220 mAh
Battery ELKO Internal Logistics Data - Lithium battery
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
Battery weight ELKO Internal Logistics Data - 3 g
BIOS - 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 512 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - GIGABYTE
BrandPartCode - X870E EAGLE X WF7
Bundled software Packaging content - Norton® Internet Security (OEM version)
Category - Motherboards
Category1 - Mainboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD X870E
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - X870E EAGLE X WF7
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for Features - PC
Cooling type Features - Passive
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM5
Depth Weight & dimensions - 244 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AIAMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series ProcessorsDigital twin 14+2+2 phases VRM solutionDual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/sM.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSDEZ-Latch Design: M.2 slots and PCIe slots with Quick Release & Screwless DesignUltra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antennaExtended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
Description - X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network. AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design) WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt PCIe UD Slot : PCIe 5.0 x16 slot with 10X strength for graphics card
Description1 - GIGABYTE Mainboard X870E EAGLE X3D WIFI7 - ATX - Socket AM5 - AMD X870E
Description2 - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Złącza rozszerzeń 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Złącza SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen(TM) 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Digital audio optical out Rear panel I/O ports - 1
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2000 g
dimension width - 340 mm
DirectX version Graphics - 12.0
DisplayPort version Rear panel I/O ports - 1.4
EAN - 4719331879532
ean - 4719331879532
EAN_code - 4719331879532
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 16
Expansion slots - 4 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

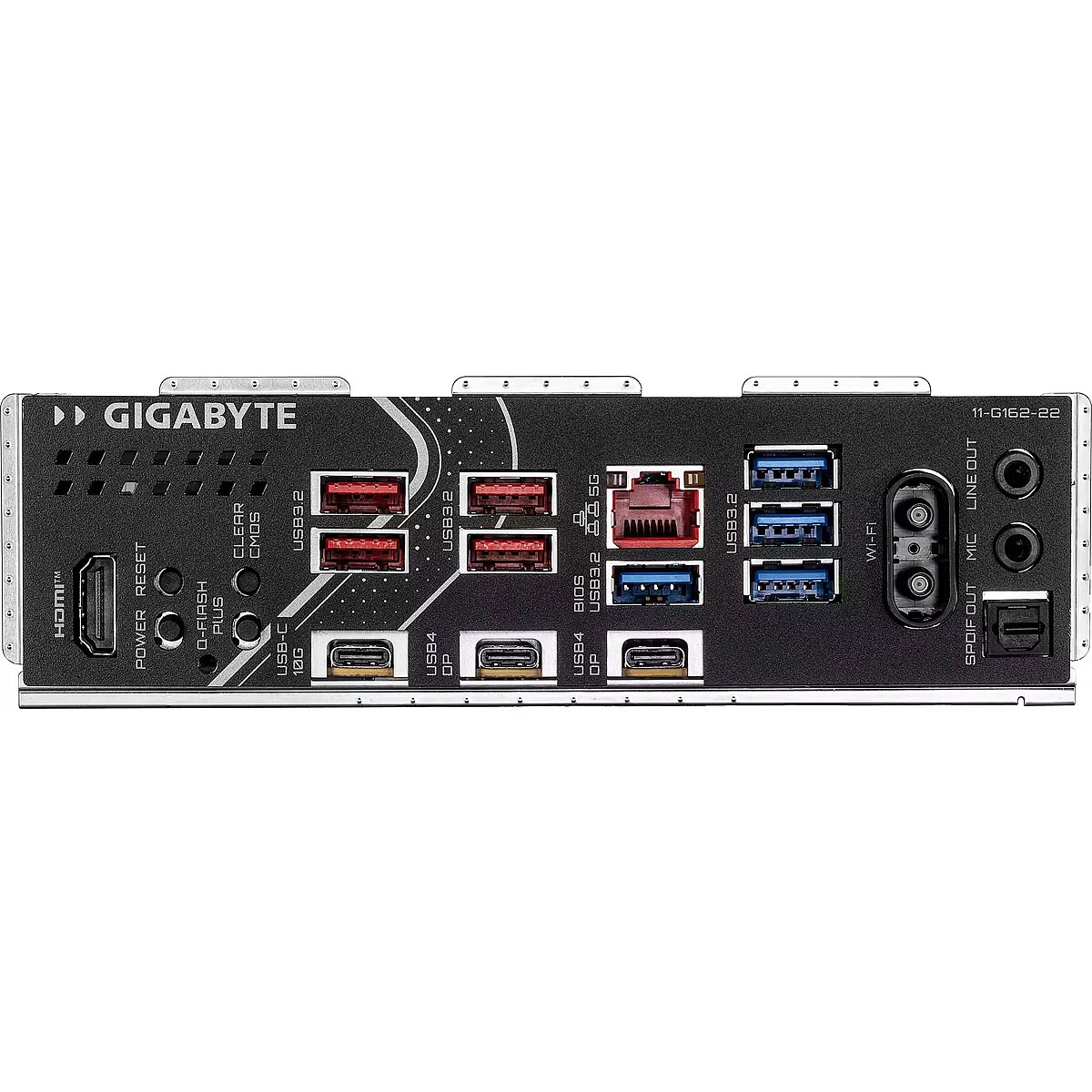

External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 3.2 Gen 2 Type-A
External connectors - Power button
External connectors - Reset button
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - HDCP version - 2.3
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331879532
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDCP version Graphics - 2.3
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of noise detection headers - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of temperature sensor headers - 2
Internal I/O - Number of water pump connectors - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
LAN controller Network - Realtek RTL8126
Line-in Rear panel I/O ports - Yes
Link - https://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7-rev-10
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Supports AMD Ryzen 9000 CPUs, 14+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870E EAGLE X3D WIFI7 Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
ManufacturerID - X870E EAGLE X WF7
Manufacturer_code - X870E EAGLE X WF7
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9000 MHz
Memory - Supported memory clock speeds - 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 9000 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - SODIMM DDR5
Model - X870E EAGLE X WF7
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD X870E
Motherboard form factor Features - ATX

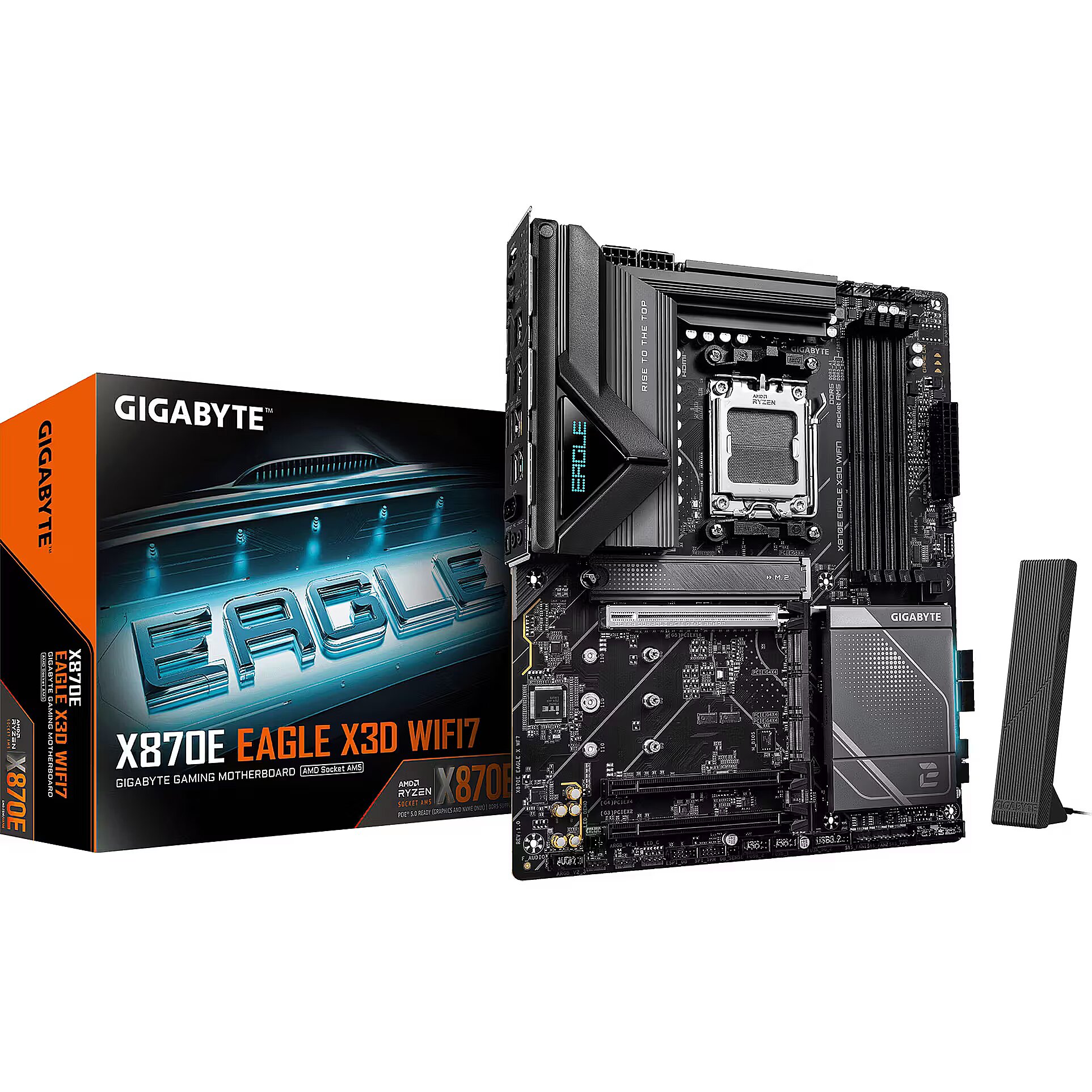

Name - GigaByte X870E EAGLE X3D WIFI7 (black)
Name - Gigabyte X870E EAGLE X3D WIFI7 | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
Name - MB AMD X870E SAM5 ATX/X870E EAGLE X WF7 GIGABYTE
name - Motherboard X870E EAGLE WIFI7 AM5 4 DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Qualcomm QCNCM865
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 6
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 4
Number of memory slots Memory - 4
Number of noise detection headers Internal I/O - 1
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 8
Number of temperature sensor headers Internal I/O - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 8
Number of water pump connectors Internal I/O - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Noise detection header
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors - 2 x 4pin case fan liquid cooling
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 2.01 kg
Package depth Packaging data - 270 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225.00 mm
Package features > Gross height (mm) - 65.00 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 328 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 87
Package height Packaging data - 80 mm
PackageLength - 335
PackageWeight - 1950
Package weight Packaging data - 2.21 kg
PackageWidth - 275
Package width Packaging data - 335 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.21 kg
Packaging data - Package width - 335 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - CPU, Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
producer - Gigabyte
Product colour Features - Black
ProductName - X870E EAGLE X3D WIFI7 Motherboard
Product Net Weight ELKO Logistics Data - 1.5 kg
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID - Yes
RAID levels Storage controllers - 0, 1, 5, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Screws included Packaging content - Yes
Shipping Box Depth ELKO Internal Logistics Data - 34 cm
Shipping Box Height ELKO Internal Logistics Data - 9 cm
Shipping Box Weight ELKO Internal Logistics Data - 2 kg
Shipping Box Width ELKO Internal Logistics Data - 28 cm
ShortSummaryDescription - GIGABYTE X870E EAGLE X3D WIFI7 Motherboard, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Software - Norton Internet Security (OEM version)
Sound card - Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Special functions - Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE X870E EAGLE X3D WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Supported memory clock speed (max) Memory - 9000 MHz
Supported memory clock speeds Memory - 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.64 kg
Technical details > Net weight - 0.44 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - X870E EAGLE X3D WIFI7
Title - GIGABYTE X870E EAGLE X3D WIFI7 Motherboard
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.09
Unit Box Length - 0.34
Unit Box Width - 0.28
Unit Calculated Volume ELKO Internal Logistics Data - 0.008568 cubm
Unit Calculated Weight ELKO Logistics Data - 2 kg
Unit Depth ELKO Logistics Data - 34 cm
Unit Height ELKO Logistics Data - 9 cm
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 28 cm
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 2
USB ports at back panel - 11
USB ports on motherboard - 9
Vendor Homepage - https://www.gigabyte.com/
vendpn - X870E EAGLE X WF7
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
WEEE - DE83654239
Weight - 2,00
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Weight Other features - 2.01 kg
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64
WLAN controller model Network - Qualcomm QCNCM865
