ATX Power connector (24-pin) Mainboards for AMD CPUs | Internal I/O - Y
Audio chip Mainboards for AMD CPUs | Features - Realtek ALC897
Audio output channels Mainboards for AMD CPUs | Features - 7.1 channels
BIOS memory size Mainboards for AMD CPUs | BIOS - 512 Mbit
BIOS type Mainboards for AMD CPUs | BIOS - EFI AMI
Bluetooth Mainboards for AMD CPUs | Network - Y
Bluetooth version Mainboards for AMD CPUs | Network - 5.4
Cables included Mainboards for AMD CPUs | Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Compatible processor series Mainboards for AMD CPUs | Processor - AMD Ryzen 6000 Series/AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series/AMD Ryzen PRO 7000 Series/AMD Ryzen PRO 8000 Series/AMD Ryzen Threadripper 7000 Series/AMD Ryzen Threadripper PRO 7000 WX-Series
Component for Mainboards for AMD CPUs | Features - PC
CPU fan connector Mainboards for AMD CPUs | Internal I/O - Y
Dane techniczne: Chipset płyty głównej - AMD X870
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Mainboards for AMD CPUs | Weight & dimensions - 244 mm
Description - 16+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking. 8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
Eans - 4710483942310
ECC ?ompatibility Mainboards for AMD CPUs | Memory - ECC & non-ECC
EPS power connector (8-pin) Mainboards for AMD CPUs | Internal I/O - Y
Ethernet interface type Mainboards for AMD CPUs | Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Mainboards for AMD CPUs | Rear panel I/O ports - 1
Ethernet LAN Mainboards for AMD CPUs | Network - Y
Front panel audio connector Mainboards for AMD CPUs | Internal I/O - Y
HDMI ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5GbE LAN)
LAN controller Mainboards for AMD CPUs | Network - Dragon RTL8125BG
Line-in Mainboards for AMD CPUs | Rear panel I/O ports - Y
Maximum internal memory Mainboards for AMD CPUs | Memory - 256 GB
Memory channels Mainboards for AMD CPUs | Memory - Dual-channel
Memory slots type Mainboards for AMD CPUs | Memory - DIMM
Microphone in Mainboards for AMD CPUs | Rear panel I/O ports - Y
Model - X870 PRO-A WIFI
Motherboard chipset family Mainboards for AMD CPUs | Features - AMD
Motherboard chipset Mainboards for AMD CPUs | Features - AMD X870
Motherboard form factor Mainboards for AMD CPUs | Features - ATX

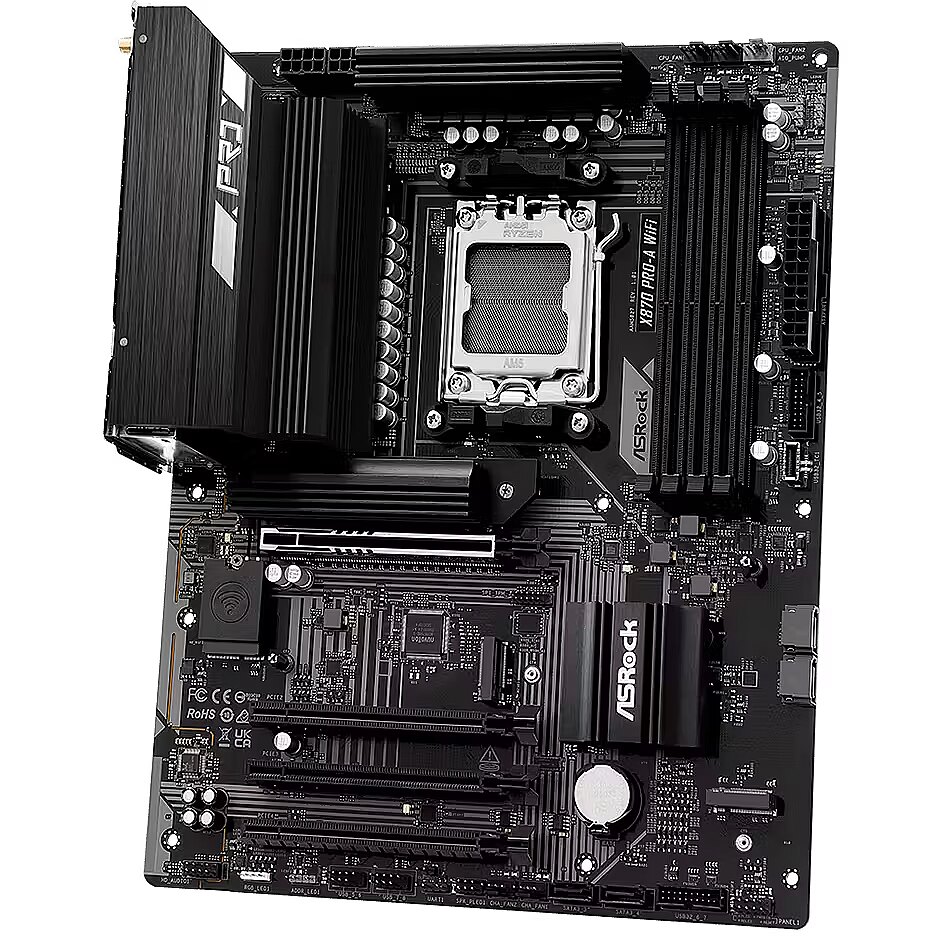

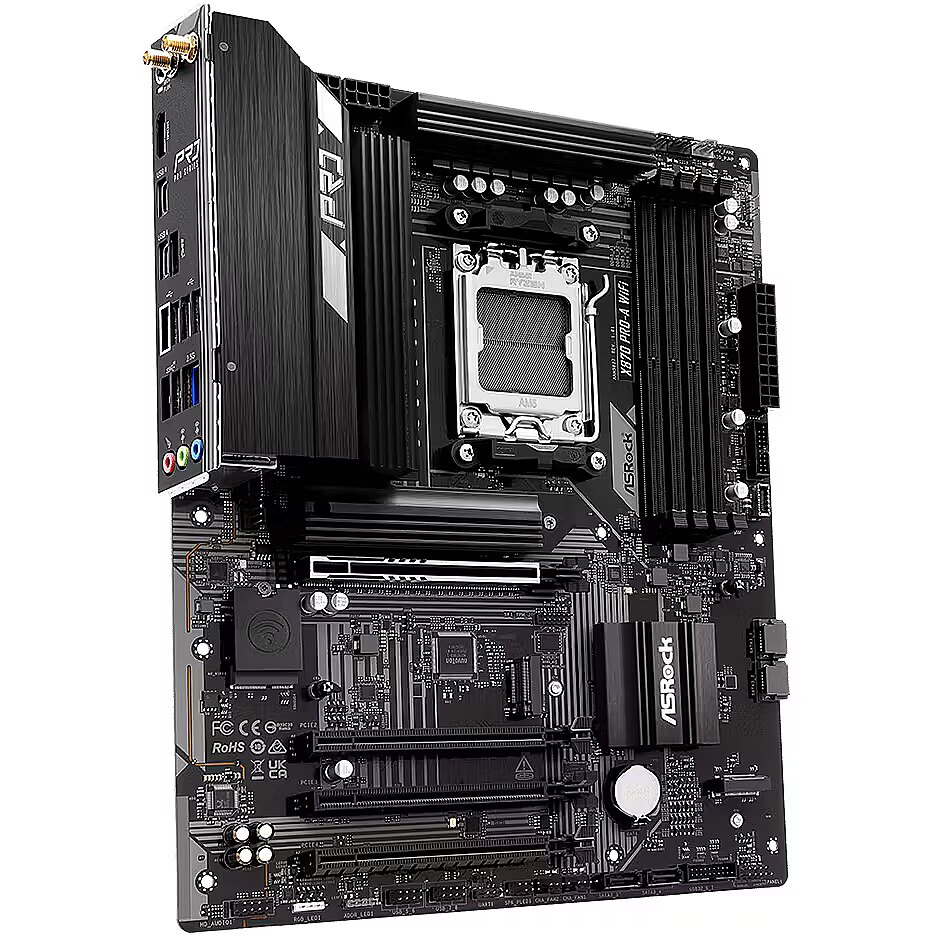

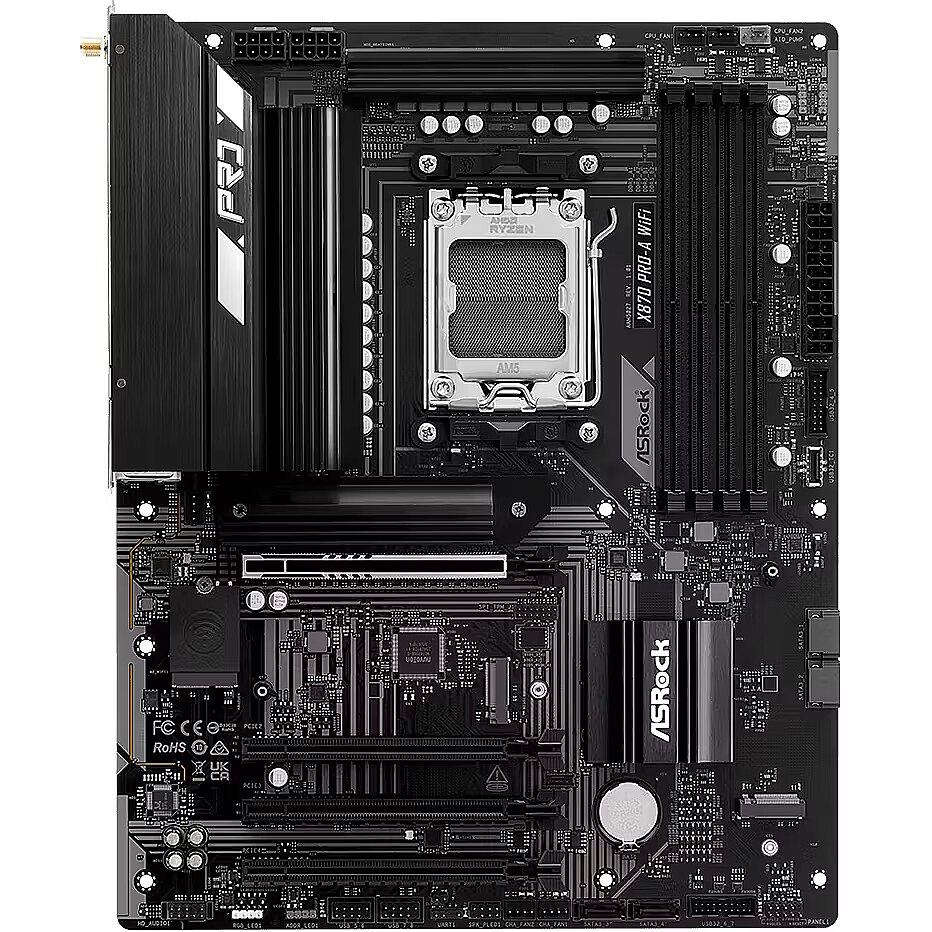

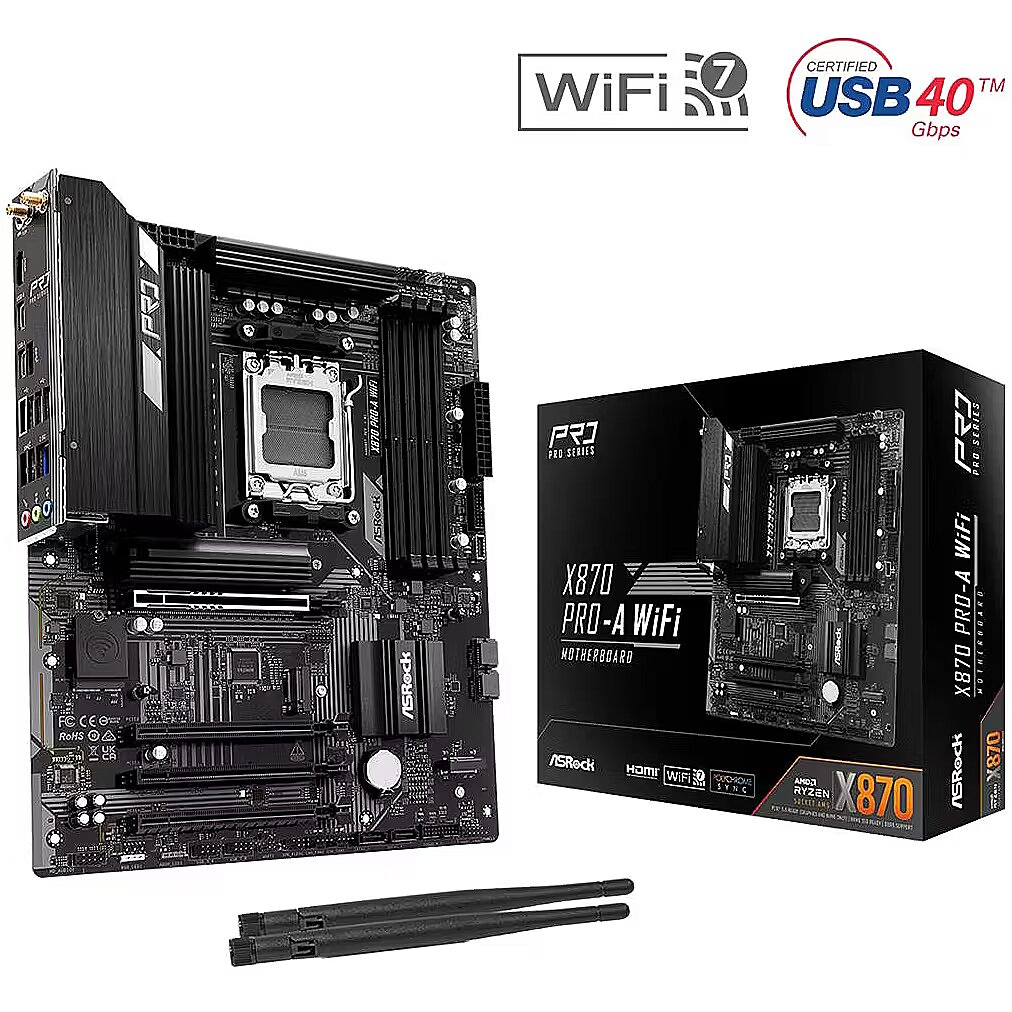

Name - ASRock X870 Pro-A WiFi
Number of CPU fan connectors Mainboards for AMD CPUs | Internal I/O - 2
Number of EPS power connectors (8-pin) Mainboards for AMD CPUs | Internal I/O - 2
Number of M.2 (M) slots Mainboards for AMD CPUs | Expansion slots - 1
Number of memory slots Mainboards for AMD CPUs | Memory - 4
Number of SATA III connectors Mainboards for AMD CPUs | Internal I/O - 4
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
PCI Express x16 (Gen 4.x) slots Mainboards for AMD CPUs | Expansion slots - 3
PCI Express x16 (Gen 5.x) slots Mainboards for AMD CPUs | Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor manufacturer Mainboards for AMD CPUs | Processor - AMD
Processor socket Mainboards for AMD CPUs | Processor - Socket AM5
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
Producer - ASRock
ProducerCode - X870 PRO-A WIFI
RAID levels Mainboards for AMD CPUs | Storage controllers - 0/1/10
RAID support Mainboards for AMD CPUs | Storage controllers - Y
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
Summary - Asrock X870 Pro-A WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 6000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Supported memory types Mainboards for AMD CPUs | Memory - DDR5-SDRAM
Supported storage drive interfaces Mainboards for AMD CPUs | Storage controllers - M.2,SATA III
Top Wi-Fi standard Mainboards for AMD CPUs | Network - Wi-Fi 7 (802.11be)
TPM connector Mainboards for AMD CPUs | Internal I/O - Y
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.00888 cubm
Unit Calculated Weight - 2.13 kg
Units per Pallet - 0
Units per Shipping Box - 5
USB 2.0 connectors Mainboards for AMD CPUs | Internal I/O - 2
USB 2.0 ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Mainboards for AMD CPUs | Internal I/O - 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 2
USB 3.2 Gen 2x2 Type-C ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 2
Vendor Homepage - https://www.asrock.com/mb/AMD/X870%20Pro-A%20WiFi/index.asp#Overview
Warranty - 36 months
Wi-Fi Mainboards for AMD CPUs | Network - Y
Wi-Fi standards Mainboards for AMD CPUs | Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)
Width Mainboards for AMD CPUs | Weight & dimensions - 305 mm
Windows operating systems supported Mainboards for AMD CPUs | Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)

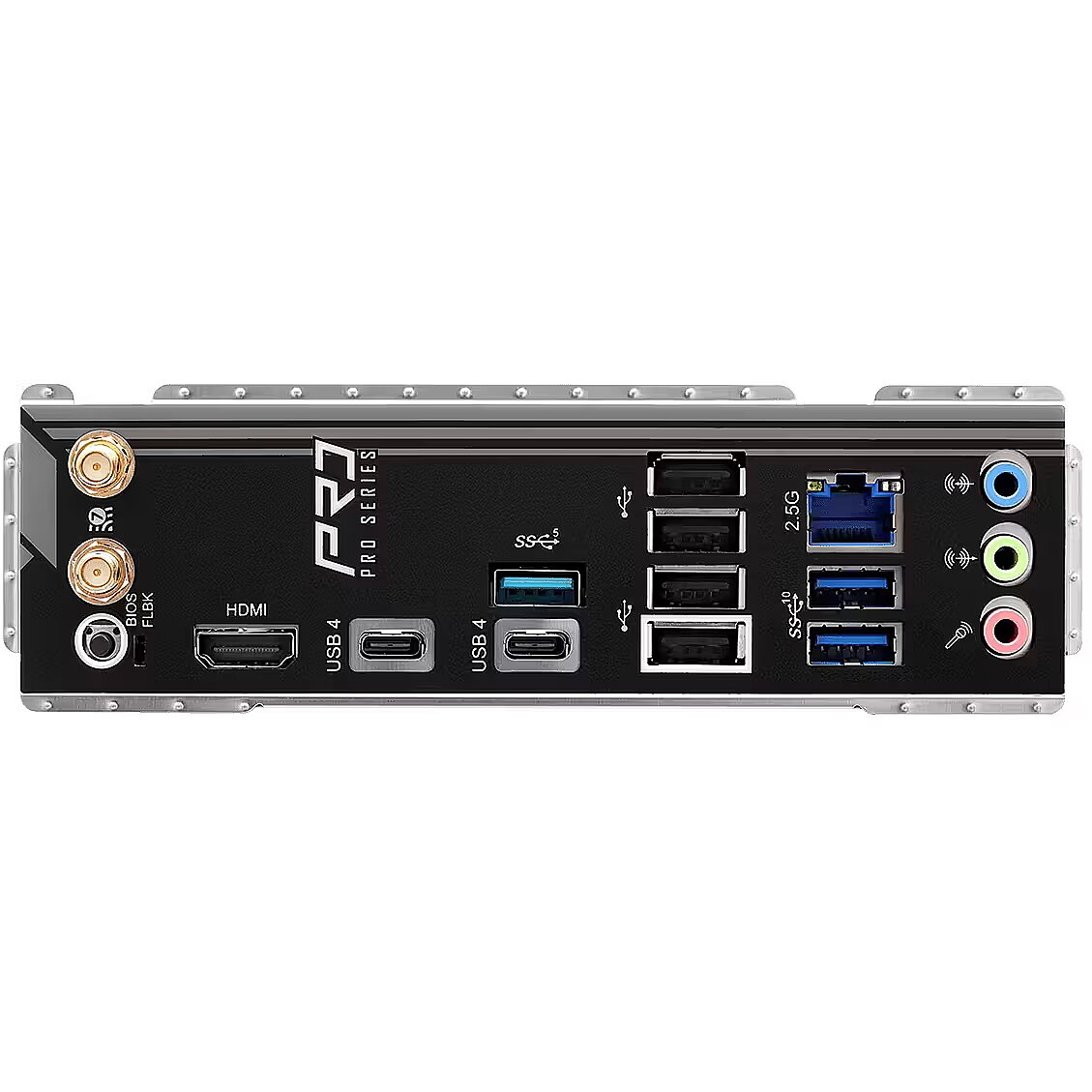

Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 4 x PCI-Express x16
