Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B550M DS3H R2
Category - Motherboards
Category Code - MBA
Chipset - AMD B550
Code - B550M DS3H R2

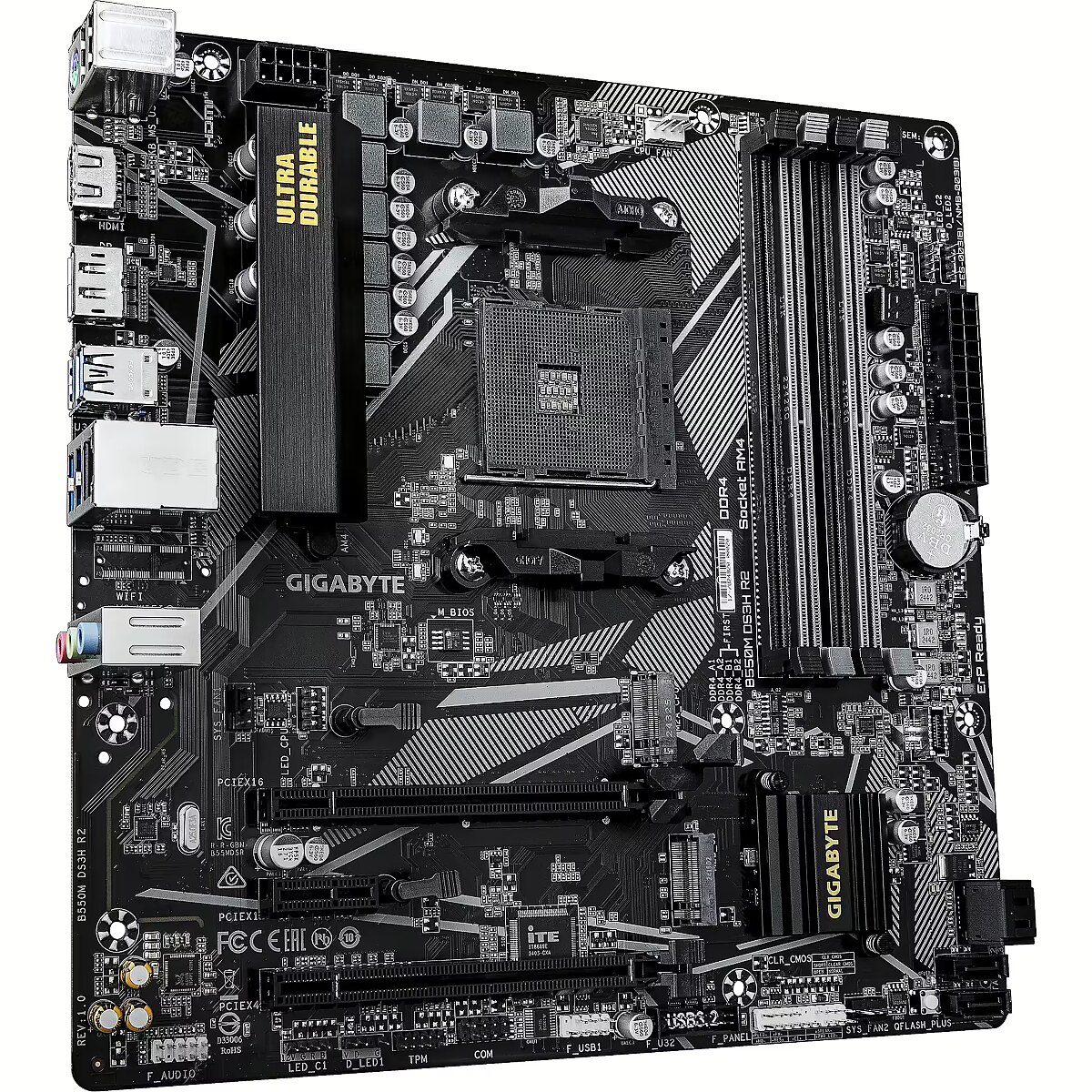

Description - B550M DS3H R2 AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors Digital 5+3 phases VRM solution Dual Channel DDR4：4*DIMMs EZ-Latch：PCIe slots with Quick Release Design Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal：VRM Thermal Armor Advanced Fast Networking：GbE LAN Extended Connectivity：HDMI, Displayport PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
DisplayPort Input/Output connectors - 1
EAN - 4719331870454
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 3.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Power source type - ATX
Features - Product colour - Dark brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2667/2933/3200/3400/3466/3600/3733/4000/4133/4266/4400/4600/4733 MHz
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331870454
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/lt/Motherboard/B550M-DS3H-R2
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
M.2 Expansion slots - 1
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Maximum internal memory per slot - 32 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory slots - 4
Memory type - DDR4
Model - B550M DS3H R2
Name - Gigabyte B550M DS3H R2 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Other features - Weight - 870 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 244.00 mm
Package features > Gross height (mm) - 54.00 mm
Package features > Gross width (mm) - 244.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 269 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 947 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
ProductName - B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Product Net Weight - 0.7 kg
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 10

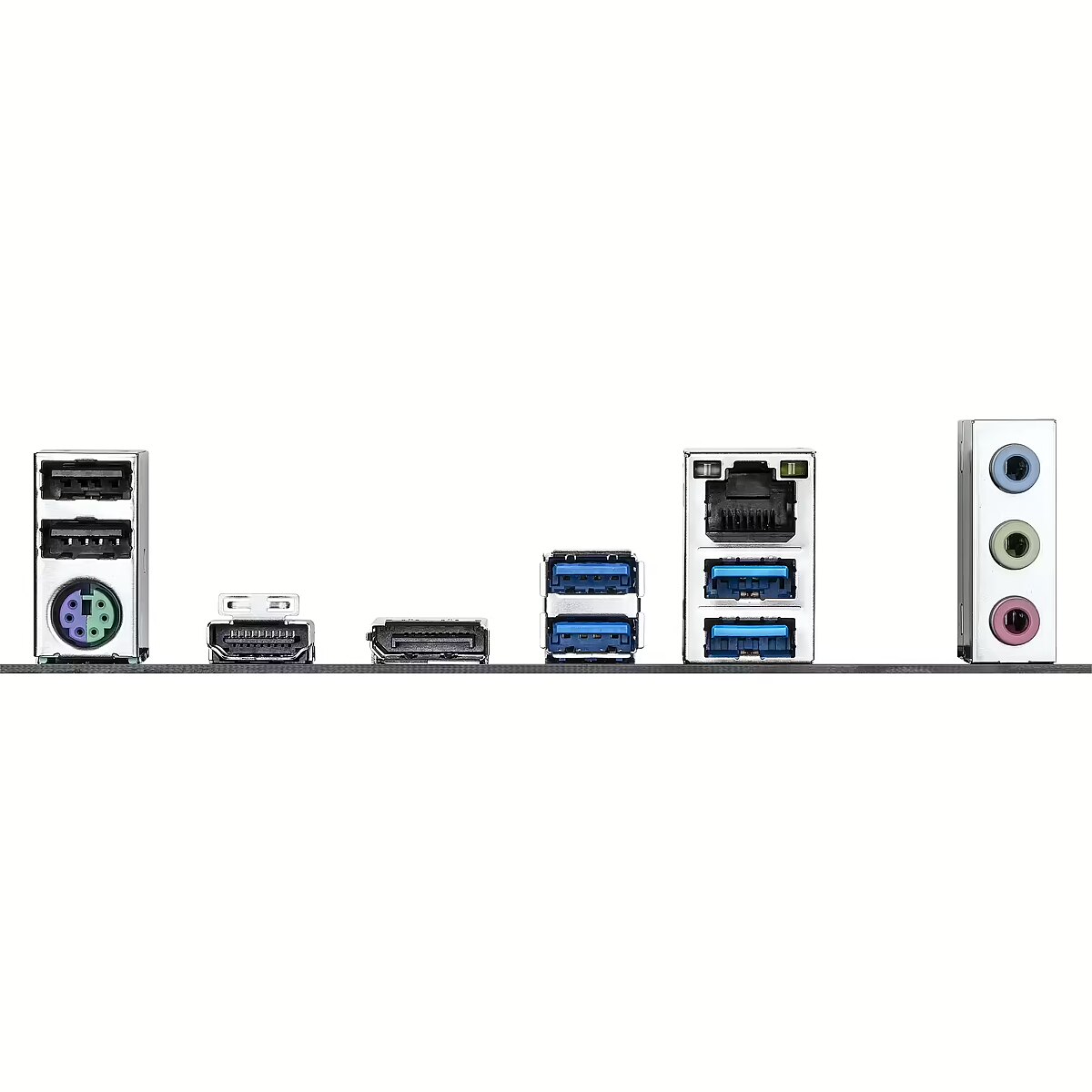

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RJ45 Input/Output connectors - 1
SATA Interface - Yes
ShortSummaryDescription - GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Socket - SAM4
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.02 kg
Technical details > Net weight - 0.82 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B550M DS3H R2
Title - GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.265
Unit Calculated Volume - 0.004628 cubm
Unit Calculated Weight - 0.955 kg
Units per Pallet - 0
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/B550M-DS3H-R2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
