1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 5.0
2nd M.2 largest key size Expansion slots - 2280
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 22110
4th M.2 highest PCI Express generation Expansion slots - 4.0
4th M.2 largest key size Expansion slots - 2280
5th M.2 highest PCI Express generation Expansion slots - 4.0
5th M.2 largest key size Expansion slots - 2280
ACPI version BIOS - 6.5
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - ACPI version - 6.5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.7
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - MSI
BrandPartCode - MEG X870E GODLIKE
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 7E48-001R
Code - MEG X870E GODLIKE
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM5
Depth Weight & dimensions - 277 mm
Description - Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experienceM.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortlessUltra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperatureEZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ AntennaUltra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionLightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power DeliveryAudio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
Description - MEG X870E Godlike motherboard Supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 up to 9000+ MT/s (OC) Dynamic Dashboard III: 3.99-inch LCD display for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience. M.2 XPANDER-Z SLIDER GEN5: A single-slot M.2 expansion card featuring two high-speed Gen5 M.2 slots, with an EZ Slide design for effortless SSD upgrades. Ultra performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made with 2oz thickened copper and server-grade materials. Frozr Guard: wave-fin design, Direct Touch cross heat-pipe, MOSFET baseplate, 9 W/mK thermal pads, double-sided M.2 Frozr shield, and Frozr AI software for optimal low-temperature performance. EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, and EZ Antenna. Ultra Connect: 10G LAN + 5G LAN, full-speed Wi-Fi 7 solution, and USB4latest professional-grade connectivity for secure, stable, and high-speed networking and data transfer. Lightning-fast gaming experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, front USB 20G with 60W USB power delivery. Audio Boost 5 HD: premium audio solution featuring the latest ALC4082 audio processor combined with an ESS DAC and amplifier, delivering an immersive sound experience.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 7x M.2 M.2_1 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 slot (from chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_4 slot (from chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_5 slot (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_2 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_1:
Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs)
Supports up to PCIe 4.0 x4 (for Ryzen 8000 series CPUs) M.2_2:
Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs)
Supports up to PCIe 4.0 x4 (for Ryzen 8700/8600/8400 series CPUs) The M.2_2 slot will be unavailable when using Ryzen 8500/8300 series CPUs. M.2_4:
PCI_E3 slot will operate at x2 speed when an device is installed in M.2_4. You can switch PCI_E3 to x4 in BIOS, but this will disable the M.2_4 slot. Supports 5 built-in M.2 slots and 2 additional M.2 slots via expansion card.
dimension depth - 130 mm
dimension height - 360 mm
Dimensions - 304.8 x 277 mm
dimension weight - 6300 g
dimension width - 380 mm
EAN - 4711377276221
ean - 4711377276221
EAN_code - 4711377276221
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 2280
Expansion slots - 5th M.2 highest PCI Express generation - 4.0
Expansion slots - 5th M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

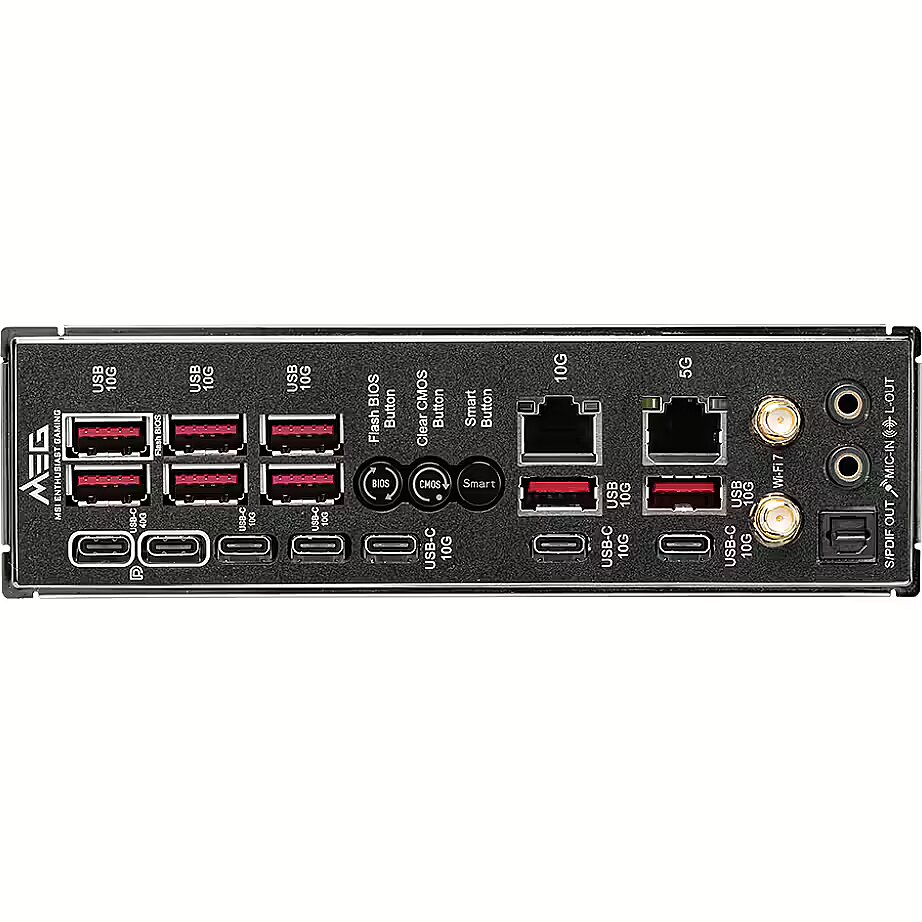

External connectors - 1 x Flash BIOS Button
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x Smart Button
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-C
External connectors - 5 x USB 3.2 Gen 1 Type-C
External connectors - 8 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Graphics - 2x Type-C DisplayPort
USB4 port supporting DisplayPort 1.4 with HBR3 via USB Type-C, maximum resolution 4K@60Hz
Graphics - On-board graphics card - No
GTIN - 0824142388747
GTIN - 824142388747
GTIN - 4711377268721
GTIN - 4711377276221
guarantee - 36
guarantee_type - normal
HDMI version Rear panel I/O ports - 2.1
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MEG-X870E-GODLIKE
LongDesc - Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
LongProductName - AMD X870E, 4x DDR5, 9000 (OC) MT/s, 4x SATA, 2x Type-C DisplayPort, Wi-Fi 7, E-ATX
LongSummaryDescription - MSI MEG X870E GODLIKE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
LPT connector / port - No
Manufacturer - MICRO-STAR INTERNATIONAL CO
Manufacturer - MSI
Manufacturer_code - 7E48-001R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9000 MHz
Memory - Supported memory clock speeds - 4800,5600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - MEG X870E GODLIKE
Model - MEG X870E Godlike
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD X870E
Motherboard form factor Features - Extended ATX
MPN - 7E48-001R
name - Motherboard MEG X870E GODLIKE AM5 4DDR5 ATX
Name - MSI MEG X870E GODLIKE (AM5) (D)
Name - MSI MEG X870E GODLIKE - Socekt AM5 - motherboard
name - MSI MEG X870E Godlike Mainboard, Sockel AM5, AMD X870E, E-ATX, DDR5
Name - MSI MEG X870E GODLIKE | Processor family AMD | Processor socket AM5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320 MHz) up to 5.8 Gb/s Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 5
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 14
On-board graphics card Graphics - No
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB C
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 361 mm
Package features > Gross height (mm) - 382 mm
Package features > Gross width (mm) - 130 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 359.00 g
Package features > Plastic (No PET) - 90.00 g
Package features > Tare weight (kg) - 0.45 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01792726 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PC health monitoring Features - CPU, Fan, Temperature, Voltage
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
producer - MSI
Product colour Features - Black
ProductName - MEG X870E GODLIKE
RAID - Yes
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 5
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
S/PDIF out port Rear panel I/O ports - Yes
ShortSummaryDescription - MSI MEG X870E GODLIKE, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Sound card - Realtek ALC4082 codec + ESS9219Q Combo DAC/HPA High-performance 7.1-channel USB audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - MSI MEG X870E GODLIKE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
Supported memory clock speed (max) Memory - 9000 MHz
Supported memory clock speeds Memory - 4800,5600 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - None
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 3.7
Technical details > Gross weight - 2.12 kg
Technical details > Net weight - 1.67 kg
Technical details > Producer - MSI
Technical details > Producer product name - MEG X870E GODLIKE
Title - MSI MEG X870E GODLIKE motherboard AMD X870E Socket AM5 Extended ATX
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
Total number of SATA connectors Internal I/O - 4
Unit Box Height - 0.131
Unit Box Length - 0.382
Unit Box Width - 0.362
Unit Calculated Volume - 0.04103 cubm
Unit Calculated Weight - 7.5 kg
Units per Shipping Box - 2
URL - https://www.msi.com/Motherboard/MEG-X870E-GODLIKE
USB 2.0 connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 5
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 2
USB ports at back panel - 15
Vendor Homepage - https://www.msi.com/Motherboard/MEG-X870E-GODLIKE

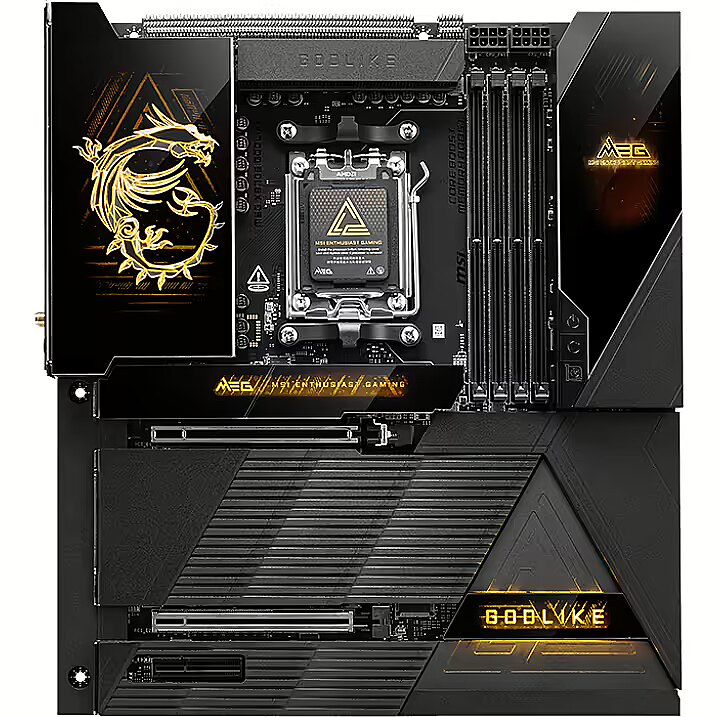

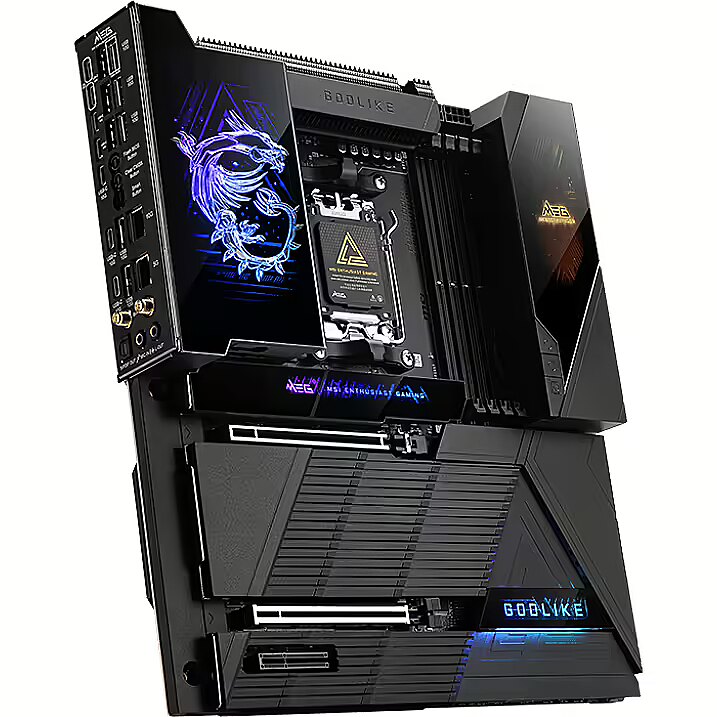

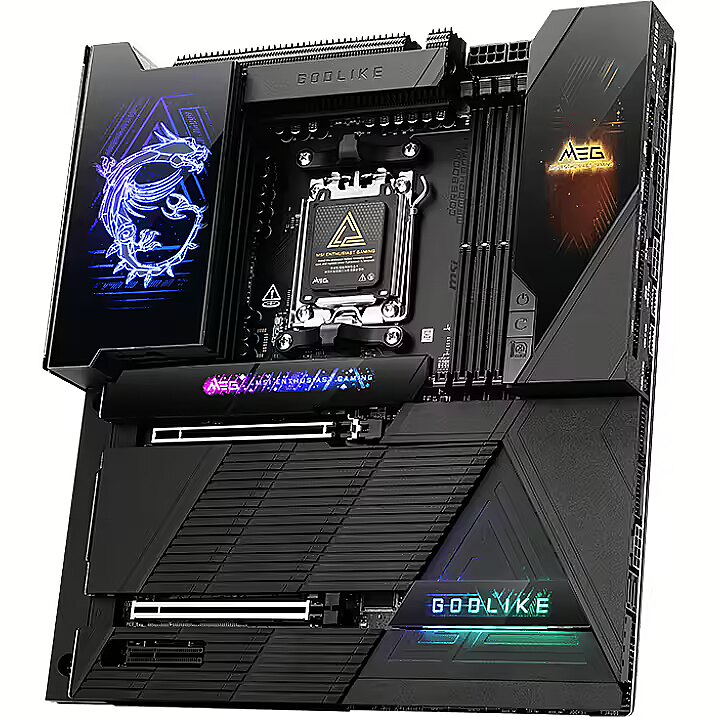

vendpn - MEG X870E GODLIKE
Warranty - 24/12L months
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 6.42
Weight - 7,50
Weight & dimensions - Depth - 277 mm
Weight & dimensions - Width - 304.8 mm
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width Weight & dimensions - 304.8 mm
Windows operating systems supported Features - Windows 11 x64
