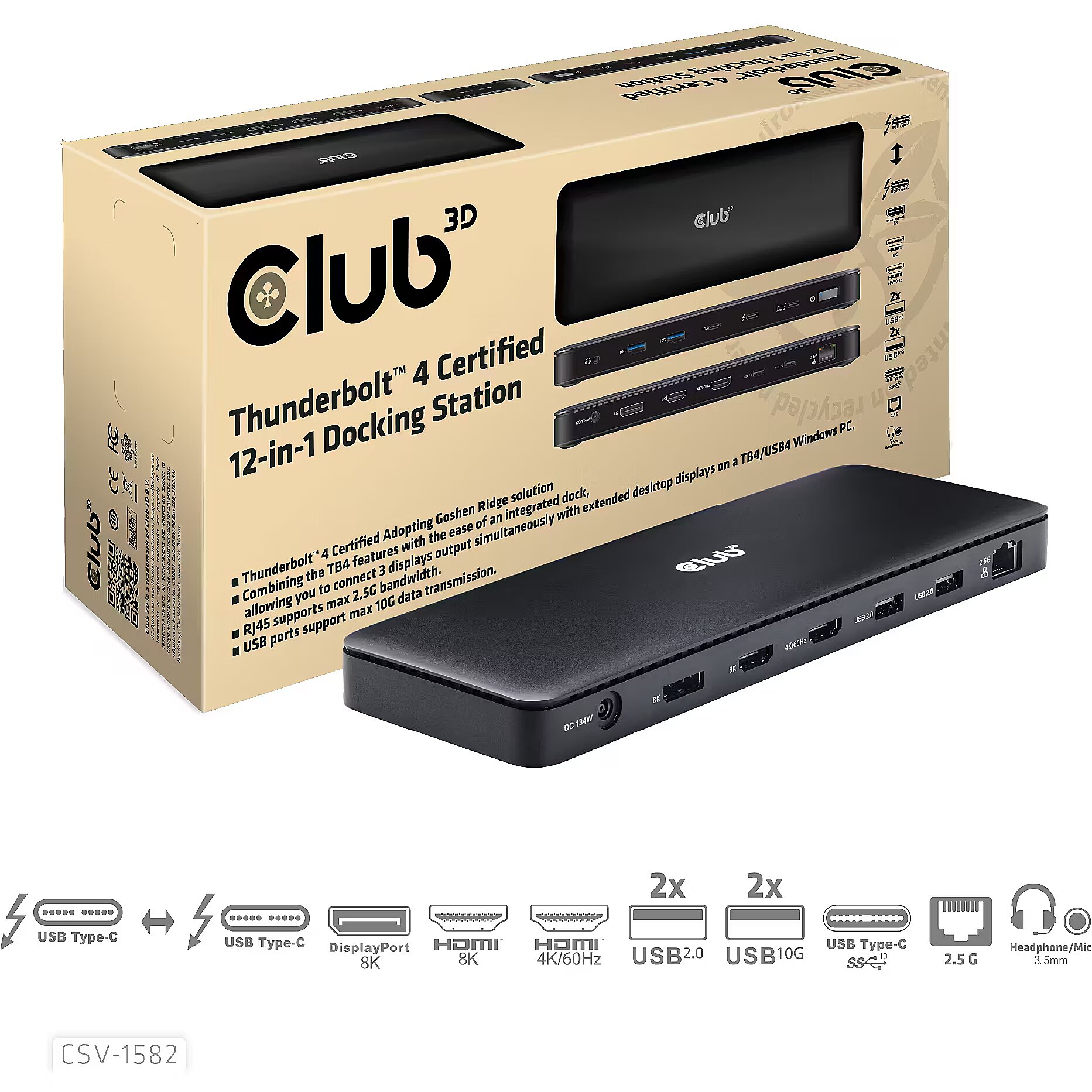

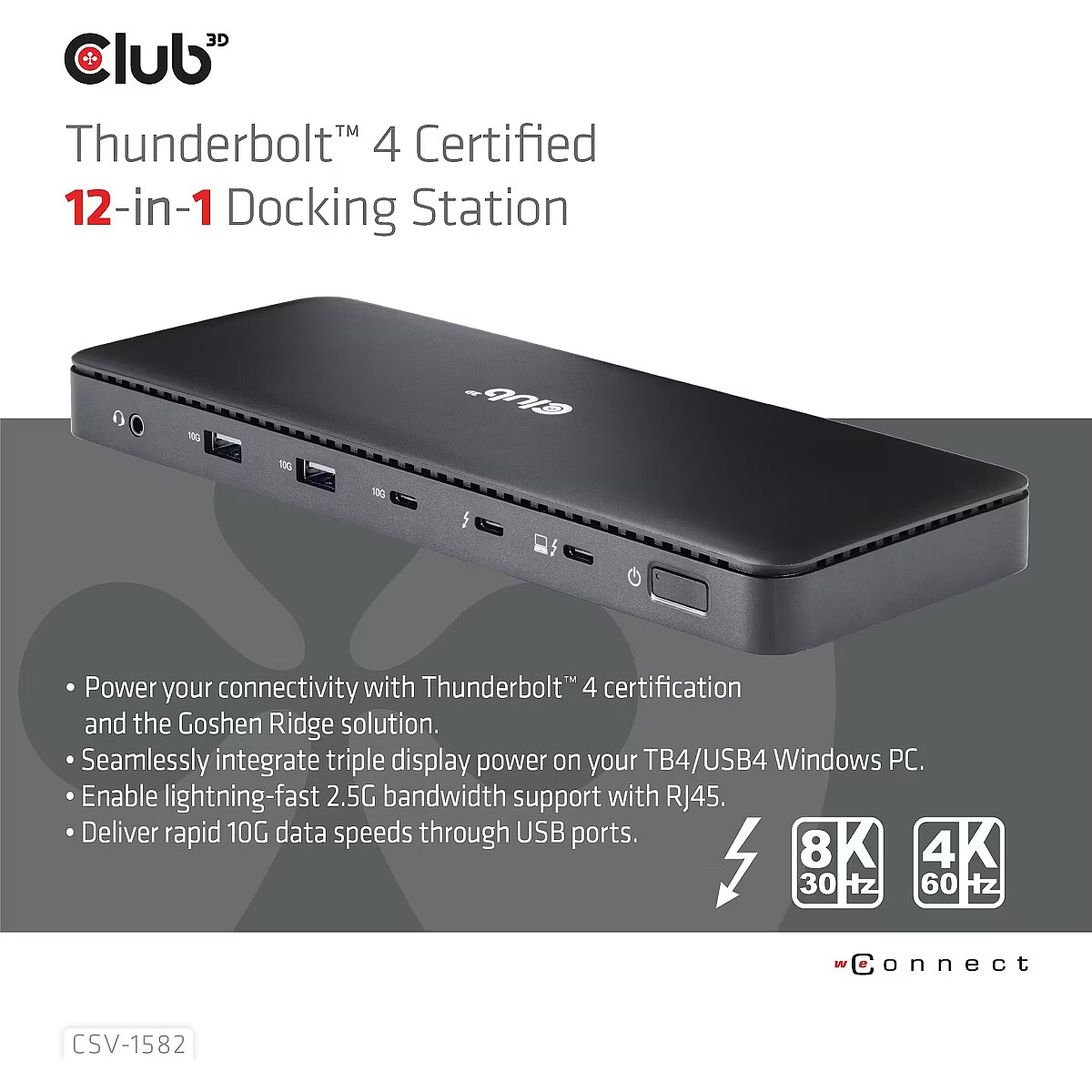

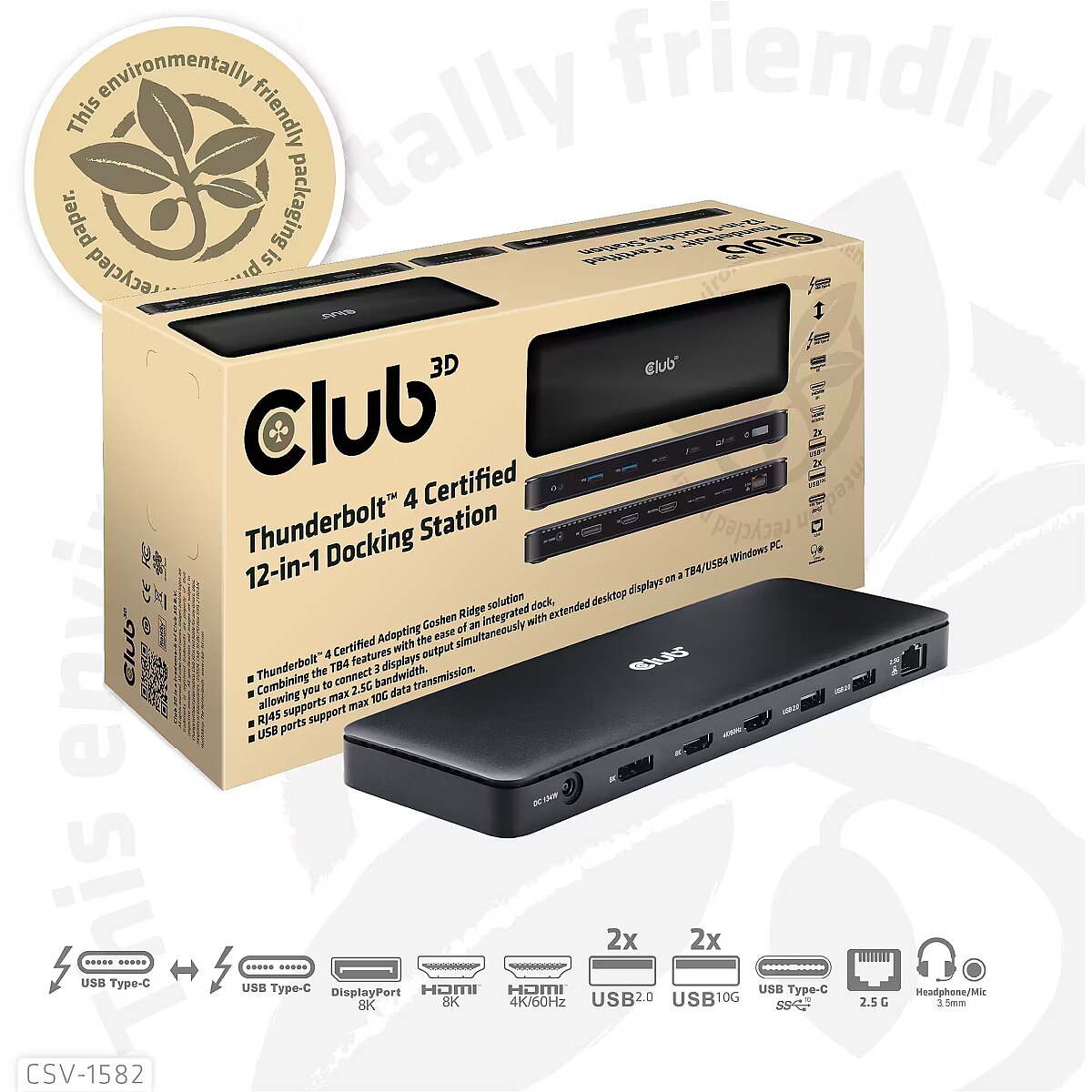

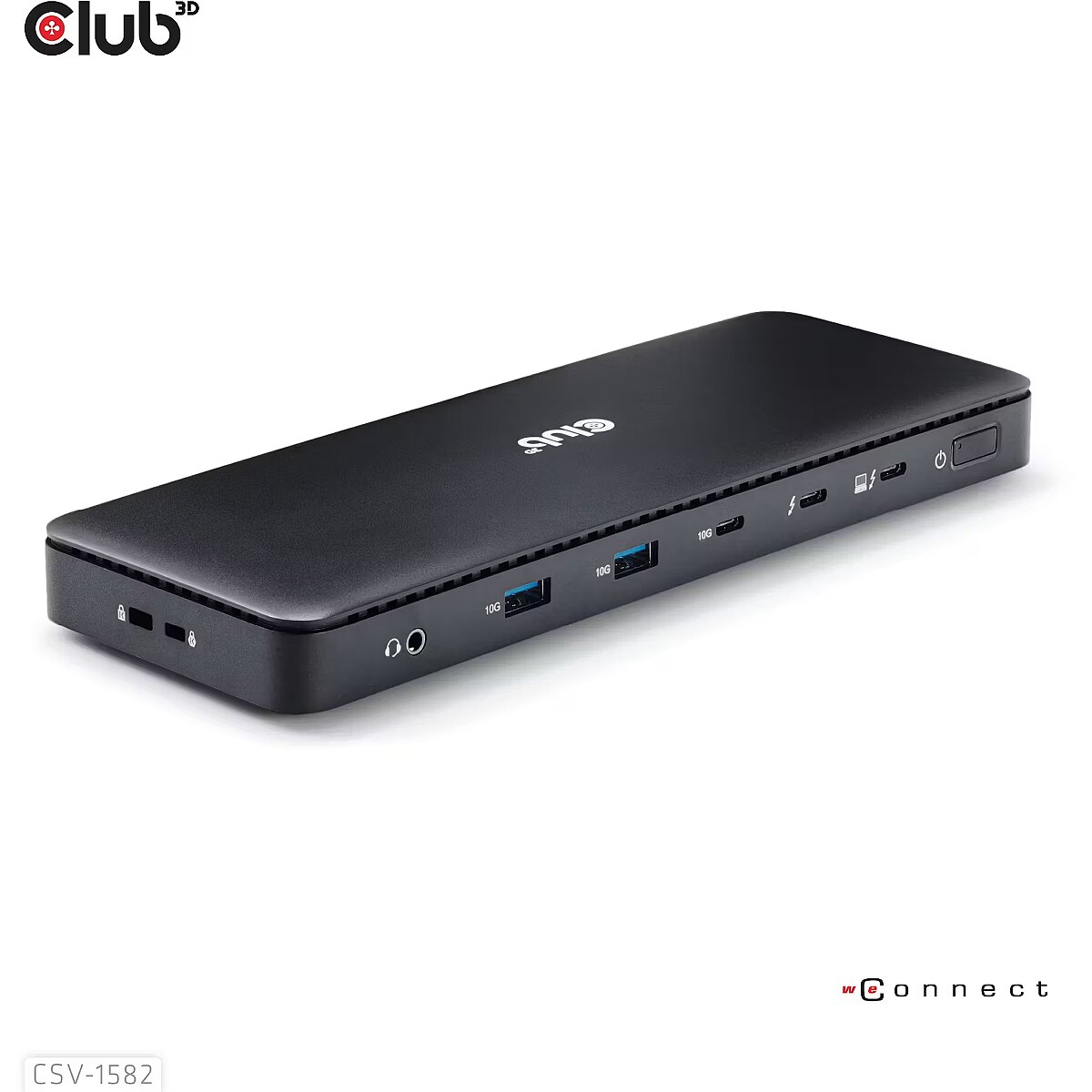

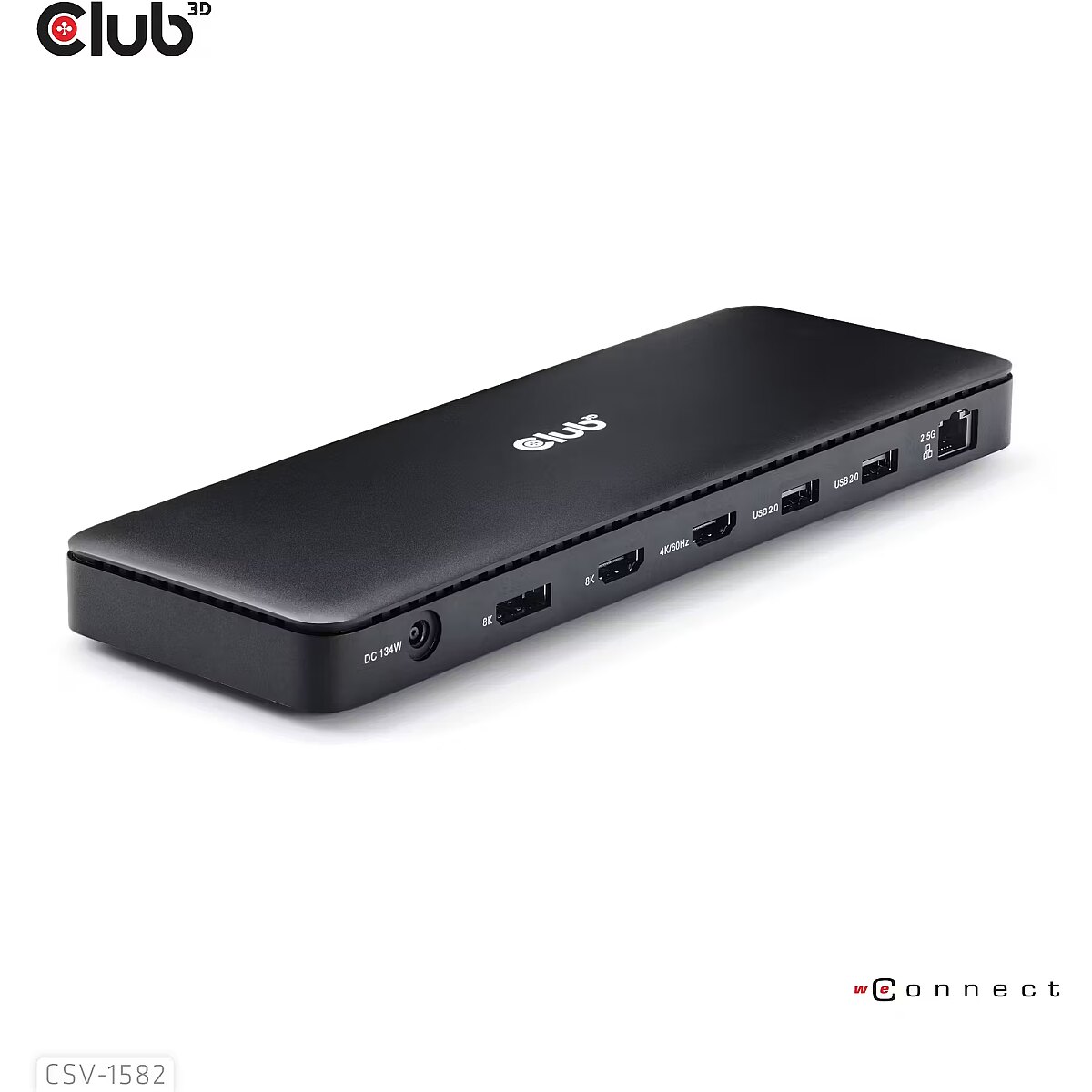

Club3D CSV-1582 Thunderbolt 4 Certified 11-in-1 mobile device dock station

Brand - CLUB3D
BrandPartCode - CSV- 1582
Category - Laptop Docks & Port Replicators
Category Code - NBK
Description - Features:
• Adopting Goshen Ridge solution
• Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC.
• Slim compact aluminum design
• Thunderbolt™ 4 Certified
• Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3/DP-Alt-mode based PC's and Macs™ utilizing MacOS™ 11 and later versions (Limitations can vary on different Apple proprietary Silicon).
• Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TB3, USB4, DP™ Alt mode, USB protocol
• Allow to output single 8K30Hz, dual 4K/60Hz or triple (4K/60Hz*3) displays with extended desktop displays on Windows based systems
• RJ45 supports 10M/100M/1000M/2.5G bandwidth
• 1x Thunderbolt™ 4 downstream port, allow you to cascade Thunderbolt™ devices
• Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock
• Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
• Support TB4/USB4/TB3/DP-Alt-mode Hosts
• Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space) Available Interfaces
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !

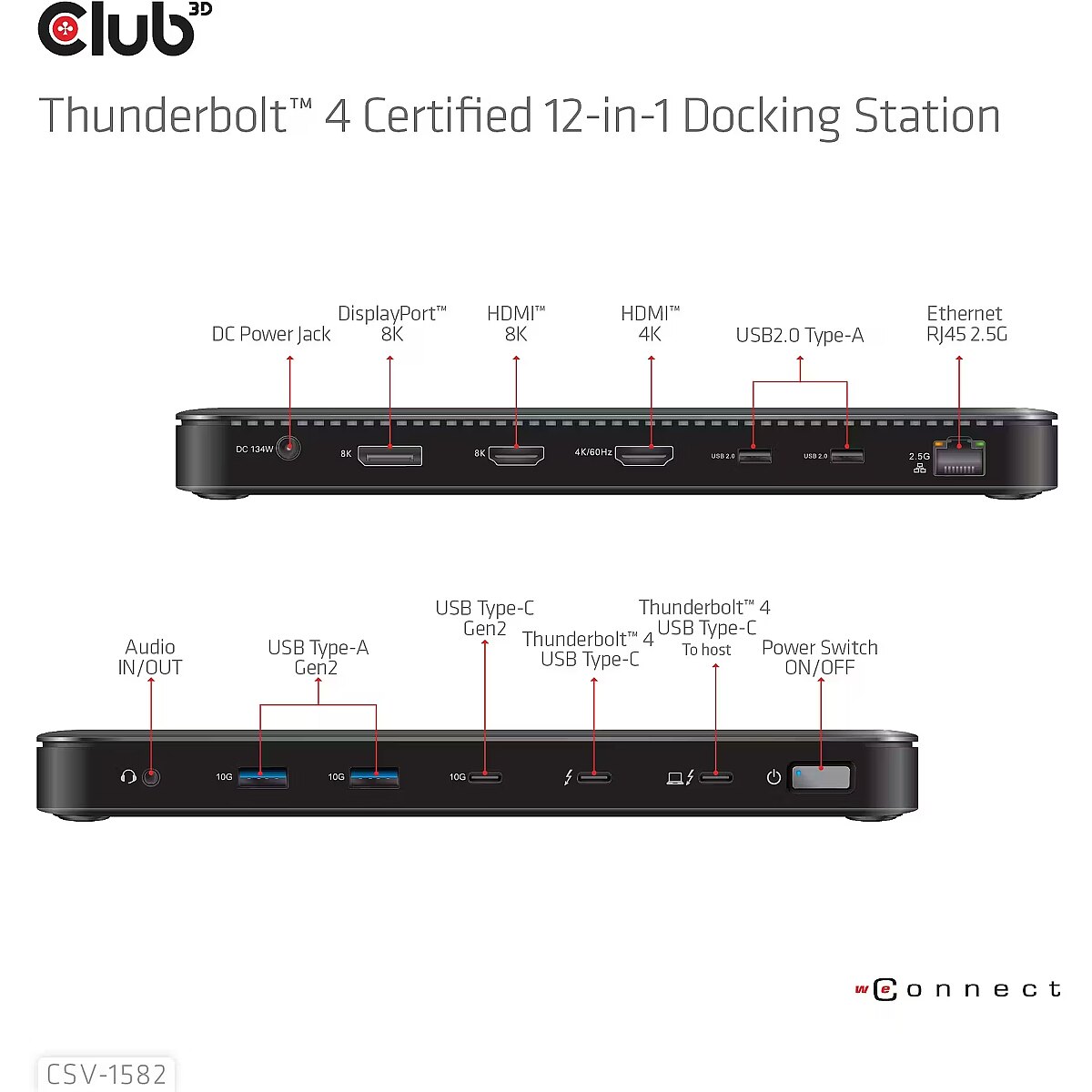

Upstream: 1x
- Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™3, USB4, DP Alt mode, USB protocol
- Support TB4/USB4/TB3/DP-Alt-mode Hosts
- Support max. 96Watt Host charging, 5V/9V/15V@3A,20V@4.8A
Downstream:
Stream 1:
- 1x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™4, Thunderbolt™3, USB4, DP Alt mode, USB protocol
- Allow you to cascade Thunderbolt™ devices
- Support max 8K30Hz or dual 4K60Hz video
- Thunderbolt™ 4 port supports 15W downstream charging for connected device(The port does not support PD charging)
Stream 2： DisplayPort™:
- Support max 8K/30Hz
- Support DP1.4 Specification
- Support DPCP
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
HDMI1(Close to DP)：
- Support max 8K/30Hz
- Support HDCP 1.4&2.2
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
Stream 3： HDMI™2(Close to USB2.0)
- Support max 4K/60Hz
- Support HDCP 1.4&2.2
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
- Among all streams, max output 2 streams simultaneously, support output dual 4K/60Hz (or 8K/30Hz+4K/30Hz) or triple(4K/60Hz*3) displays with extended desktop displays on Windows system
- DP™ and HDMI™1 Port output the same pictures on Mac OS system
Note：
The actual resolution supported is determined by the host and the Display together. Other Connections :
1x USB3.2 Gen2 Type-C
- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions
- Support max 5V/1.5A downstream charging
- Support short-circuit, over-current protection
- Support reversible connection
2x USB3.2 Type-A Gen2 (close to USB-C 10G)
- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions
- Support max 900mA downstream charging per port
- Support short-circuit, over-current protection
2x USB2.0 Gen1 Type-A(close to RJ45)
- Support max 480Mbps data transmission
- Max 500mA downstream charging per port
- Support short-circuit, over-current protection
1x Ethernet RJ45
- Support Gigabit Ethernet,10M/100M/1000M/2.5Gbps
- Support Wake-On-LAN and Wake-On-WAN
- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.
1x Audio JACK 3.5mm
- Support 24/32-bit, 44.1/48/96/192/384KHz Sample Rate
- Support Stereo output and microphone input
- Automatic detection switch to CTIA/MTP mode

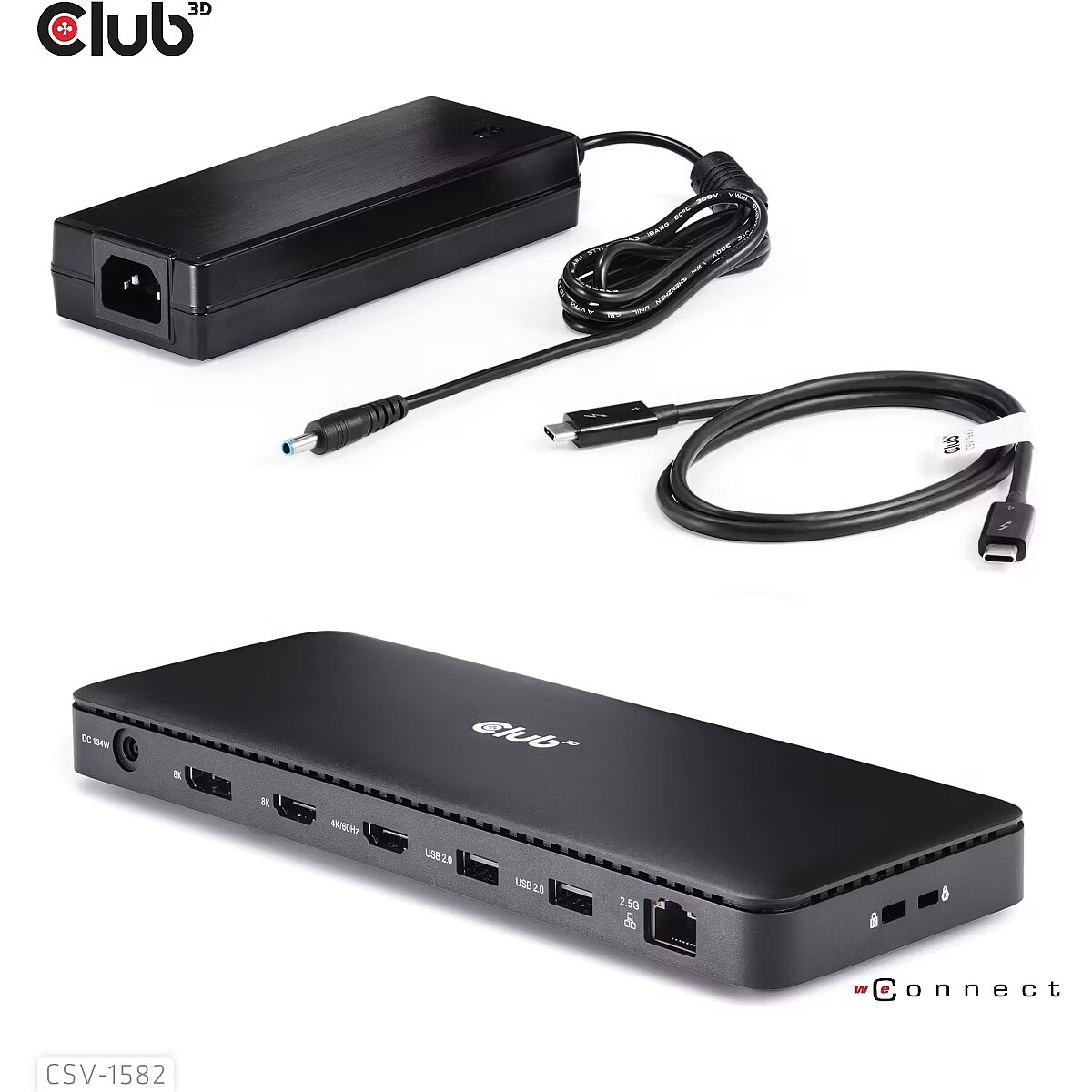

1x DC Power Jack
- Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices
- Used to connect 21V 134W DC power supply
- Max 124W power for host and the DOCK and 10W is for buffer power
- Max 96W for host charging
- Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space) OS Support:
• Windows 10 or upwards, Mac 13.5.2 (Limitations can vary on different Apple proprietary Silicon)
GTIN - 0841615103232
GTIN - 841615103232
GTIN - 8719214472955
LongDesc - Features:• Adopting Goshen Ridge solution• Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC.• Slim compact aluminum design• Thunderbolt™ 4 Certified• Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3/DP-Alt-mode based PC's and Macs™ utilizing MacOS™ 11 and later versions (Limitations can vary on different Apple proprietary Silicon).• Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TB3, USB4, DP™ Alt mode, USB protocol• Allow to output single 8K30Hz, dual 4K/60Hz or triple (4K/60Hz*3) displays with extended desktop displays on Windows based systems• RJ45 supports 10M/100M/1000M/2.5G bandwidth• 1x Thunderbolt™ 4 downstream port, allow you to cascade Thunderbolt™ devices• Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock• Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices• Support TB4/USB4/TB3/DP-Alt-mode Hosts• Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)Available Interfaces- Please update your TV Firmware to the version which supports these resolutions/refresh rates !Upstream: 1x- Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™3, USB4, DP Alt mode, USB protocol- Support TB4/USB4/TB3/DP-Alt-mode Hosts- Support max. 96Watt Host charging, 5V/9V/15V@3A,20V@4.8ADownstream:Stream 1:- 1x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™4, Thunderbolt™3, USB4, DP Alt mode, USB protocol- Allow you to cascade Thunderbolt™ devices- Support max 8K30Hz or dual 4K60Hz video- Thunderbolt™ 4 port supports 15W downstream charging for connected device(The port does not support PD charging)Stream 2： DisplayPort™:- Support max 8K/30Hz- Support DP1.4 Specification- Support DPCP- Support RGB, YCbCr444, YCbCr422, YCbCr420- Support 8/10/12 bit deep color- Support HDRHDMI1(Close to DP)：- Support max 8K/30Hz- Support HDCP 1.4&2.2- Support RGB, YCbCr444, YCbCr422, YCbCr420- Support 8/10/12 bit deep color- Support HDRStream 3： HDMI™2(Close to USB2.0)- Support max 4K/60Hz- Support HDCP 1.4&2.2- Support RGB, YCbCr444, YCbCr422, YCbCr420- Support 8/10/12 bit deep color- Support HDR- Among all streams, max output 2 streams simultaneously, support output dual 4K/60Hz (or 8K/30Hz+4K/30Hz) or triple(4K/60Hz*3) displays with extended desktop displays on Windows system- DP™ and HDMI™1 Port output the same pictures on Mac OS systemNote：The actual resolution supported is determined by the host and the Display together.Other Connections :1x USB3.2 Gen2 Type-C- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions- Support max 5V/1.5A downstream charging- Support short-circuit, over-current protection- Support reversible connection2x USB3.2 Type-A Gen2 (close to USB-C 10G)- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions- Support max 900mA downstream charging per port- Support short-circuit, over-current protection2x USB2.0 Gen1 Type-A(close to RJ45)- Support max 480Mbps data transmission- Max 500mA downstream charging per port- Support short-circuit, over-current protection1x Ethernet RJ45- Support Gigabit Ethernet,10M/100M/1000M/2.5Gbps- Support Wake-On-LAN and Wake-On-WAN- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.1x Audio JACK 3.5mm- Support 24/32-bit, 44.1/48/96/192/384KHz Sample Rate- Support Stereo output and microphone input- Automatic detection switch to CTIA/MTP mode1x DC Power Jack- Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices- Used to connect 21V 134W DC power supply- Max 124W power for host and the DOCK and 10W is for buffer power- Max 96W for host charging- Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)OS Support:• Windows 10 or upwards, Mac 13.5.2 (Limitations can vary on different Apple proprietary Silicon)
LongProductName - Thunderbolt™ 4 Certified 12-in-1 Docking Station
LongSummaryDescription - CLUB3D Thunderbolt™ 4 Certified 12-in-1 Docking Station
ProductName - Thunderbolt™ 4 Certified 12-in-1 Docking Station
ShortSummaryDescription - CLUB3D Thunderbolt™ 4 Certified 12-in-1 Docking Station
Summary - CLUB3D Thunderbolt™ 4 Certified 12-in-1 Docking Station
Title - CLUB3D Thunderbolt™ 4 Certified 12-in-1 Docking Station

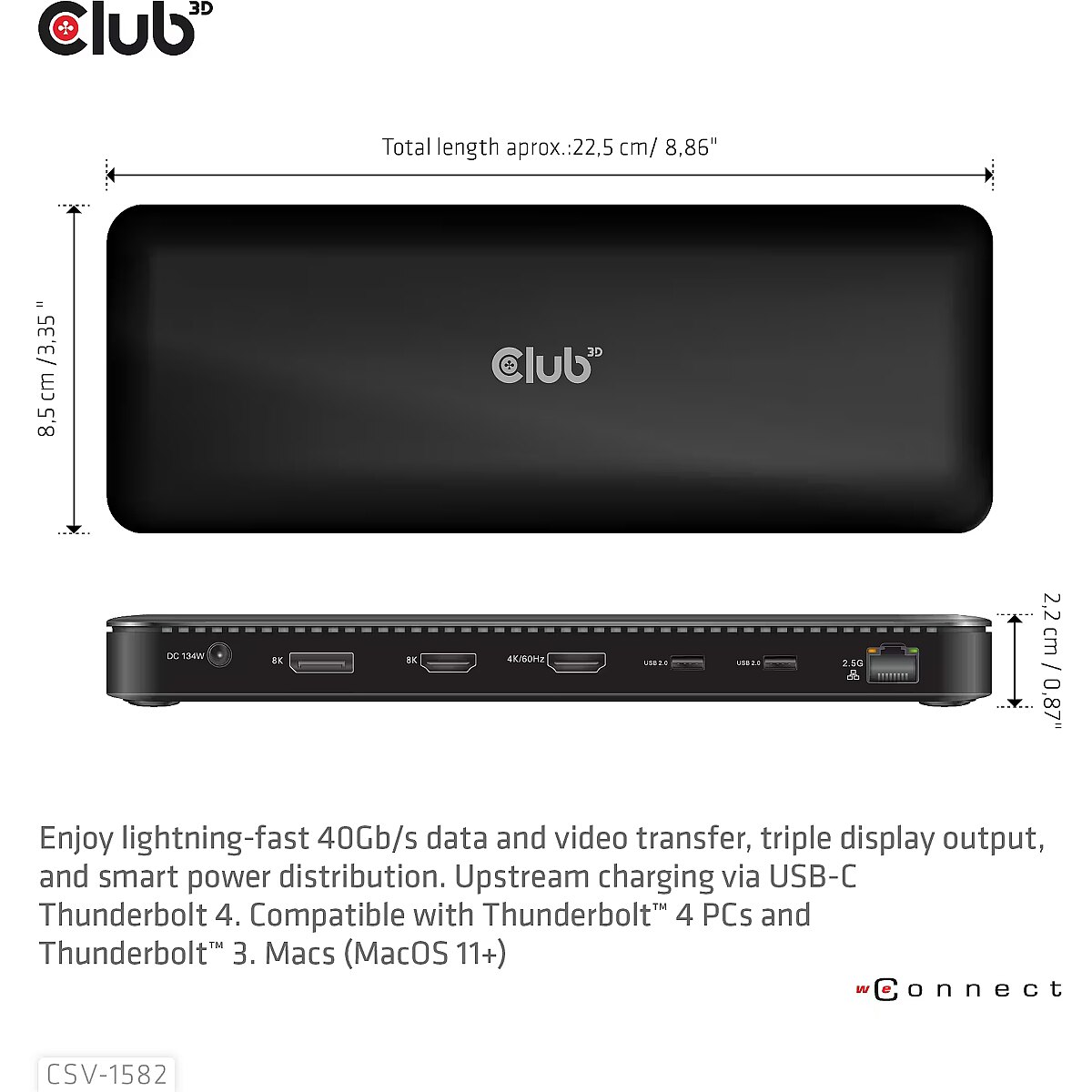

Unit Box Height - 0.08
Unit Box Length - 0.28
Unit Box Width - 0.125
Unit Calculated Volume - 0.0028 cubm
Unit Calculated Weight - 1.09 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL -
Warranty - 24 months
WarrantyInfo -
