Axagon HMC-5H60

Abbreviated Description - |EnglishMulti port USB-C 5Gbps hub. HDMI, PD, 2 USB-A and 1 USB-C ports. USB-C cable 15 cm.English|
Accessories included - USB-C hub with fixed 15 cm long cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

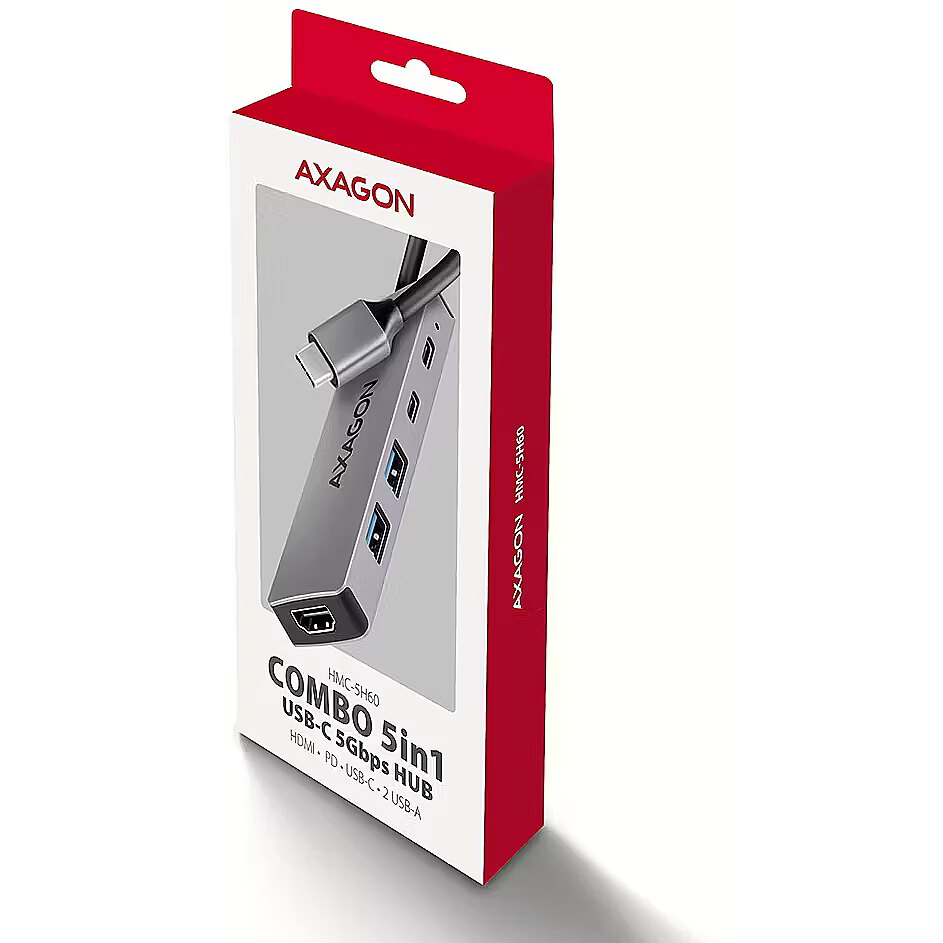

packed in a cardboard box with a hanging hole.
Audio - Built-in microphone - No
Audio - Built-in speaker(s) - No
Box Weight Brutto (kg) - 1 kg
Brand - Axagon
Brand compatibility Performance - Universal
BrandPartCode - HMC-5H60
Built-in fan Cooling - No
Built-in microphone Audio - No
Built-in speaker(s) Audio - No
Cable Length - 0.15 m
Cables included Packaging content - USB Type-C
Card reader integrated Performance - No
Category - Laptop Docks & Port Replicators
category - Peripherals|Mobile Storage|Accessories|USB Hubs
Category Code - NBK
Certification Performance - CE, RoHS
Charging function Performance - Yes
code - HMC-5H60
Code - HMC-5H60
Color - Gray
Combo headphone/mic port Ports & interfaces - No
Compatible with -
Compliance certificates Technical details - RoHS, CE
Connectivity technology Ports & interfaces - Wired
Cooling - Built-in fan - No
Country of origin Performance - China
Data transfer rate Performance - 5 Gbit/s
DC-in jack Ports & interfaces - No
Depth (mm) - 110 mm
Depth Weight & dimensions - 32 mm

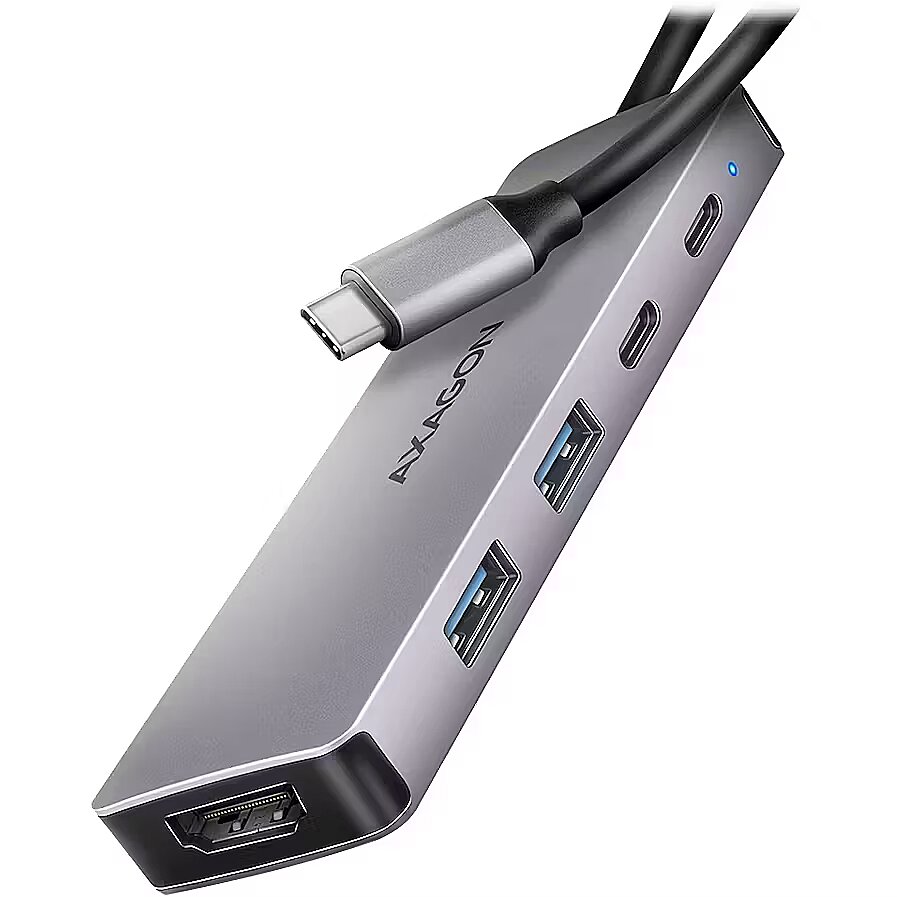

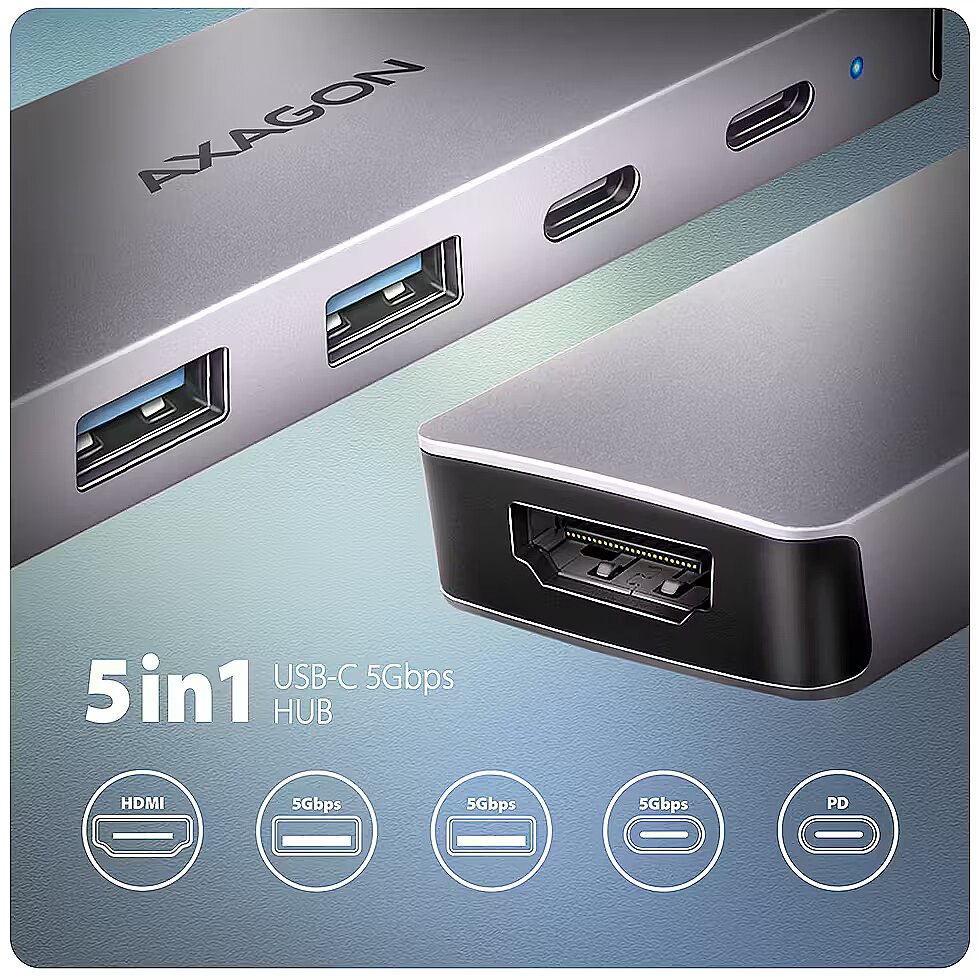

Description - The multi-port USB-C 5Gbps AXAGON HMC-5H60 5in1 hub expands your laptop, computer or phone with five ports. Via the double-sided USB-C connector, you can quickly and easily connect a monitor and three USB devices to the computer at the same time. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will thus provide you with a simple and compact 5in1 docking station for modern laptops. The USB hub offers three USB 5Gbps outputs, two with standard USB-A and a third with USB-C data connector. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5A/5V current. From the hub, you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc. Another USB-C (PD) connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port. HDMI output provides high quality image up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120Hz or FullHD/240Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 port and above. The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints. USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub does not afraid of connection to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone. Input (connection to laptop):

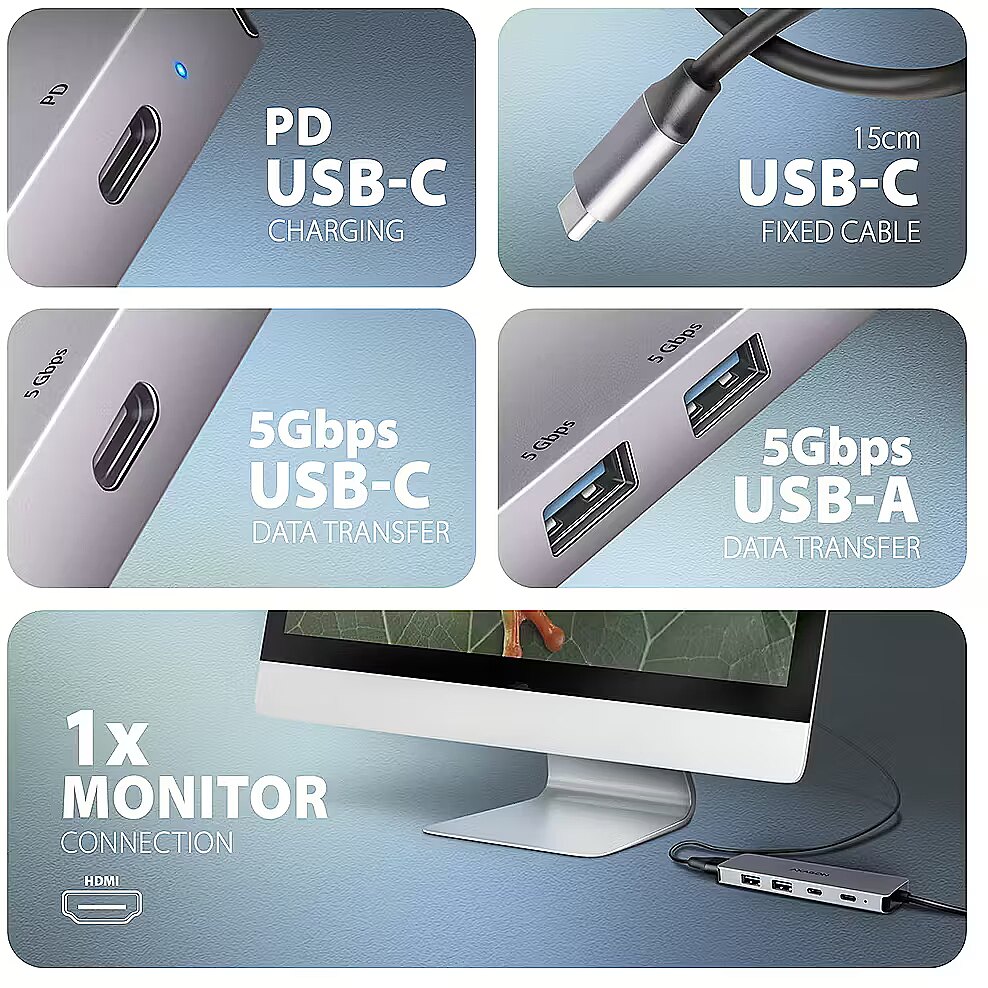

• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector.
• Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4. Input (power supply):
• USB Power Delivery 3.0 - 100W port, USB-C female connector.
• Charging of the notebook from the power adapter via USB-C hub.
• PD power must be supported by both the laptop (phone) and the wall charger. USB outputs:
• 2x USB 5Gbps port, USB-A female connector.
• 1x USB 5Gbps port, USB-C female connector.
• USB-C hub can handle the connection of several external drives at the same time.
• Charging of mobile devices (including iPad) with a current of up to 1.5A/5V from the hub's USB-A and USB-C ports. Video output:
• 1x HDMI A port, HDMI A female connector.
• 4K resolution 4096 x 2160 at up to 60Hz. • 2K / WQHD resolution 2560 x 1440 at up to 120Hz. • FHD resolution 1920 x 1080 at up to 240Hz.
• Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
• For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port supporting Thunderbolt 3/4. A suitable OS is also required. The video output function will not be available without these requirements.
• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• Full support for HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection).
• Support for up to 2-channel LPCM audio.
• Support for 2-channel audio sampling rate up to 192 kHz and up to 24-bit audio - depends on source and end device, i.e. laptop/phone and TV/monitor/AV receiver. Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Sleep mode support. • Power via USB bus - USB bus power or from PD wall charger.
• Heavy-duty aluminium body for better hub cooling.
• The LED indicates with constant light the hub connection to the computer.
• The high quality shielded cable ensures high communication speed and minimal undesirable interference.
• Dimensions 110 x 32 x 11 mm.
• Weight 52 g (incl. cable). • USB cable length 15 cm. Supported operating systems:
• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android. • Compatibility depends on the operating system and device manufacturer support.
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone) manufacturer.
• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers. Package contains:
• USB-C hub with fixed 15 cm long cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
• packed in a cardboard box with a hanging hole.
Description - The multi-port USB-C 5Gbps AXAGON HMC-5H60 5in1 hub expands your laptop, computer or phone with five ports. Via the double-sided USB-C connector, you can quickly and easily connect a monitor and three USB devices to the computer at the same time. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will thus provide you with a simple and compact 5in1 docking station for modern laptops. The USB hub offers three USB 5Gbps outputs, two with standard USB-A and a third with USB-C data connector. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5A/5V current. From the hub, you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc. Another USB-C (PD) connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port. HDMI output provides high quality image up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120Hz or FullHD/240Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 port and above. The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints. USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub does not afraid of connection to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone. Input (connection to laptop):
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector.
Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4. Input (power supply):
USB Power Delivery 3.0 - 100W port, USB-C female connector.
Charging of the notebook from the power adapter via USB-C hub.
PD power must be supported by both the laptop (phone) and the wall charger. USB outputs:
2x USB 5Gbps port, USB-A female connector.
1x USB 5Gbps port, USB-C female connector.
USB-C hub can handle the connection of several external drives at the same time.
Charging of mobile devices (including iPad) with a current of up to 1.5A/5V from the hub's USB-A and USB-C ports. Video output:
1x HDMI A port, HDMI A female connector.
4K resolution 4096 x 2160 at up to 60Hz.
2K / WQHD resolution 2560 x 1440 at up to 120Hz.
FHD resolution 1920 x 1080 at up to 240Hz.
Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port supporting Thunderbolt 3/4. A suitable OS is also required. The video output function will not be available without these requirements.
HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support.
TMDS (Transition Minimized Differential Signalling) support.
Full support for HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection).
Support for up to 2-channel LPCM audio.
Support for 2-channel audio sampling rate up to 192 kHz and up to 24-bit audio - depends on source and end device, i.e. laptop/phone and TV/monitor/AV receiver. Other features:
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Sleep mode support.
Power via USB bus - USB bus power or from PD wall charger.
Heavy-duty aluminium body for better hub cooling.
The LED indicates with constant light the hub connection to the computer.
The high quality shielded cable ensures high communication speed and minimal undesirable interference.
Dimensions 110 x 32 x 11 mm.
Weight 52 g (incl. cable).
USB cable length 15 cm. Supported operating systems:
Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on the operating system and device manufacturer support.
DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone) manufacturer.
Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers. Package contains:
USB-C hub with fixed 15 cm long cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
packed in a cardboard box with a hanging hole.
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 200 mm
Dimensions - 110 x 32 x 11 mm
dimension weight - 47 g
dimension width - 95 mm
Docking connector - No
EAN - 8595247908049
ean - 8595247908049
EAN Code - 8595247908049
Ethernet LAN Network - No
External Color - Gray
GTIN - 8595247908049
guarantee - 24
guarantee_type - normal
HDCP Ports & interfaces - Yes
HDCP version Ports & interfaces - 1.4/2.2
HDMI - 1 (HDMI (Type A))
HDMI ports quantity Ports & interfaces - 1
HD type Performance - 4K Ultra HD
Height (mm) - 11 mm
Height Weight & dimensions - 11 mm
High Dynamic Range (HDR) supported Performance - Yes
Host interface Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hot-Plug support Performance - Yes
Housing material Performance - Aluminium
Hub interfaces Performance - HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
I/O ports - 1 x HDMI Type A
I/O ports - 1 x USB 3.0 Type C
I/O ports - 1 x USB Power
I/O ports - 2 x USB 3.0 Type A
Included Accessories - Īsa lietotāja rokasgrāmata
Interface - USB Type C
LED indicators Performance - Yes
Link - https://www.axagon.eu/en/produkty/hmc-5h60
Linux operating systems supported Software - Yes
LongDesc - The multi-port USB-C 5Gbps AXAGON HMC-5H60 5in1 hub expands your laptop, computer or phone with five ports. Via the double-sided USB-C connector, you can quickly and easily connect a monitor and three USB devices to the computer at the same time. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will thus provide you with a simple and compact 5in1 docking station for modern laptops.The USB hub offers three USB 5Gbps outputs, two with standard USB-A and a third with USB-C data connector. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5A/5V current. From the hub, you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc.Another USB-C (PD) connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.HDMI output provides high quality image up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120Hz or FullHD/240Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 port and above.The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints.USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub does not afraid of connection to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.Input (connection to laptop):• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector.• Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4.Input (power supply):• USB Power Delivery 3.0 - 100W port, USB-C female connector.• Charging of the notebook from the power adapter via USB-C hub.• PD power must be supported by both the laptop (phone) and the wall charger.USB outputs:• 2x USB 5Gbps port, USB-A female connector.• 1x USB 5Gbps port, USB-C female connector.• USB-C hub can handle the connection of several external drives at the same time.• Charging of mobile devices (including iPad) with a current of up to 1.5A/5V from the hub's USB-A and USB-C ports.Video output:• 1x HDMI A port, HDMI A female connector.• 4K resolution 4096 x 2160 at up to 60Hz. • 2K / WQHD resolution 2560 x 1440 at up to 120Hz. • FHD resolution 1920 x 1080 at up to 240Hz.• Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.• For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port supporting Thunderbolt 3/4. A suitable OS is also required. The video output function will not be available without these requirements.• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.• HPD (Hot-Plug-Detect) support.• TMDS (Transition Minimized Differential Signalling) support.• Full support for HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection).• Support for up to 2-channel LPCM audio.• Support for 2-channel audio sampling rate up to 192 kHz and up to 24-bit audio - depends on source and end device, i.e. laptop/phone and TV/monitor/AV receiver.Other features:• Possibility to connect your device while running thanks to the Hot Plug support.• Full Plug and Play support.• Sleep mode support. • Power via USB bus - USB bus power or from PD wall charger.• Heavy-duty aluminium body for better hub cooling.• The LED indicates with constant light the hub connection to the computer.• The high quality shielded cable ensures high communication speed and minimal undesirable interference.• Dimensions 110 x 32 x 11 mm.• Weight 52 g (incl. cable). • USB cable length 15 cm.Supported operating systems:• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android. • Compatibility depends on the operating system and device manufacturer support.• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone) manufacturer.• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.Package contains:• USB-C hub with fixed 15 cm long cable,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,• packed in a cardboard box with a hanging hole.
LongProductName - HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable
LongSummaryDescription - Axagon HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Output voltage: 20 V. Width: 110 mm, Depth: 32 mm, Height: 11 mm. Quantity per pack: 1 pc(s), Package width: 94 mm, Package depth: 20 mm
Mac operating systems supported Software - Yes
Manual Packaging content - Yes
Maximum digital resolution Performance - 4096 x 2160 pixels
Maximum refresh rate Performance - 240 Hz
Microphone in Ports & interfaces - No
Mobile operating systems supported Software - Yes
Model - HMC-5H60
name - AXAGON HMC-5H60 USB-C 3.2 Gen 1 hub, 2x USB-A, 1x USB-C, 4K 60Hz HDMI, PD 100W, 15cm USB-C cable
Name - AXAGON USB-C 5Gbps 5in1 Hub | HMC-5H60
name - HMC-5H60 2xUSB-A HDMI4K 1x USB-C PD100W USB-C
Network - Ethernet LAN - No
Nominal Weight - 52 g
Other features -
Other operating systems supported Software - Yes
Output current Power - 5 A
Output voltage Power - 20 V
Package depth Packaging data - 20 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 20.00 mm
Package features > Gross height (mm) - 173.00 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 27.20 g
Package features > Plastic (No PET) - 6.80 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 173 mm
Package Type - Retail
Package weight Packaging data - 86 g
Package width Packaging data - 94 mm
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging data - Package depth - 20 mm
Packaging data - Package height - 173 mm
Packaging data - Package weight - 86 g
Packaging data - Package width - 94 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.06 kg
Pack Weight Netto (kg) - 0.035 kg
Performance - Brand compatibility - Universal
Performance - Card reader integrated - No
Performance - Certification - CE, RoHS
Performance - Charging function - Yes
Performance - Country of origin - China
Performance - Data transfer rate - 5 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - High Dynamic Range (HDR) supported - Yes
Performance - Hot-Plug support - Yes
Performance - Housing material - Aluminium
Performance - Hub interfaces - HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Performance - LED indicators - Yes
Performance - Maximum digital resolution - 4096 x 2160 pixels
Performance - Maximum refresh rate - 240 Hz
Performance - Plug and Play - Yes
Performance - Product colour - Grey
Pieces in pack - 1
Plug and Play Performance - Yes
Ports & interfaces - Combo headphone/mic port - No
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 1.4/2.2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 100 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - Output current - 5 A
Power - Output voltage - 20 V
Power - Power connector - USB Type-C
Power - Power source type - USB
Power - USB cable length - 0.15 m
Power - Wireless charging - No
Power connector Power - USB Type-C
Power source type Power - USB
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240708155443439845&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - HMC-5H60
Product colour Performance - Grey
ProductDescription - AXAGON HMC-5H60 USB-C 3.2 Gen 1 hub, 2x USB-A, 1x USB-C, 4K 60Hz HDMI, PD 100W, 15cm USB-C cable
ProductName - HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable
ProductType - Cables USB
Provides Ports - USB HDMI
Quantity per pack Packaging data - 1 pc(s)
Retail Packaging Net Weight Carton - 0.005 kg
Retail Packaging Net Weight Plastic - 0.002 kg
Server operating systems supported Software - Yes
ShortSummaryDescription - Axagon HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4/2.2, Grey, 5 Gbit/s
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Mobile operating systems supported - Yes
Software - Other operating systems supported - Yes
Software - Server operating systems supported - Yes
Software - Windows operating systems supported - Yes
Summary - Axagon HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Output voltage: 20 V. Width: 110 mm, Depth: 32 mm, Height: 11 mm. Quantity per pack: 1 pc(s), Package width: 94 mm, Package depth: 20 mm
System Requirements -
Technical details - Compliance certificates - RoHS, CE
Technical details - Warranty period - 2 year(s)
Technical details > Gross weight - 0.09 kg
Technical details > Net weight - 0.05 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - USB-C 5Gbps 5in1 Hub
Technical details > Producer product name - HMC-5H60
Title - Axagon HMC-5H60 USB 5Gbps hub, 2x USB-A, 1x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable
Unit Box Height - 0.195
Unit Box Length - 0.02
Unit Box Width - 0.095
Unit Calculated Volume - 0.0003705 cubm
Unit Calculated Weight - 0.08 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/hmc-5h60
USB - 2 (USB Type-A); 2 (USB Type C)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Ports & interfaces - 2
USB cable length Power - 0.15 m
USB Power Delivery (USB PD) Ports & interfaces - Yes
USB Power Delivery revision Ports & interfaces - 3.0
USB Power Delivery up to Ports & interfaces - 100 W
USB Type-C DisplayPort Alternate Mode Ports & interfaces - Yes
Vendor - AXAGON
Vendor Homepage - https://www.axagon.eu/en/produkty/hmc-5h60
vendpn - HMC-5H60
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty period Technical details - 2 year(s)
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 52 g
Weight & dimensions - Depth - 32 mm
Weight & dimensions - Height - 11 mm
Weight & dimensions - Weight - 52 g
Weight & dimensions - Width - 110 mm
Weight Weight & dimensions - 52 g
Width (mm) - 32 mm
Width Weight & dimensions - 110 mm
Windows operating systems supported Software - Yes
Wireless charging Power - No
