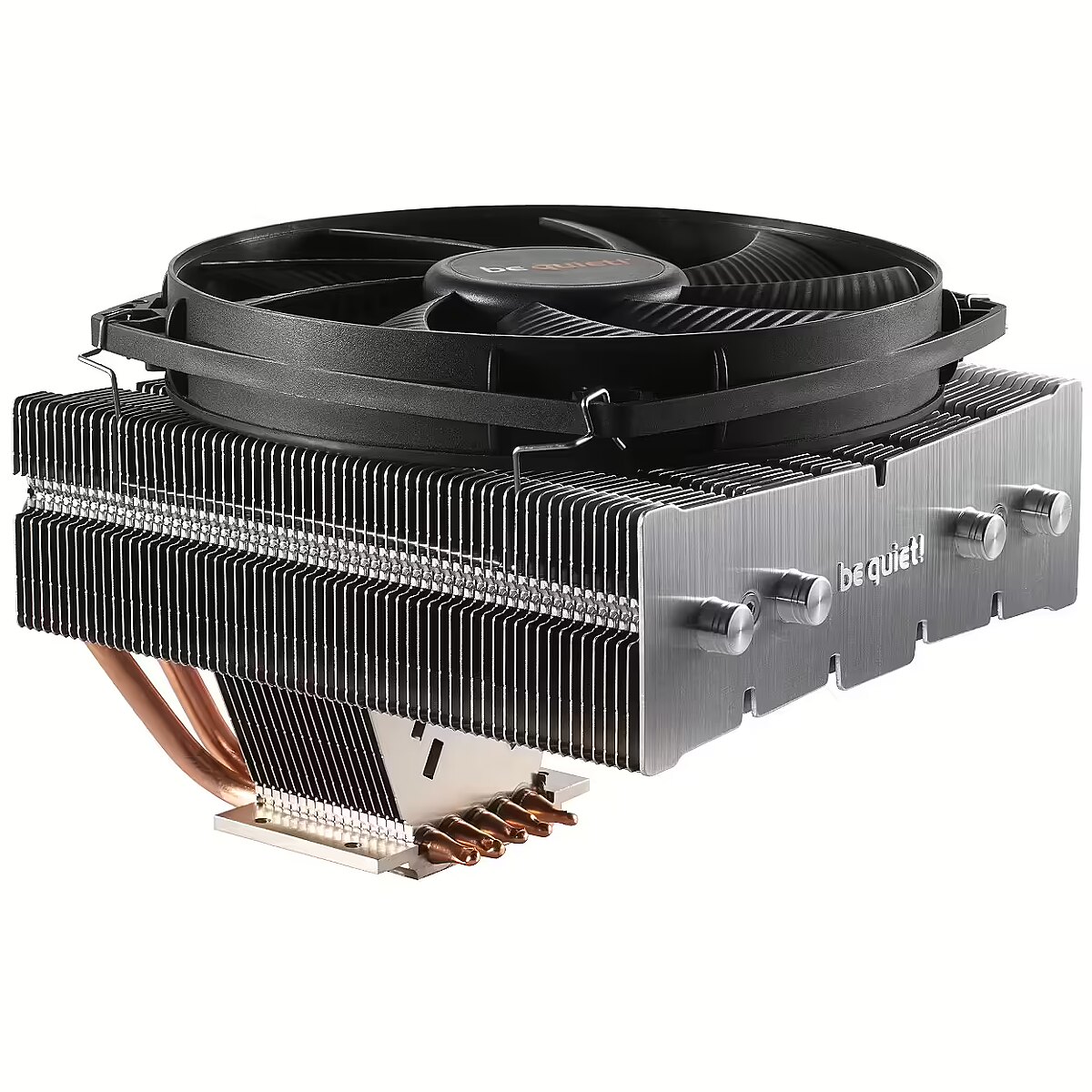

Be Quiet Shadow Rock TF 2, CPU Cooler

Brand - be quiet!
BrandPartCode - BK003
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category 1 - CPUs
Category 2 - CPU Kühler & Zubehör
Design - Display type - Not applicable
Design - Fan connector - 4-pin
Design - Fins material - Aluminium
Design - Illumination LED - No
Design - Material - Aluminium, Copper
Design - Number of fan blades - 9
Design - Number of fans - 1 fan(s)
Design - Number of fins - 57
Design - Number of heat pipes - 5
Design - Product colour - Black, Copper, Silver
EAN - 4260052185391
Eans - 4260052185391
GTIN - 4260052185391
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - SHADOW ROCK TF 2Compact Cooling, Significantly QuietShadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.HIGH-PERFORMANCE HEATPIPESOffering the system an impressive cooling performance Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.DIRECT CONNECTION OF BASE PLATE AND FINS For highly effective cooling powerAn ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.EXTREMELY SILENCE-OPTIMIZED OPERATIONEven at 100% fan speed the overall noise is merely 24.4dB(A)Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the 9 airflow-optimized fan blades and durable rifle-bearing technology.SMALL, DIAGONALLY ARRANGED FINSProduce the perfect airflowThe small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.SPACE-SAVING TOP-FLOW DESIGNBenefit from this highly functional conceptThe top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem
LongProductName - Shadow Rock TF 2, 160W TDP, 135mm
LongSummaryDescription - be quiet! Shadow Rock TF 2. Type: Cooler, Fan diameter: 13.5 cm, Rotational speed (min): 1400 RPM, Rotational speed (max): 2000 RPM, Airflow: 113.8 m³/h, Maximum air pressure: 2.1 mmH2O, Bearing type: Rifle bearing. Width: 137 mm, Depth: 165 mm, Height: 112 mm. Product colour: Black, Copper, Silver
Manufacturer - Be Quiet!
MPN - BK003
Name - be quiet! Shadow Rock TF2
Name - K Cooler Multi be quiet! Shadow Rock TF2 | FMx.AM3/4.115x; 1200.2011 TDP 160W
Other features - Heatsink dimensions (W x D x H) - 165 x 137 x 87 mm
Packaging content - Screws included - Yes
Packaging content - Thermal pad included - Yes
Performance - Airflow - 113.8 m³/h
Performance - Bearing type - Rifle bearing
Performance - Fan diameter - 13.5 cm
Performance - Maximum airflow - 67.8 cfm
Performance - Maximum air pressure - 2.1 mmH2O
Performance - Noise level (high speed) - 24.4 dB
Performance - Noise level (low speed) - 11.9 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 1400 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+
Performance - Type - Cooler
Power - Power supply - 1.32 W
Power - Rated current - 0.11 A
Power - Rated voltage - 12 V
Producer - be quiet!
ProducerCode - BK003
ProductName - Shadow Rock TF 2
ShortDescription -
ShortSummaryDescription - be quiet! Shadow Rock TF 2, Cooler, 13.5 cm, 1400 RPM, 2000 RPM, 113.8 m³/h, Black, Copper, Silver
Title - be quiet! Shadow Rock TF 2 Processor Cooler 13.5 cm Black, Copper, Silver
URL - https://www.bequiet.com/en/cpucooler/1074
WarrantyInfo - 3-year
Weight - 1.2
Weight & dimensions - Cable length - 0.2 m
Weight & dimensions - Depth - 165 mm
Weight & dimensions - Fan dimensions (W x D x H) - 135 x 135 x 22 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 112 mm
Weight & dimensions - Package depth - 203 mm
Weight & dimensions - Package height - 130 mm
Weight & dimensions - Package weight - 1.09 kg
Weight & dimensions - Package width - 178 mm
Weight & dimensions - Weight - 680 g
Weight & dimensions - Width - 137 mm
