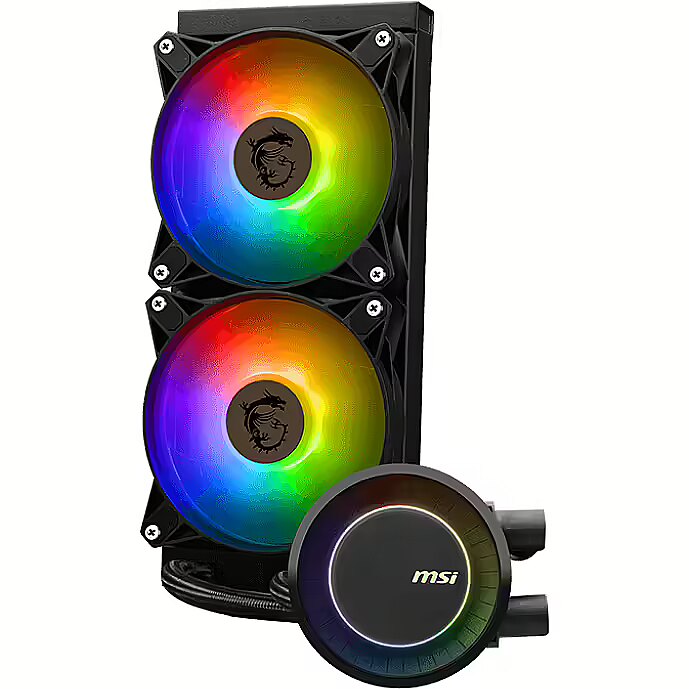

MSI MAG CoreLiquid E240

Accessories included - Fan PWM Cable 1 to 2 x 1 Molex 4-Pin to 4-Pin Fan Cable x 1 Thermal paste x 1
Air flow rates - 75.04 cfm
Brand - MSI
BrandPartCode - MAG CORELIQUID E240
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1700
CPU socket - Socket AM4
CPU socket - Socket AM5
Description - MAG CORELIQUID E240 cooling The enlarged copper base surface helps achieve the highest heat transfer with the latest generation of processors. Maximize micro channels for efficient heat dissipation 270 degree rotatable water block cap. The ARGB fan can change the lighting via MSI center. Increased fan efficiency for rapid heat dissipation. The pump separates cold and hot water areas to avoid mixing water temperatures and effectively reduce the heat source. The durable three-phase pump motor generates minimal vibrations, ensuring long-lasting operation. The path distributed by the heat sink quickly dissipates heat.
Design - Fan connector - 4-pin
Design - Illumination LED - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
Designation - CE+WEEE
dimension depth - 145 mm
dimension height - 210 mm
Dimensions - Fan dimensions: 120x120x25mm Cable length (5V ARGB/PWM cable): 550/500 mm Heatsink size: 240mm Radiator dimensions: 277 x 119.2 x 27 mm Water cooling tube length: 400 mm
dimension weight - 1990 g
dimension width - 370 mm
ean - 4711377115728
Eans - 4711377115728
Fan - 12 cm
Fan speed (max) - 600 rpm
Fan speed (min) - 2000 rpm
GTIN - 4711377115728
guarantee - 36
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - MAG - Unite as OneThe MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.ROTATABLE BLOCKHEADMount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.ACHIEVE FULL CPU COVERAGEBy enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.PUMP COOLING DESIGNEnsures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.HIGH THERMAL DISSIPATIONThe radiator has a 12 pathway designed to help rapidly dissipate heat.EVAPORATION PROOF TUBINGThe multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.FAN CONSTRUCTIONThe fan's FDB bearing helps reduce noise level while minimizing vibrations.The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.INTEGRATING WITH THE SYSTEM ENVIRONMENTWith the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.GLOW YOUR PCSplash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
LongProductName - 240 mm, 4-pin, ARGB, 20 dBA, 3000 RPM, 120 x 120 x 25mm
LongSummaryDescription - MSI MAG Coreliquid E240. Type: Liquid cooling kit, Fan diameter: 12 cm. Product colour: Black
name - MAG CORELIQUID E240 240mm 2xARGB FAN
Name - MSI MAG CORELIQUID E240
Noise - 32.5 dB
Number of fans - 2
Other features -
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 75.04 cfm
Performance - Minimum airflow (imperial) - 25.5 cfm
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed - 3000 RPM
Performance - Pump noise level - 20 dB
Performance - Suitable location - Motherboard, Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700
Performance - Type - Liquid cooling kit
Power - Fan power consumption - 3 W
Power - Pump power consumption - 4.8 W
producer - MSI
Producer - MSI
ProducerCode - 306-7ZW5E17-C24
ProductName - Coreliquid E240
Radiator - Aluminium
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG Coreliquid E240, Liquid cooling kit, 12 cm, Black
Stand / CPU block - Copper
Title - MSI MAG Coreliquid E240 Motherboard, Processor Liquid cooling kit 12 cm Black
Type of cooling - Active
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-E240
vendpn - MAG CORELIQUID E240
WarrantyInfo -
Weight & dimensions - Cable length - 500 m
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Radiator depth - 11.9 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 27.7 cm
