Air flow - 56.3 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00137A
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans

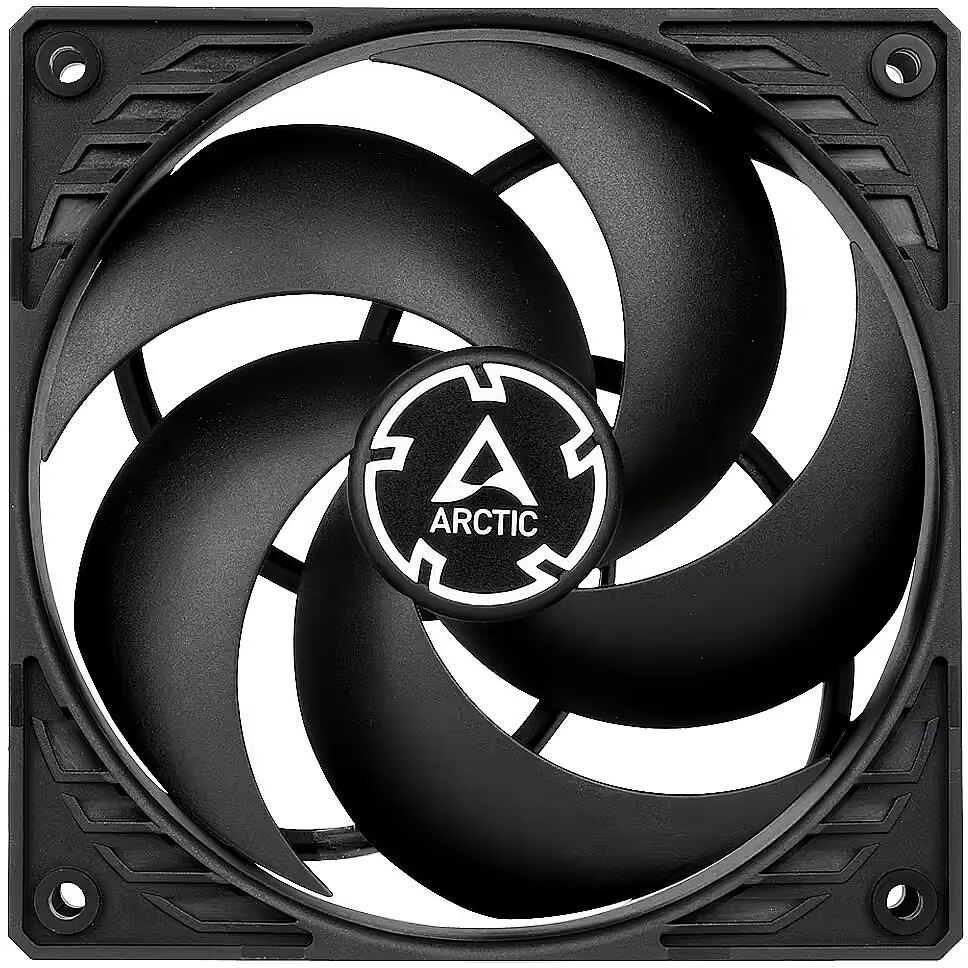

Description - P12 PWM PST Pressure-optimised 120 mm Fan with PWM PST STRONG COOLING PERFORMANCE MORE EFFICIENT TECHNOLOGY The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 5 fan(s)
Design - Product colour - Black
Dimensions - 120x120x25mm
Eans - 4895213701624
EAN_code - 4895213701624
Fan size group - 120mm
Fan speed - 200 - 1800 rpm
GTIN - 0872767009561
GTIN - 872767009561
GTIN - 4895213701624
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 200 - 1800 RPM, PWM, 56.3 CFM, 95.65 m3/h, 12 V DC, 4-pin + 4-pin, 145 g, black/black, Value Pack
LongSummaryDescription - ARCTIC P12 PWM PST Value Pack (Schwarz/Schwarz) 120 mm PWM PST Lüfter optimiert für statischen Druck. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Airflow: 95.65 m³/h, Maximum air pressure: 2.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Arctic
Manufacturer_code - ACFAN00137A
Model name - P12 PWM PST
Name - Arctic P12 PWM PST 120x120x25, case fan (black, pack of 5)
Name - Arctic P12 PWM PST wentylator - 120mm, 5-pack
Other features - Country of origin - China
Packaging content - Number of screws - 20
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56.3 cfm
Performance - Maximum air pressure - 2.2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 0.96 W
Power - Rated current - 0.08 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
Producer - Arctic
ProducerCode - ACFAN00137A
ProductName - P12 PWM PST Value Pack (Schwarz/Schwarz) 120 mm PWM PST Lüfter optimiert für statischen Druck
Product Net Weight - 0.145 kg
ShortDescription -
ShortSummaryDescription - ARCTIC P12 PWM PST Value Pack (Schwarz/Schwarz) 120 mm PWM PST Lüfter optimiert für statischen Druck, Fan, 12 cm, 200 RPM, 1800 RPM, 0.3 sone, 95.65 m³/h
Technical_details - When developing the Arctic P12 PWM, particular emphasis was placed on a focused airflow and thus a high static pressure. The fan offers extremely efficient cooling, even with increased air resistance. The P12 PWM is therefore particularly suitable for use on heat sinks and radiators. Item no.: 1856942 Fan type Color: Black EAN 4895213701624 Manufacturer no. ACFAN00137A Type of case fan Quantity 5 pieces Use for PC cases Fastening screwed Volume 0.3 sone Speed 200 to 1,800 rpm Fan bearing FDB - Fluid Dynamic Bearing Flow rate 95.65 m3/h (56.3 cfm) Air pressure up to 2.4 mm/H2O Power connection 4-pin PWM, 5.25" - 4 pin connection Voltage range 3.9 - 12 volts Cable length 40 cm Dimensions Fan1 quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm
Title - ARCTIC P12 PWM PST Value Pack (Schwarz/Schwarz) 120 mm PWM PST Lüfter optimiert für statischen Druck
Unit Box Height - 0.13
Unit Box Length - 0.13
Unit Box Width - 0.12
Unit Calculated Volume - 0.002767 cubm
Unit Calculated Weight - 0.858 kg
Units per Shipping Box - 12
URL - https://www.arctic.ac/eu_en/p12-pwm-pst.html
Vendor Homepage - www.arctic.de/en/P12-PWM-PST/ACFAN00137A
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0,81
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 127 mm
Weight & dimensions - Package height - 123 mm
Weight & dimensions - Package weight - 800 g
Weight & dimensions - Package width - 130 mm
Weight & dimensions - Weight - 145 g
Weight & dimensions - Width - 120 mm
