Air flow - 56.3 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00170A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Code - ACFAN00170A
code - ACFAN00170A
Colour - White
Desc - Ligdza (socket): 4-pin, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 1800 apgr.min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi

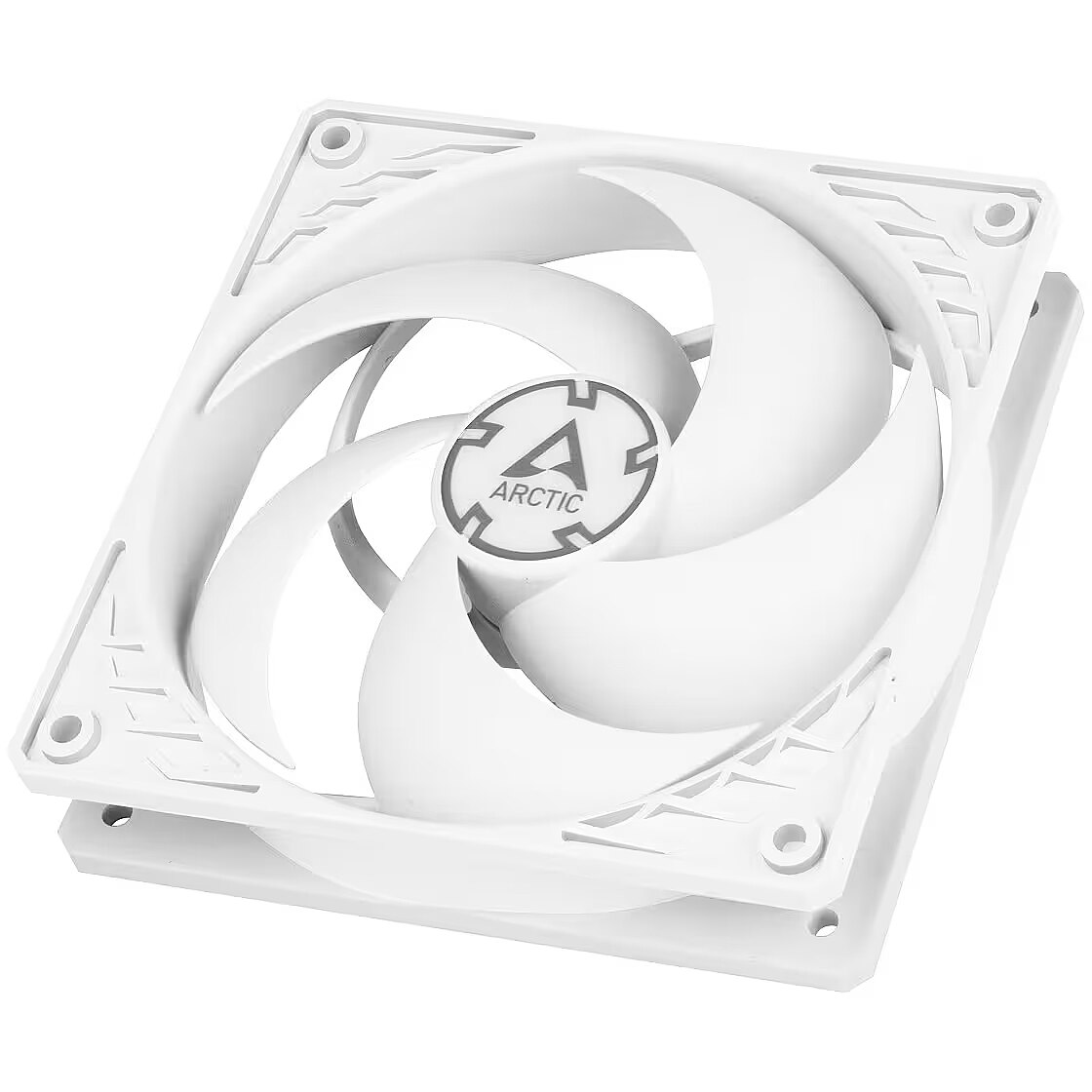

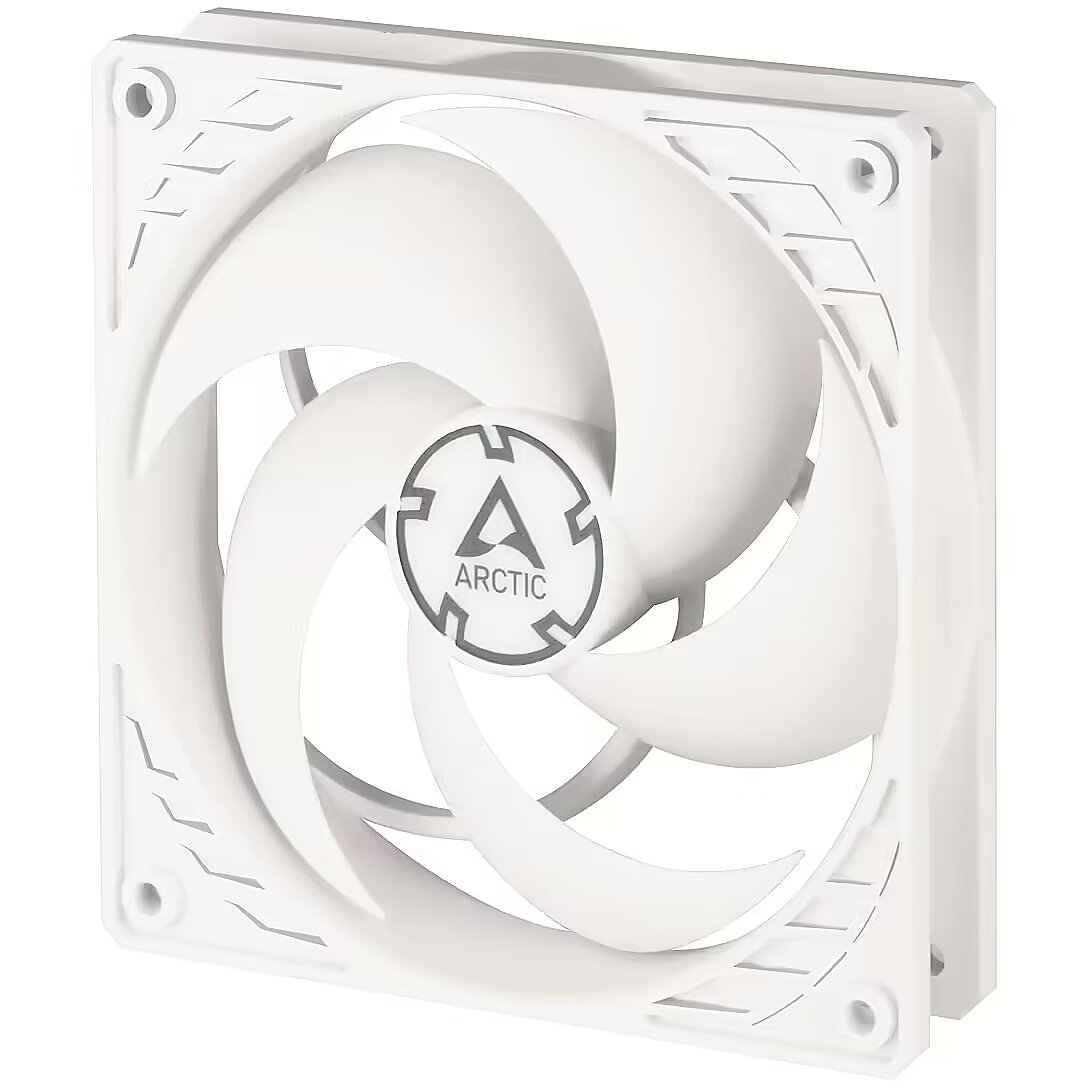

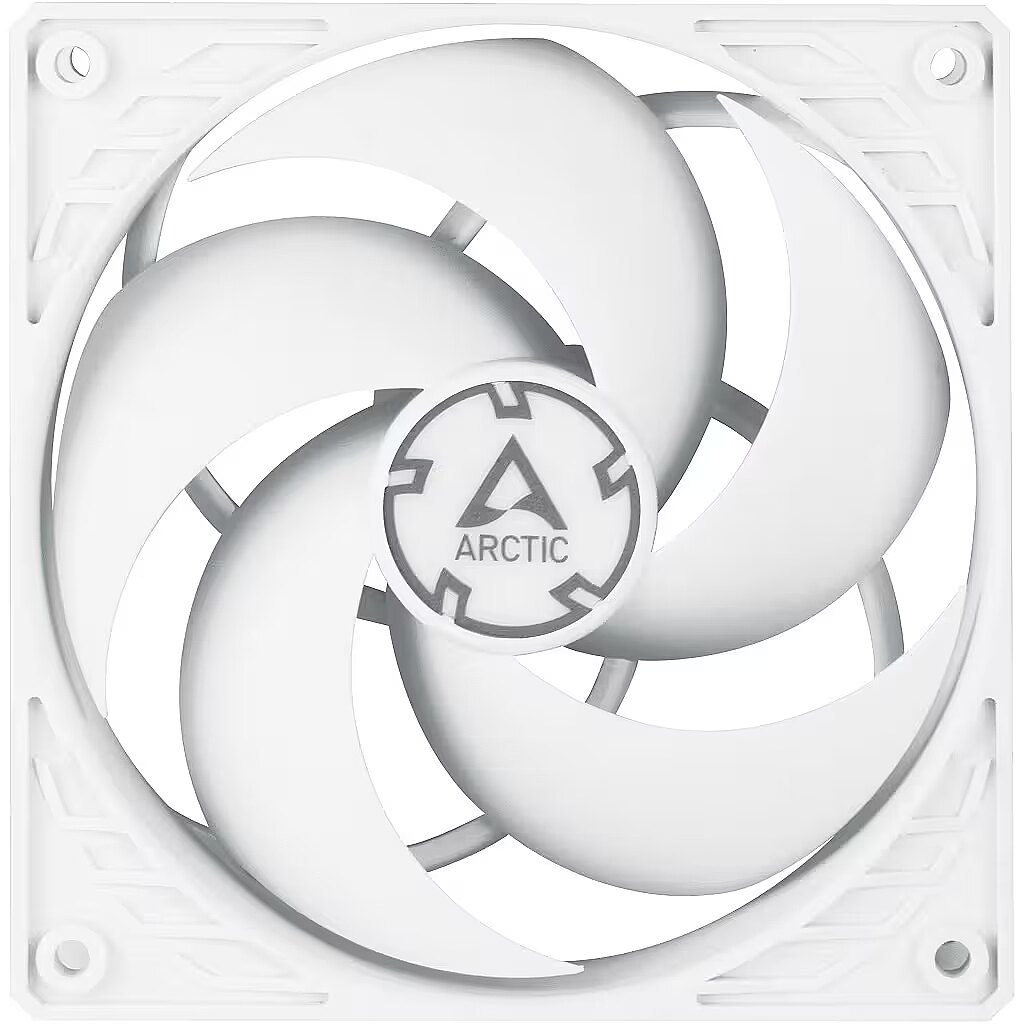

Description - P12 PWM PST Pressure-optimised 120 mm Fan with PWM PST During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

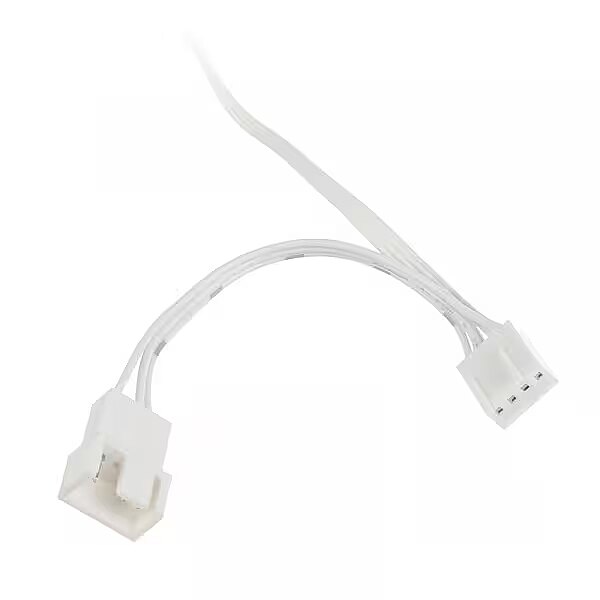

Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - White
Dimensions - 120x120x25mm
EAN - 4895213702263
ean - 4895213702263
Fan size group - 120mm
Fan speed - 200 - 1800 rpm
Full Description Line - P12 PWM PST|Air flow 56.3 cfm|Colour White|Dimensions 120x120x25mm
GTIN - 4895213702263
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_115027_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 200 - 1800 RPM, PWM, 56.3 CFM, 95.65 m3/h, 12 V DC, 4-pin + 4-pin, 145 g, white/white
LongSummaryDescription - ARCTIC P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Airflow: 95.65 m³/h, Maximum air pressure: 2.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: White
Manufacturer - ARCTIC
Model - ACFAN00170A
Model name - P12 PWM PST
MPN - ACFAN00170A
Name - ARCTIC P12 PWM PST Gehuselfter 120mm.white
name - Arctic P12 PWM PST Lüfter, weiß - 120mm
Name - Dzesētājs Arctic P12 PWM PST White
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56.3 cfm
Performance - Maximum air pressure - 2.2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 0.96 W
Power - Rated current - 0.08 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
ProductName - P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST
Product Net Weight - 0.145 kg
Shipping Box Depth Shipping/Package Box Dimensions - 39 cm
Shipping Box Height Shipping/Package Box Dimensions - 51 cm
Shipping Box Weight Shipping/Package Box Dimensions - 12.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 18 cm
ShortSummaryDescription - ARCTIC P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST, Fan, 12 cm, 200 RPM, 1800 RPM, 0.3 sone, 95.65 m³/h
Title - ARCTIC P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST
Unit Box Height - 0.03
Unit Box Length - 0.125
Unit Box Width - 0.125
Unit Calculated Volume - 0.0004972 cubm
Unit Calculated Weight - 0.178 kg
Units per Shipping Box - 72
URL - https://www.arctic.ac/eu_en/p12-pwm-pst.html
Vendor Homepage - www.arctic.de/en/P12-PWM-PST/ACFAN00170A
Warranty - 24 months
WarrantyInfo - 10 years
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 123 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 176 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 145 g
Weight & dimensions - Width - 120 mm
