Air flow - 56.3 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00120A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - ACFAN00120A
Colour - Black

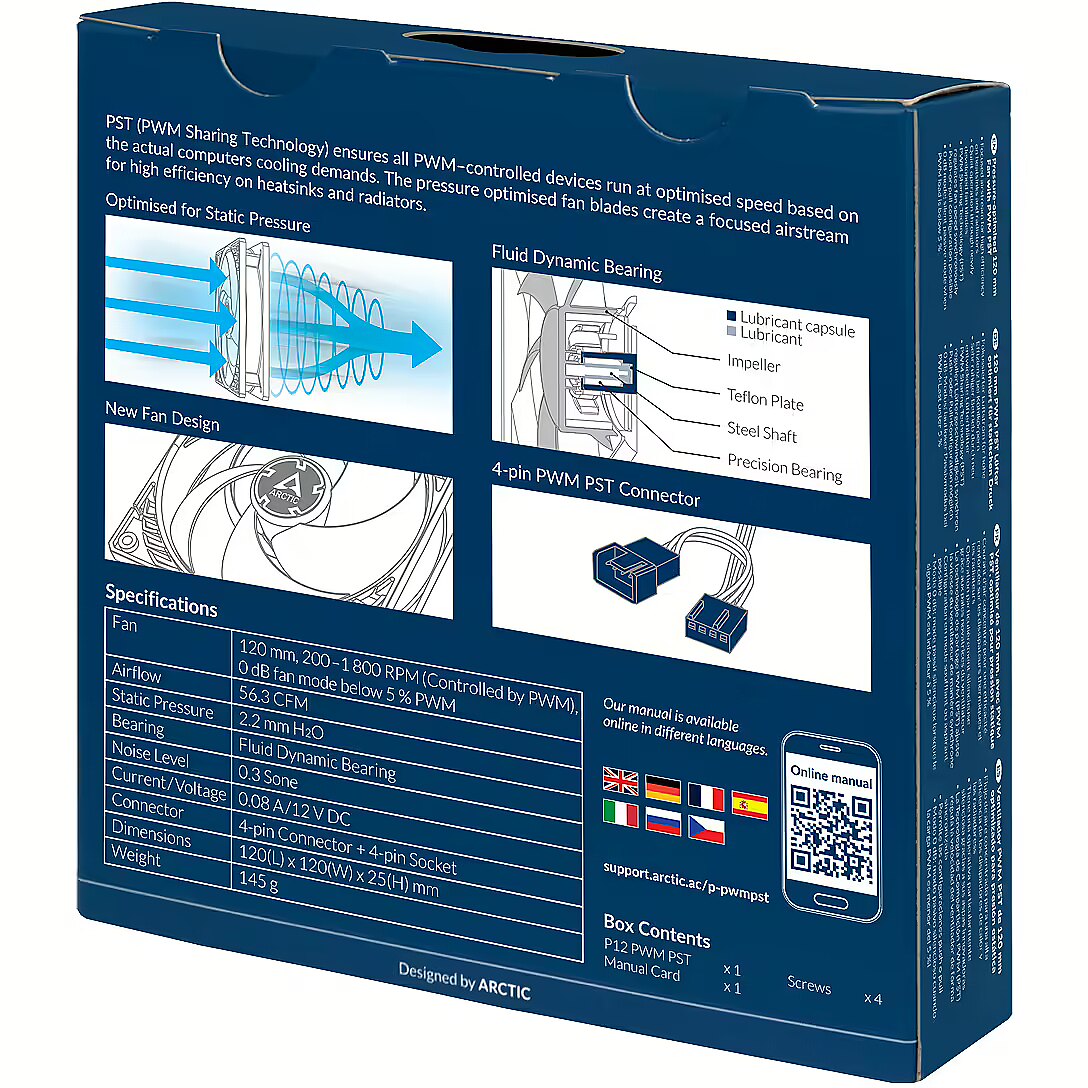

Description - P12 PWM PST Pressure-optimised 120 mm Fan with PWM PST During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

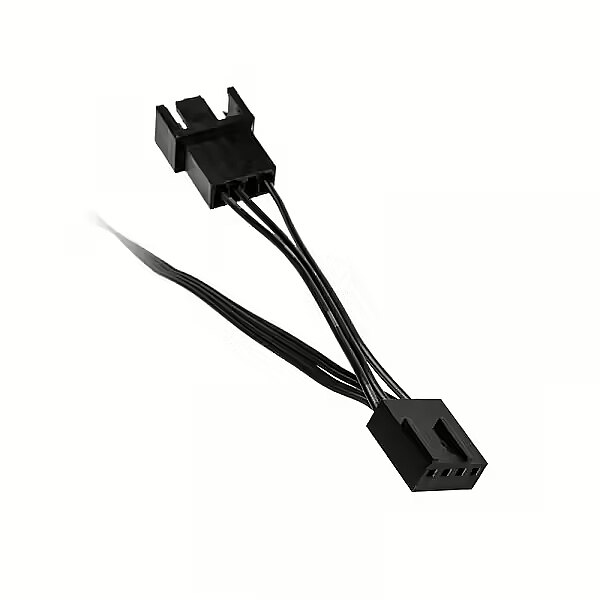

Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black

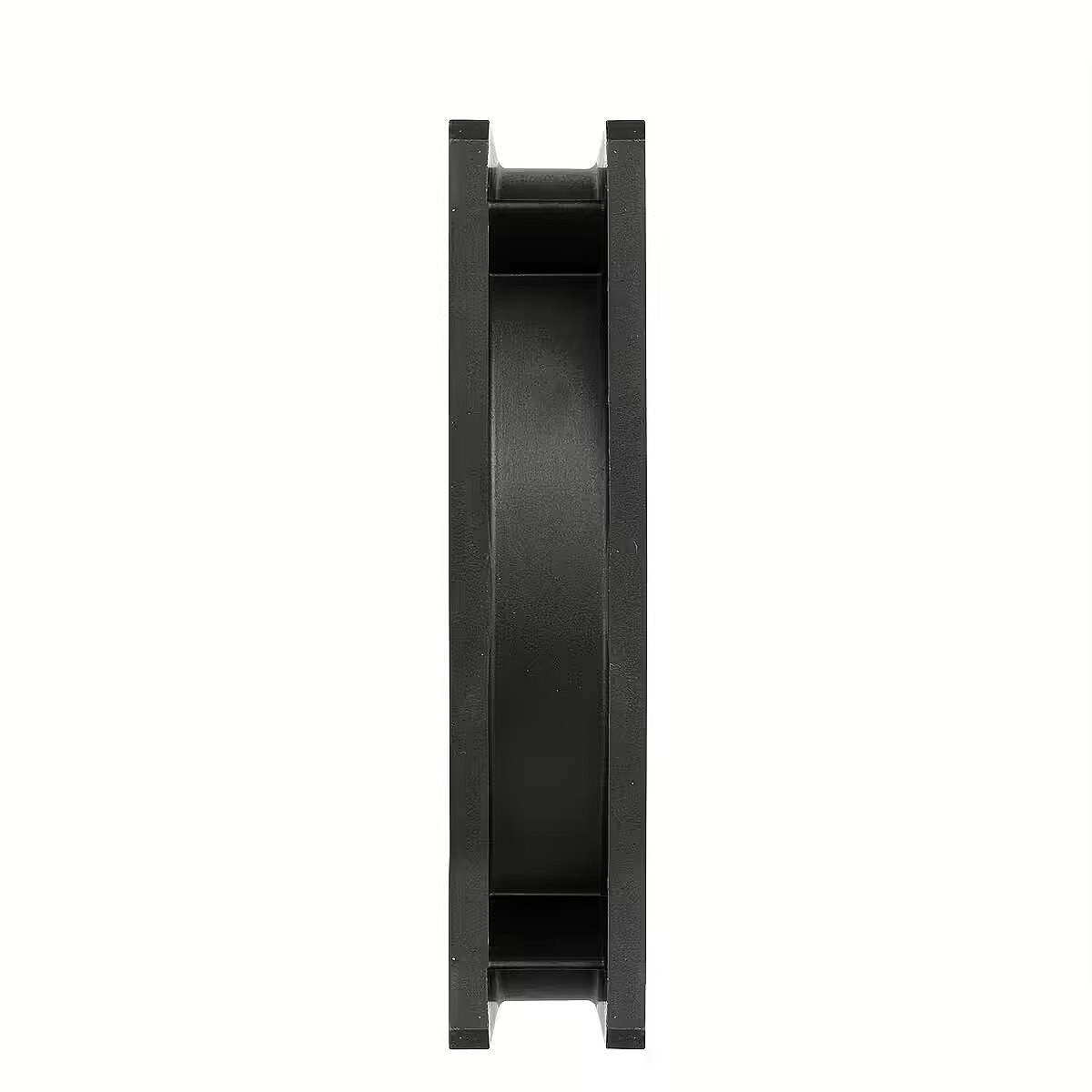

Dimensions - 120x120x25mm
ean - 4895213701310
Eans - 4895213701310
EAN_code - 4895213701310
Fan size group - 120mm
Fan speed - 200 - 1800 rpm
GTIN - 0872767009271
GTIN - 872767009271
GTIN - 4895213701310
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 200 - 1800 RPM, PWM, 56.3 CFM, 95.65 m3/h, 12 V DC, 4-pin + 4-pin, 145 g, black/black
LongSummaryDescription - ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Airflow: 95.65 m³/h, Maximum air pressure: 2.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Manufacturer - Arctic
Manufacturer_code - ACFAN00120A
Model name - P12 PWM PST
Name - Arctic P12 PWM PST black 120x120x25 - ACFAN00120A
name - Arctic P12 PWM PST Lüfter, schwarz - 120mm
Name - Arctic P12 PWM PST wentylator, czarny - 120mm
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56.3 cfm
Performance - Maximum air pressure - 2.2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 0.96 W
Power - Rated current - 0.08 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
Producer - Arctic
ProducerCode - ACFAN00120A
ProductName - P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
Product Net Weight - 0.145 kg
ShortDescription -
ShortSummaryDescription - ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST, Fan, 12 cm, 200 RPM, 1800 RPM, 0.3 sone, 95.65 m³/h

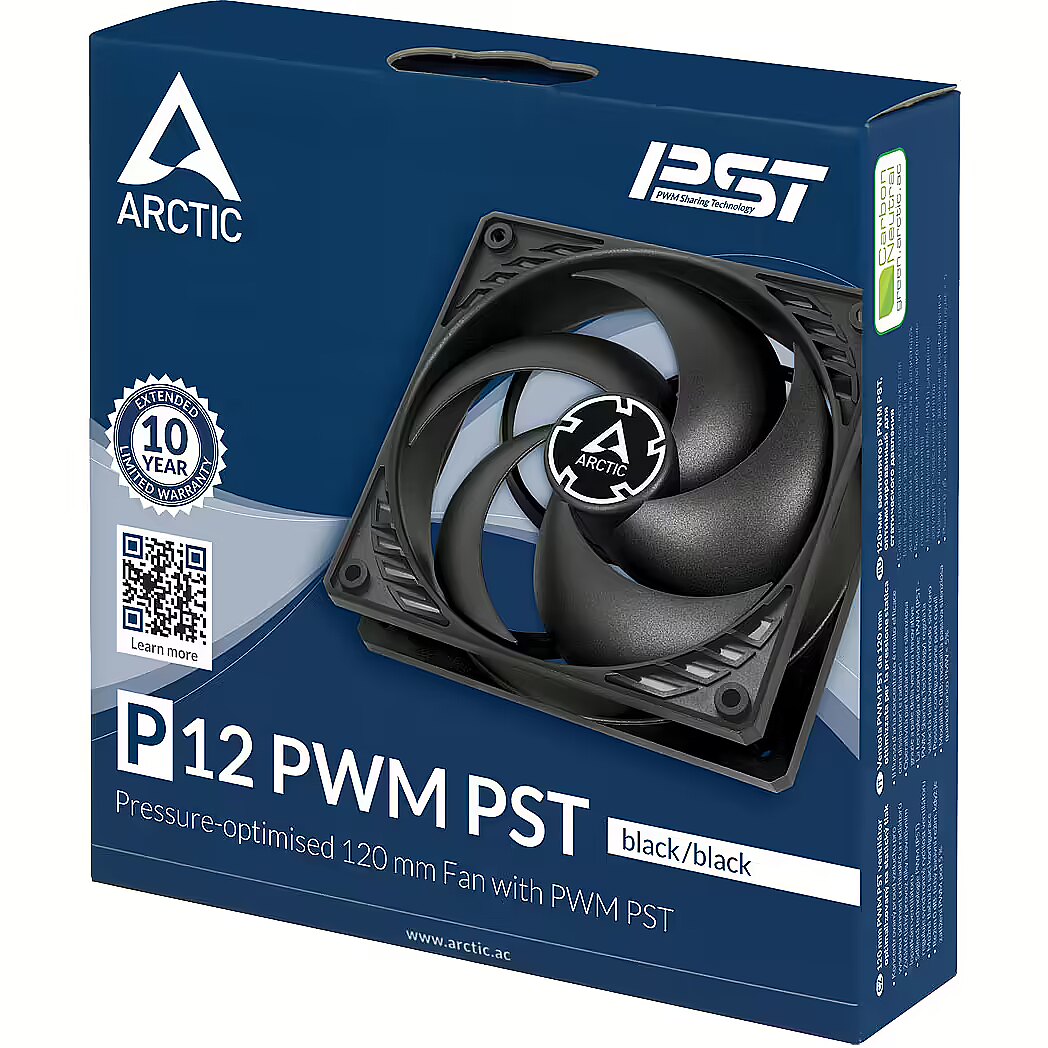

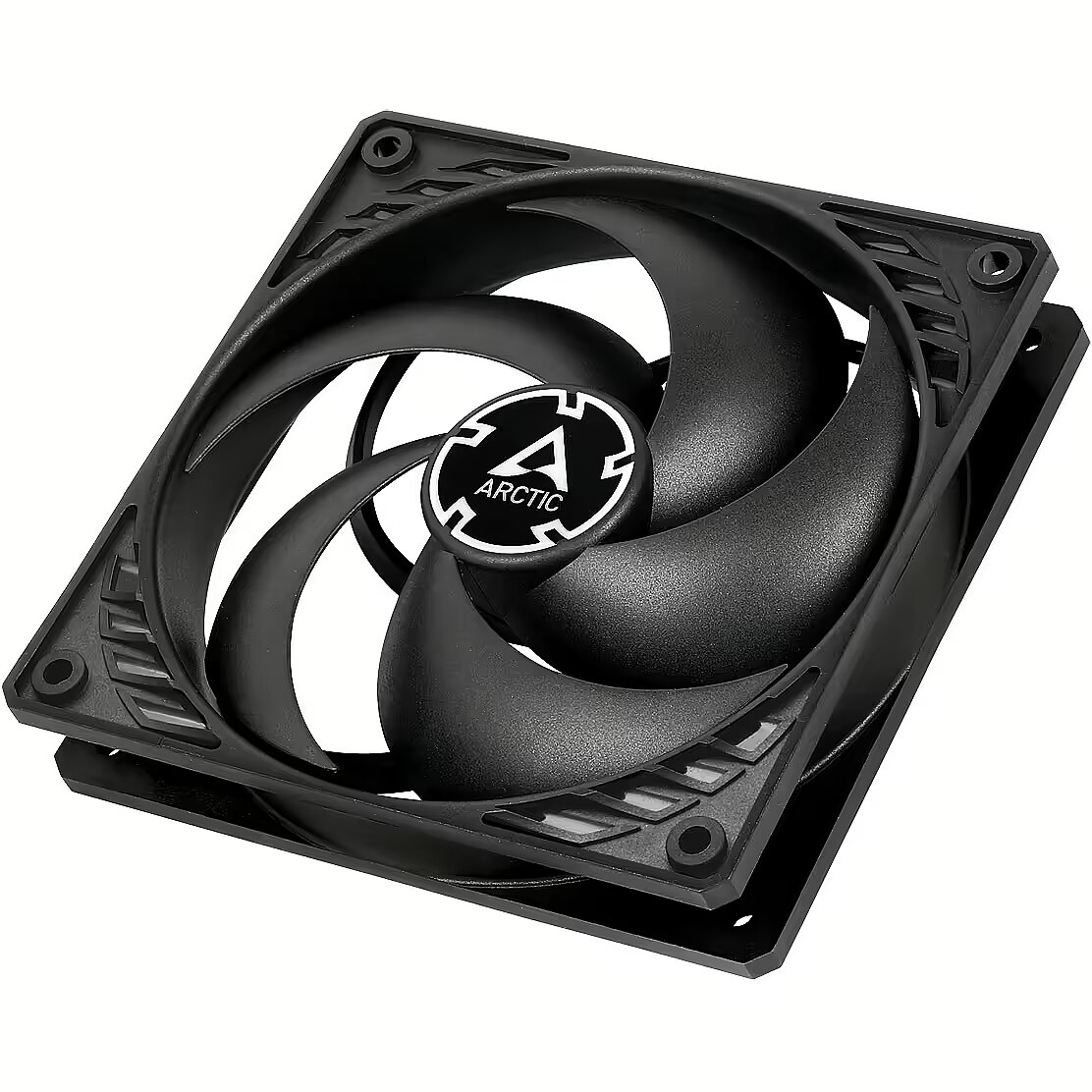

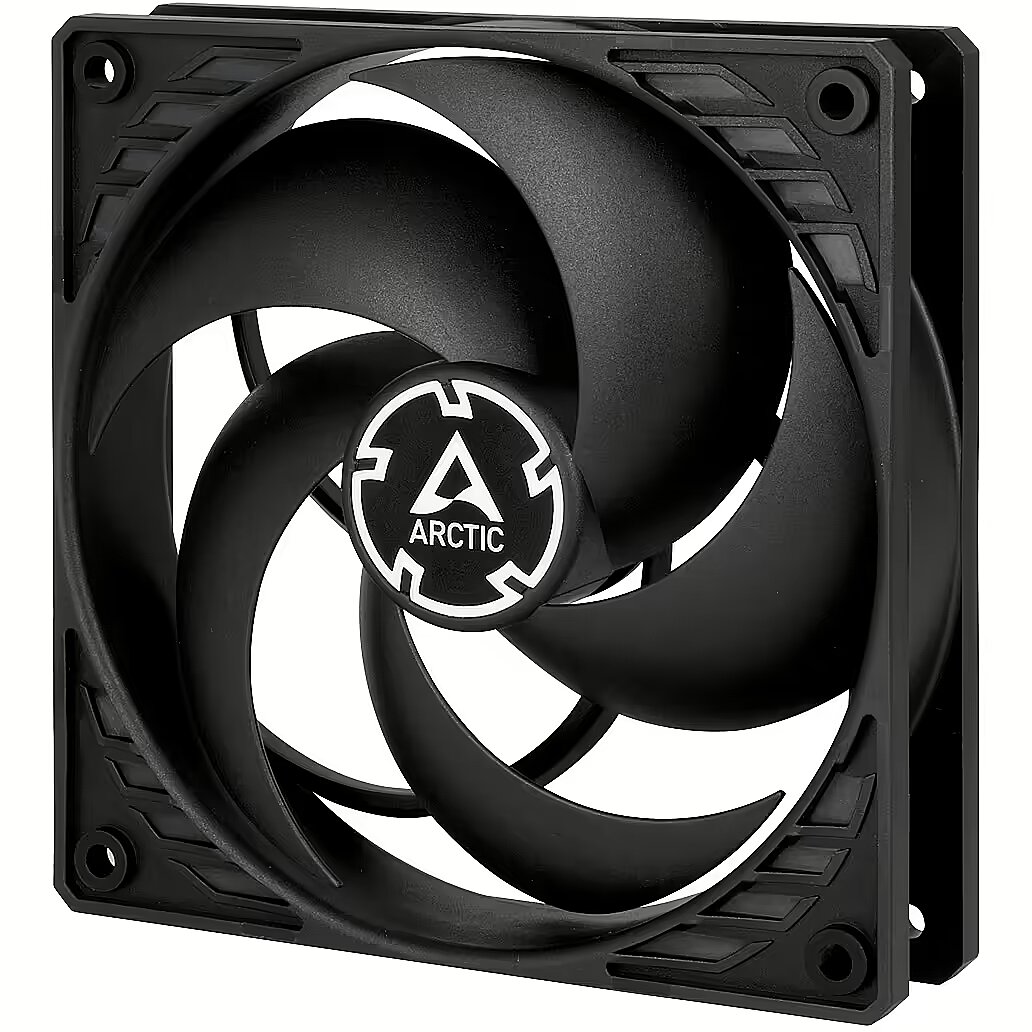

Title - ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
Unit Box Height - 0.03
Unit Box Length - 0.125
Unit Box Width - 0.125
Unit Calculated Volume - 0.000507 cubm
Unit Calculated Weight - 0.178 kg
Units per Shipping Box - 72
URL - https://www.arctic.ac/eu_en/p12-pwm-pst.html
Vendor Homepage - www.arctic.de/en/P12-PWM-PST/ACFAN00120A
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0,17
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 123 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 176 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 145 g
Weight & dimensions - Width - 120 mm
