Be Quiet Pure Wings 3, 140mm, PWM

Airflow Performance - 97.5 m³/h
Brand - be quiet!
BrandPartCode - BL108
Cable length Weight & dimensions - 0.46 m
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - BL108
Compliance certificates Technical details - CE, RoHS, UKCA, WEEE
Connector type - 4-pin
Cooling technology - Air
Depth Weight & dimensions - 140 mm
Description - Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.Optimized fan frame for outstanding performance on radiatorsNewly designed fan blades and re-arranged angle for extraordinary air pressurePure Wings 3 140mm PWM can be operated with very low minimum rpm for very quiet operationLong life rifle bearing gives an operating lifetime of 80,000 hoursIconic, unmistakable and streamlined design that avoids anything unnecessaryProduct conception, design and quality control in Germany
Description - PURE WINGS 3 140mm PWM Efficient, Progressive, Quiet With a low minimum RPM and high maximum speed, the Pure Wings 3 140mm PWM is the perfect PC addition for any application. The fan offers exceptional reliability and ensures long-lasting operation in a gaming setup. Optimized fan frame ensures exceptional performance on coolers Newly designed fan blades and changed angle provide exceptional air pressure Pure Wings 3 140mm PWM can operate at very low minimum speeds, ensuring very quiet operation The long-life rifle bearing guarantees a service life of 80,000 hours Product concept, design and quality control in Germany
Design - Fan connector - 4-pin
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Power management - 4-pin PWM plug
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 132
dimension depth - 30 mm
dimension height - 175 mm

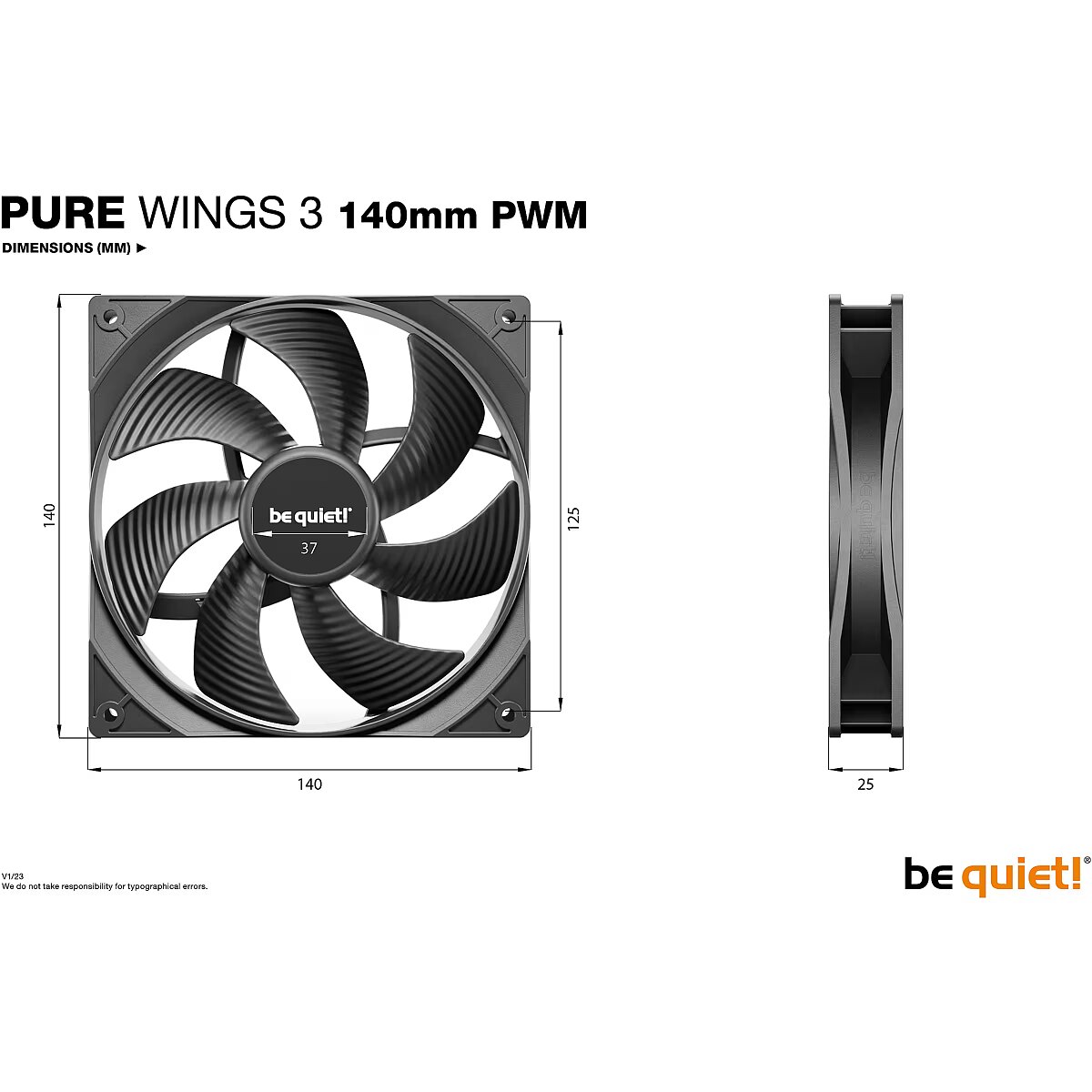

Dimensions - 140 x 140 x 25 mm
dimension weight - 215 g
dimension width - 145 mm
ean - 4260052190807
EAN - 4260052190807
Eans - 4260052190807
EAN_code - 4260052190807
Fan - 14 cm
Fan's mean time to failure (MTTF) Performance - 80000 h
Fan bearing technology Performance - Rifle bearing
Fan connector Design - 4-pin
Fan current Power - 0.06 A
Fan diameter Performance - 14 cm
Fan power consumption Power - 3.6 W
Fan speed (max) - 1200 rpm
GTIN - 4260052190807
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 25 mm
Illumination - No
Logistics data - Products per shipping (inner) case - 72 pc(s)
Logistics data - Shipping (inner) case gross weight - 16.9 kg
Logistics data - Shipping (inner) case height - 37 cm
Logistics data - Shipping (inner) case length - 48.2 cm
Logistics data - Shipping (inner) case width - 39.5 cm
LongDesc - Performant, Progressive, QuietWith low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
LongProductName - Pure Wings 3 140mm PWM, 1200RPM, 57.4 cfm/ 97.5 m3/h
LongSummaryDescription - be quiet! Pure Wings 3 140mm PWM. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1200 RPM, Airflow: 97.5 m³/h, Maximum air pressure: 0.96 mmH2O. Voltage: 5 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BL108
Maximum airflow Performance - 57.4 cfm
Maximum air pressure Performance - 0.96 mmH2O
Model - BL108
Model name - Pure Wings 3 140mm PWM
MPN - BL108
Name - 140mm be quiet! Pure Wings 3 PWM
name - be quiet! Lüfter Pure Wings 3 PWM Lüfter - 140mm
Name - be quiet! PURE WINGS 3 140mm PWM
Name - be quiet! Pure Wings 3 140mm PWM, case fan (black)
name - Pure Wings 3 140 mm PWM
Noise - 21.9 dB
Noise level (high speed) Performance - 21.9 dB
Number of fans - 1
Number of fans Design - 1 fan(s)

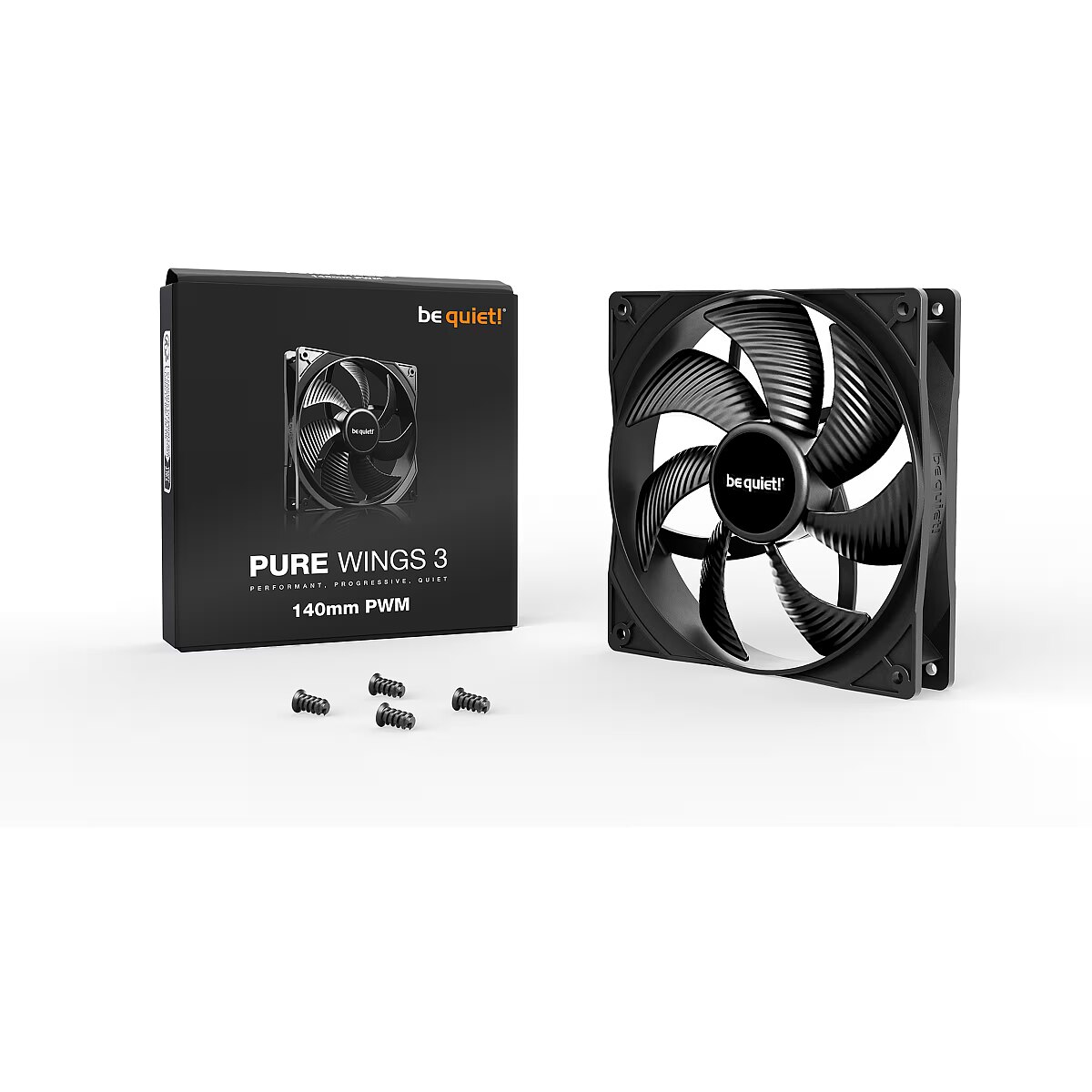

Number of screws Packaging content - 4
Other features -
Package depth Weight & dimensions - 174 mm
Package height Weight & dimensions - 27 mm
Package weight Weight & dimensions - 213 g
Package width Weight & dimensions - 142 mm
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 97.5 m³/h
Performance - Fan's mean time to failure (MTTF) - 80000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 57.4 cfm
Performance - Maximum air pressure - 0.96 mmH2O
Performance - Noise level (high speed) - 21,9 dB
Performance - Noise level (high speed) - 21.9 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1200 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.06 A
Power - Fan power consumption - 3.6 W
Power - Rated voltage - 12 V
Power - Voltage - 5 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL108
ProducerCode - BL108
Product colour Design - Black
productName - Fan Be Quiet! Pure Wings 3 140mm PWM
ProductName - Pure Wings 3 140mm PWM
productSize - Normal
Products per shipping (inner) case Logistics data - 72 pc(s)
Pulse-width modulation (PWM) support Performance - Yes
Quantity per pack Performance - 1 pc(s)
Rated voltage Power - 12 V
Rotational speed (max) Performance - 1200 RPM
Screws included Packaging content - Yes
Shipping (inner) case gross weight Logistics data - 16.9 kg
Shipping (inner) case height Logistics data - 37 cm
Shipping (inner) case length Logistics data - 48.2 cm
Shipping (inner) case width Logistics data - 39.5 cm
ShortDescription -
ShortSummaryDescription - be quiet! Pure Wings 3 140mm PWM, Fan, 14 cm, 1200 RPM, 97.5 m³/h, Black
sizeX - 142
sizeY - 173
sizeZ - 27
Suitable location Performance - Computer case
Summary - be quiet! Pure Wings 3 140mm PWM. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1200 RPM, Airflow: 97.5 m³/h, Maximum air pressure: 0.96 mmH2O. Voltage: 5 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Sustainability certificates Technical details - Triman
Sustainability compliance Technical details - Yes
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Wings 3 140mm PWM Computer case Fan 14 cm Black 1 pc(s)
Type of cooling - Active
Type Performance - Fan
Unit Box Height - 0.145
Unit Box Length - 0.15
Unit Box Width - 0.025
Unit Calculated Volume - 0.000889 cubm
Unit Calculated Weight - 0.243 kg
Units per Shipping Box - 72
URL - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
Vendor Homepage - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
vendpn - BL108
Voltage Power - 5 - 13.2 V
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,21
Weight - 0.2
Weight - 180 g
weight - 210
Weight & dimensions - Cable length - 0.46 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 174 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 213 g
Weight & dimensions - Package width - 142 mm
Weight & dimensions - Weight - 180 g
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 180 g
Width Weight & dimensions - 140 mm
