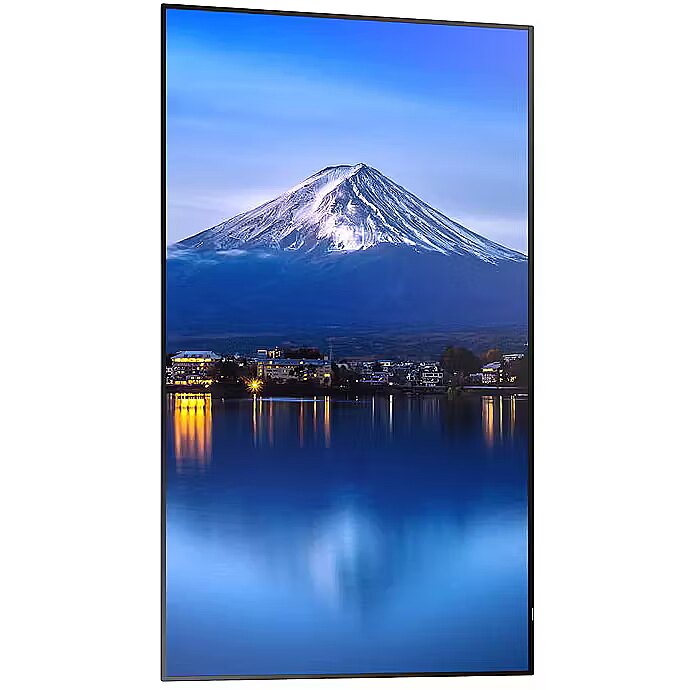

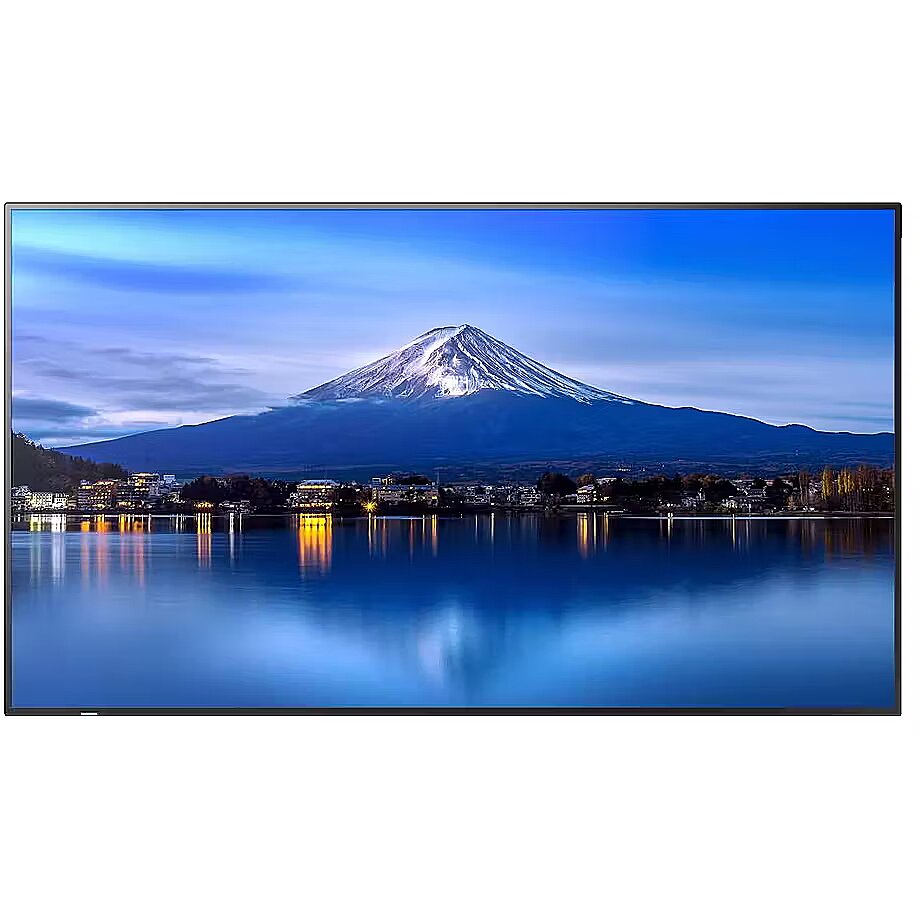

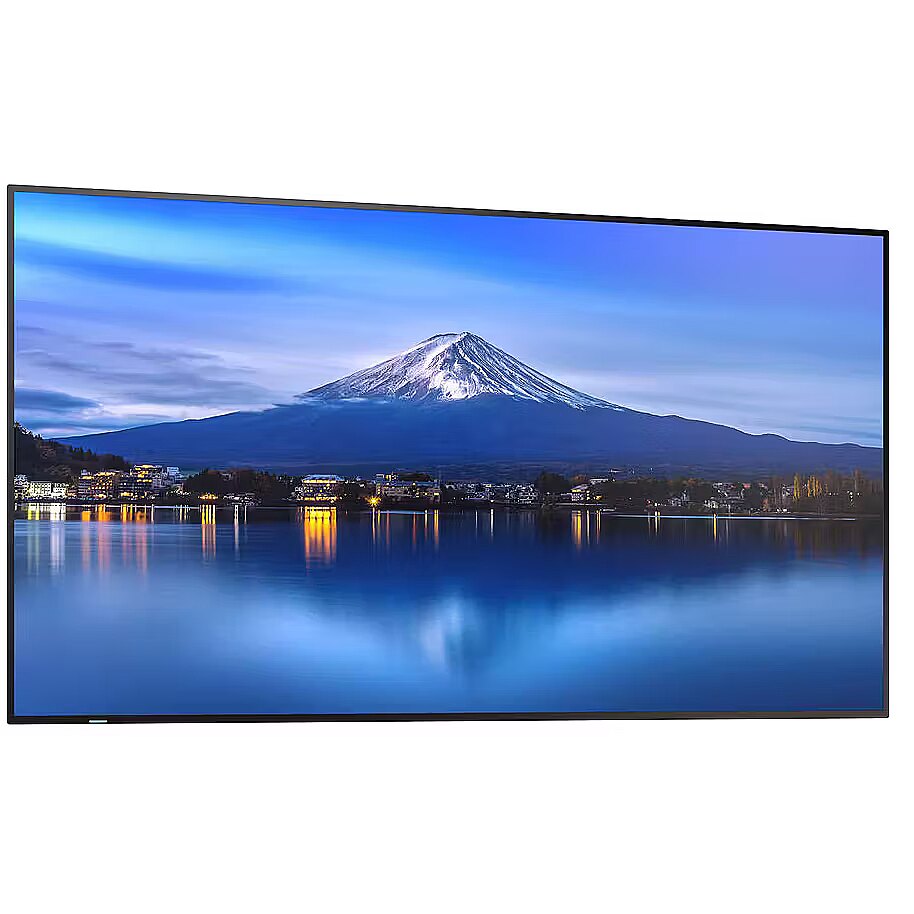

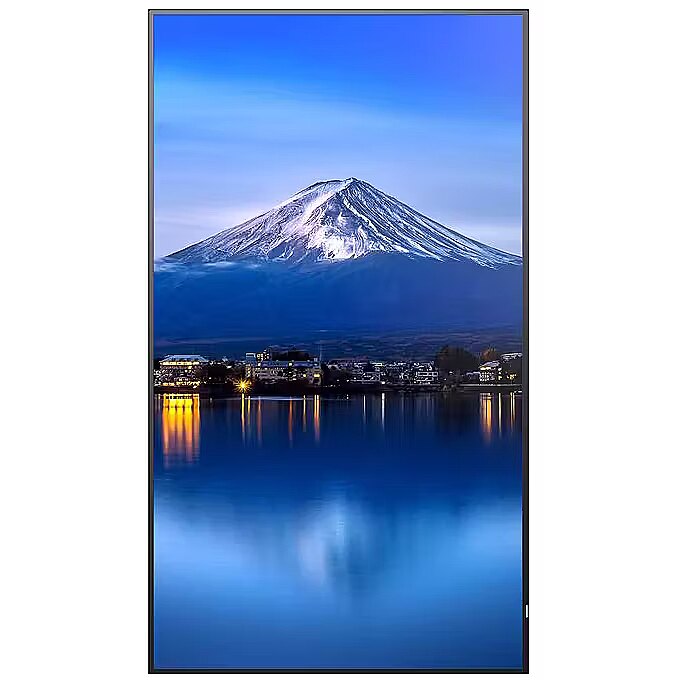

Sharp P506 50IN LFD UHD 700CD/M2 D-LE BACKLIGHT 24/7 PROOF SDM SLOT CM

Accessories included - VGA cable; Power cable; Remote control
ARTIKEL1 - P506 50IN LFD UHD 700CD/M2 D-LE
ARTIKEL2 - BACKLIGHT 24/7 PROOF SDM SLOT CM
Aspect ratio - 16:9
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 10 W
Auto Pivot - No
Bluetooth - No
Brand - Sharp
BrandPartCode - PNP506
Brightness - 350 cd/m²
Category - Signage Displays
Certificates - C-tick
Certificates - CE
Certificates - Energy Star
Certificates - FCC Class B
Certificates - PSB
Certificates - REACH
Certificates - RoHS
Certificates - UL/C-UL or CSA
Color - Black
Depth - 77 mm
Description - Welcome to the world of professional visual information
In a world full of digital technologies, visual information is no longer static. Communicating information through digital posters and signage has become ubiquitous. The E506 monitor offers a low total cost of ownership (TCO) with high reliability, allowing you to reach new heights of business growth. The 50" screen perfectly conveys content to viewers standing close to you. The integrated media player allows for easy use for information and advertising directly from a USB drive, and the built-in auto-start scheduler allows content to be automatically played at a pre-set time immediately after installation. This 50-inch monitor, the 6th generation of our E Series, is ideal for information and advertising in retail, restaurants, manufacturing, and engineering applications.
Benefits Reduced installation and operating costs. The LED-backlit monitor is highly energy-efficient, ensuring lower power consumption and a longer backlight life. With its slim design and built-in speakers, the aesthetically pleasing design is visually appealing and allows for simple, cost-effective installation. Future-proof connectivity: The device features a variety of industry-standard digital and analog inputs, ensuring flexible integration with AV infrastructures. Seamless Content Playback: The built-in USB media player supports a variety of image and video file formats, ensuring seamless content playback using a standalone device. Professional Integration: Enhanced with basic RS232 functionality, infrared support, and a key lock, as well as an S/PDIF digital audio output, the monitor can be easily integrated into professional systems used in public spaces.
Design - Bezel width (bottom) - 1.4 cm
Design - Bezel width (side) - 1.1 cm
Design - Bezel width (top) - 1.1 cm
Design - Panel mounting interface - 300 x 300 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 190 mm
dimension height - 1230 mm
dimension weight - 22500 g
dimension width - 780 mm
Display - Active display area (W x H) - 1095 x 616 mm
Display - Contrast ratio (typical) - 8000:1
Display - Display brightness - 700 cd/m²
Display - Display diagonal - 127 cm (50")
Display - Display diagonal (metric) - 126 cm
Display - Display number of colours - 1.073 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Haze rate - 25%
Display - Horizontal scan range - 15 - 135 kHz
Display - LED backlight - Yes
Display - LED backlighting type - Direct-LED
Display - Native aspect ratio - 16:9
Display - Panel type - VA
Display - Pixel pitch - 0.285 x 0.285 mm
Display - Response time - 8 ms
Display - Vertical scan range - 23 - 76 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
ean - 4550556131117
EANCode - 4550556131117
Energy class - G
Energy label - Pobierz
Features - Wall mountable - Yes
Gewicht - 23
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4550556131117
guarantee - 36
guarantee_type - external
Height - 646 mm
Height adjustment - No
HERSTELLER - SHARP
HSTNUMMER - PNP506
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x SPDIF out
I/O connectors - 2 x RCA
I/O connectors - 3 x HDMI
Kensington Security Slot - Nie
LongDesc - When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards. Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
LongProductName - 50", 3840 x 2160, 16:9, 700cd/m², 8000:1, 8 ms, VESA 300 x 300, 1122x67x645 mm, 18 kg
LongSummaryDescription - Sharp P506. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m². Operating hours (hours/days): 24/7. Product colour: Black
Matrix type - S-PVA
Microphone - Nie
Model - P506
name - Monitor MultiSync P506 50 inches UHD 700cd/m2 24/7
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Cables included - HDMI, Power
Packaging content - Remote control included - Yes
Packaging data - Package depth - 188 mm
Packaging data - Package height - 785 mm
Packaging data - Package weight - 23 kg
Packaging data - Package width - 1245 mm
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - Consumer Electronics Control (CEC) - Yes
Ports & interfaces - DisplayPorts out - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 85 kWh
Power - Energy efficiency class (SDR) - G
Power - Power consumption (standby) - 2 W
Power - Power consumption (typical) - 95 W
Power consumption - 79 W
producer - Sharp
ProductName - P506
Refresh rate - 60 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 8 ms
Screen size (diag.) - 50"
Sensors - Eco sensor - Yes
Sensors - Temperature sensor - Yes
ShortSummaryDescription - Sharp P506, Digital signage flat panel, 127 cm (50"), 3840 x 2160 pixels, 24/7
Speakers built-in - No
Static contrast - 3 000:1
Stck_Kart - 1
Stck_Pal - 0
Storno - N
Technical details - Compliance certificates - Electromagnetic Compatibility (EMC), UKCA, RoHS, UL, cUL, CSA, Federal Communications Commission (FCC), CE, REACH
Title - Sharp P506 Digital signage flat panel 127 cm (50") 700 cd/m² Black 24/7
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.sharp.eu/sharp-multisyncr-p506
vendpn - PNP506
VESA - 400 x 200
Viewing angle, horizontal - 176 °
Viewing angle, vertical - 176 °
Visible area, horizontal - 1096 mm
Visible area, vertical - 616 mm
WarrantyInfo - 3 years
Web camera - None
Weight - 12.88 kg
Weight & dimensions - Display depth - 67 mm
Weight & dimensions - Display height - 645 mm
Weight & dimensions - Display weight - 18 kg
Weight & dimensions - Display width - 1122 mm
Width - 1123 mm
WiFi - No
