ARTIKEL1 - TW3226AS-B3P 32IN ANDROID OS
ARTIKEL2 - 1920X1080 430CD/M HDMI-IN 3X USB
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 10 W
Brand - iiyama
BrandPartCode - TW3226AS-B3P
Breite - 0
Category - Signage Displays
Certificates - Certification - CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Computer system - Built-in processor - Yes
Computer system - Google applications - Google Chrome, Gmail, Google Calendar
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - Mali-G52 MC3
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A53+Cortex-A72
Computer system - Processor cores - 8
Computer system - Processor family - ARM Rockchip
Computer system - Processor manufacturer - ARM
Computer system - Processor model - Rockchip RK3576
Design - Bezel colour - Black
Design - Orientation - Horizontal/Vertical

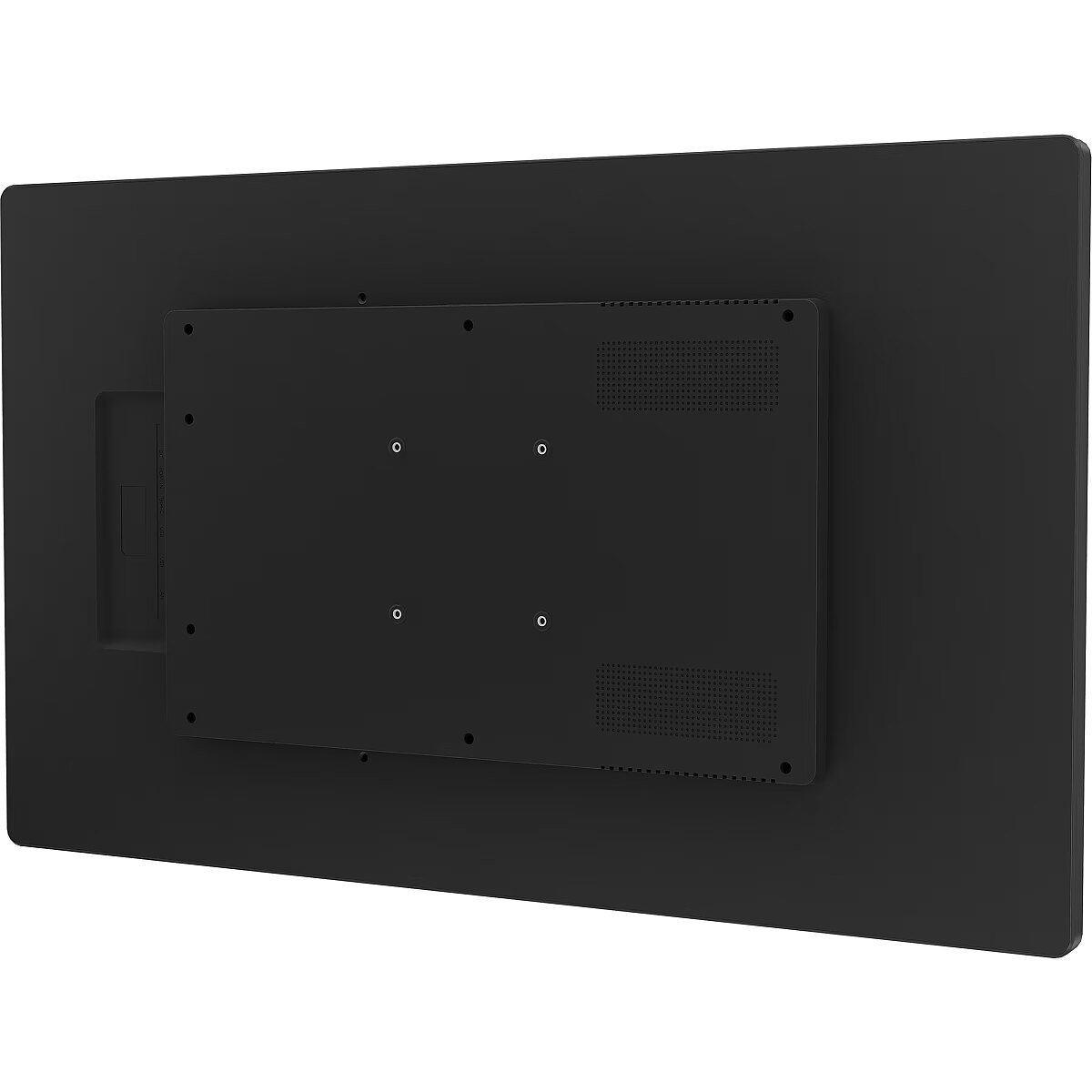

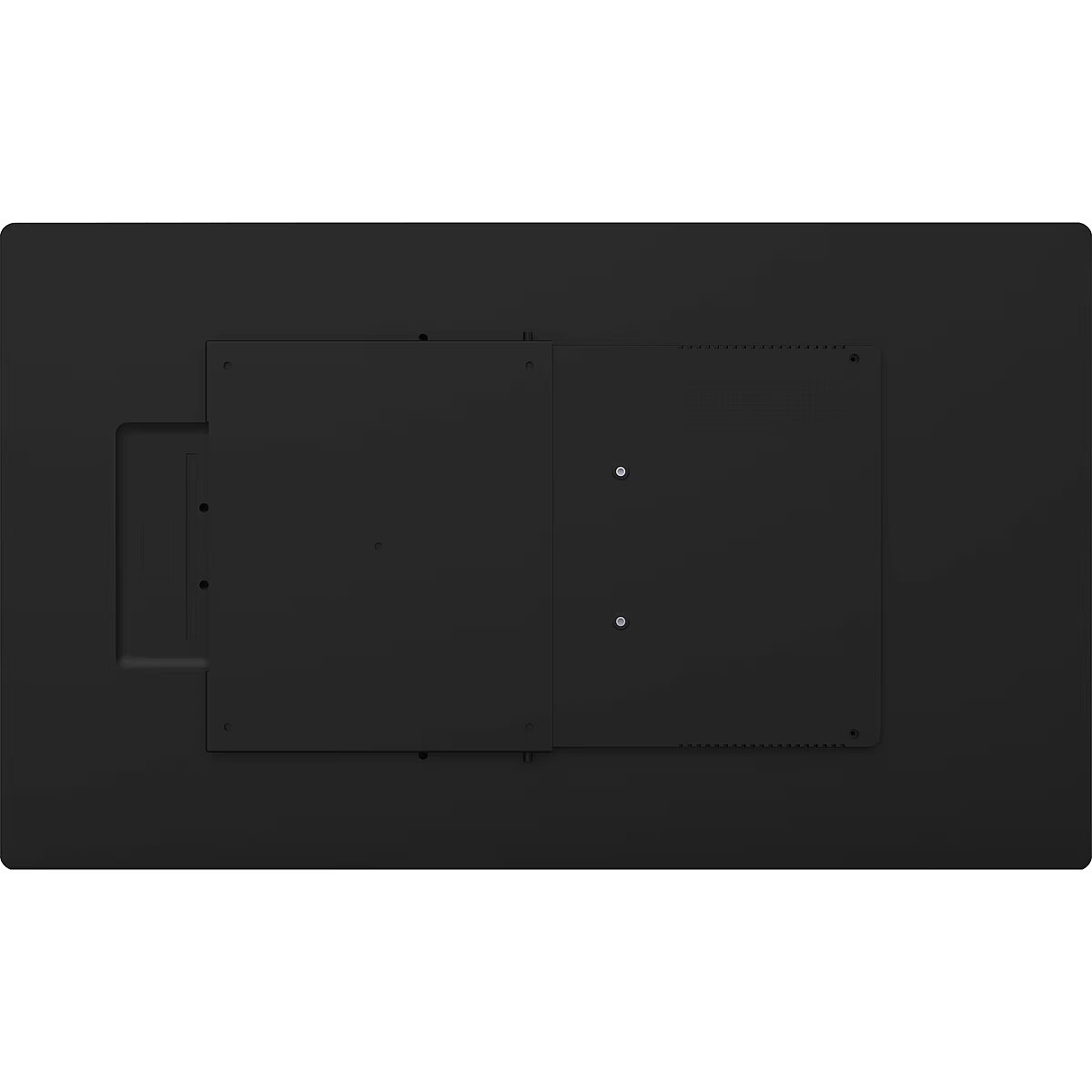

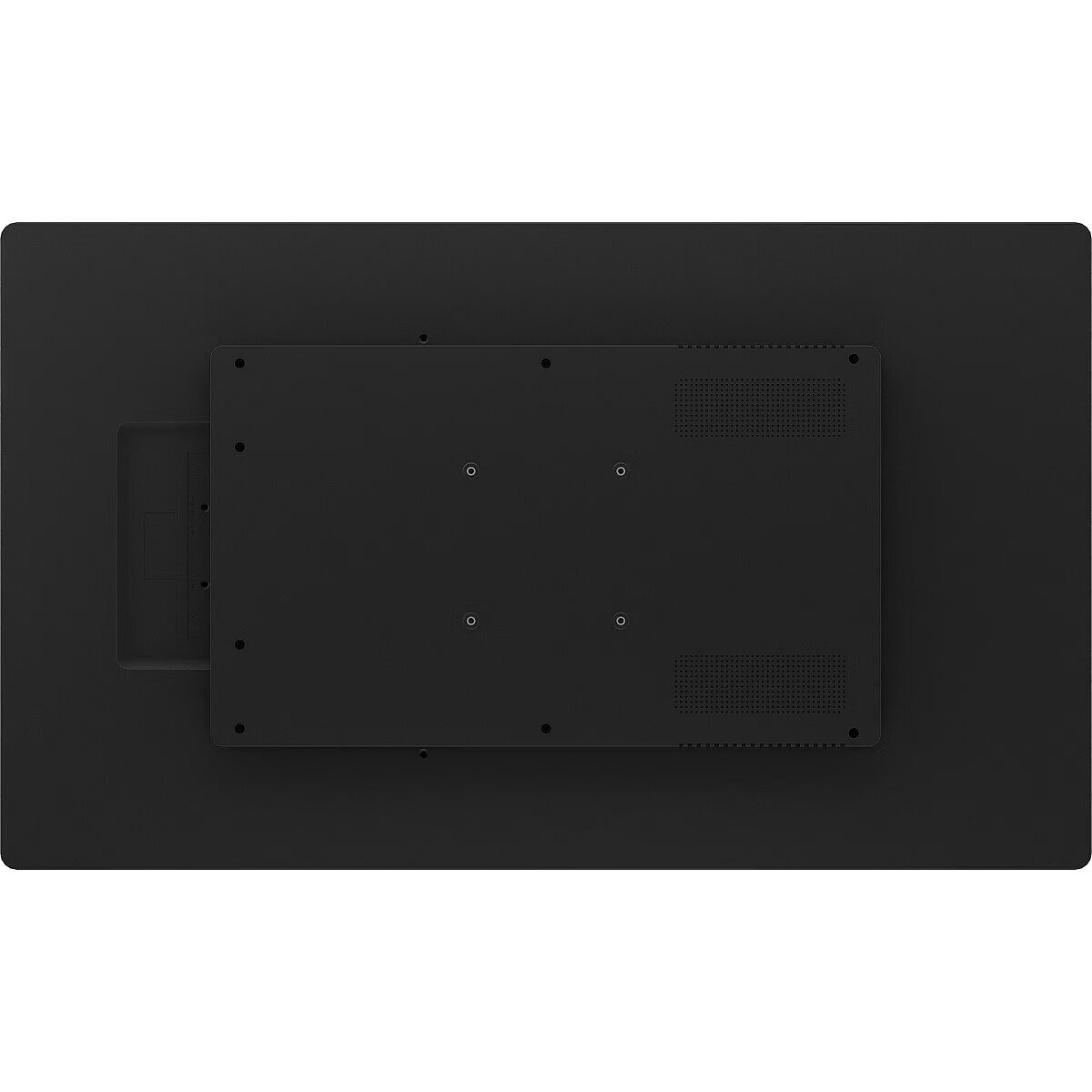

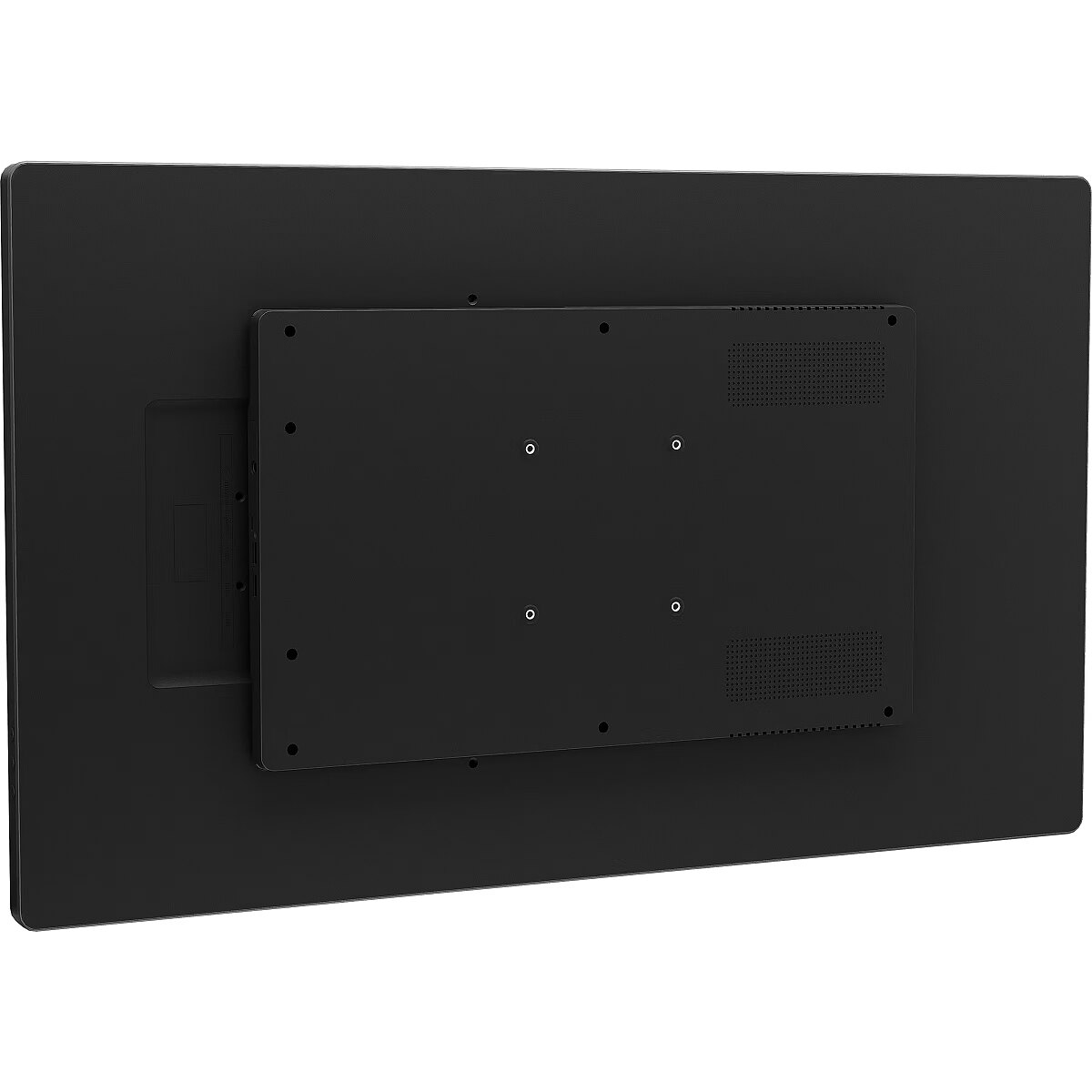

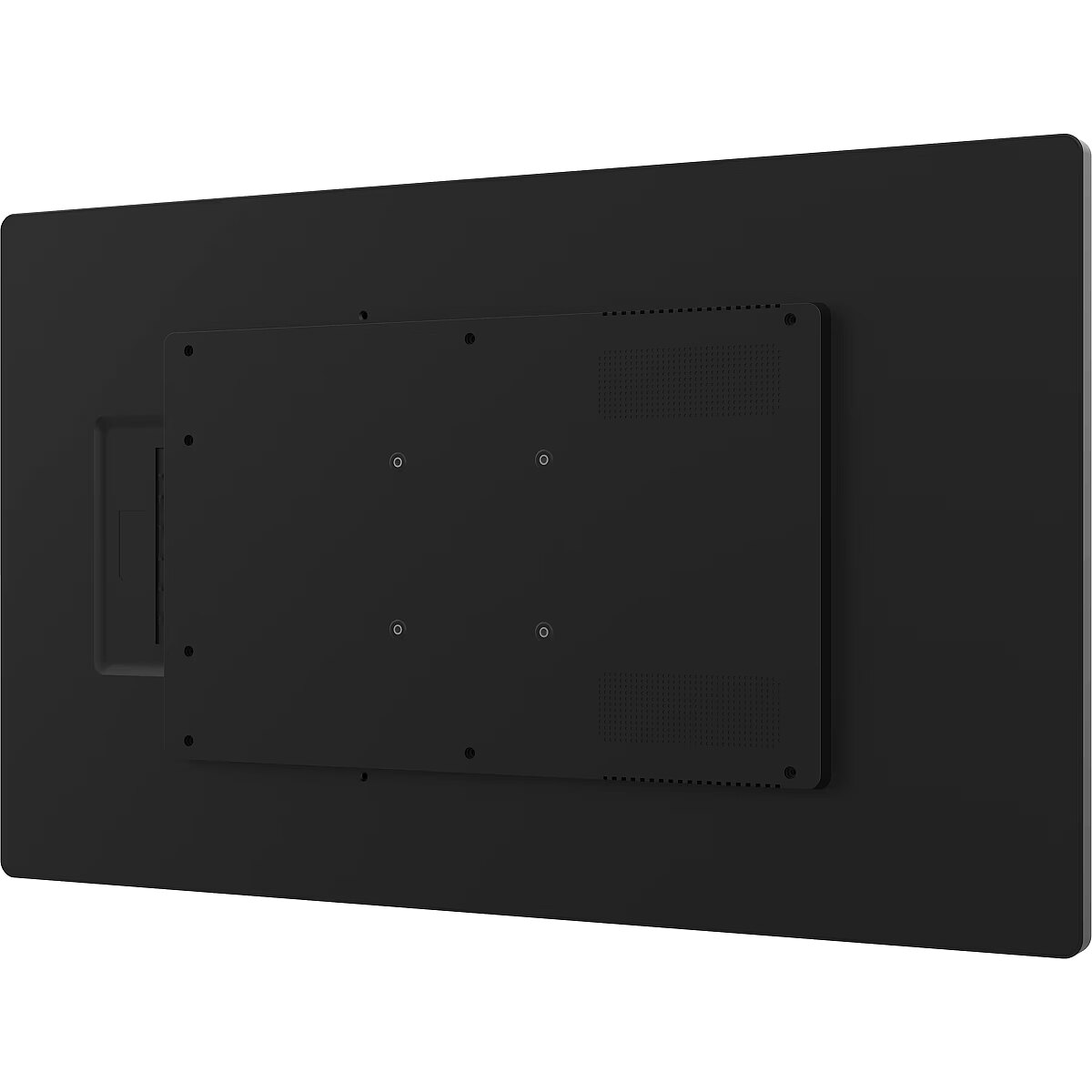

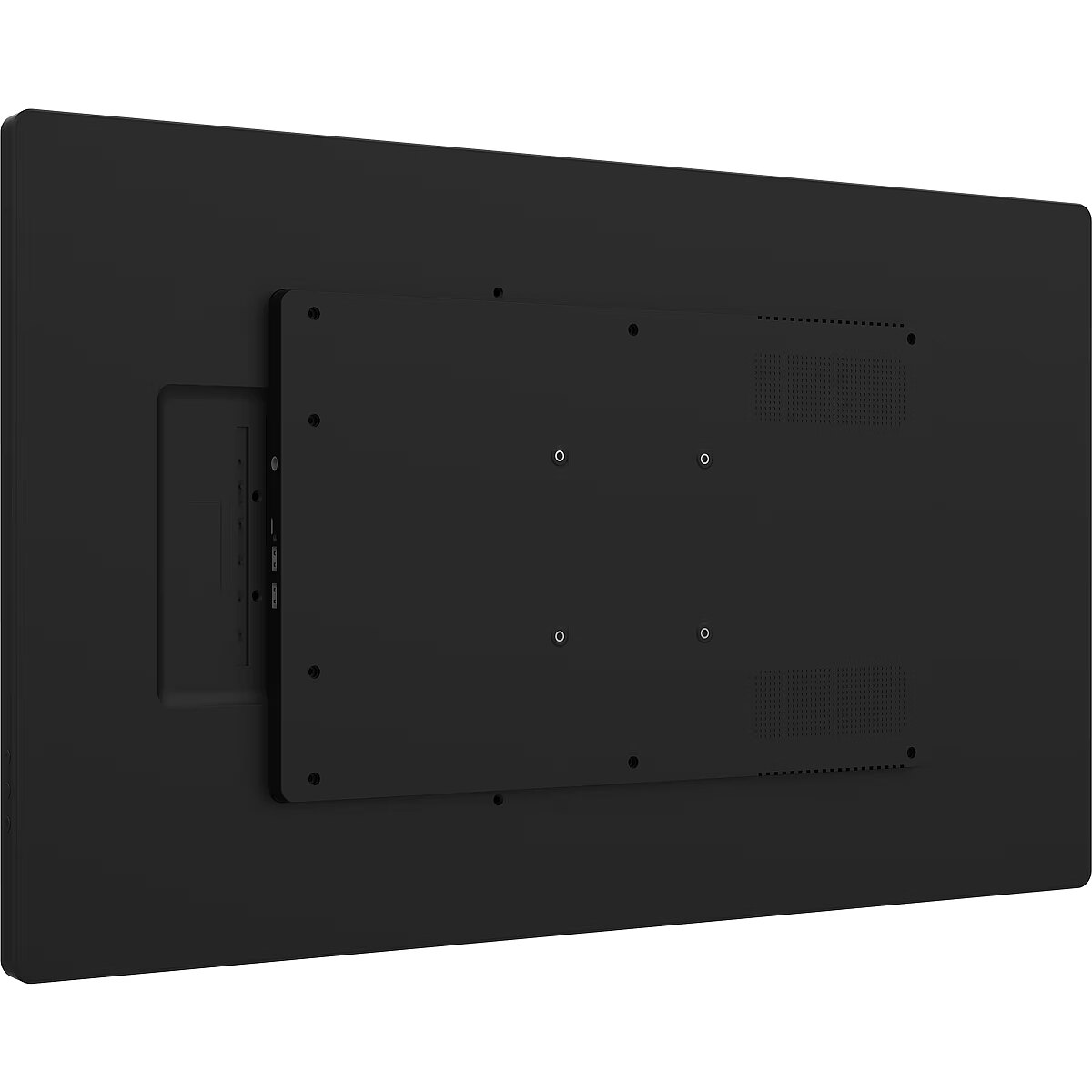

Design - Panel mounting interface - 100 x 100 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Kiosk design
Design - VESA mounting - Yes
Display - Active display area (W x H) - 698.4 x 392.8 mm
Display - Colour depth - 8 bit
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness - 430 cd/m²
Display - Display diagonal - 80 cm (31.5")
Display - Display diagonal (metric) - 80.1 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Multi-touch - Yes
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - VA
Display - Pixel pitch - 0.3637 x 0.3637 mm
Display - Response time - 8 ms
Display - Surface hardness - 3H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570125708
Gewicht - 12.08
GRUPPE1 - Displays
GRUPPE2 - Led Small Format
GTIN - 4948570125708
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TW3226AS-B3P
Laenge - 0

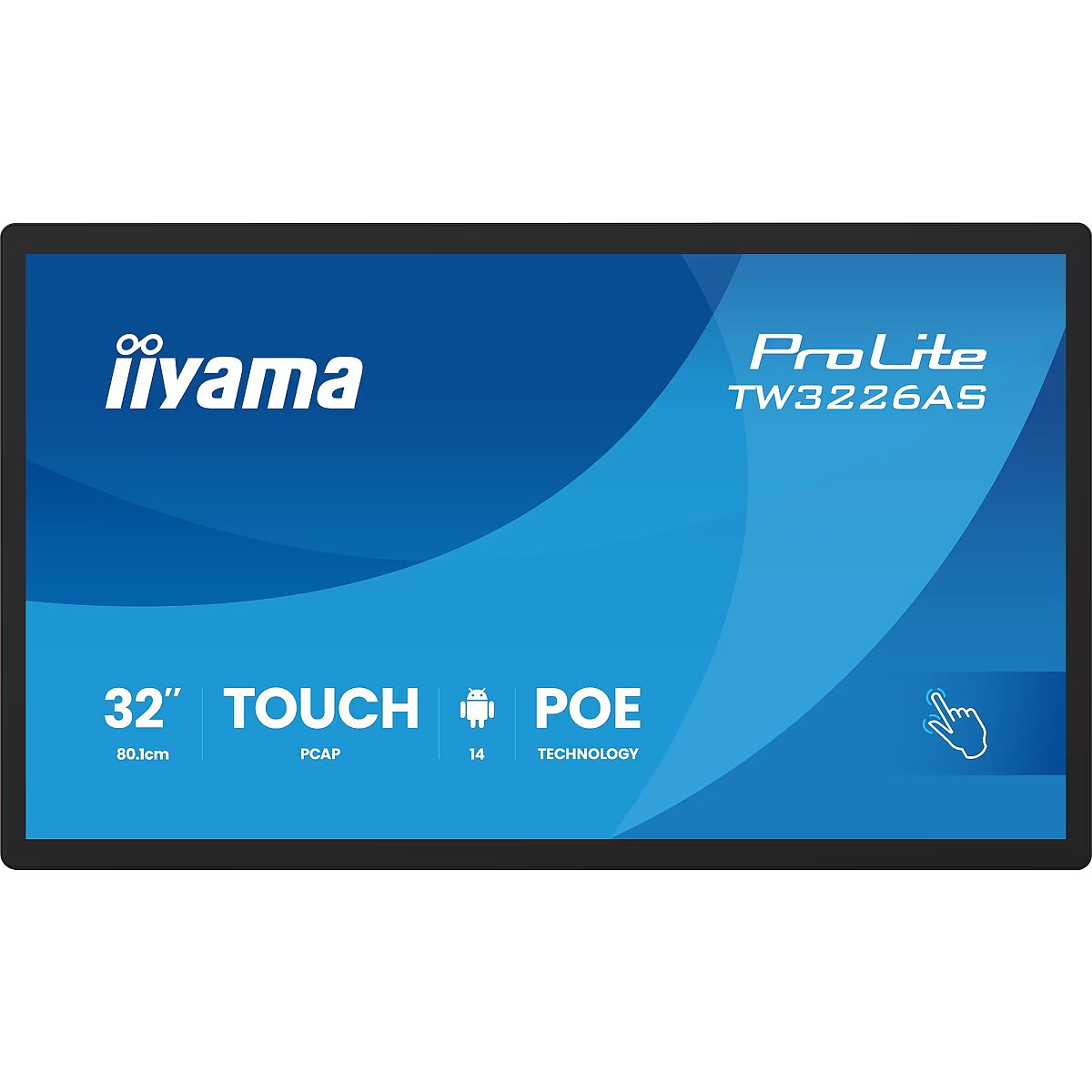

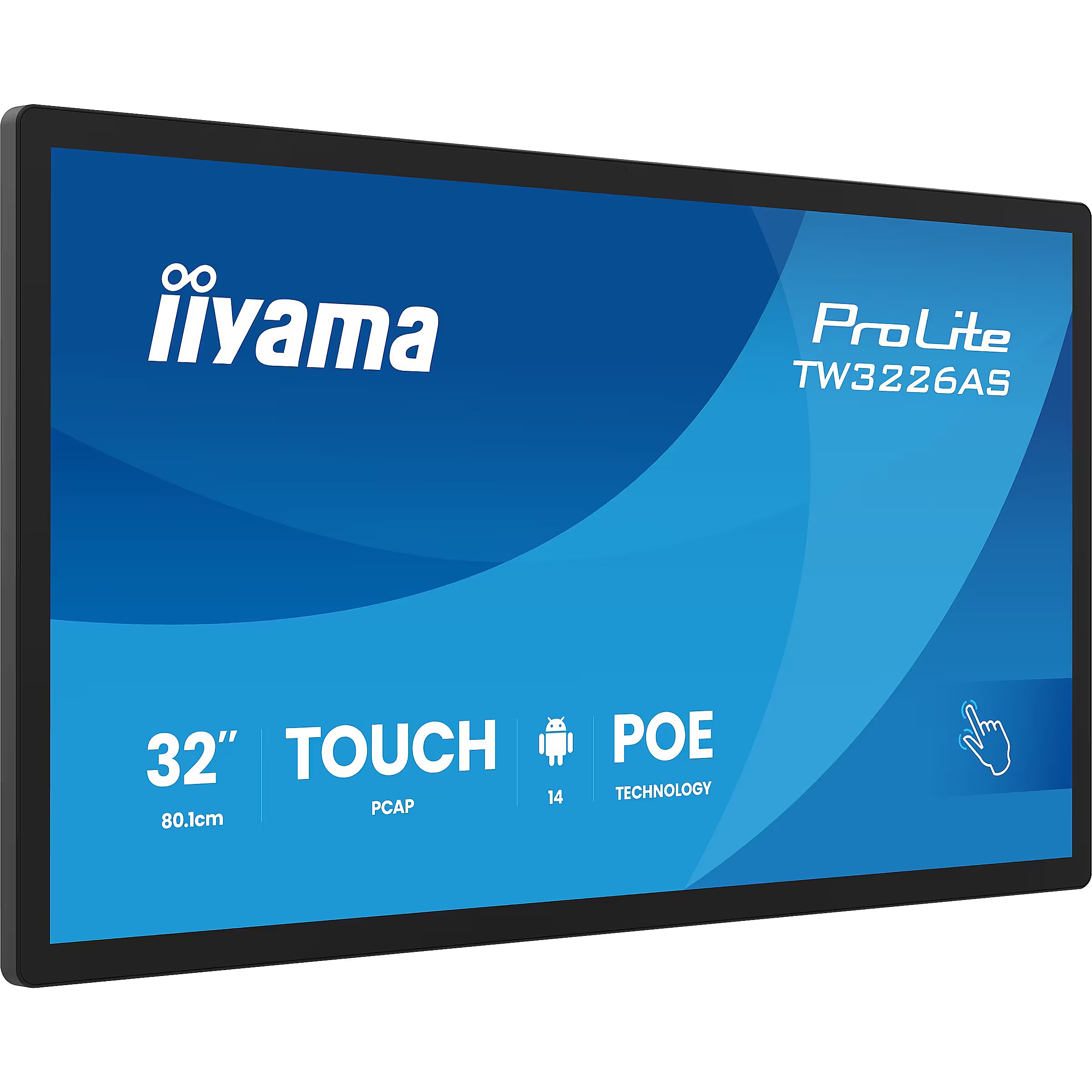

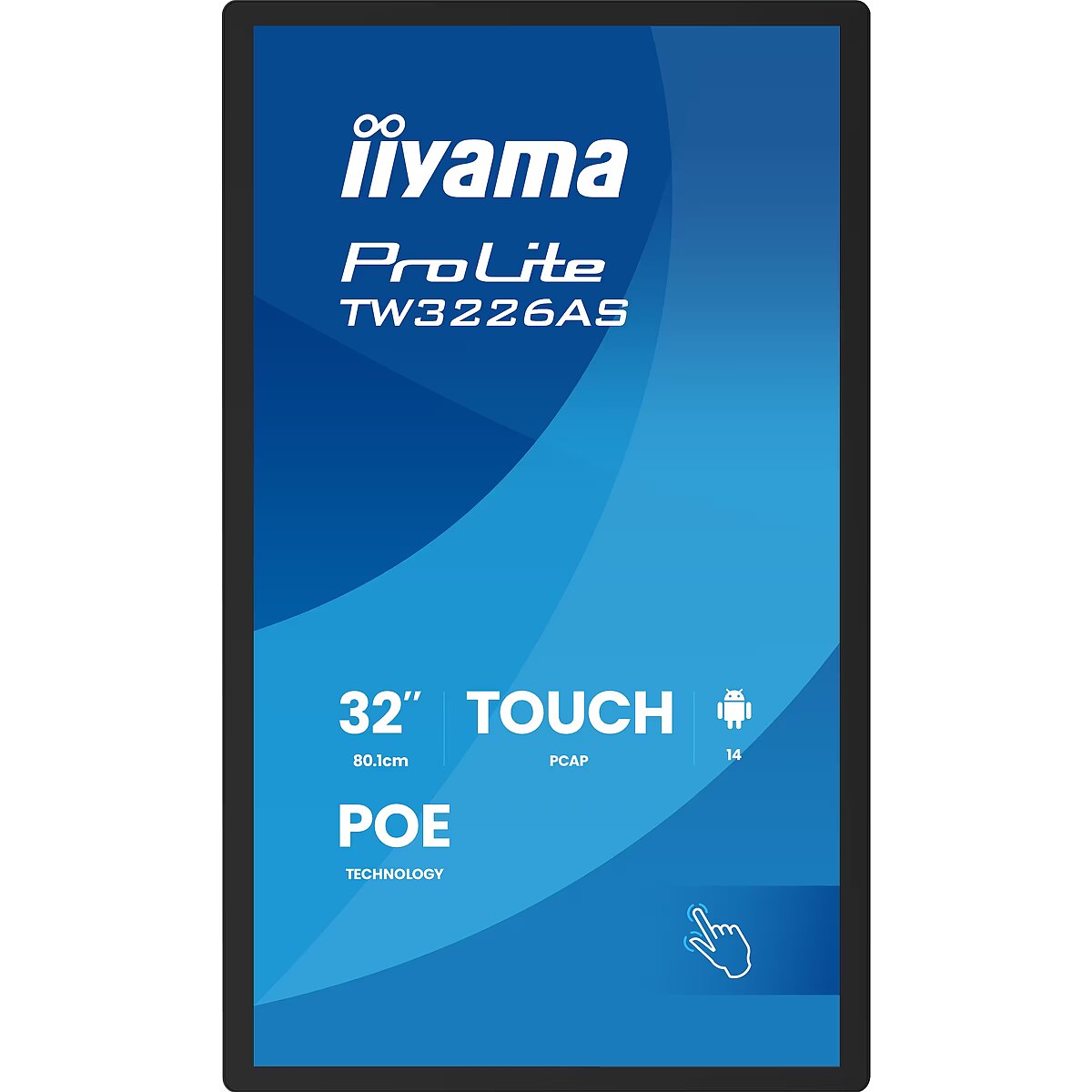

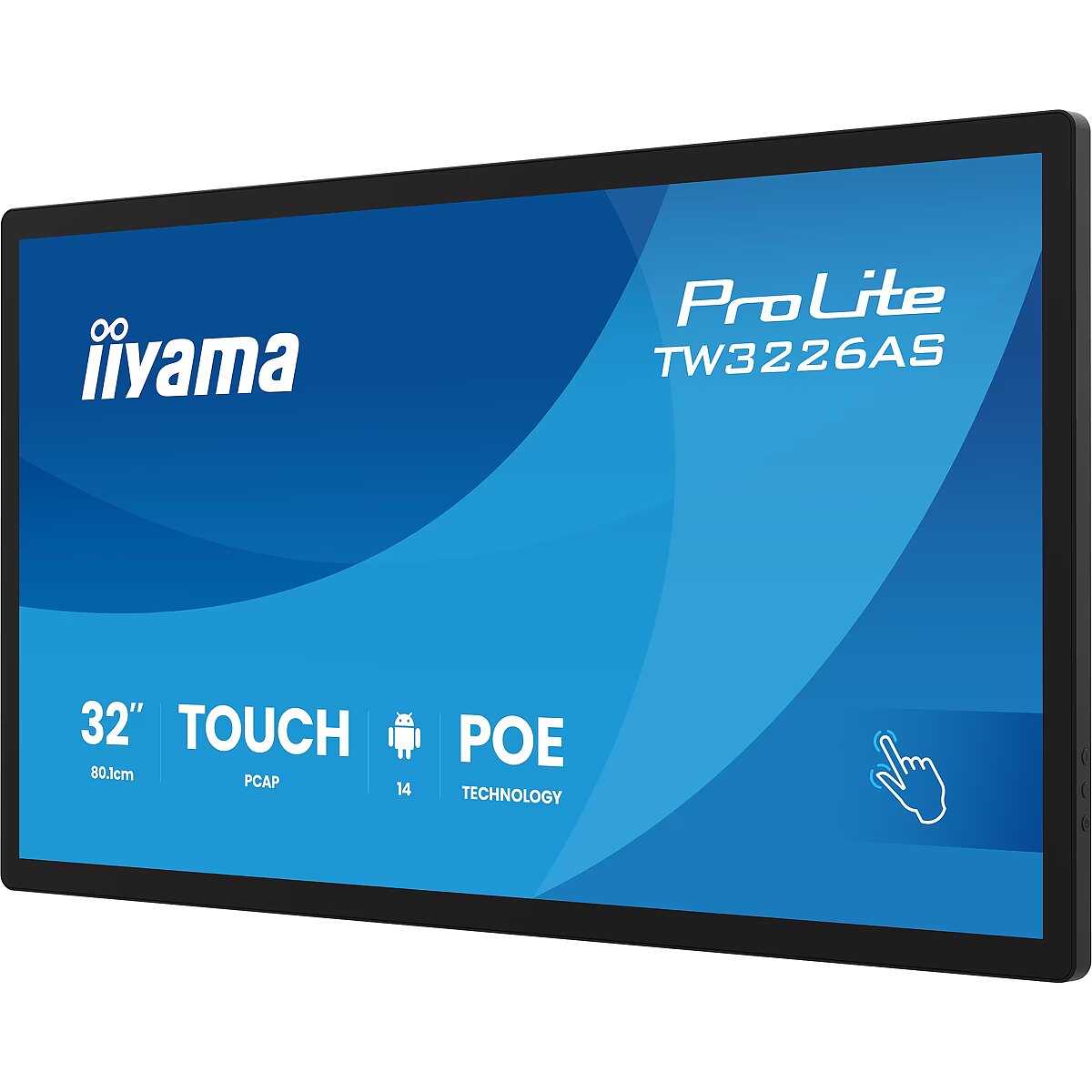

LongDesc - The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
LongProductName - 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²
LongSummaryDescription - iiyama TW3226AS-B3P. Product design: Kiosk design. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 430 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Other features - AC adapter included - Yes
Other features - Audio output - Mini jack
Other features - Bluetooth - Yes
Other features - Bluetooth version - 5.3
Other features - Brightness - 430 cd/m²
Other features - Cable management - Yes
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Power supply type - External
Other features - Quick start guide - Yes
Other features - Viewable size, horizontal - 69.8 cm
Other features - Viewable size, vertical - 39.3 cm
Packaging content - Cables included - AC
Packaging content - Mounting kit - Yes
Packaging content - Power adapter included - Yes
Packaging data - Package depth - 126 mm
Packaging data - Package height - 508 mm
Packaging data - Package weight - 12.4 kg
Packaging data - Package width - 833 mm
Performance - HDCP - Yes
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal

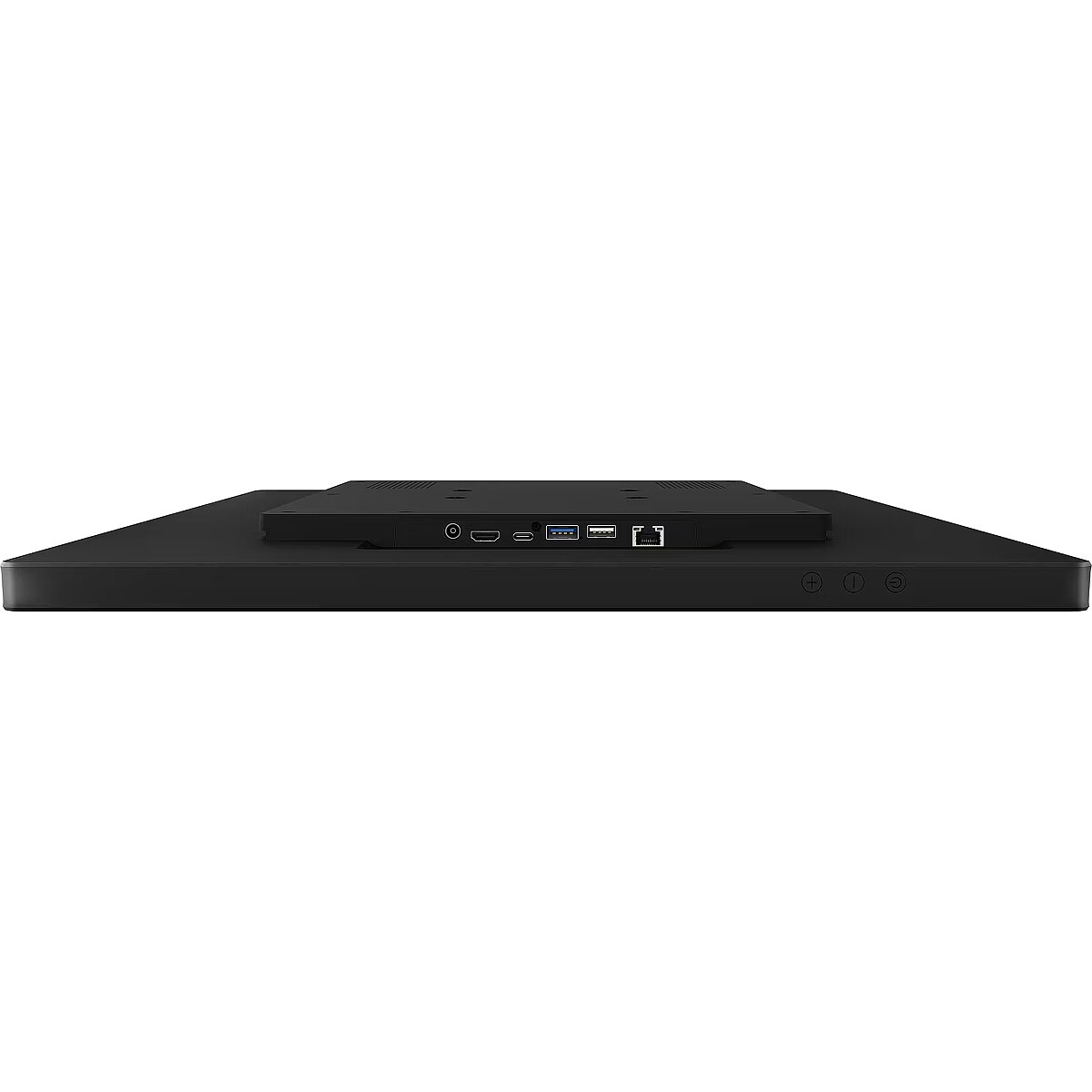

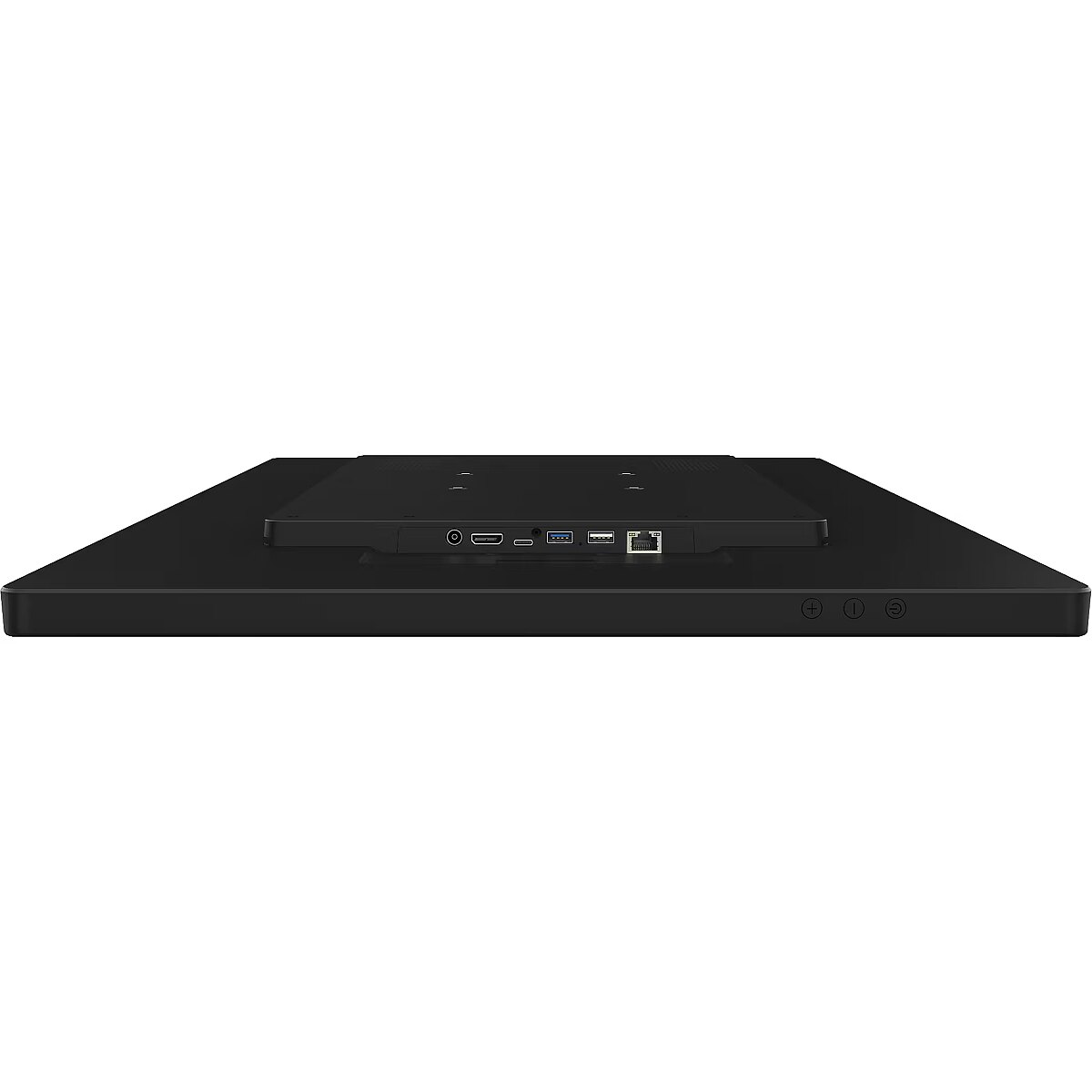

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB connector type - USB Type-A, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 3
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 36.34 W
ProductName - TW3226AS-B3P
ShortSummaryDescription - iiyama TW3226AS-B3P, Kiosk design, 80 cm (31.5"), LED, 1920 x 1080 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 8
Storno - Y
Technical details - Compliance certificates - CE, EAC, REACH, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - ErP
Technical details - User controls - Power switch, volume/ button +, volume/ button -
Title - iiyama TW3226AS-B3P Signage Display Kiosk design 80 cm (31.5") LED Wi-Fi 430 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth - 35 mm
Weight & dimensions - Depth (with stand) - 35 mm
Weight & dimensions - Display depth - 35 mm
Weight & dimensions - Display height - 436 mm
Weight & dimensions - Display weight - 7.7 kg
Weight & dimensions - Display width - 735 mm
Weight & dimensions - Height - 436 mm
Weight & dimensions - Height (with stand) - 436 mm
Weight & dimensions - Weight - 7.7 kg
Weight & dimensions - Weight (with stand) - 7.7 kg
Weight & dimensions - Width - 735 mm
Weight & dimensions - Width (with stand) - 735 mm
